- HIGH OUTPUT POWER Delivers up to 400 amps of charging power with approximately 200 amps at idle, making it ideal for high-performance car audio systems and demanding electrical setups
- 6 PHASE HAIRPIN TECHNOLOGY Built with advanced 6-phase hairpin stator design for improved efficiency, durability, and consistent output under heavy load conditions.
- CUSTOM FITMENT DESIGN Designed for custom applications only. Includes universal adapter hardware to assist with installation across a wide range of brackets and setups.
- ADJUSTABLE PULLEY SETUP Equipped with a 46mm 9-rib pulley to allow fine-tuning of belt alignment, critical for custom builds where precision fitment is required.
- HIGH VOLTAGE CAPABLE Operates at 14.6V–15V (temperature based). Optional voltage boosting harnesses available separately for output up to 16+ volts.

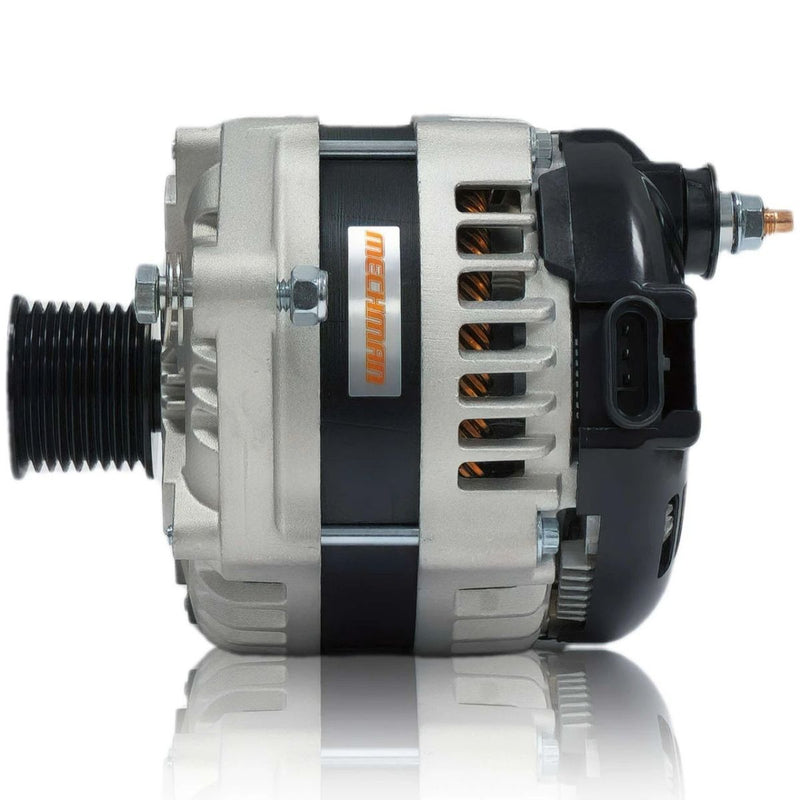

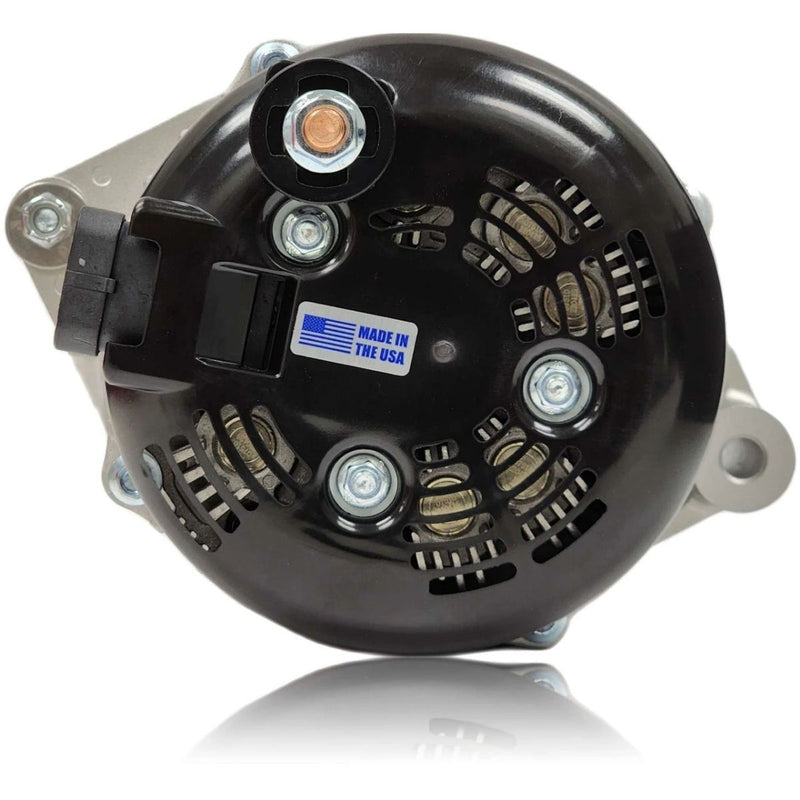

Mechman 400 Amp High Output Alternator CS144 Cast Case Custom Fitment 7864400
This listing includes:
- (1) MechMan 400 Amp High Output Alternator
Built for serious electrical demand, this Mechman 400 amp alternator delivers massive output without sacrificing reliability. Designed for custom applications, it combines modern 6-phase hairpin technology with a more budget-friendly cast case that can be painted or customized to match your engine bay.
This unit is capable of producing up to 200 amps at idle and 400+ amps at cruising speeds, making it ideal for high-performance audio systems, competition builds, and heavy electrical loads.
The included 46mm 9-rib pulley allows for fine adjustment in custom setups, helping you achieve proper belt alignment where precision matters. A universal adapter bolt, nut, and spacer are also included to assist with installation across a wide range of bracket configurations.
For optimal performance, a strong mounting bracket, proper belt wrap, and a high-quality belt are critical to handling the increased load of this high output alternator.
A P101 harness is included and requires only a 12V key-on source for operation. For users looking to increase charging voltage beyond 14.8V, optional voltage boosting plugs are available separately and can safely raise output to 16+ volts.
Specifications:
- Output: 400 Amps Max
- Idle Output: Approx. 200 Amps
- Voltage: 14.6V–15V (temperature based)
- Case Style: Cast (paintable)
- Technology: 6-Phase Hairpin
- Pulley: 46mm 9-Rib
- Fitment: Custom Applications Only
- Harness: P101 (12V key-on required)
- Weight: 17 lbs
