- HIGH OUTPUT PERFORMANCE – Delivers over 180 amps at idle and 320+ amps while driving, providing substantial charging power for aftermarket electrical accessories and car audio systems.
- DIRECT FIT REPLACEMENT – Designed as a bolt-in upgrade for compatible Ram 5.7L HEMI applications with factory mounting locations and connections.
- HEAVY-DUTY CONSTRUCTION – Features advanced 6-phase hairpin stator technology and 12 press-fit diodes for durability, efficiency, and long service life.
- IMPROVED CHARGING CAPABILITY – Supports large amplifiers, lighting systems, winches, air compressors, and other high-current accessories while helping recharge batteries faster.

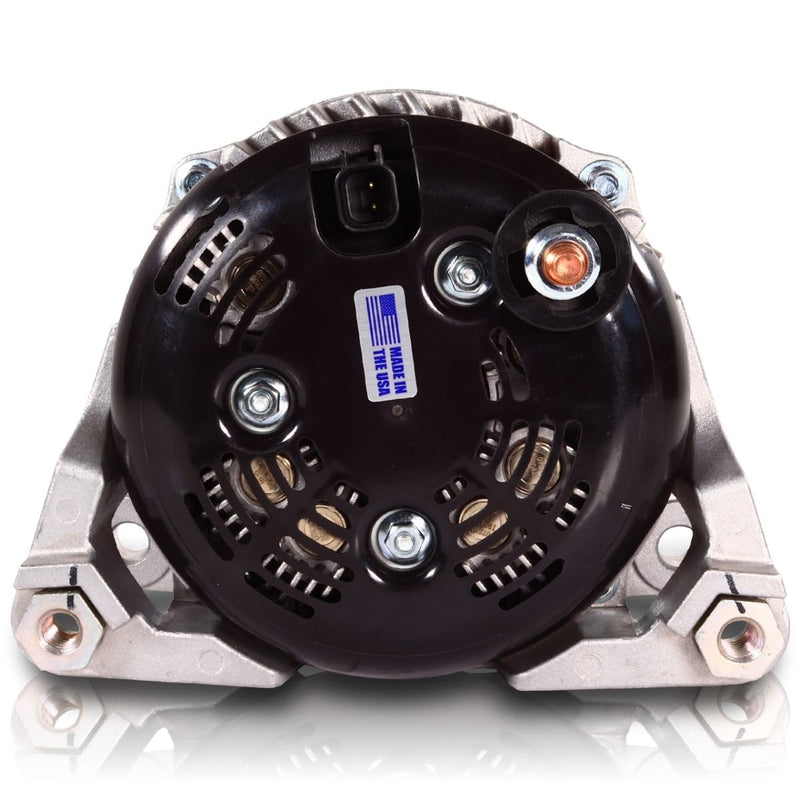

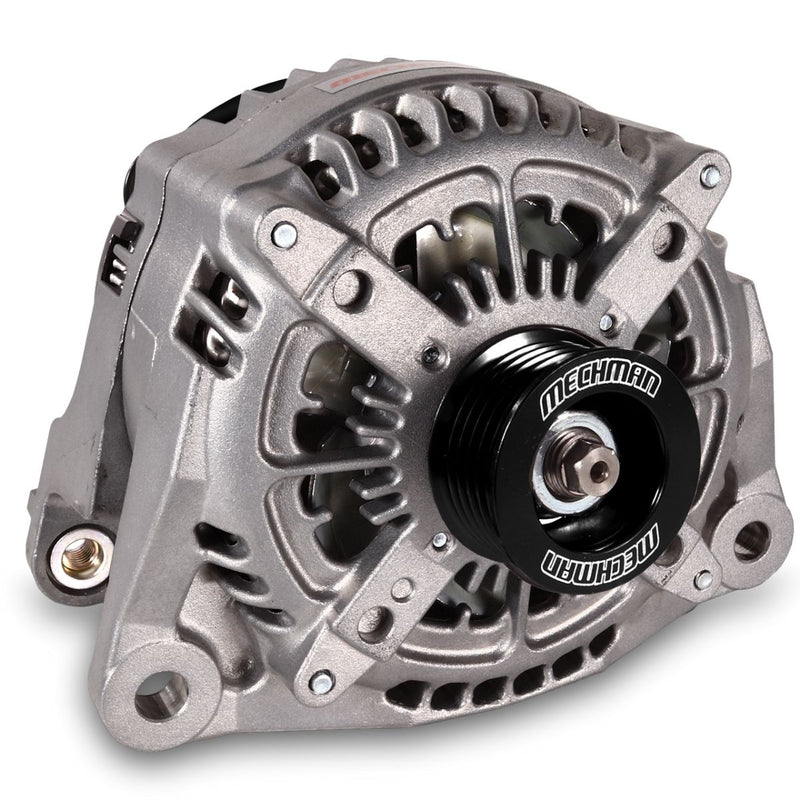

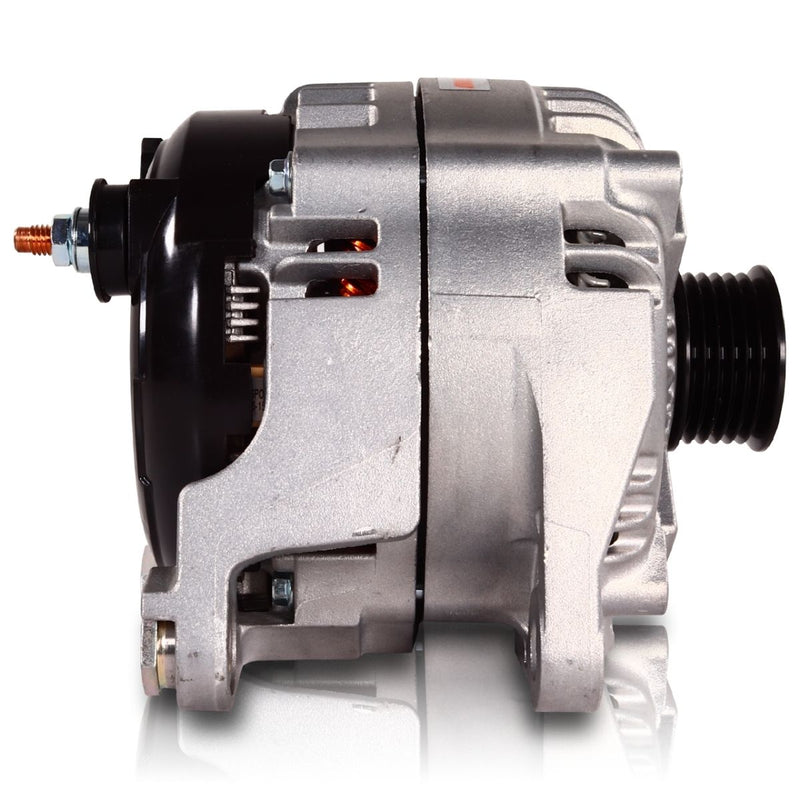

Mechman 320 Amp High Output Alternator for Ram 5.7L HEMI
- This listing includes: (1) Mechman 11477320 Alternator
Built for serious electrical demand, the Mechman 320 Amp High Output Alternator is the perfect upgrade for Ram trucks equipped with the 5.7L HEMI engine. Designed as a direct bolt-in replacement, this alternator delivers over 180 amps at idle and 320+ amps at cruising speeds, providing the power needed for high-performance car audio systems, off-road accessories, lighting, winches, and other demanding electrical upgrades.
Utilizing advanced 6-phase hairpin stator technology and 12 heavy-duty press-fit diodes, this alternator is engineered for exceptional efficiency, durability, and consistent output. Whether you're powering a competition audio build or simply need stronger charging performance than the factory unit can provide, this Mechman alternator delivers reliable current when you need it most.
Important Charging System Information:
This application uses a factory computer-controlled charging system. Charging voltage will continue to be regulated by the vehicle's ECU/PCM and will follow factory charging behavior. While this alternator significantly increases available amperage and charging capability, custom or fixed voltage output settings require ECU tuning.
Installation Notes:
- Direct bolt-in replacement for compatible Ram 5.7L HEMI applications
- Produces 180+ amps at idle
- Produces 320+ amps at cruising RPM
- Features smaller 1.75" pulley for improved low-speed output
- Slightly shorter serpentine belt may be required
- Not recommended for sustained engine speeds above 5,000 RPM
- Ideal for aftermarket audio systems and high electrical loads
Features:
- 320 Amp Maximum Output
- Over 180 Amps at Idle
- Advanced 6-Phase Hairpin Technology
- Heavy-Duty 12 Press-Fit Diode Design
- Direct Factory Replacement
- Improved Battery Charging Performance
- Designed and Built for High Electrical Demand Applications
