Massive Car Audio Monoblock 1 Channel Full Range Amplifier 1500 Watt Class D E3F

• Built-In OEM Line Converter.
• Versatile Full Range 25Hz - 18KHz Class D Monoblock.
• High Power in Extremely Small Heat Sink.
• Differential Input Switch to Eliminate Noise.
• Clip LED to Indicate Signal Clipping.

Massive Car Audio Monoblock 1 Channel Full Range Amplifier 1500 Watt Class D E3F

This listing includes:

(1) Massive Audio Monoblock Amplifier E3F

The Massive Audio E3F EDGE Series Amplifier may be compact, but don't let its size deceive you—it's a Class D powerhouse capable of delivering up to 1500 Watts RMS at 1 Ohm. With a broad frequency range spanning from 25Hz to 18KHz, this amplifier is versatile, offering high current for Subwoofers, Mid-Range, and Full-Range Speakers. Its Class D design ensures efficient operation and a compact form factor, while the regulated power supply and dual output voltage guarantee consistent performance. This amplifier stands out in quality with features like Double Sided, Mil Spec PCBs, and Surface Mount Devices. It includes a built-in OEM Line Level Converter with RCA inputs, accommodating both RCA and Speaker level signals up to 10 Volts, reducing the need for extra components. The differential input switching prevents ground noise, and high input sources trigger the built-in auto-sensing turn-on function. Additionally, the E3F offers variable LPF, HPF, and Full Range crossovers for precise tuning, along with a remote-controllable 0-12db variable Bass Boost circuit. To ensure protection, it features Next Gen Advanced 5 Way Protection circuitry, maintaining the legacy of continual upgrades for top-notch performance.



Features:

• Built-In OEM Line Converter


• Versatile Full Range 25Hz - 18KHz Class D Monoblock


• High Power in Extremely Small Heat Sink


• Differential Input Switch to Eliminate Noise


• Clip LED to Indicate Signal Clipping


• Mil Spec Double Sided PCB with SMD Parts


• Built-in Noise Reduction Circuitry


• Full Mosfet with High Grade Switching Devices


• Regulated Power Supply & Dual Output Voltage


• CTA-2006 Compliant


• Built-in Auto Sensing Turn-on via Hi-Input


• 12v Remote Output for External Devices


• 0~12dB Variable Bass Boost


• Next Gen Advanced 5 Way Protection

SPECIFICATIONS:

• Total Watts (Peak): 3000 Watts


• RMS Power @ 4 OHM: 1CH x 370 Watts


• RMS Power @ 2 OHM: 1CH x 1000 Watts


• RMS Power @ 1 OHM: 1CH x 1500 Watts


• RMS Power @ 4 OHM Bridge: N/A

AUDIO SPECIFICATIONS:

• Frequency Response: 25Hz ~ 18KHz


• Signal To Noise Ratio: >95dB


• Efficiency @ 4 OHM: >85%


• Total Harmonic Distortion @ 4 Ohm, 30% Rated Power: <0.1%


• Low Pass Filter (LPF): 25Hz ~ 18KHz


• Subsonic Filter (HPF): 25Hz ~ 9.1KHz


• Bass Boost Level: 0 ~ 12dB


• Bass Boost Frequency: 50Hz ~ 110Hz

FEATURES:

• Amplifier Class: D


• Amplifier Type: Full Range Monoblock


• Number Of Channels: 1


• Minimum Impedance: 1 Ohm


• Led Indicator: Power/Protect/Clip


• Fuse Size: 90A


• Remote Level Control: Optional


• Overheat Protection: Yes - 176F/80C


• Short Circuit Test: Yes


• Low Voltage Protection: Yes


• Clipping Protection: Yes


• Body Color | Finish: Black

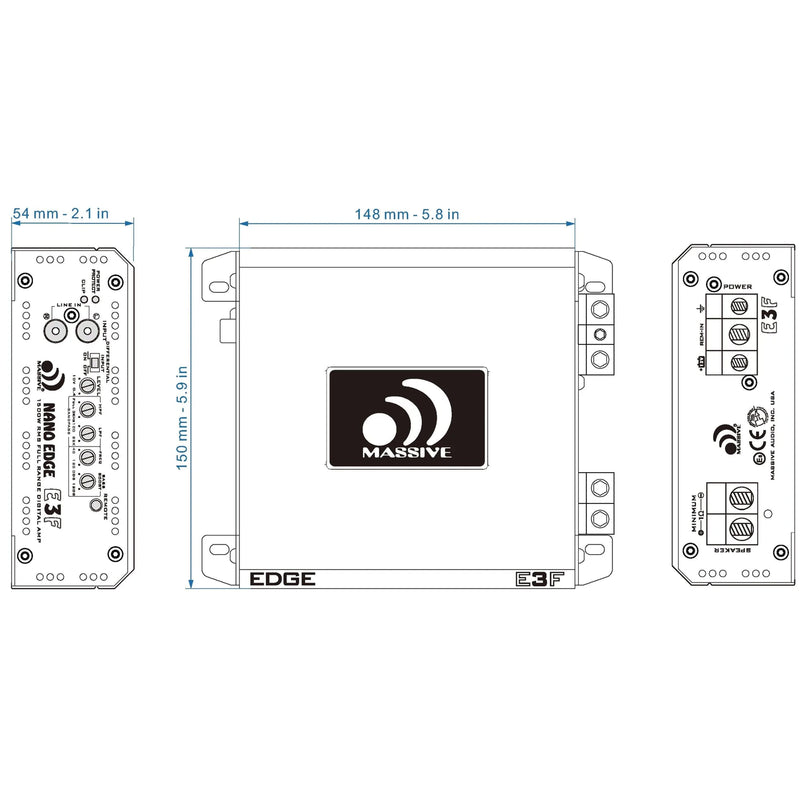

DIMENSIONS:

• Overall Length: 5.82


• Overall Width: 5.9


• Overall Height: 2.1


• Unit Weight: 4.5 lbs
