Massive Car Audio 8“ Loud Speakers 1600W 8 Ohm With 2x Super 1“ Bullet Tweeters

Massive Audio SKU: MA-COMBO-13

$260.99

Shipping calculated at checkout

Sold Out

Massive Car Audio 8" Loud Speakers 1600W 8 Ohm With 2x Super 1" Bullet Tweeters

Massive Audio's proven Professional High-Grade Efficiency, High Power Mid-Range Speaker designs are a result of years of experience, research and dedication to high end professional audio products.

CT4 Series Neodymium High-End Super Bullet Titanium Tweeters are high powered compression drivers that deliver rich high-frequency playback and allow for easy in-car mounting.

This Listing Includes:
(4) Massive Audio 8" Loud Speakers MA-M8
(2) Massive Audio 1" Neodymium Bullet Tweeters MA-CT4

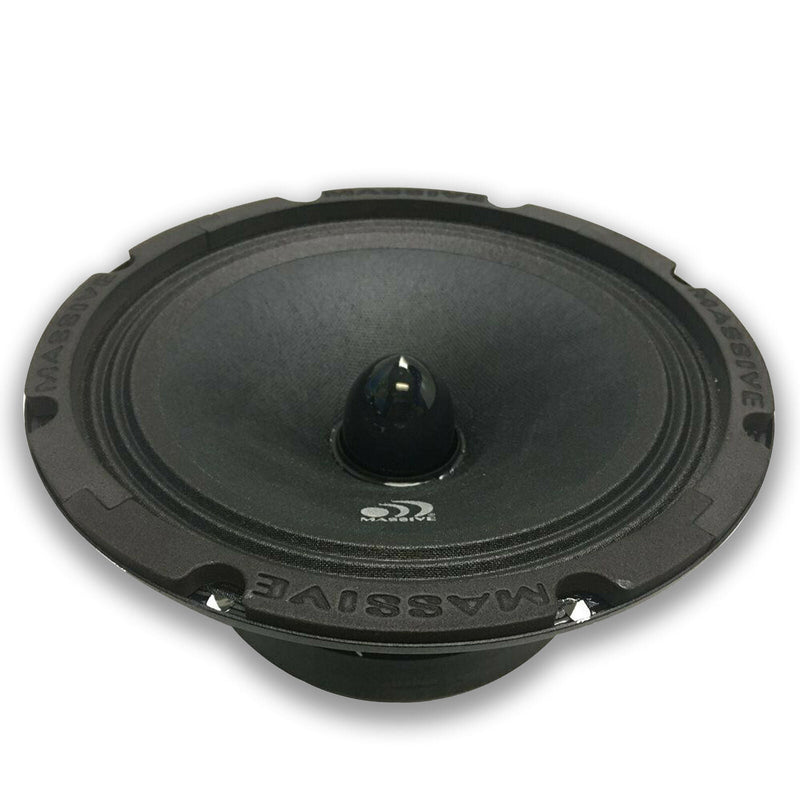

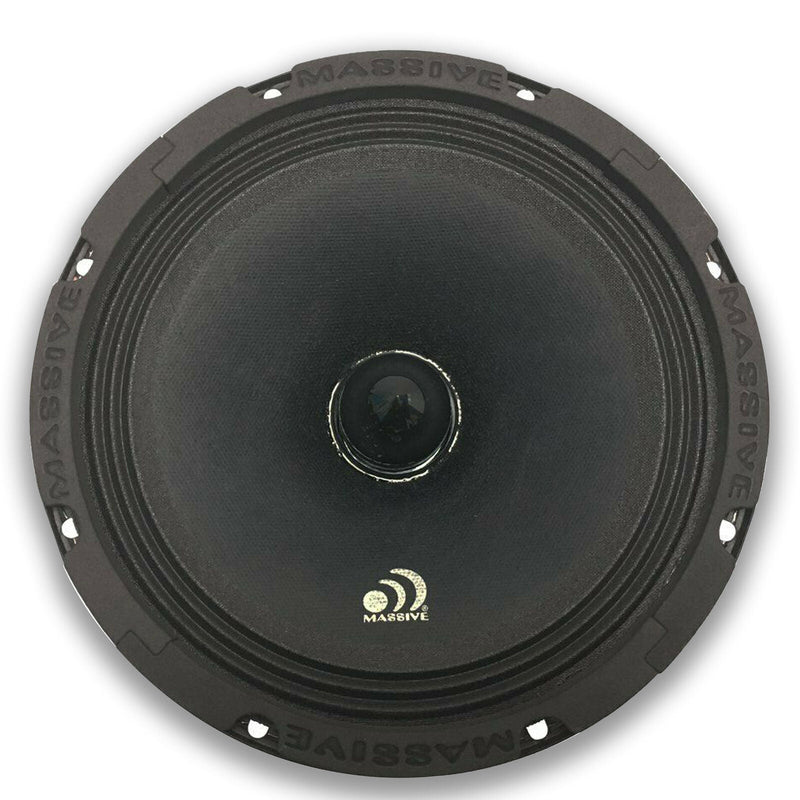

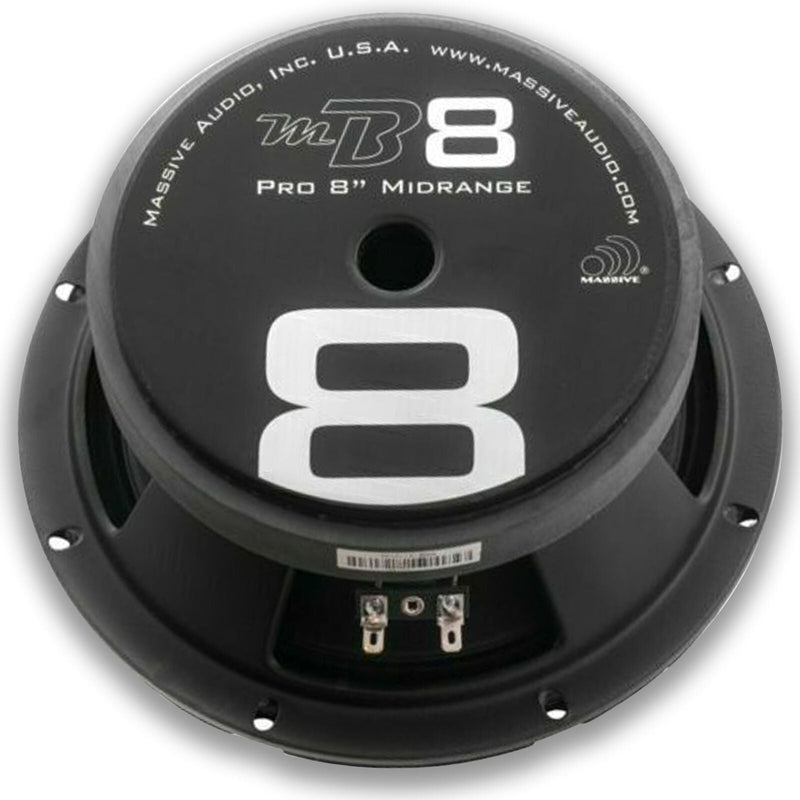

SPEAKER SPECIFICATIONS:
Nominal Basket Diameter: 8" (210mm)
Nominal Impedance: 8 Ohm
RMS Watts: 150W
Peak Watts: 300W
Recommended Hi Pass Crossover: 100Hz
Frequency Response: 100Hz-7KHz
Sensitivity 2.00v at 1m: 96dB
Voice Coil Diameter: 1.5" (38mm)
Voice Coil Wire: CCAW
Former Material: Til
Frame Material: Stamped Steel

THIELE-SMALL PARAMETERS:
Equivalent Volume: Vas - 11.2L
Excursion: Xmax - 0.75mm
Free Air Resonance: Fs - 100Hz
Mechanical Mass: Qms - 1.48
Total Factor: Qts - 0.441
Cone Area: Sd - 0.02 m2
Mechanical Mass: Mms - 0.0122 kg
BI Factor: BI - 8.1 Tm
DC Resistance: Re - 5.2 Ohms
Inductance: Le - 0.18 Mh at 1 KHz
Mechanical Compliance: Cms - 1.87 mm/N

SPEAKER DIMENSIONS:
Overall Diameter: 8" (210mm)
Baffle Hole Diameter: 7.24" (184mm)
Mounting Holes Diameter: 0.20" x 0.33" (5.2 x 8.6mm)
Mounting Holes: B.C.D. 7.8" (198mm)
Depth: 3.62" (92mm)

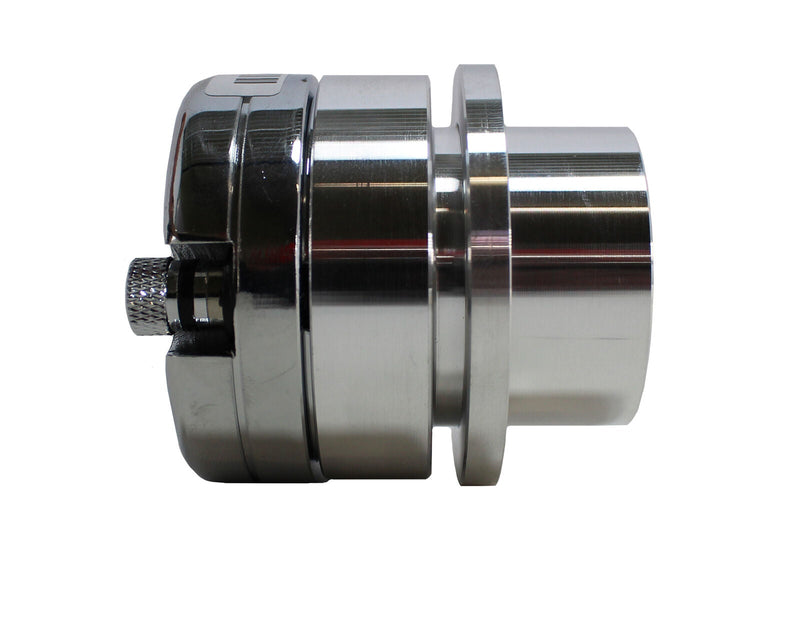

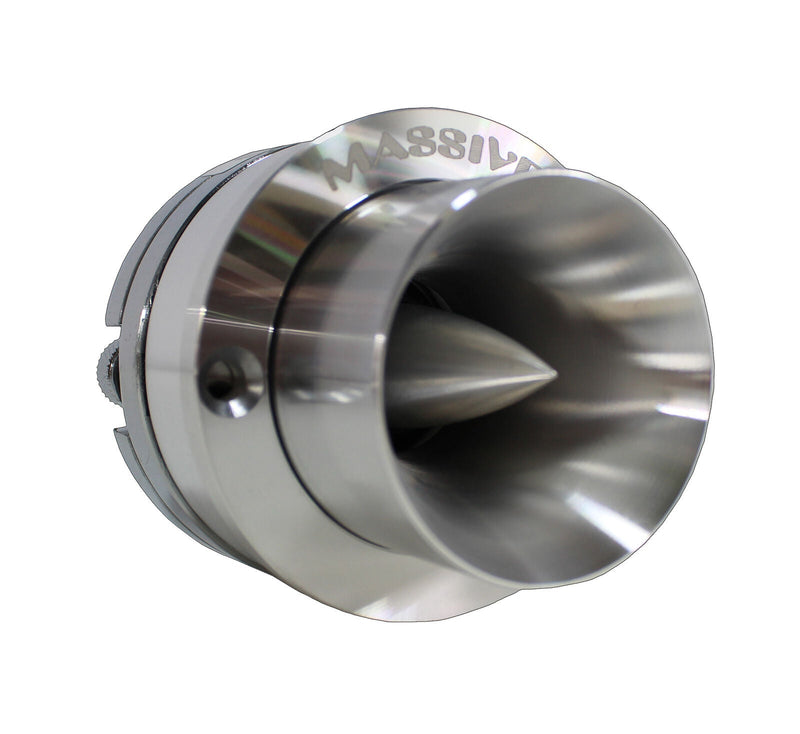

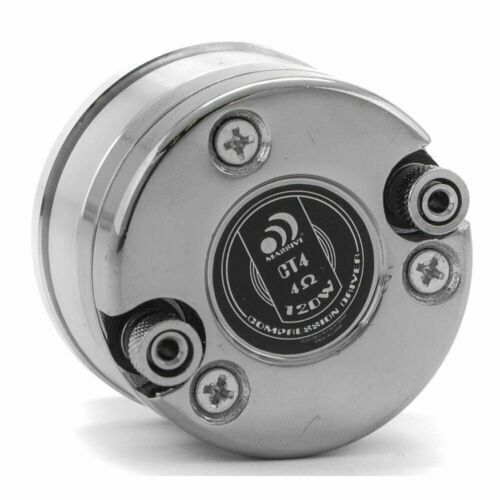

TWEETER SPECIFICATIONS:
Throat Size: 1", 25.5mm
Nominal Impedance: 4 Ohm
Power Rating RMS: 30 Watts
Max Power: 120 Watts
Usable Frequency Range: 3KHz - 25KHz
Sensitivity: 100 dB
Magnet Weight: 37 Oz
Filter: 6dB Hi-Pass "Filter Capacitor"
Voice Coil Diameter: 25.5mm
DC Resistance (Re): 3.7 Ohm
Diaphragm Material: Titanium
Magnet Composition: Neodymium

TWEETER DIMENSIONS:
Overall Diameter: 2.3", 58mm
Mounting Holes Diameter: Ï70mm
Depth: 2.8", 71.12mm
