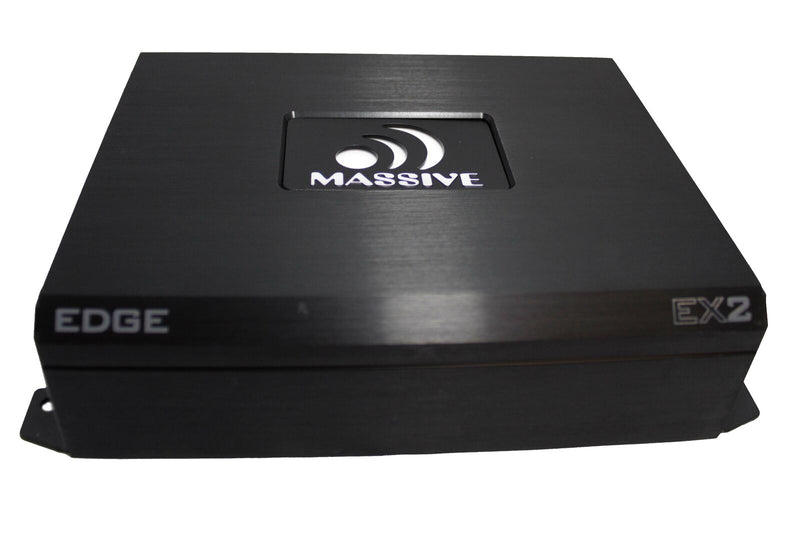

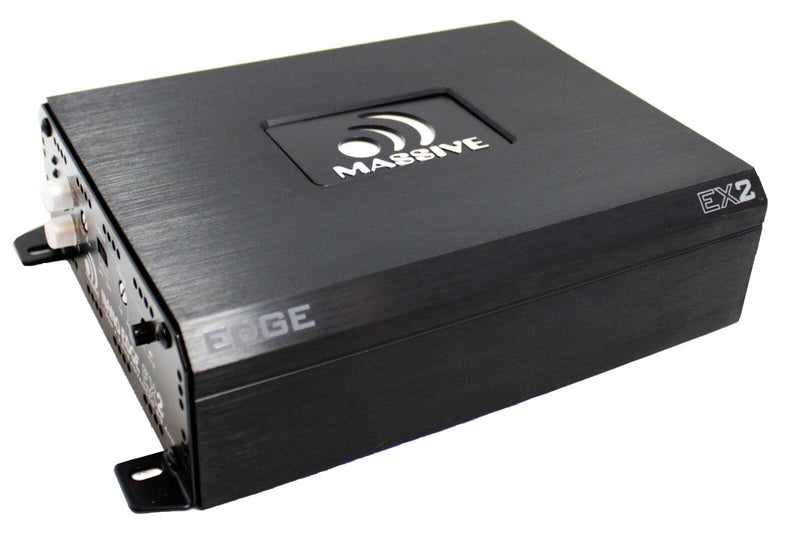

Massive Audio Nano Edge 2 Channel Amplifier 480 Watt Class AB 2 Ohm Stable EX2

Massive Audio SKU: MA-EX2


Shipping calculated at checkout

Only 6 left!

Massive Audio Nano Edge 2 Channel Amplifier 480 Watt Class AB 2 Ohm Stable EX2

All "EDGE" Series Amplifiers use the famous Nano Block Military speck circuit board and "N" drive MOSFET power supplies to ensure performance. This built-in money-saving OEM line converter is found in every model "EDGE" and every model uses a DC offset music sensing system to activate the ATO (Auto Turn On) Other new precision audio features found in all mono models include, an adjustable 1 band parametric EQ with up to 12 Db bass boost, a switchable 12V Out terminal, a preparatory docking input for optional custom matching Massive Audio 4 farad "Rail CAP" capacitor and on all 2, 4 & 5 channel amp crossovers adjusts to an X10 switch which means that "EDGE" can be programmed as a high pass or a low pass at 3K Hz.

This Listing Includes:
(1) 2 Channel Amplifier EX2

- Built-In OEM Line Converter
- High Power in Extremely Small Heat Sink
- Mil-Spec Double Sided PCB with SMD Parts
- Built-in Noise Reduction Circuitry
- Full Mosfet with High-Grade Switching Devices
- Class AB Design
- CTA-2006 Compliant
- Built-in Auto Sensing Turn-on via Hi-Input
- 12v Remote Output for External Devices
- 0~12dB Variable Bass Boost
- Next-Gen Advanced 5 Way Protection
- RAIL CAP-E ~ 4 FARAD Capacitor (Optional)

RMS Power: 120w x 2 @ 4 Ohm
PEAK Power: 480w
RMS @ 2 Ohms: 240w x 2
Bridged RMS: 480w x 1
Min Impedance: 2 Ohm
Min Ohm Bridged: 4 Ohm
THD: greater than 0.05% @ 4 Ohm
S/N: less than 80 dB
Input Level: 0.4~10V (Hi Inputs or Low Inputs)
Freq. Response: 10Hz - 25KHz
Bass Remote: n/a

7.3 (in) x 5.9 (in) x 2.1 (in)
