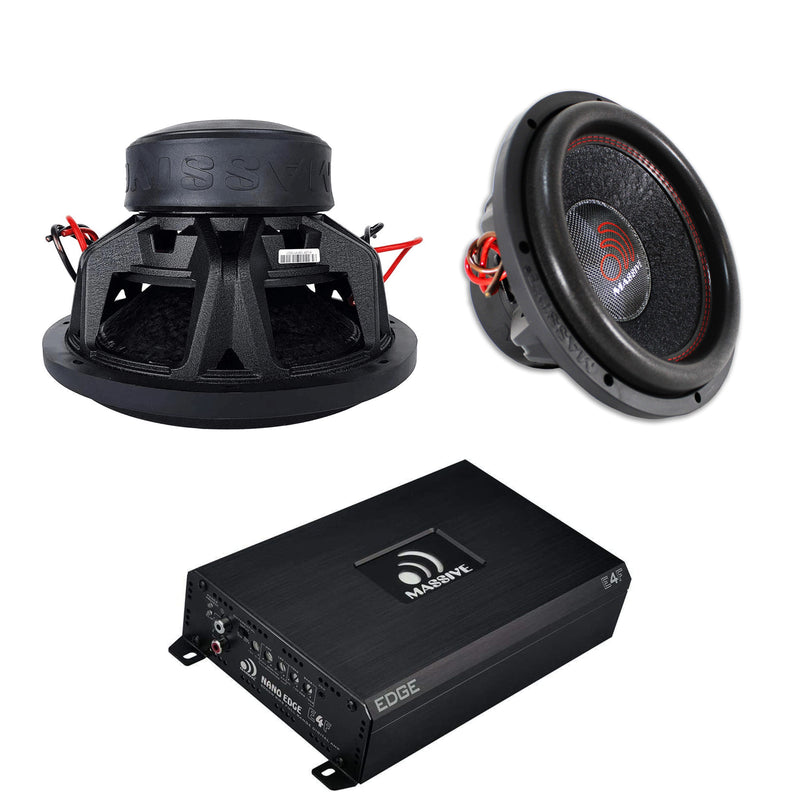

Massive Audio Monoblock 4000W Amplifier Full Range Digital Compact E4F With 2x Massive Audio 12" 4000W Kevlar Fiber Max Dual 4 Ohm 3" DVC Subwoofers KILOX124

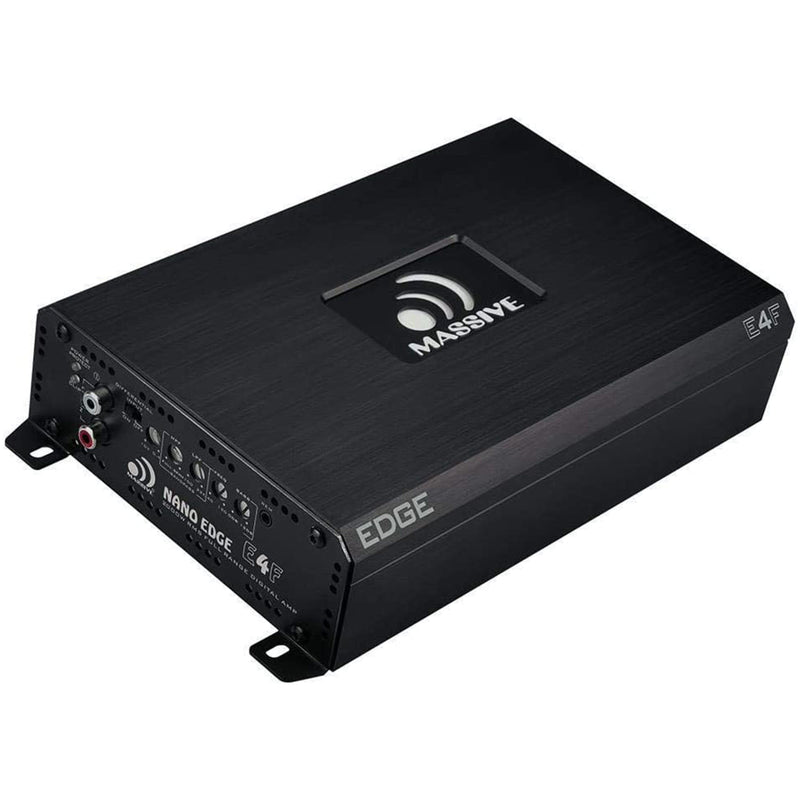

Don't let its diminutive size fool you, this ultra-compact Massive Audio E4F "EDGE" Series Amplifier is a Class D powerhouse capable of up to 2000 Watts RMS at 1 Ohm. With a frequency range of 25Hz - 18KHz, this amplifier will deliver high current for Subwoofers, Mid-Range, and Full Range Speakers!
Its Class D design enables its compact footprint and cool running within all system configurations. There's no need to worry about "running out of gas", our E4F has a regulated power supply and dual output voltage.
The KILOX Series Subwoofers are the perfect choice for audio enthusiasts that demand high performance at low frequencies with only moderate power consumption. At 1000 Watts RMS you will be able to hit extremely hard while minimizing power upgrades to your vehicles alternator and batteries. The KILOX124 car audio subwoofer utilizes dual 4 ohm voice coils for multiple impedance wiring options.
Large Double Stacked 180oz High Energy Magnets, Die Cast Basket with Black Textured Finish, Kevlar Fiber Enhanced Non-Pressed Paper Cone with Textured Paint Finish and EROM Foam Surround with Red Stitching. The KILOX Series Subwoofers are the perfect choice for audio enthusiasts that demand high performance at low frequencies with only moderate power consumption.
-------------------------------------------------------
This Listing Includes:
(1) 4000W Amplifier E4F
(2) KILOX124 Subwoofers
-------------------------------------------------------

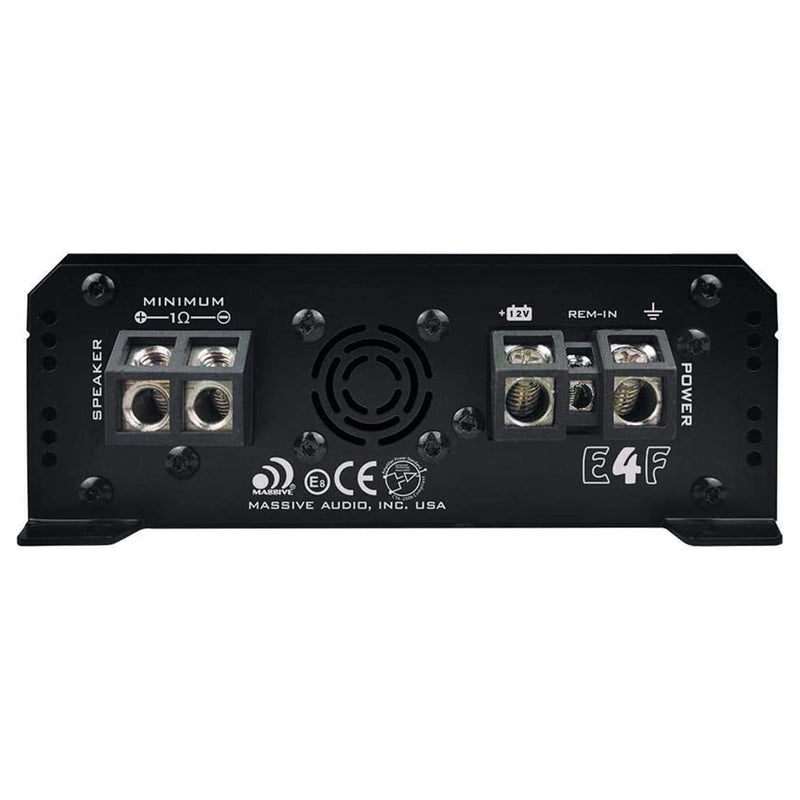

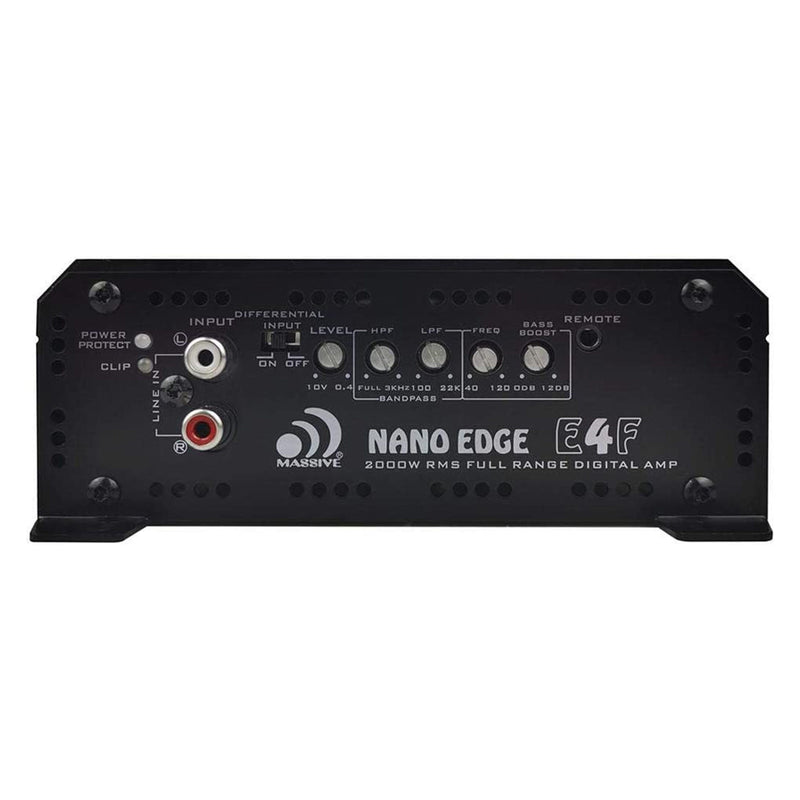

Specifications and Features of E4F Amplifier.
Features:
- Built-In OEM Line Converter
- Versatile Full Range 25Hz - 18KHz Class D Monoblock
- High Power in Extremely Small Heat Sink
- Differential Input Switch to Eliminate Noise
- Clip LED to Indicate Signal Clipping
- Mil Spec Double Sided PCB with SMD Parts
- Built-in Noise Reduction Circuitry
- Full Mosfet with High-Grade Switching Devices
- Regulated Power Supply & Dual Output Voltage
- CTA-2006 Compliant
- Built-in Auto Sensing Turn-on via Hi-Input
- 12v Remote Output for External Devices
- 0~12dB Variable Bass Boost
- Next Gen Advanced 5 Way Protection
Specifications:
RMS Power @ 1 Ohm: 2000w x 1
PEAK Power: 4000w x 1
RMS @ 2 Ohms: 1400w x 1
Bridged RMS: n/a
Min Impedance: 1 Ohm
Min Ohm Bridged: n/a
THD: Less Than 0.1% @ 4 Ohm
S/N: More Than 95 dB
Max Voltage: 15v
Max RCA Voltage: 10v
Freq. Response: 25Hz - 18KHz
Dimensions: 8.58 (in) x 5.9 (in) x 2.1 (in)
-------------------------------------------------------

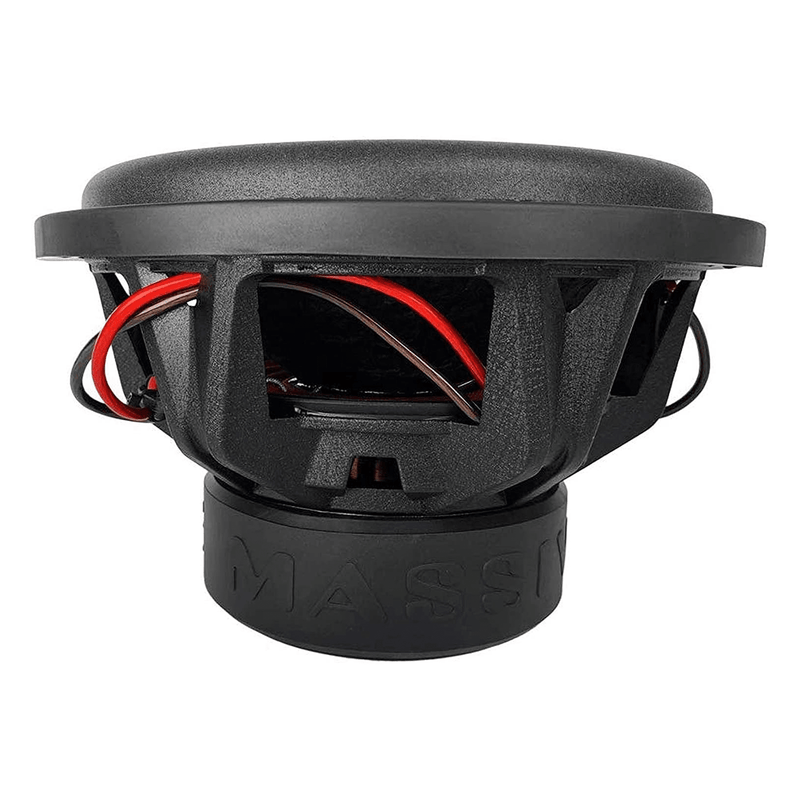

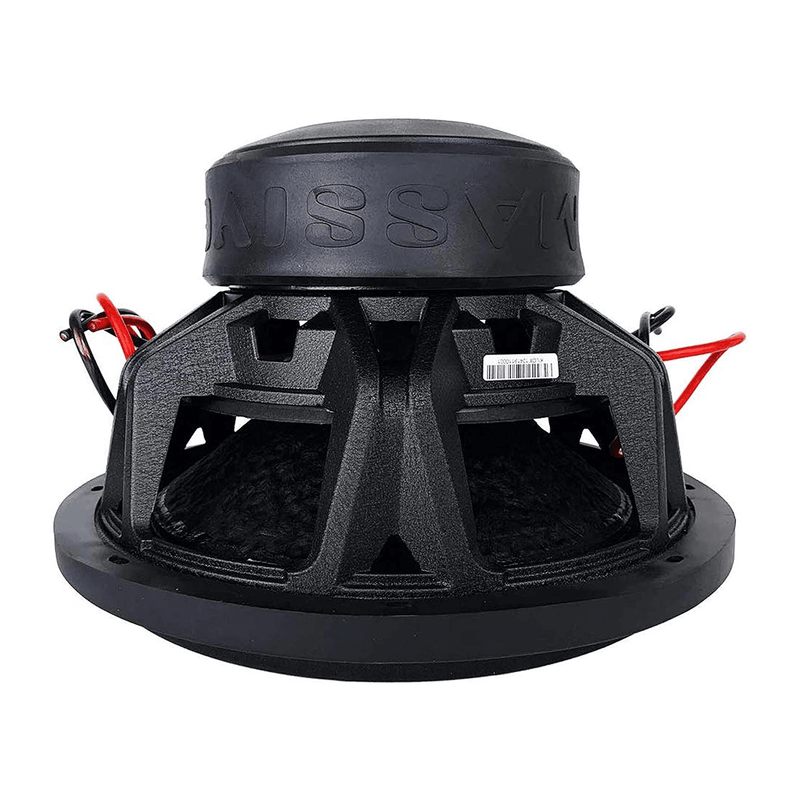

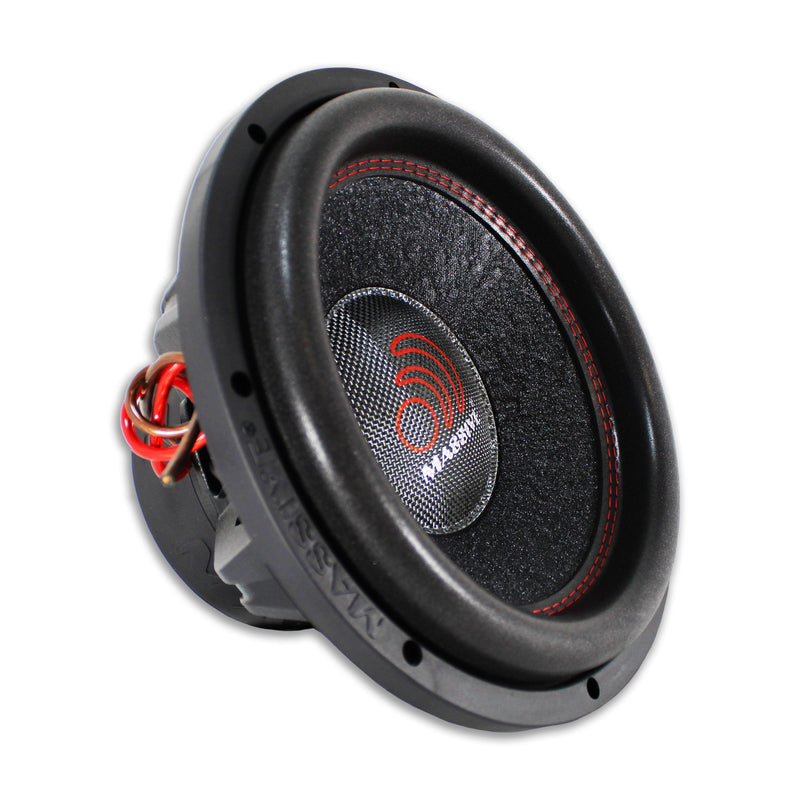

Specifications and Features per each KILOX124 Subwoofer.
Die Cast Basket with Black Textured Finish
Kevlar Fiber Enhanced Non-Pressed Paper Cone with Textured Paint Finish
EROM Foam Surround with Red Stitching
3.0" 4-Layer Hi-Temp Voice Coil
Fiberglass Woven Dust Cap
Enhanced Cooling T-yoke Design with Black Anodized Finish
Double Stacked 180oz High Energy Magnets
Double Black Poly Cotton Spiders with Mirror Image Layout
Customized Rubber Gasket and Magnet Boot
10 Gauge Power Cable with Direct Lead Connection
Dual 4 Ohm Impedance
Size 12"
Peak Power 2000 watts
RMS Power 1000 watts
Cone Non-Pressed Paper
Voice Coil 3" 4-Layer Hi-Temp, Dual 2 Ohm
Surround EROM Foam with Red Stitching
Magnet 180oz Double Stacked
Terminals Heavy Duty Direct Input Wires Connection
Basket Die Cast
VAS 23.5 Liters
X-Max (2-Way) 14 mm
SPL 86.8 dB
Ported Box 1.6 ft3 / Port 38 in.
Sealed Box 1.43 ft3
Mounting Depth: 6.77"
Mounting Diameter: 12.68"
Mounting Cut Diameter: 11.14"
Shipping Weight: 20.3
Displacement 0.087
