Massive Audio Graphic Equalizer 9 Band EQ9 Car Audio 8V Line Driver

$79.99

SKU: MA-EQ9 Massive Audio

Fast Shippng
& Handling

Secure
Checkout

Satisfaction
Guaranteed

Massive Audio Graphic Equalizer w/ Built in ATO

Boost/Cut:12dB
S/N Ratio: 100dB
Frequency Response: 10Hz-50Hz +/-1dB
Maximum Output Voltage: 7V
THD: 0.005%
Input Sensitivity: 50mV - 3V
Hear Room: 20dB
Input Impedance: 20K Ohms
Output Impedance: 2K Ohms
Stereo Separation: 82dB/1KHz
Operating Voltage: 11V - 15V Negative Ground
Size: 7" x 4 1/8" x 1"

ATO (Auto Turn On)-DC Offset on Hi Level Input

Nine equalization bands (50Hz, 120Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz)
Each frequency adjustable from -12dB to +12dB
Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 120Hz

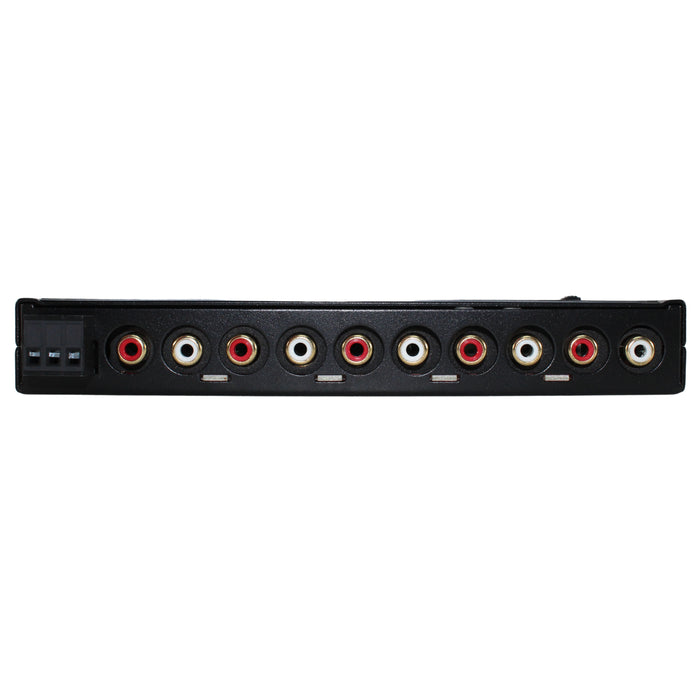

Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers
Auxiliary stereo RCA input for use with portable devices, such as MP3 player or DVD players

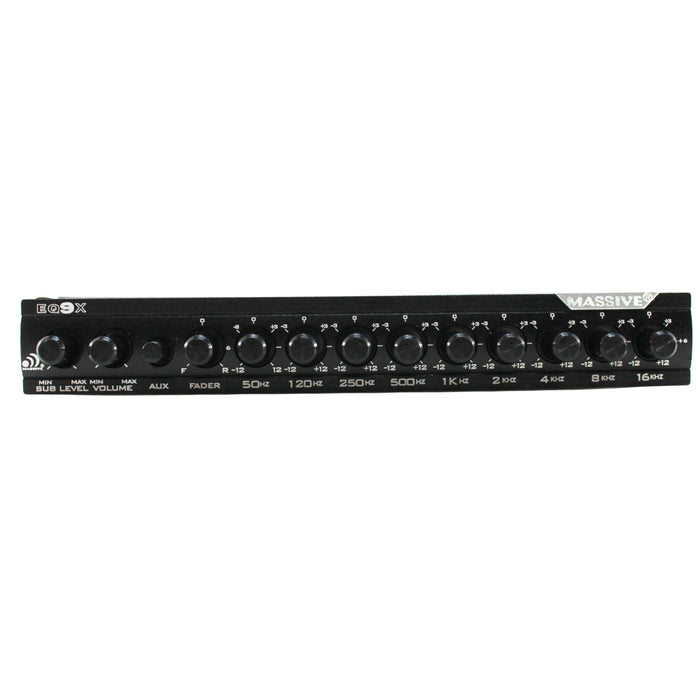

Separate controls for master volume, sub level, front/rear fader and selection of main or auxiliary inputs
Gold-plated RCA connectors to ensure the best audio signal output

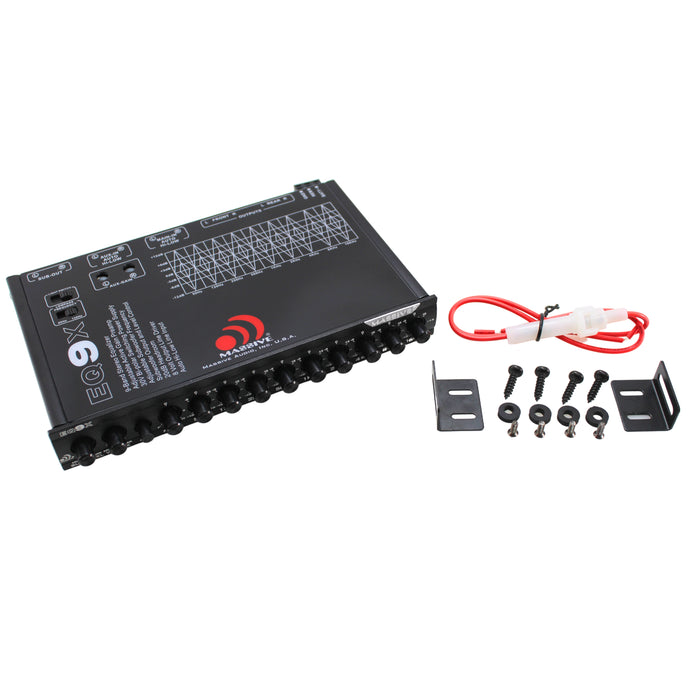

ISO mounting holes and removable trim ring for custom installation
