- Heavy-gauge Steel Basket with Industrial Texture Painting
- Dual-Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5" 4 Layer Hi-Temp Voice Coil
- Poly-Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
Massive Audio 2x 2800 Watt Subwoofers Dual 4 Ohm Voice Coil GTX154 W/ Massive Audio Monoblock 1 Channel Full Range Amplifier 1500 Watt Class D E3F
All GTX subs use tight Red stitching that's sewn through a UV-treated non-pressed paper cone onto an EROM foam surround. Then it's bonded to a heavy gauge steel basket that's bolted to double stacked high flux Y30 70-150oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring-loaded 5-way binding nickel-plated speaker connectors. These woofers scream sound quality and truly represent Massive Audio's commitment to value and performance.
Dont let its diminutive size fool you, this ultra compact Massive Audio E3F EDGE Series Amplifier is a Class D powerhouse capable of up to 1500 Watts RMS at 1 Ohm. With a frequency range of 25Hz - 18KHz this amplifier will deliver high current for Subwoofers, Mid-Range and Full Range Speakers!
Its Class D design enables its compact footprint and cool running within all system configurations. Theres no need to worry about running out of gas, our E3F has a regulated power supply and dual output voltage.
-------------------------------------------------------

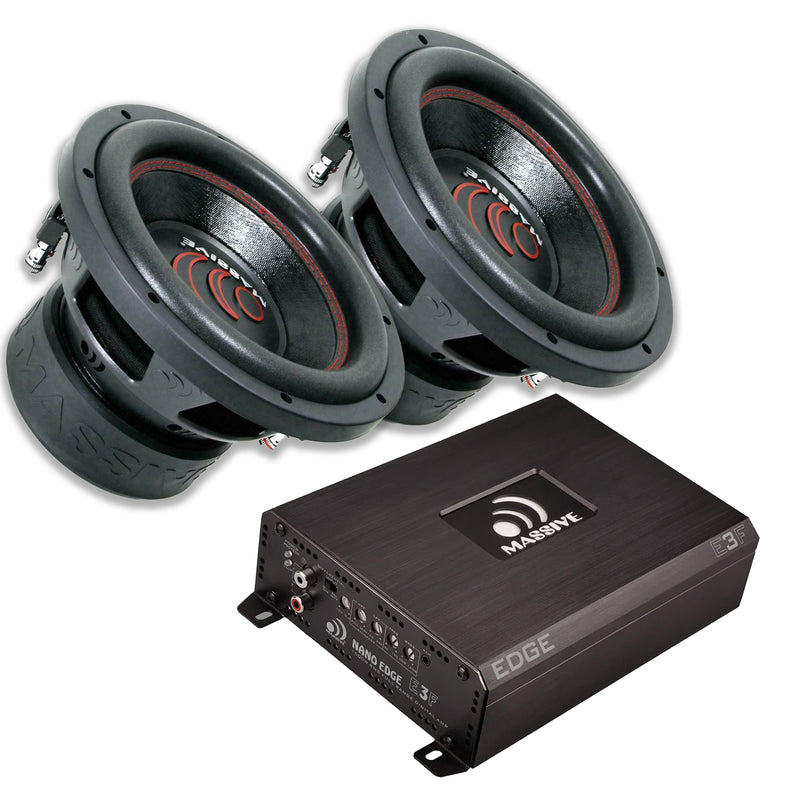

This Listing Includes:
(2) 15" Subwoofers GTX154
(1) Massive Audio Monoblock Amplifier E3F
-------------------------------------------------------

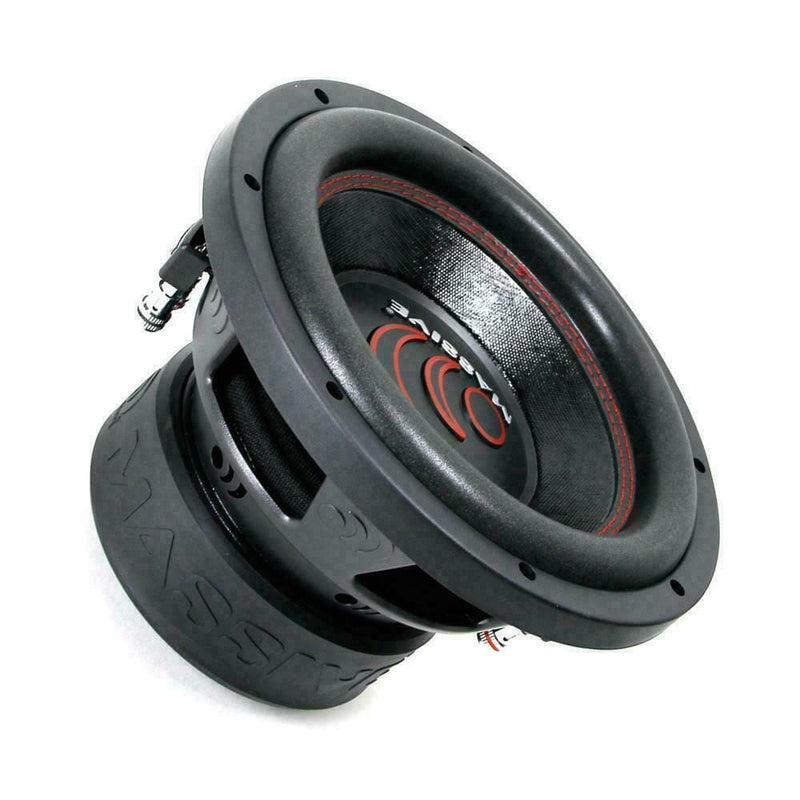

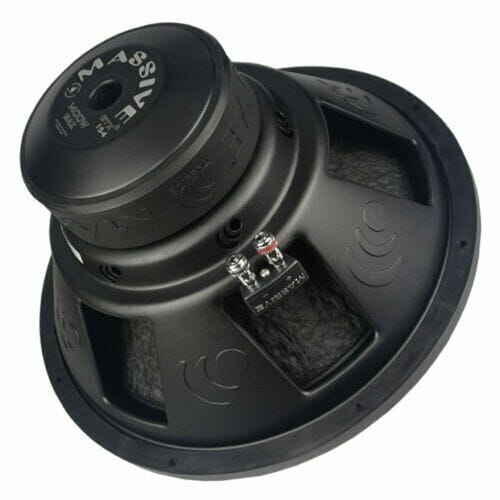

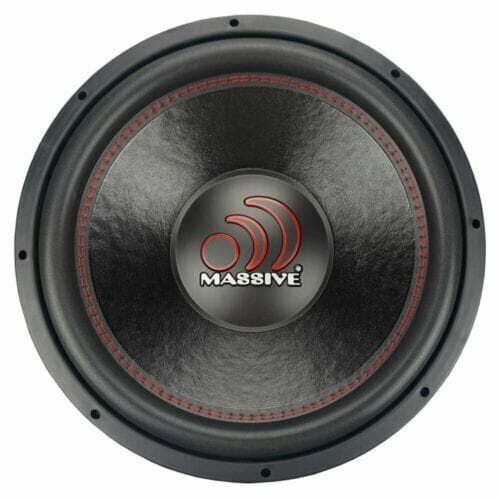

Specifications and Features per each GTX154 Subwoofer
Features:
- Heavy-gauge Steel Basket with Industrial Texture Painting
- Dual-Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5" 4 Layer Hi-Temp Voice Coil
- Poly-Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
Specifications:
Size: 15"
Watts RMS: 700
Peak Power: 1400
Cone: UV Treated / Non-Pressed Paper
Voice Coil: 2.5" Dual 4 Ohm
Surround: EROM Foam
Magnet: 120oz
Terminals: 5 Way Binding Push Terminals
Basket: Heavy Gauge Steel
Tinsel Leads: Woven Round
X-Max: 15mm + 10mm top plate
SPL: 88.1 dB
FS: 34.6Hz
Dimensions:
Ported Box: 20"H x 15"D x 24"W / 14.05 sq. in. Port Area
Sealed Box: 3.43 ft3
Mounting Depth: 8.07"
Mounting Width: 13.62"
Overall Diameter: 15.35"
-------------------------------------------------------

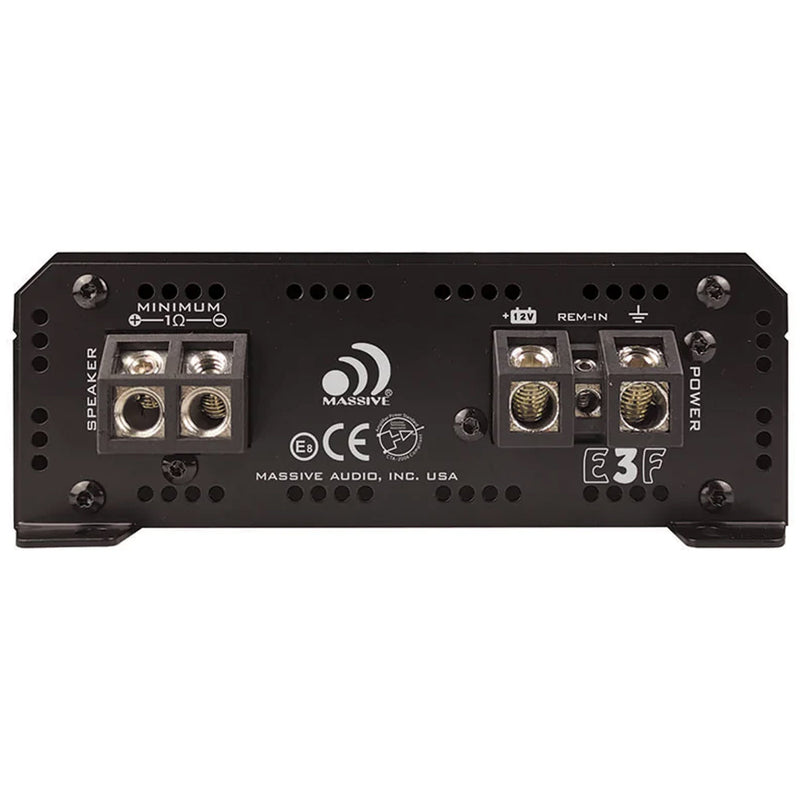

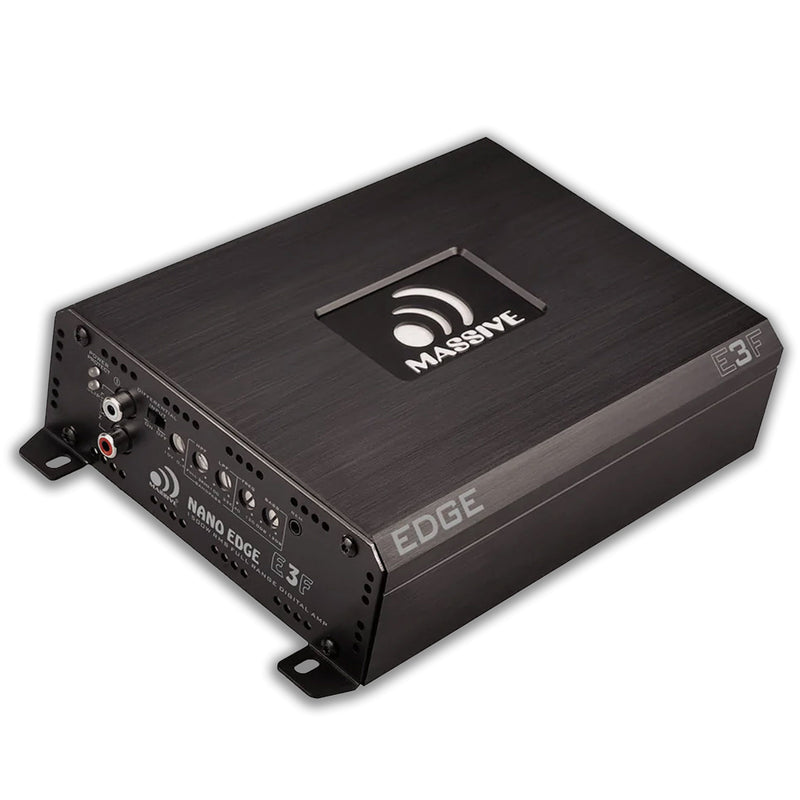

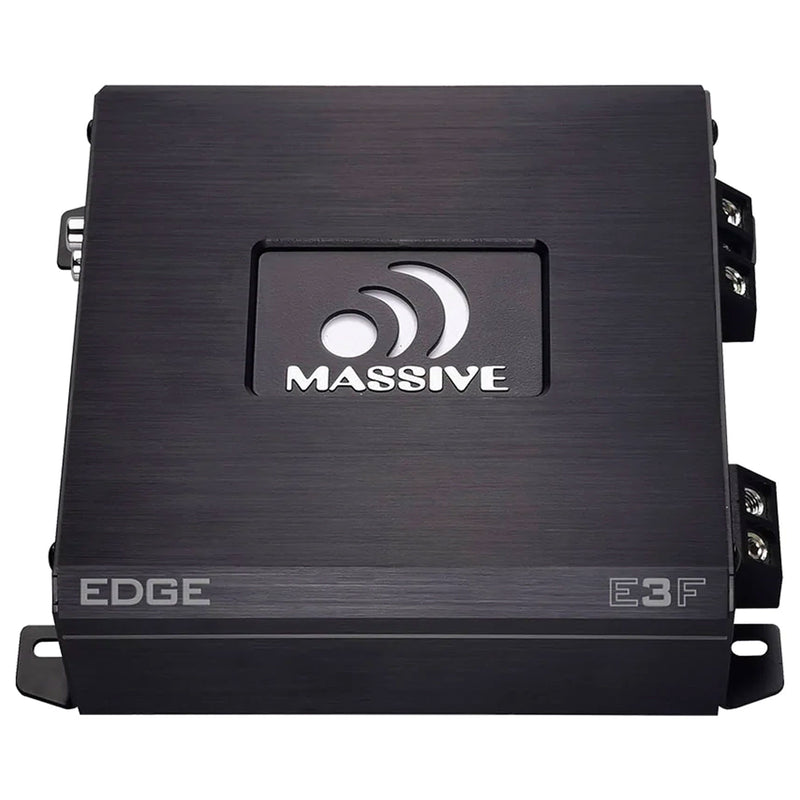

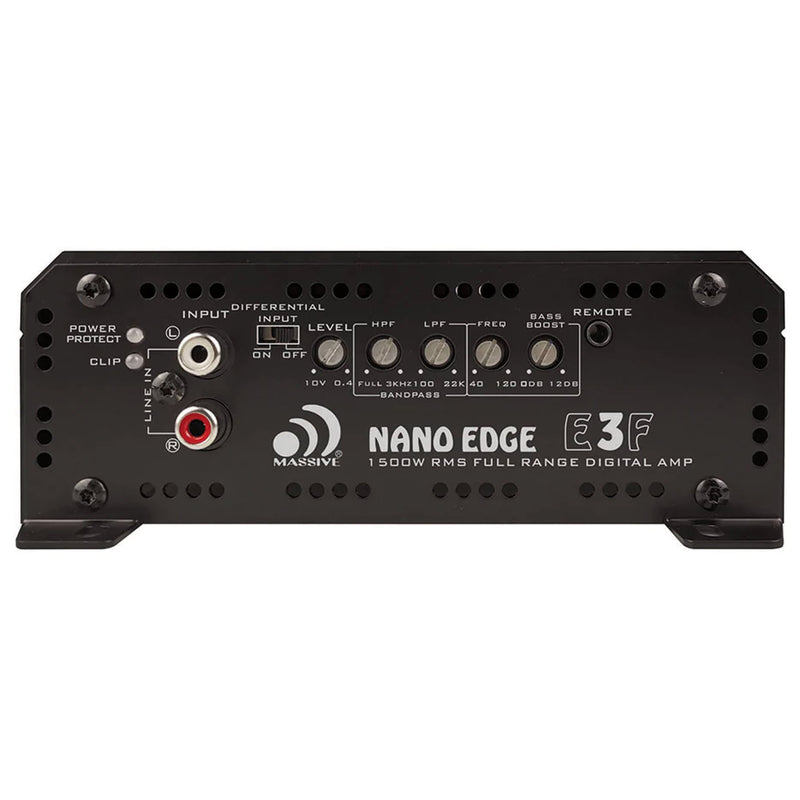

Specifications and Features of E3F Amplifer
SPECIFICATIONS:
Total Watts (Peak): 3000 Watts
RMS Power @ 4 OHM: 1CH x 370 Watts
RMS Power @ 2 OHM: 1CH x 1000 Watts
RMS Power @ 1 OHM: 1CH x 1500 Watts
RMS Power @ 4 OHM Bridge: N/A
AUDIO SPECIFICATIONS:
Frequency Response: 25Hz ~ 18KHz
Signal To Noise Ratio: >95dB
Efficiency @ 4 OHM: >85%
Total Harmonic Distortion @ 4 Ohm, 30% Rated Power: <0.1%
Low Pass Filter (LPF): 25Hz ~ 18KHz
Subsonic Filter (HPF): 25Hz ~ 9.1KHz
Bass Boost Level: 0 ~ 12dB
Bass Boost Frequency: 50Hz ~ 110Hz
FEATURES:
Amplifier Class: D
Amplifier Type: Full Range Monoblock
Number Of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power/Protect/Clip
Fuse Size: 90A
Remote Level Control: Optional
Overheat Protection: Yes - 176F/80C
Short Circuit Test: Yes
Low Voltage Protection: Yes
Clipping Protection: Yes
Body Color | Finish: Black
DIMENSIONS:
Overall Length: 5.82
Overall Width: 5.9
Overall Height: 2.1
Unit Weight: 4.5 lbs
