- MAX Power Handling: 1500 Watts RMS Power Handling: 750 Watts
- Nominal Impedance: 4 Ohm
- Mounting Depth: 179 mm | 7.05 in.
Massive Audio 2x 12" 3000 Watt Subwoofers 2.5" Dual 4 Ohm Voice Coil MGK124 W/ Massive Audio Monoblock 1 Channel Full Range Amplifier 1500 Watt Class D E3F
Our MGK Series subwoofers are rated at 750 Watts RMS / 1500 Watts MAX power with a 2.5" voice coil configured for dual 4 ohm impedance. All MGK subs use tight Red stitching thats sewn through a UV treated non-pressed paper cone onto a Pressed Foam surround. Then its bonded to a heavy gauge steel basket thats bolted to double stacked High Flux Y30 120oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring loaded 5-way binding nickel plated speaker connectors. These woofers scream sound quality and truly represent Massive Audio's commitment to value and performance.
This Listing Includes:
(2) Massive Audio 12" Subwoofers MGK124
(1) Massive Audio Monoblock Amplifier E3F

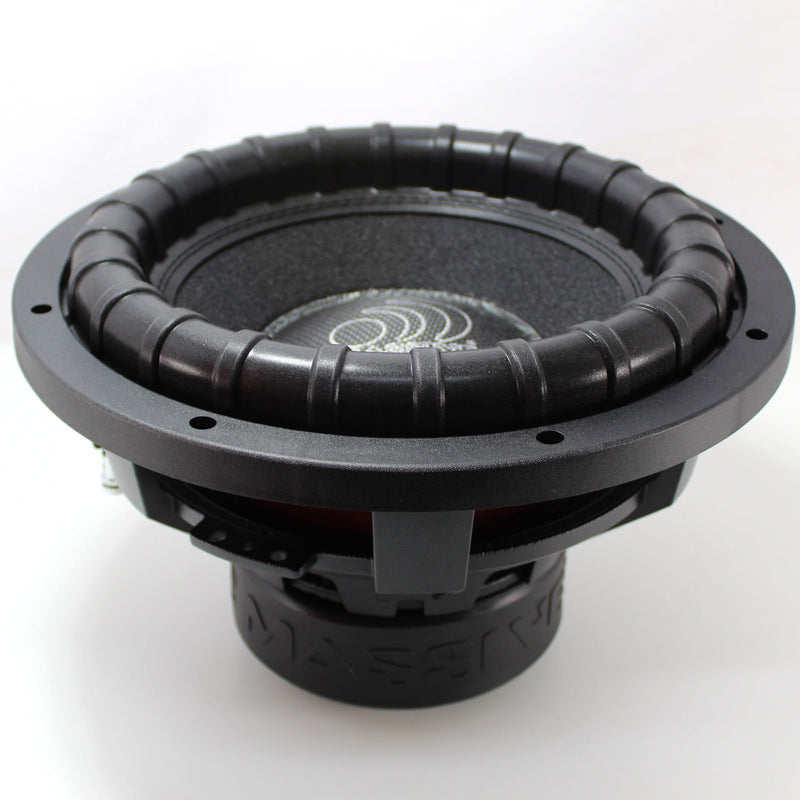

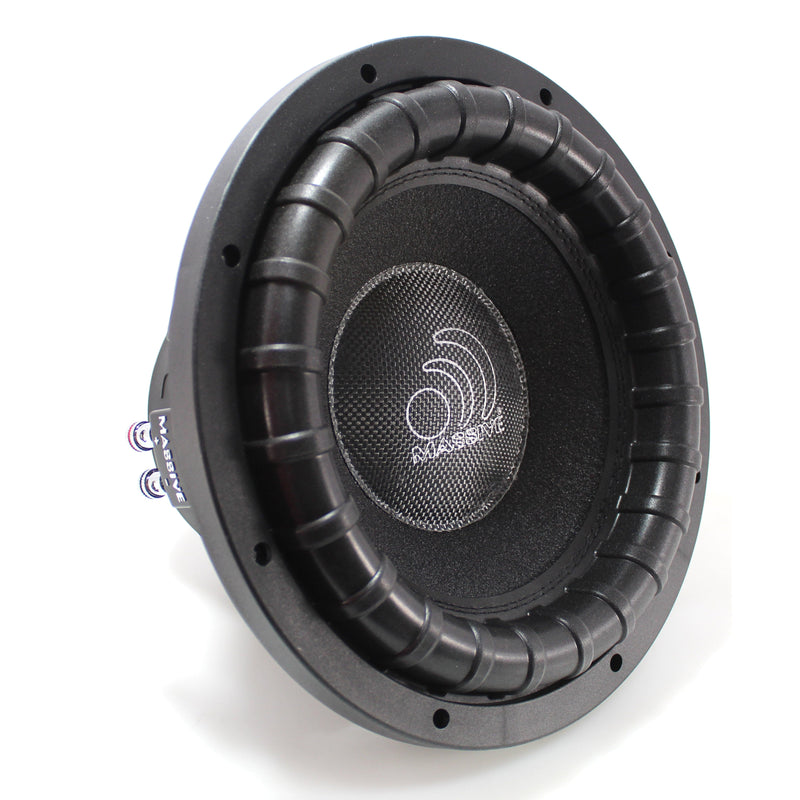

Specifications and Features per each GTX154 Subwoofer
Features:
- Heavy Gauge Cast Aluminum Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 Strontium Ferrite Magnets
- Dual 4 Ohm, 2.5" Aluminum Voice Coils
- Poly Cotton Spider with Woven Round Tinsel Leads
- Reinforced Kevlar Cone with Pressed Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
Specifications:
Nominal Diameter: 12.91
Nominal Impedance: 4 Ohm
MAX Power Handling: 1500 Watts
RMS Power Handling: 750 Watts
SPL@2.83V: 90.1 dB
1-WSPL: 84.3 dB
DIMENSIONS PER SUBWOOFER:
Overall Diameter: 328 mm | 12.91 in.
Front Mount Baffle Cutout: 287 mm | 11.30 in.
Mounting Depth: 179 mm | 7.05 in.
Overall Depth: 179 mm | 7.05 in.
Motor Diameter: 250 mm.
Unit Weight: 18.3 Lb.
-------------------------------------------------------

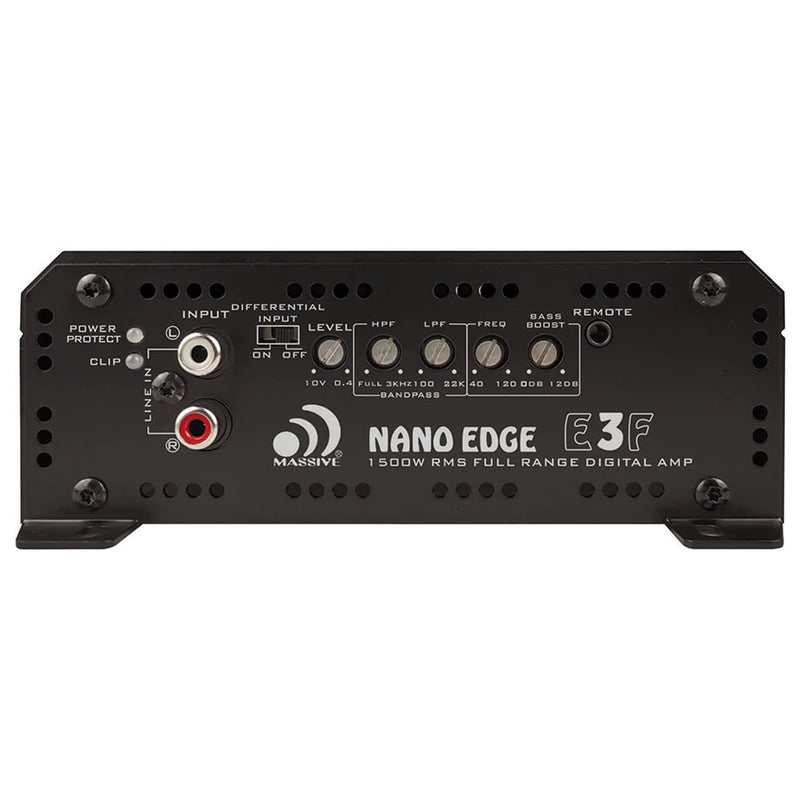

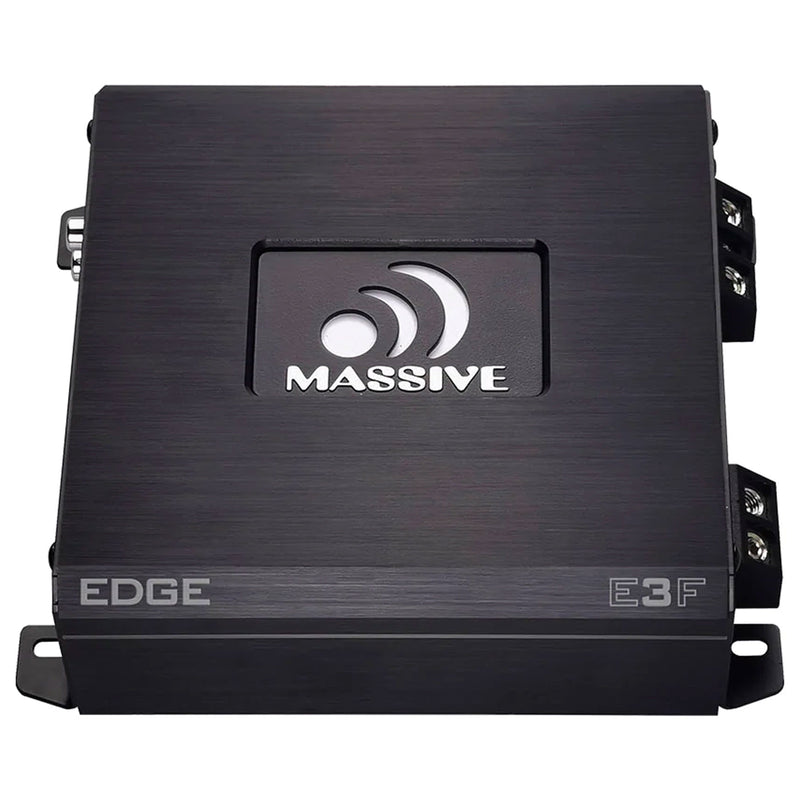

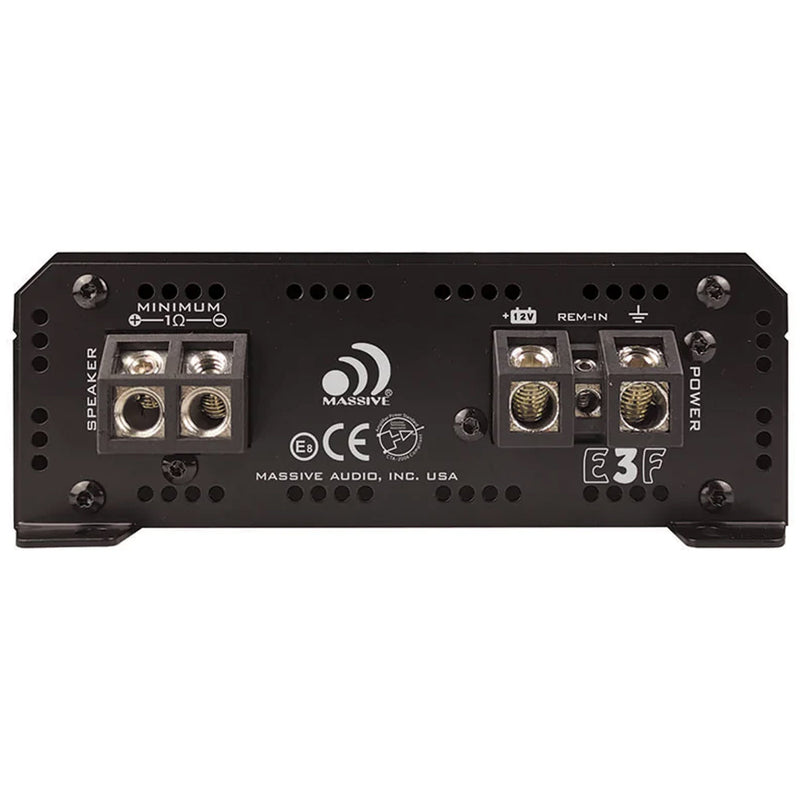

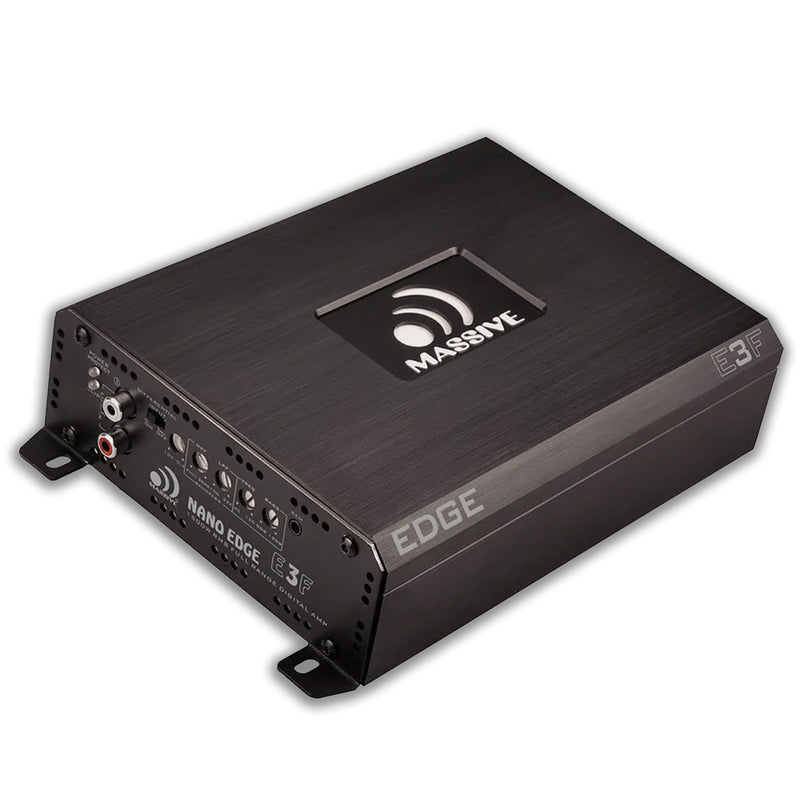

Specifications and Features of E3F Amplifier
Highlights:
- Built-In OEM Line Converter.
- Versatile Full Range 25Hz - 18KHz Class D Monoblock.
- High Power in Extremely Small Heat Sink.
- Differential Input Switch to Eliminate Noise.
- Clip LED to Indicate Signal Clipping.
- Mil Spec Double Sided PCB with SMD Parts.
- Built-in Noise Reduction Circuitry.
- Full Mosfet with High Grade Switching Devices.
- Regulated Power Supply & Dual Output Voltage.
- CTA-2006 Compliant.
- Built-in Auto Sensing Turn-on via Hi-Input.
- 12v Remote Output for External Devices.
- 0~12dB Variable Bass Boost.
- Next Gen Advanced 5 Way Protection.
SPECIFICATIONS:
Total Watts (Peak): 3000 Watts
RMS Power @ 4 OHM: 1CH x 370 Watts
RMS Power @ 2 OHM: 1CH x 1000 Watts
RMS Power @ 1 OHM: 1CH x 1500 Watts
RMS Power @ 4 OHM Bridge: N/A
AUDIO SPECIFICATIONS:
Frequency Response: 25Hz ~ 18KHz
Signal To Noise Ratio: >95dB
Efficiency @ 4 OHM: >85%
Total Harmonic Distortion @ 4 Ohm, 30% Rated Power: <0.1%
Low Pass Filter (LPF): 25Hz ~ 18KHz
Subsonic Filter (HPF): 25Hz ~ 9.1KHz
Bass Boost Level: 0 ~ 12dB
Bass Boost Frequency: 50Hz ~ 110Hz
FEATURES:
Amplifier Class: D
Amplifier Type: Full Range Monoblock
Number Of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power/Protect/Clip
Fuse Size: 90A
Remote Level Control: Optional
Overheat Protection: Yes - 176F/80C
Short Circuit Test: Yes
Low Voltage Protection: Yes
Clipping Protection: Yes
Body Color | Finish: Black
DIMENSIONS:
Overall Length: 5.82
Overall Width: 5.9
Overall Height: 2.1
Unit Weight: 4.5 lbs
