Massive Audio 2x 12" 2800W Subwoofers Dual 4 Ohm GTX124 + Monoblock Full Range 1500W Amplifier Package

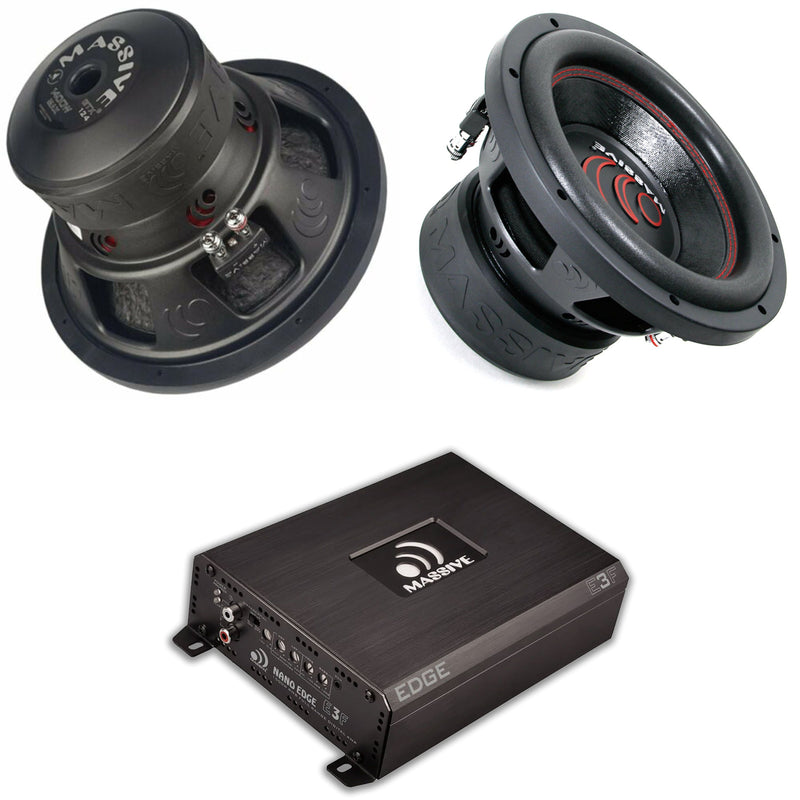

This listing includes :
(2) 12" 2800W Subwoofers GTX124
(1) Monoblock Full Range 1500W Amplifier E3F

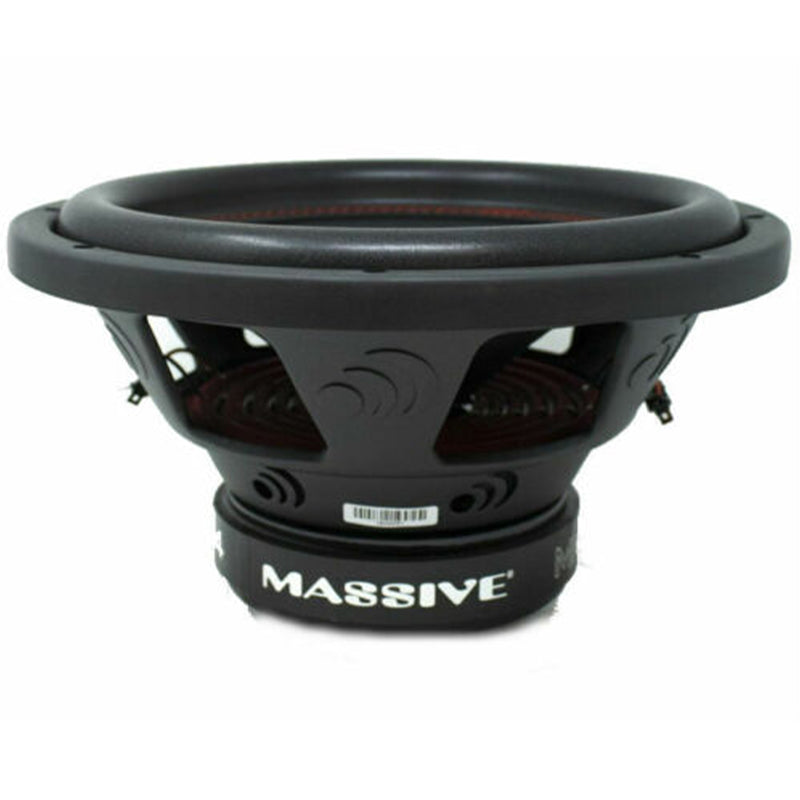

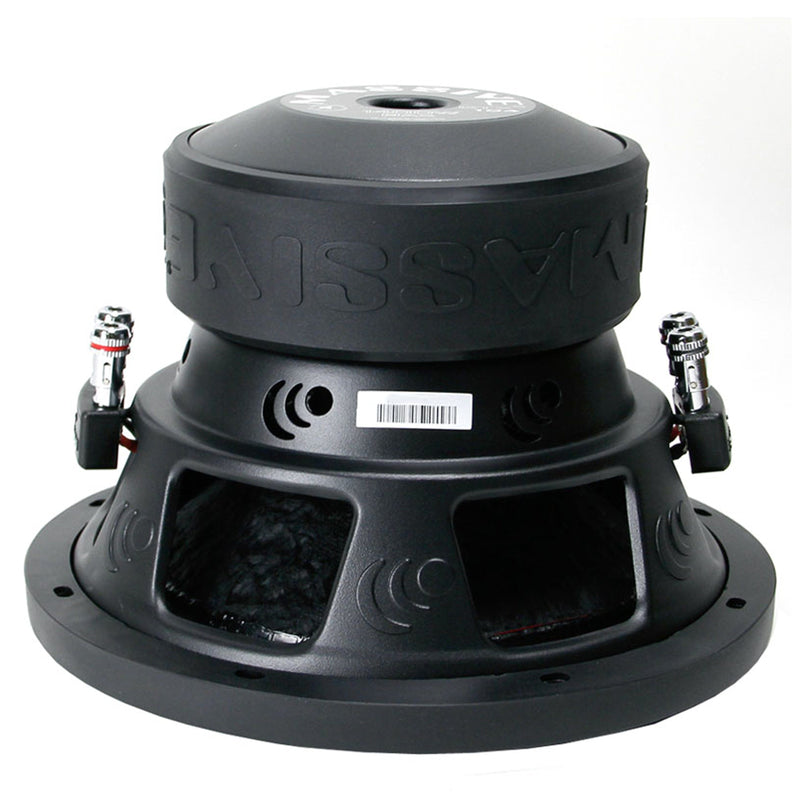

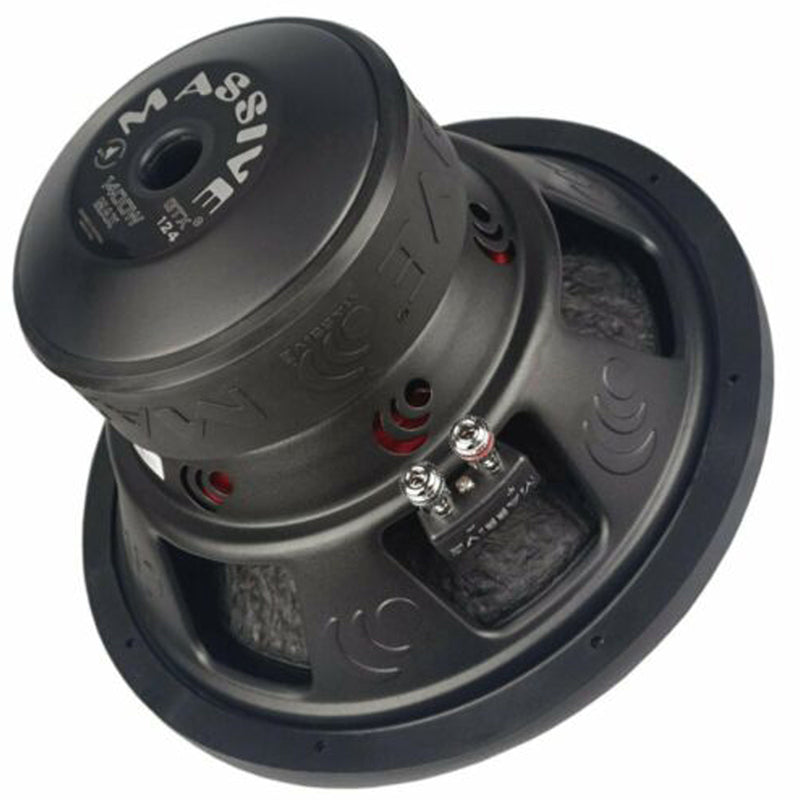

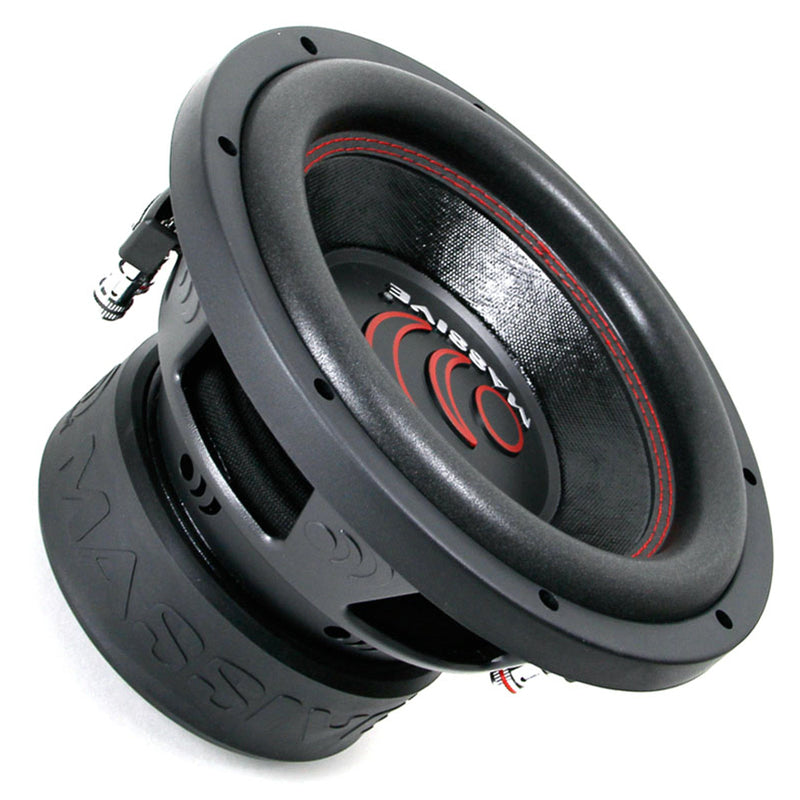

Massive Audio's GTX subs use tight Red stitching that's sewn through a UV treated non-pressed paper cone onto a EROM foam surround. Then it's bonded to a heavy gauge steel basket that's bolted to double stacked high flux Y30 70-150oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring loaded 5-way binding nickel plated speaker connectors. These woofers scream sound quality and truly represent Massive Audio's commitment to value and performance.
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5" 4 Layer Hi-Temp Voice Coil
- Poly Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
SPECIFICATIONS PER SUBWOOFER :
- Size: 12"
- Watts RMS: 700W
- Peak Power: 1400W
- Cone: UV Treated / Non-Pressed Paper
- Voice Coil: 2.5" Dual 4 Ohm
- Surround: EROM Foam
- Magnet: 120oz
- Terminals: 5 Way Binding Push Terminals
- Basket: Heavy Gauge Steel
- Tinsel Leads: Woven Round
- X-Max: 15mm + 10mm top plate
- SPL: 87.9 dB
- FS: 40.2Hz
- Ported Box: 14"H x 16"D x 16"W / 14.05 sq. in. Port Area
- Sealed Box: 1.62 ft3

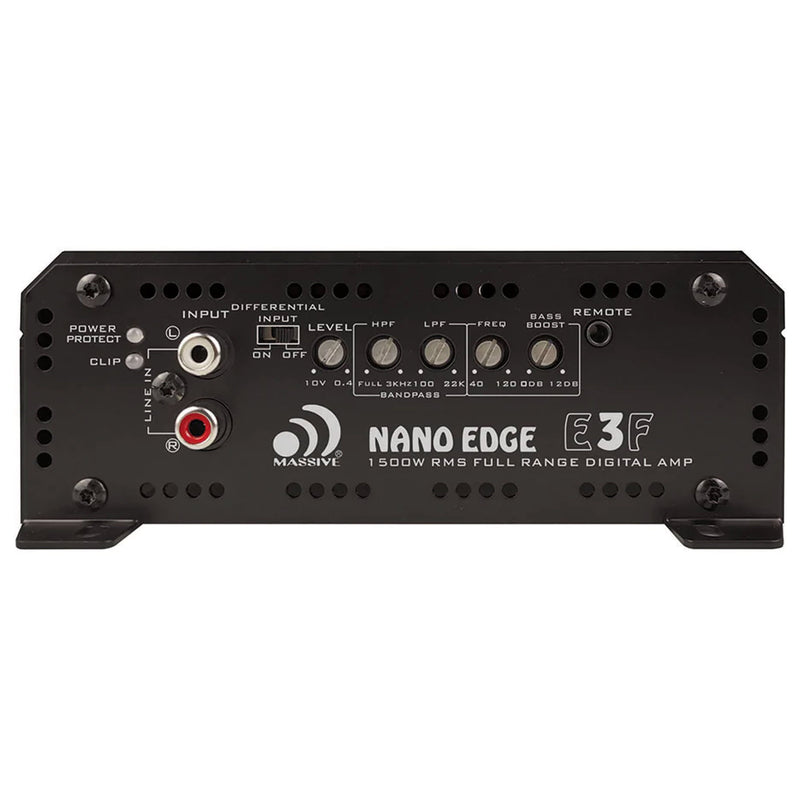

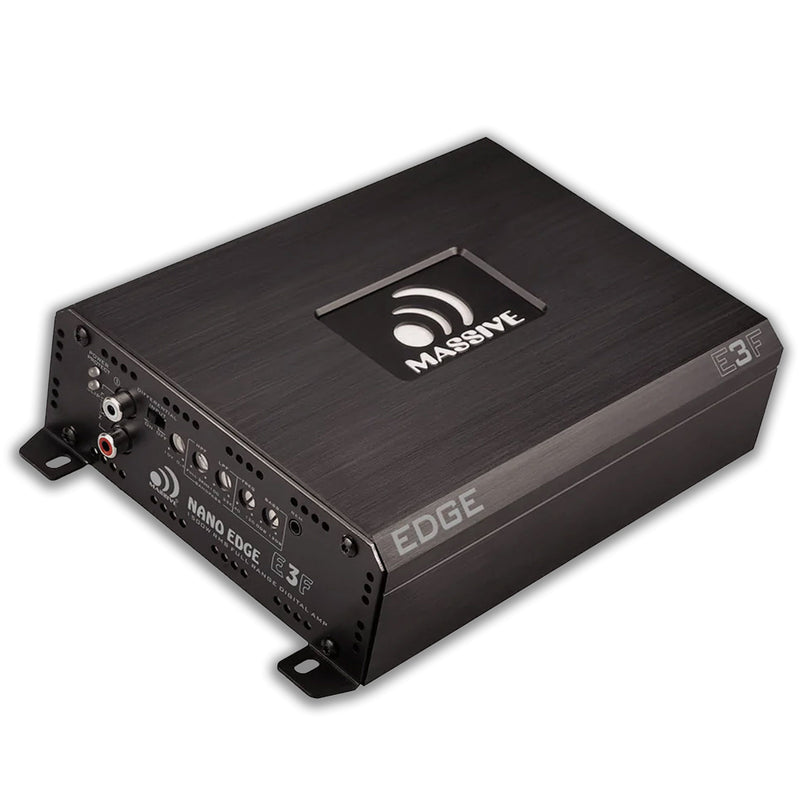

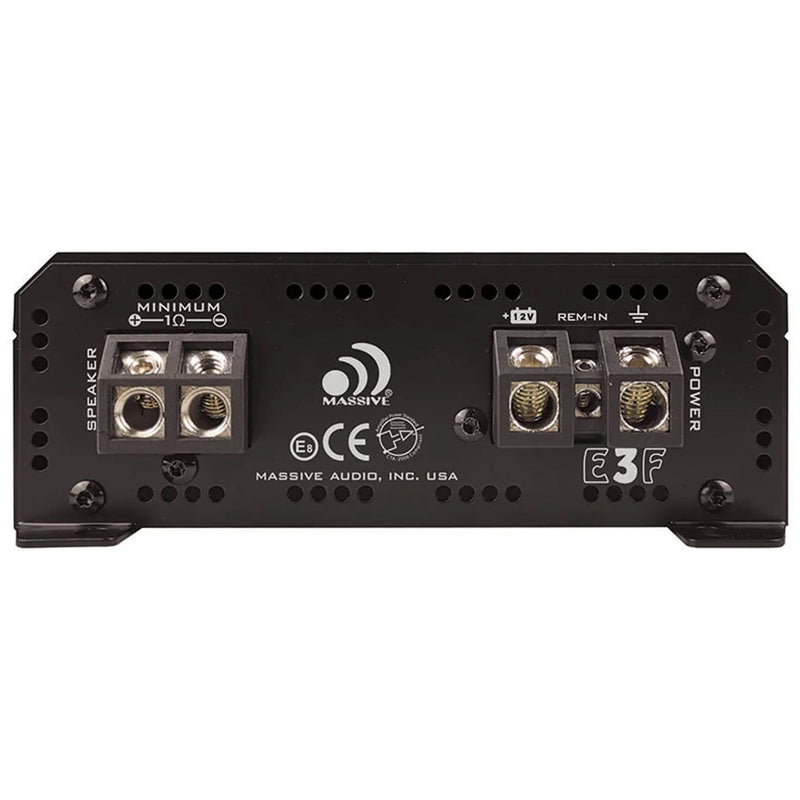

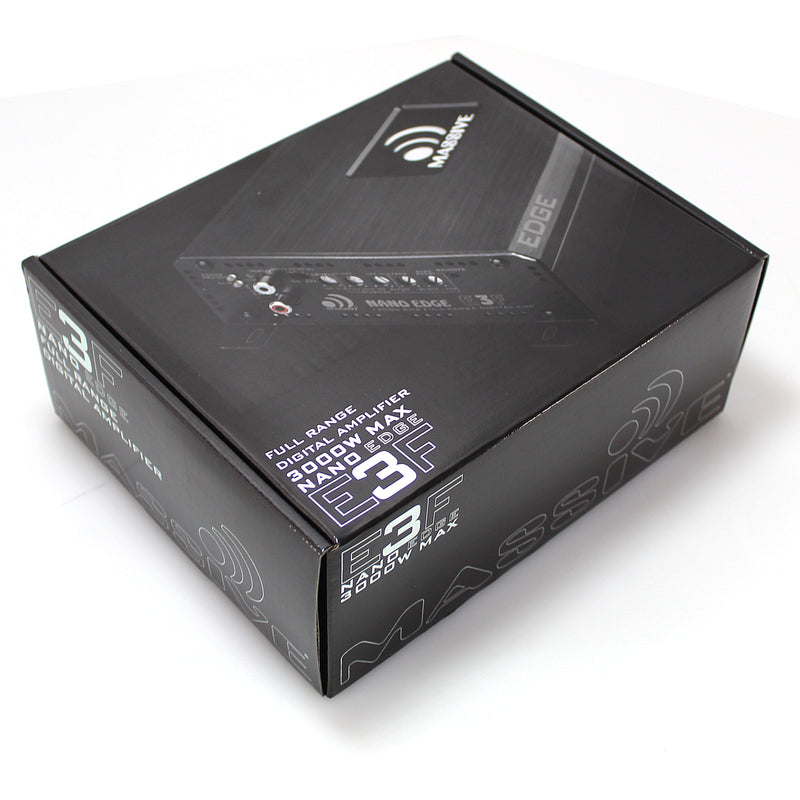

Dont let its diminutive size fool you, this ultra compact Massive Audio E3F EDGE Series Amplifier is a Class D powerhouse capable of up to 1500 Watts RMS at 1 Ohm. With a frequency range of 25Hz - 18KHz this amplifier will deliver high current for Subwoofers, Mid-Range and Full Range Speakers!
Its Class D design enables its compact footprint and cool running within all system configurations. Theres no need to worry about running out of gas, our E3F has a regulated power supply and dual output voltage.
As with all Massive Edge series Amplifiers only the highest quality materials are used. One example is our use of Double Sided, Mil Spec PCBs with Surface Mount Devices. Another Massive Edge family trait is the inclusion of our built-in OEM Line Level Converter with RCA inputs, capable of processing RCA or Speaker levels signals up to 10 Volts! This built in converter eliminates the need for an additional component, thereby reducing cost.
Differential input switching allows for twisted or single end RCA connections to prevent ground noise for those difficult installations and when using a high input source this Amplifier has a built-in auto sensing turn on function. The E3F features variable LPF, HPF and Full Range crossovers for precise tuning.
The E3F also features a 0 12db variable Bass Boost circuit that can be controlled remotely with purchase of our UR1 Bass Boost control and maintaining our legacy of continually upgrading, we include our Next Gen Advanced 5 Way Protection circuitry.
- Built-In OEM Line Converter.
- Versatile Full Range 25Hz - 18KHz Class D Monoblock.
- High Power in Extremely Small Heat Sink.
- Differential Input Switch to Eliminate Noise.
- Clip LED to Indicate Signal Clipping.
- Mil Spec Double Sided PCB with SMD Parts.
- Built-in Noise Reduction Circuitry.
- Full Mosfet with High Grade Switching Devices.
- Regulated Power Supply & Dual Output Voltage.
- CTA-2006 Compliant.
- Built-in Auto Sensing Turn-on via Hi-Input.
- 12v Remote Output for External Devices.
- 0~12dB Variable Bass Boost.
- Next Gen Advanced 5 Way Protection.
- Total Watts (Peak): 3000 Watts
- RMS Power @ 4 OHM: 1CH x 370 Watts
- RMS Power @ 2 OHM: 1CH x 1000 Watts
- RMS Power @ 1 OHM: 1CH x 1500 Watts
- RMS Power @ 4 OHM Bridge: N/A
AUDIO SPECIFICATIONS :
- Frequency Response: 25Hz ~ 18KHz
- Signal To Noise Ratio: >95dB
- Efficiency @ 4 OHM: >85%
- Total Harmonic Distortion @ 4 Ohm, 30% Rated Power: <0.1%
- Low Pass Filter (LPF): 25Hz ~ 18KHzv- Subsonic Filter (HPF): 25Hz ~ 9.1KHz
- Bass Boost Level: 0 ~ 12dB
- Bass Boost Frequency: 50Hz ~ 110Hz
- Amplifier Class: D
- Amplifier Type: Full Range Monoblock
- Number Of Channels: 1
- Minimum Impedance: 1 Ohm
- Led Indicator: Power/Protect/Clip
- Fuse Size: 90A
- Remote Level Control: Optional
- Overheat Protection: Yes - 176F/80C
- Short Circuit Test: Yes
- Low Voltage Protection: Yes
- Clipping Protection: Yes
- Body Color | Finish: Black
- Overall Length: 5.82
- Overall Width: 5.9
- Overall Height: 2.1
- Unit Weight: 4.5 lbs
