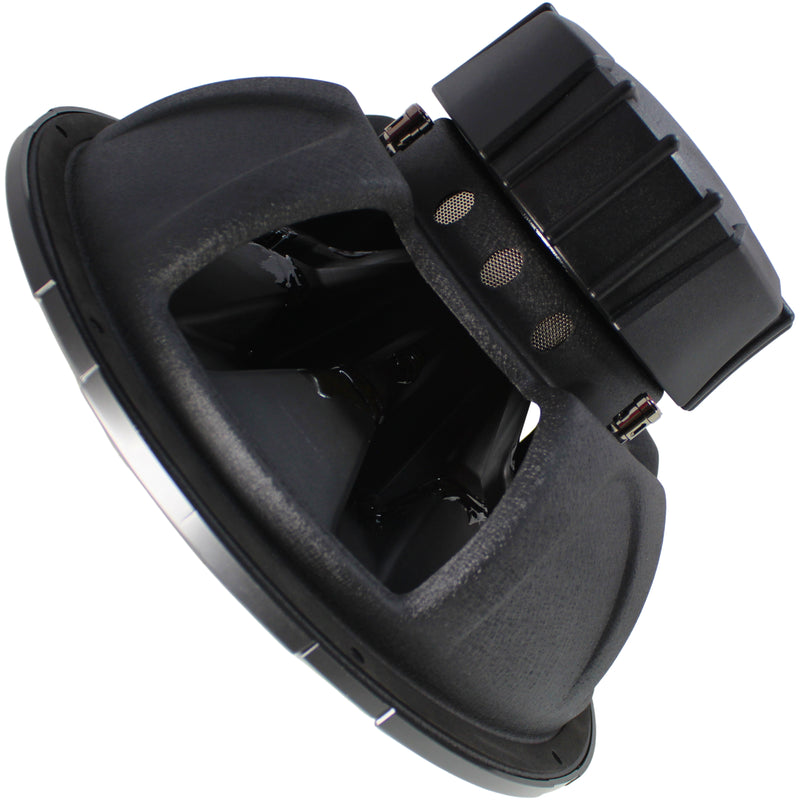

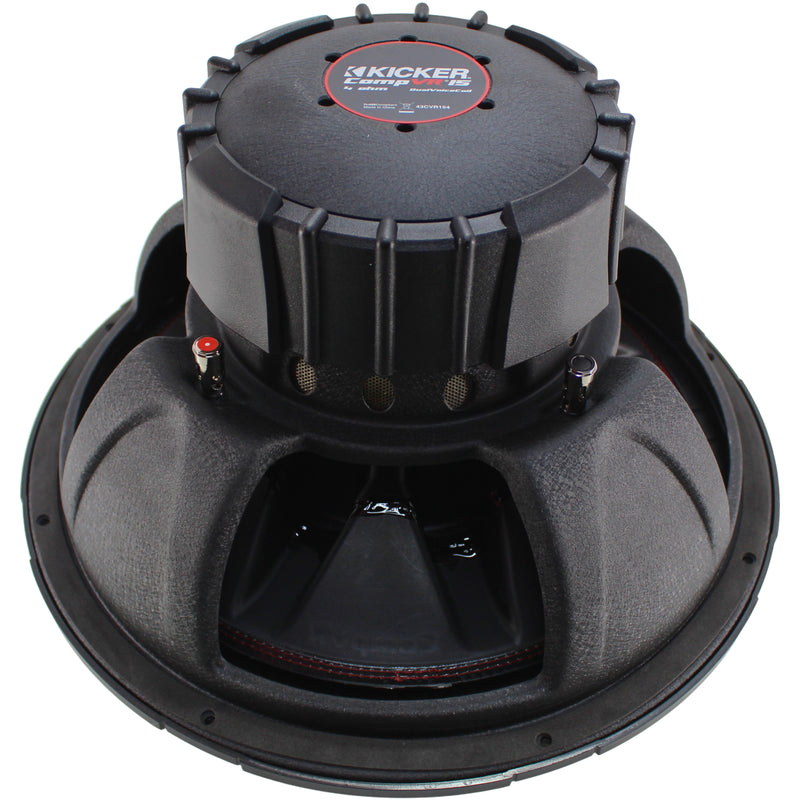

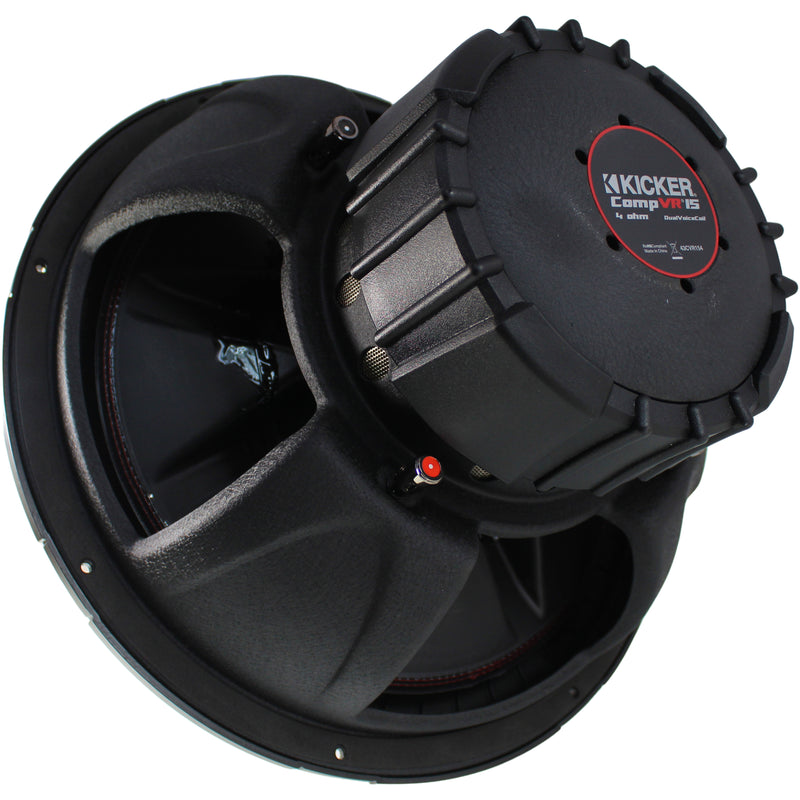

Kicker CompVR Series 15" 500W RMS 4-Ohm DVC Subwoofer / 43CVR154

This Listing Includes:

• (1) 43CVR154 Subwoofer

Description:

Experience the ultimate in bass performance with the Kicker CompVR Series 15" subwoofer. Designed for audio enthusiasts who demand power and precision, this subwoofer delivers a staggering 500W RMS, ensuring every beat is felt with intensity. The dual voice coil (DVC) configuration provides flexibility in wiring options, making it a versatile addition to any audio setup. With its robust construction and innovative features, the CompVR 15" subwoofer is built to deliver deep, resonant bass that transforms your music listening experience.

Download Owner's Manual

Features:

• Exceptional Value: The KICKER CompVR Subwoofer delivers incredible bang for the buck, emphasizing powerful bass performance.
• 15-Inch Dual Voice Coil Design: Features a 15-inch, 4-ohm dual voice coil (DVC) configuration, built for easy wiring and versatile installation options.
• Advanced Heat Management: A solid pole piece and perimeter venting ensure superb heat dissipation without breakdown, resulting in improved bass response.
• Precision Engineering: The Santoprene surround and progressive-roll spider maintain smooth, linear, and accurate cone response at any volume level.
• Optimal Enclosure Compatibility: Works best with both sealed and ported enclosures, and is designed to handle 500 watts of recommended power for peak performance.

Specifications:

• Size: 15"
• Impedance: 4-OhmDVC
• Recommended Amplifier Power (watts RMS): 500W RMS
• Peak Power (watts, per ANSI/CTA-2031-A): 1000W
• Sensitivity: 89.2 dB

Thiele/Small Parameters:

• Re | 7.14 - Ohm electrical voice coil resistance at DC
• Krm | 0.01575 - Ohm WRIGHT inductance mode
• Erm | 0.86 - WRIGHT inductance mode
• Kxm | 0.0757 - Ohm WRIGHT inductance mode
• Exm | 0.745 - WRIGHT inductance mode
• Cmes | 384.345 - F electrical capacitance representing moving mass
• Lces | 96.66 - mH electrical inductance representing driver compliance
• Res | 163.305 Ohm resistance due to mechanical losses
• fs | 26.15 - Hz driver resonance frequency
• Mms | 291.099g mechanical mass of driver diaphragm assembly including air load and voice coil
• Mmd | 263.5975g mechanical mass of voice coil and diaphragm without air load
• Rms | 4.648 kg/s mechanical resistance of total-driver losses
• Cms | 0.1275 mm/N mechanical compliance of driver suspension
• Kms | 7.845 N/mm mechanical stiffness of driver suspension
• Bl | 27.5305 Tm force factor (Bl product)
• Lambda | 0 suspension creep factor
• Qtp | 0.504 total Q-factor considering all losses
• Qms | 10.285 mechanical Q-factor of driver in free air considering Rms only
• Qes | 0.45 electrical Q-factor of driver in free air considering Re only
• Qts | 0.4315 total Q-factor considering Re and Rms only
• Vas | 127.2657 I equivalent air volume of suspension
• n0 | 0.4855 reference efficiency (2 pi-radiation using Re)
• Lm | 89.05 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)
• Lnom | 89.545 dB nominal sensitivity (SPL at 1m for 1W @ Zn)
• rmse Z | 2.88% root-mean-square fitting error of driver impedance Z(f)
• rmse Hx | 1.945% root-mean-square fitting error of transfer function Hx (f)
• Sd | 839.82 cm diaphragm area
• Xmax | 15 mm Xmax (Linear Excursion)

Measurements:

• Overall Diameter: 15.5"
• Bolt Pattern Diameter: 14.5"
• Mounting Depth: 8.1875"
• Overall Depth: 8.5"
• Front Mount Baffle Cutout: 13.6875"

Enclosure Suggestions:

• MOUNTING DEPTH: 8.1875"
• MOUNTING DIAMETER: 12.3125"
• MIN SEALED BOX VOL [cu. ft, L]: 1.8, 51
• MAX SEALED BOX VOL [cu. ft, L]: 5.2, 147
• MIN VENTED BOX VOL [cu. ft, L]: 3.0, 85
• MAX VENTED BOX VOL [cu. ft, L]: 5.0, 142

Package Dimensions:

• Length: 17.75"
• Width: 17.75"
• Height: 10.5"
• Package weight: 26.9 lb
