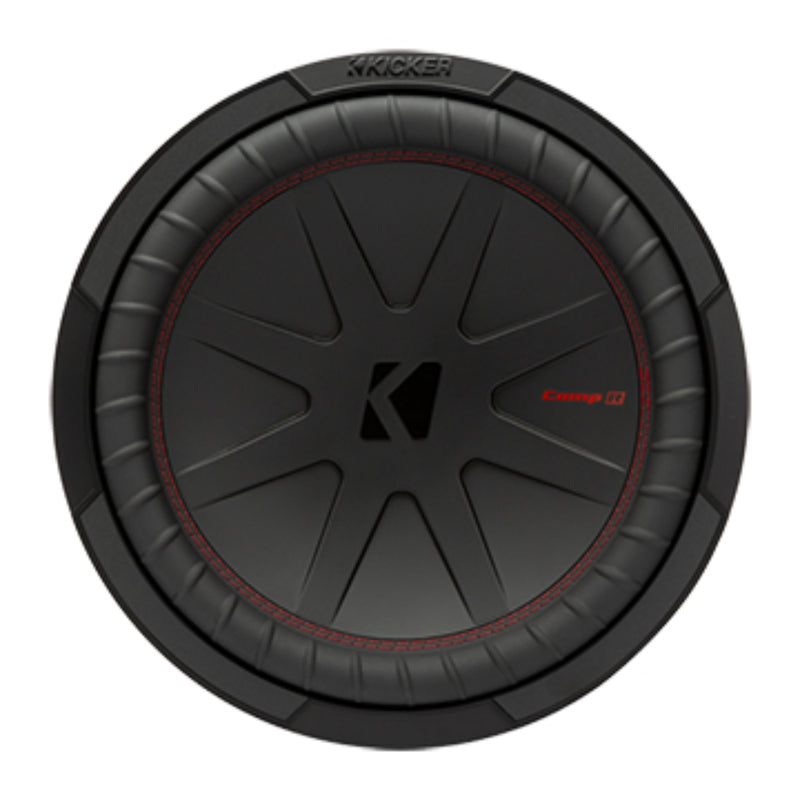

Kicker 12" 4 Ohm 1000W Peak CompR Pro Car Audio Subwoofer Black 48CWR124

SKU KI-48CWR124
Save 28% Save 28%
Original price $189.99
Original price $189.99 - Original price $189.99
Original price $189.99
Current price $135.96
$135.96 - $135.96
Current price $135.96

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3% *Must purchase 2 items to qualify
  • Spend $500, Save 5% *Must purchase 3 items to qualify
  • Spend $1000, Save 7% *Must purchase 4 items to qualify

*Does not apply to: AudioControl, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

  • The CompR 12-Inch Subwoofer is a 4 dual voice coil design, making it easy to get the most out of your amp.
  • An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Revolutionary SoloKon technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
  • To make their subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
  • The CompR 12-Inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
  • MEASUREMENTS - Overall Diameter: 12 | Mounting Depth: 5.75" | Mounting Diameter: 11


Kicker 12" 4 Ohm 1000W Peak CompR Pro Car Audio Subwoofer Black 48CWR124





Now even more efficient and sporting a slick, blacked-out look, the 2021 CompR sub is the very model of power and reliability.





12" CompR 4 Ohm - The CompR 12-Inch Subwoofer is a 4 dual voice coil design, making it easy to get the most out of your amp.





An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Revolutionary SoloKon technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.





To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.





The CompR 12-Inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.



This Listing Includes:


- (1) Kicker 12" 4 Ohm 1000W Peak CompR Pro Car Audio Subwoofer 48CWR124





Thiele/Small Parameters:


- Re | 6.975 - Ohm electrical voice coil resistance at DC


- Krm | 0.0092 - Ohm WRIGHT inductance mode


- Erm | 0.895 - WRIGHT inductance mode


- Kxm | 0.05965 - Ohm WRIGHT inductance mode


- Exm | 0.745 - WRIGHT inductance mode


- Cmes | 478.55 - F electrical capacitance representing moving mass


- Lces | 57.855 - mH electrical inductance representing driver compliance


- Res | 135.04 Ohm resistance due to mechanical losses


- fs | 30.25 - Hz driver resonance frequency


- Mms | 172.3025g mechanical mass of driver diaphragm assembly including air load and voice coil


- Mmd (Sd) | 159.414g mechanical mass of voice coil and diaphragm without air load


- Rms | 2.6665 kg/s mechanical resistance of total-driver losses


- Cms | 0.1605 mm/N mechanical compliance of driver suspension


- Kms | 6.22 N/mm mechanical stiffness of driver suspension


- Bl | 18.9755 Tm force factor (Bl product)


- Lambda | -0.015 suspension creep factor


- Qtp | 0.681 total Q-factor considering all losses


- Qms | 12.282 mechanical Q-factor of driver in free air considering Rms only


- Qes | 0.634 electrical Q-factor of driver in free air considering Re only


- Qts | 0.6025 total Q-factor considering Re and Rms only


- Vas | 58.3798 I equivalent air volume of suspension


- n0 | 0.245% reference efficiency (2 pi-radiation using Re)


- Lm | 86.09 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)


- Lnom | 86.685 dB nominal sensitivity (SPL at 1m for 1W @ Zn)


- rmse Z | 2.4% root-mean-square fitting error of driver impedance Z(f)


- rmse Hx | 2.575% root-mean-square fitting error of transfer function Hx (f)


- Sd | 506.71 cm diaphragm area


- Xmax | 14 mm Xmax (Linear Excursion)



Specifications:


- SIZE: 12"


- IMPEDANCE [Ohms]: 4 DVC


- Recommended Amplifier Power (watts RMS): 500


- Peak Power (watts, per ANSI/CTA-2031-A): 1000


- SENSITIVITY [dB 1w/1m]: 86.9


- MOUNTING DEPTH: 5.75"


- MOUNTING DIAMETER: 11"


- MIN SEALED BOX VOL [cu. ft, L]: 1.0, 28.3


- MAX SEALED BOX VOL [cu. ft, L]: 2.0, 56.64


- MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6


- MAX VENTED BOX VOL [cu. ft, L]: 2.25, 63.7





MEASUREMENTS:


- Overall Diameter: 12.5


- Mounting Depth: 5.75


- Front Mount Baffle Cutout: 11





Package Dimensions:


- Length: 15"


- Width: 15"


- Height: 8"


- Package weight: 16 lb
