- Kenwood DDX9707S DVD receiver with 6.95" touchscreen monitor and Kenwood CMOS-230 Universal backup camera bundle.
- Versatile camera integration with support for up to four cameras, offering enhanced safety.
- Wireless Apple CarPlay™ and Android Auto™ on the customizable high-definition touchscreen for a familiar interface.
- Seamless integration with Kenwood's CMOS-230 backup camera, providing a comprehensive 128-degree horizontal and 103-degree vertical view.
- Waterproof CMOS backup camera compatible with any radio with an RCA video input.
Kenwood DDX9707S DVD receiver & Kenwood CMOS-230 Universal backup camera

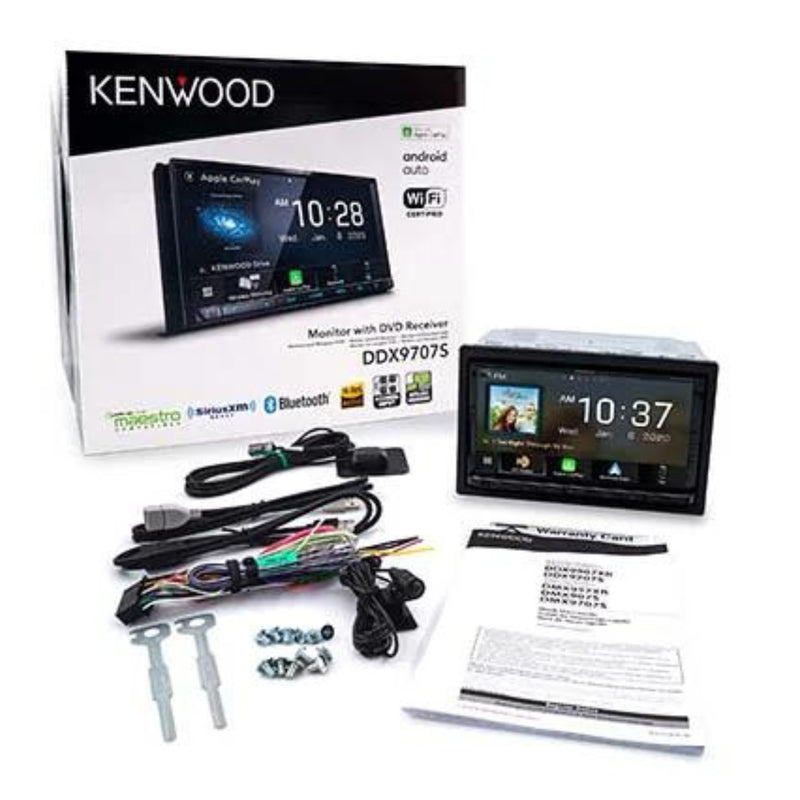

This listing includes:
(1) DVD receiver w/ electronic 6.95" touchscreen monitor (15A fuse)
(1) Sleeve (attached)
(1) Trim ring
(1) Wiring harness
(2) 39" USB extension cables
(1) GPS antenna (attached 11.5' cable terminated by a proprietary connector)
(1) Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
(1) Rear-view camera w/ bracket (attached 5' cable)

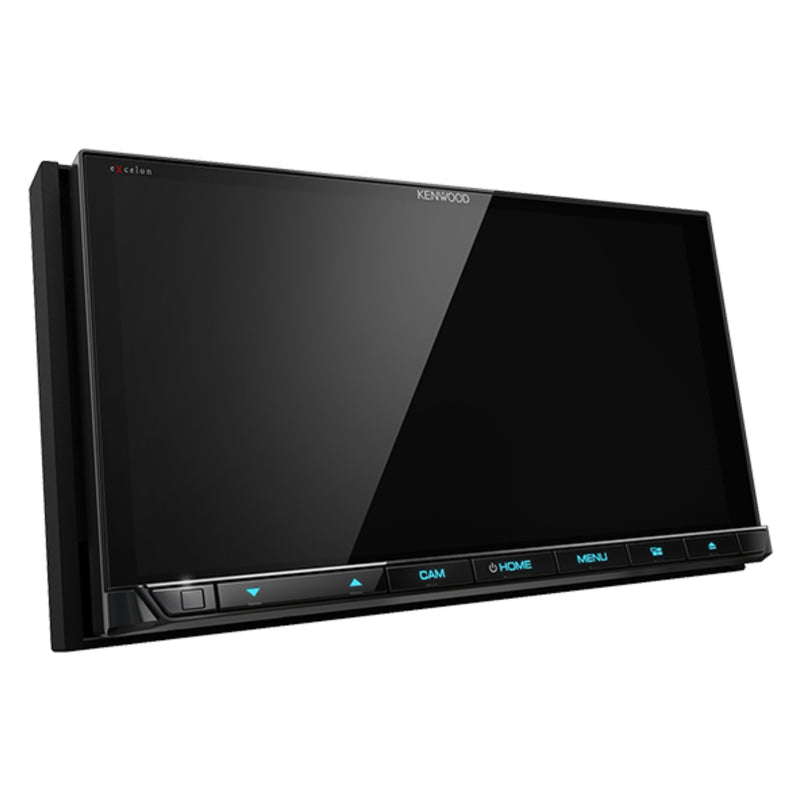

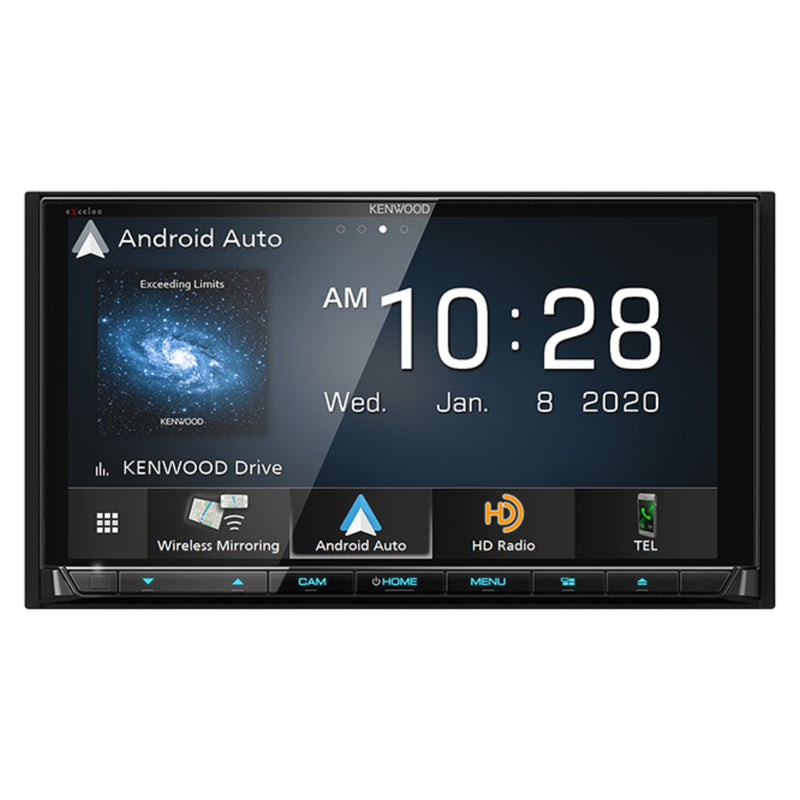

Kenwood's DDX9707S: A Visual and Auditory Marvel
Kenwood's DDX9707S DVD receiver stands as a visual marvel, showcasing the brand's unwavering commitment to audio excellence. This receiver is not only a feast for the eyes but also a testament to Kenwood's dedication to delivering outstanding audio performance.
Versatile Camera Integration and Wireless Connectivity
Connect up to four cameras seamlessly, encompassing both factory and aftermarket options. Wireless Apple CarPlayâ and Android Autoâ bring a familiar interface to the expansive 6.95" high-definition touchscreen display, customizable to suit individual preferences.
Audio Customization and High-Definition Entertainment Hub
Kenwood's DDX9707S offers a range of audio customization options, allowing users to fine-tune their music to perfection. Beyond its stunning visual features, this receiver doubles as a high-definition dashboard display, delivering crystal-clear video content when stationary. It can entertain passengers by streaming movies to a rear-seat screen while on the move.
Versatile Camera Input Choices and Seamless Integration
With three camera input choices catering to backup, front-dash, and side-view cameras in select vehicles, this receiver offers versatility in your visual experience. Seamless integration with Kenwood's DRV-N520 Drive Recorder HD dash cam provides camera control and alerts directly on the receiver's display.
Mirror Your Smartphone Display and Optimal Viewing Experience
The DDX9707S offers the option to mirror your Androidâ or iPhone display directly onto the touchscreen. Kenwood's thoughtful inclusion of electronic angle adjustment ensures optimal screen contrast without the need for physical display relocation, enhancing your viewing experience within your vehicle's dash setup.

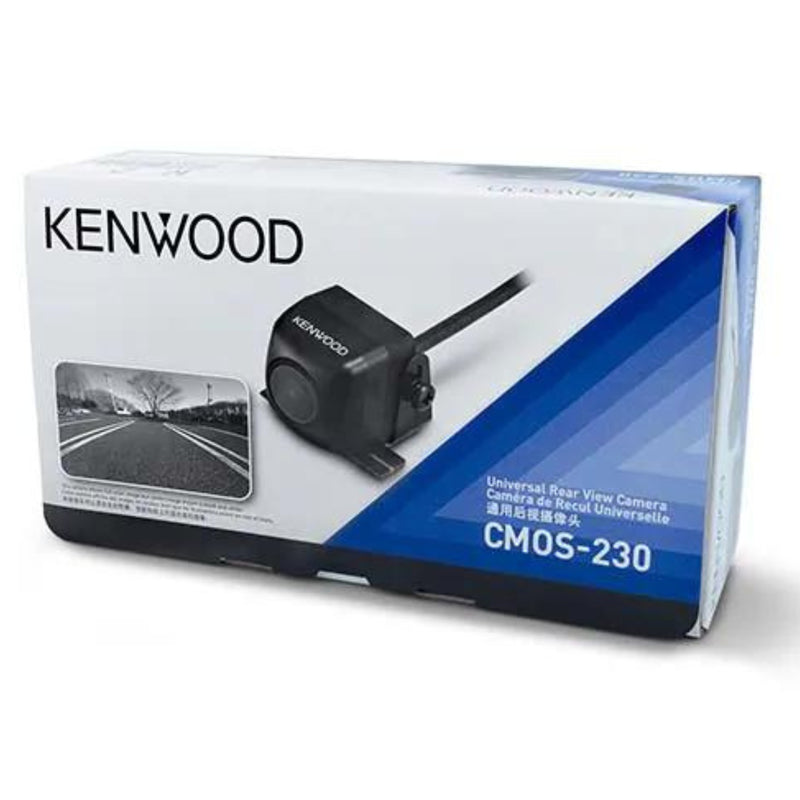

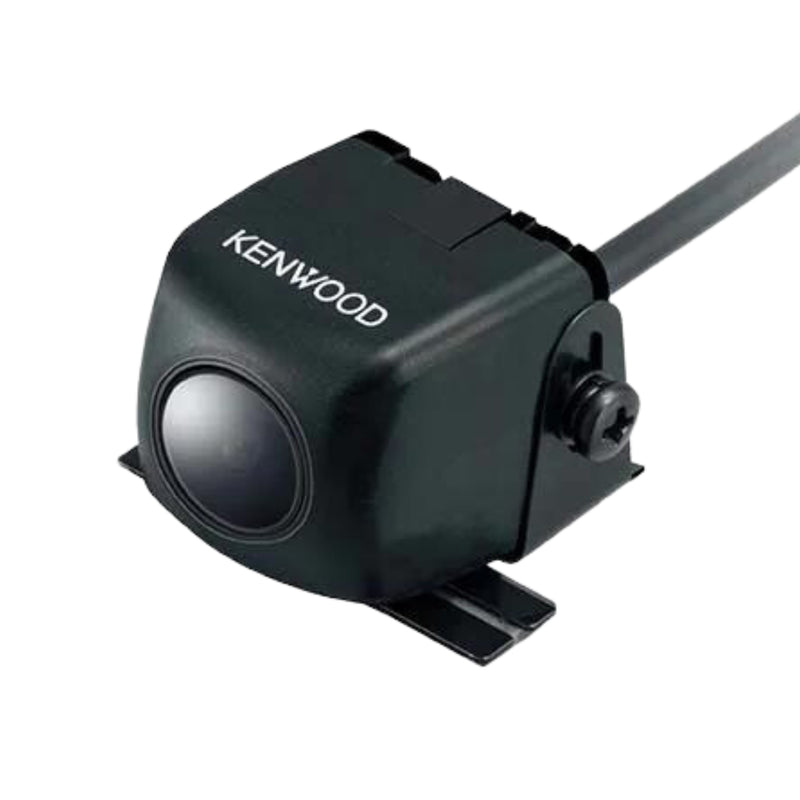

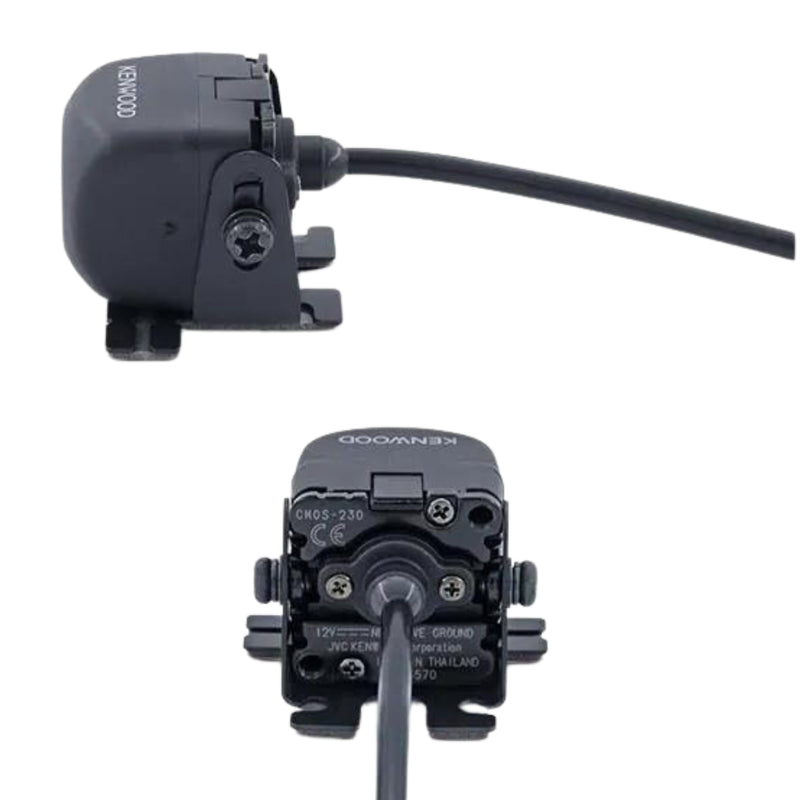

Kenwood's CMOS-230 Backup Camera: Compact and Comprehensive
Kenwood's CMOS-230 backup camera seamlessly blends into the rear of nearly any vehicle with its compact size of less than a cubic inch. Engage reverse gear to access the rear view on your receiver's video screen. This camera provides an impressive 128-degree horizontal and 103-degree vertical view, ensuring a comprehensive perspective, particularly useful for maneuvering large vehicles or when towing objects.
Specifications:
Kenwood DDX9707S DVD receiver:
- DVD/CD Receiver with AM/FM Tuner
- 6.95" High-Contrast Resistive Touchscreen Display
- Wi-Fi Certified
- Waze-Ready with Apple CarPlay or Android Auto
- Customizable Display Background and Digital Angle Adjustment for Better In-Dash Visibility
- Plays High-Res FLAC and WAV (Up to 24-bit/192 kHz) Files on USB Drives
- Fits Double-DIN Dash Openings
Bluetooth Features:
- Hands-Free Calling and Audio Streaming with Dual Phone Connection
- Kenwood Music Mix Feature Allows Music Streaming and Control from Up to Five Paired Smartphones
- Control the Stereo Using Kenwood's Free Remote S App
Smartphone Features:
- Compatible with Wireless or Wired Apple CarPlay or Android Auto
- Music Control and Charging of Apple and Select Android Devices Using the USB Connections
- Pandora and Spotify Control with iPhone and Android
- Wireless and Wired Mirroring for Android; Wired for iPhone
Audio/Video Features:
- Plays CDs, DVDs, and USB Memory Devices (See Details for Full Capabilities)
- 13-Band Equalizer with Digital Time Alignment
- Supreme Setting Improves the Digital Sound for All Music Sources
- Stage EQ Compensates for Low Speaker Positions
- DriveEQ Boosts Specific Frequencies to Compensate for Road Noise
- Subwoofer Level, Phase, and Low-Pass Crossover Controls
Expandability:
- Compatible with SiriusXM's Aftermarket Satellite Radio Tuner (Sold Separately, Subscription Required)
- Direct Connection and Control with Kenwood's DRV-N520 Drive Recorder Dash Cam

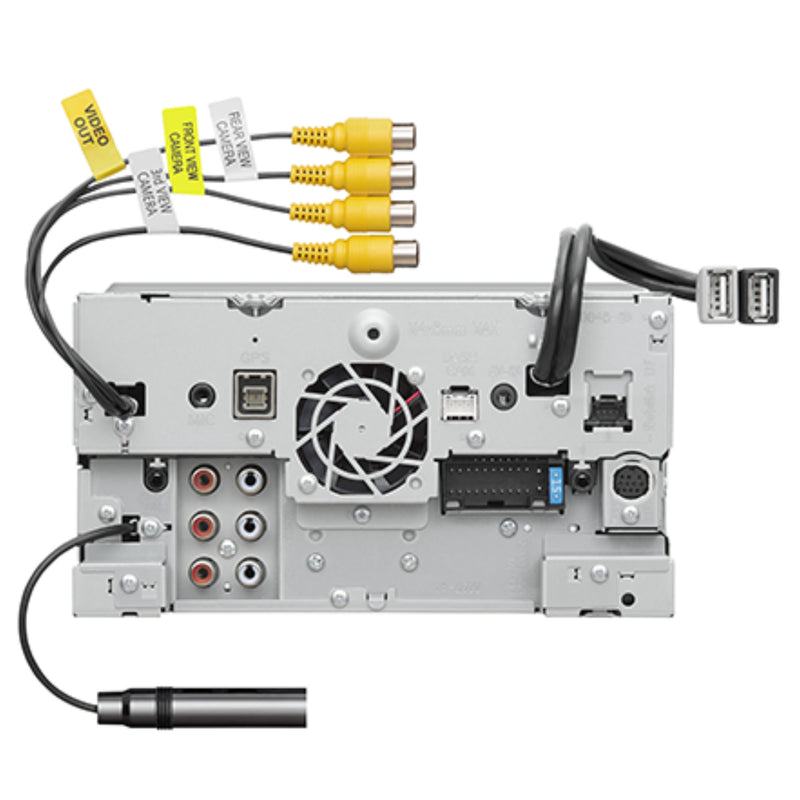

- Inputs: Two Rear USB Inputs, Rear A/V Input (Mini), Four Camera Inputs (Including DRV-N520 Input)
- Outputs: Rear A/V Output, 6-Channel Preamp Outputs (4-Volt Front, Rear, Subwoofer)
Other Information:
- Wired Connection to Parking Brake Required to Access Settings and Other Features on This Receiver (The Brake Must Be Connected and Set for Video Display)
- Built-in Internal Amp (22 Watts RMS/50 Peak x 4 Channels)
- Works with iDataLink Maestro Module
- Retains Factory Features in a Wide Selection of Vehicles
- Displays Engine Performance and Other Vehicle Data on Touchscreen
Kenwood CMOS-230 Universal backup camera:
- Camera Type: Rear
- Resolution: 330,000 pixels
- Parking Guidelines: No
- Lux Rating: 0.9 lux (min)
- Selectable Views: No
- Reversed Image: Mirror
- Horizontal Viewing Angle: 128 degrees
- Vertical Viewing Angle: 103 degrees
- Wireless: No
- Plug Type: Composite video
- Waterproof CMOS backup camera
- 128-degree horizontal and 103-degree vertical view
- Dimensions: 15/16"W x 15/16"H x 15/16"D
- Built-in power supply

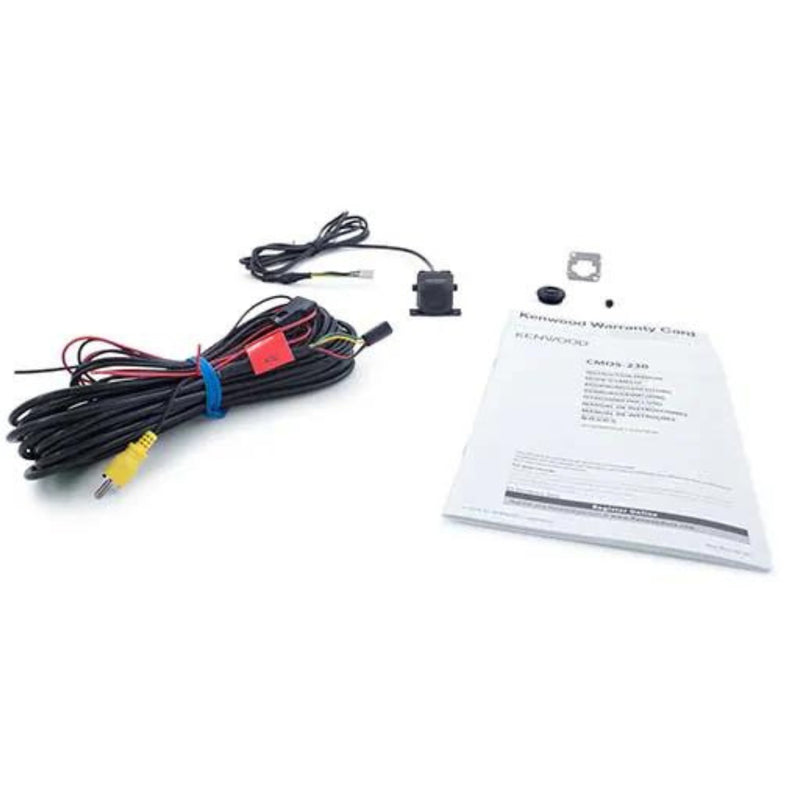

- 24-foot cable harness and mounting bracket included
