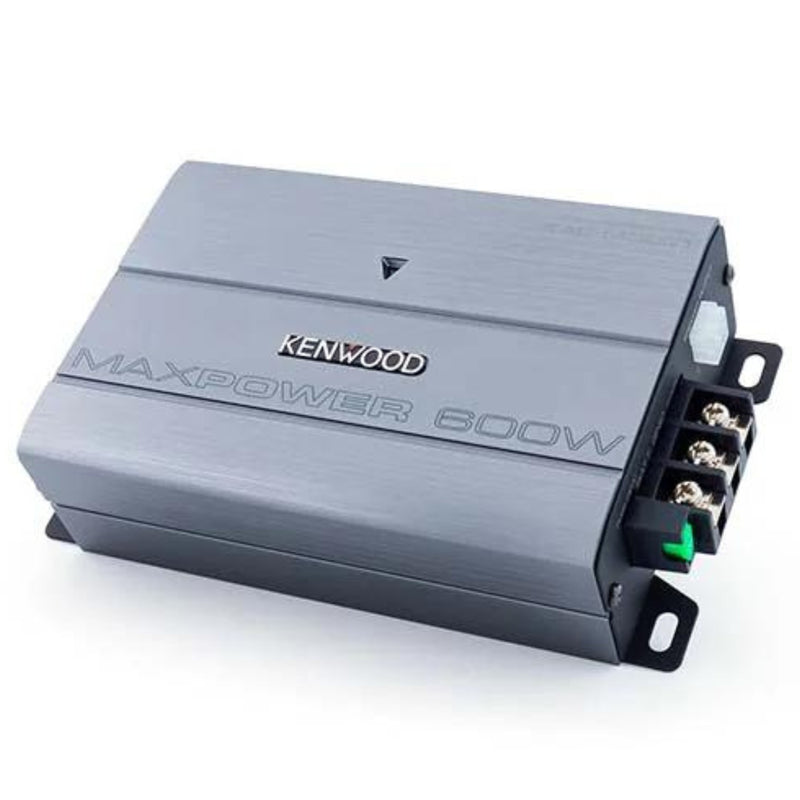

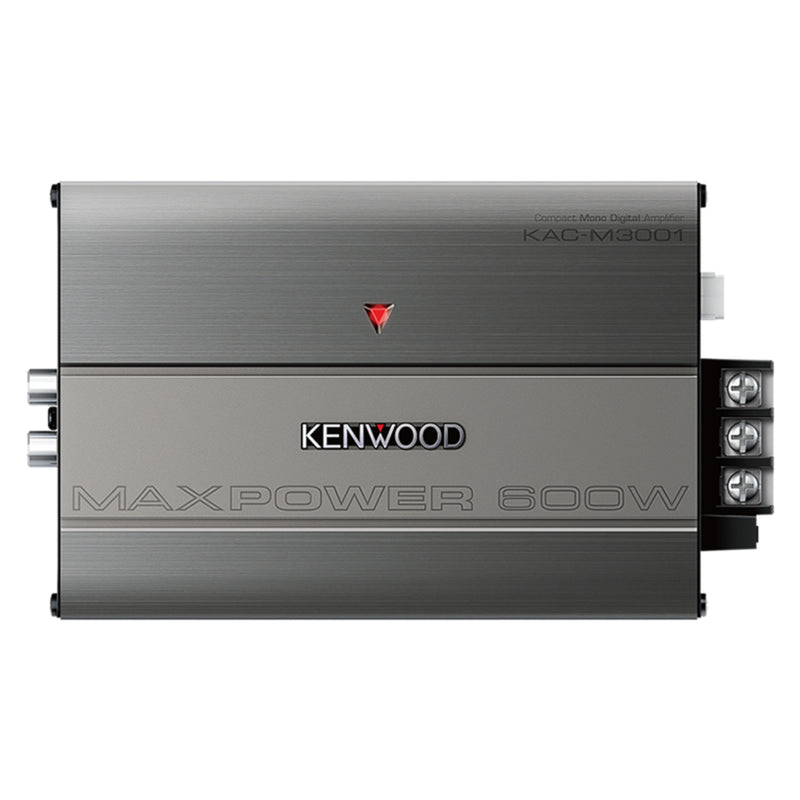

- The Kenwood KAC-M3001 compact Class D mono block amplifier is designed to drive a subwoofer (or two). The amp features a conformal coating on the circuit board to protect it from moisture. This allows you to use the amp for motorcycles, marine applications, or on All-Terrain Vehicles (ATVs). The KAC-M3001 delivers 200 watts RMS x 1 channel at 4 ohms. It also gives you 300 watts RMS x 1 at 2 ohms.
- Protection Circuitry: The amplifier features protection circuitry for thermal overload, DC offset, and short circuits. The amp stops operating when it goes into protection mode. (There are no LED indicators.)
- Signal-sensing Turn-on: When the amplifier is connected to a factory head unit, or an aftermarket unit without preamp outputs, you can splice the head unit's speaker wires to a speaker-to-male RCA adapter. In this case, the amplifier's Signal-sensing Turn-on feature will turn on the amp when a signal is detected on the input. This eliminates the need to connect a turn-on lead to the amp's Power Control (blue) wire.

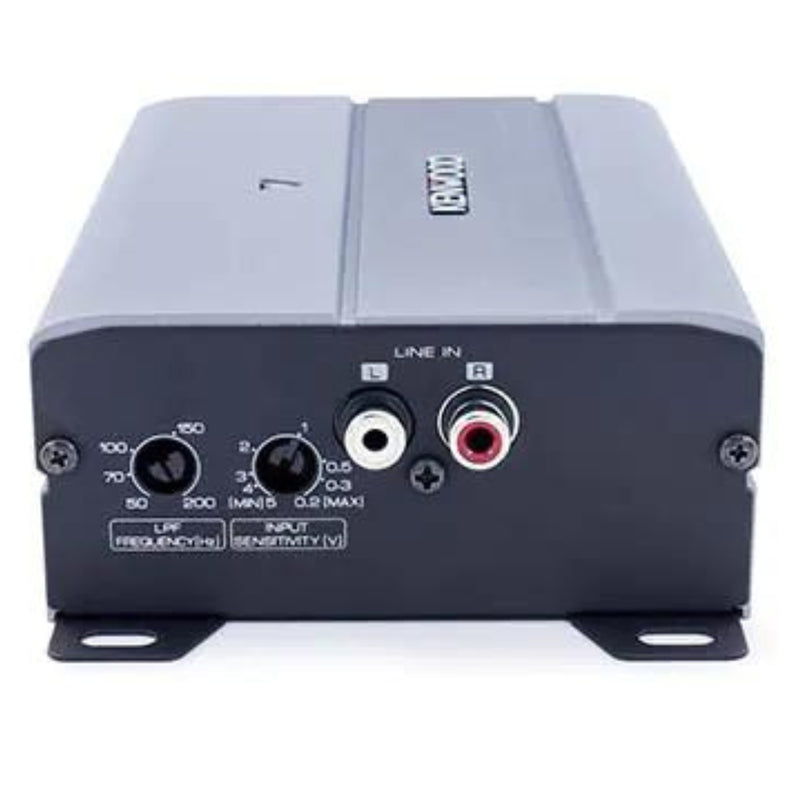

- Crossover: The amp has a low-pass crossover to filter out the high frequencies that a subwoofer is unable to reproduce. The crossover has a continuously variable crossover point (50 to 200 Hz) with a slope of 24dB/octave. The crossover cannot be turned off.
- Mounting: The KAC-M3001 can be mounted onto an installation board (5/8" thick or more) using the supplied M4 x 16mm self-tapping screws. Two 13.5" plastic wire ties are included for securing the amplifier to a 2x4 board or other narrow item.
Kenwood Class D Compact Mono Block Digital 4 ohm 600 Watt Power Amplifier

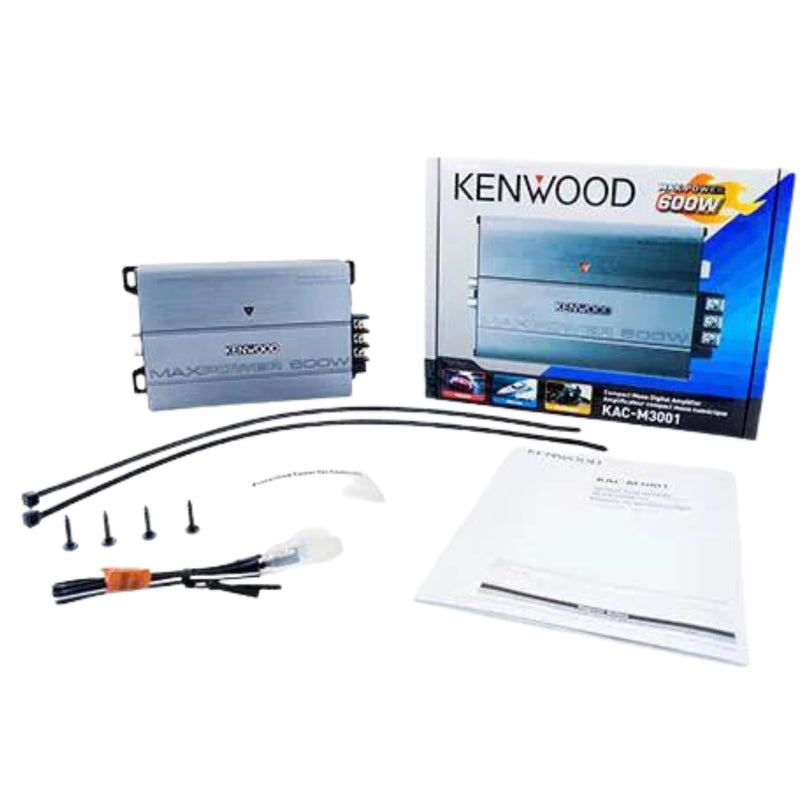

This listing includes:
- (1) Mono block amplifier with a 30A ATM mini-fuse installed
- (1) 9" Speaker output harness (4-pin Molex plug on one end)
- (4) Self-tapping screws (M4 x 16mm)
- (2) 13.5" plastic wire ties
Subwoofer Power on the Go
Experience powerful bass on the road with Kenwood's KAC-M3001 compact mono subwoofer amplifier, delivering up to 300 watts RMS. Hear clear and impactful bass even amidst road, trail, or waterway noise during your travels. This compact powerhouse fits effortlessly in various locations, from storage compartments on boats, motorcycles, to ATVs, ensuring great bass in any vehicle.
Weather-Ready Music Enjoyment
Equipped with conformal coating, the KAC-M3001 safeguards internal circuits from water and dirt, ensuring uninterrupted performance even in challenging conditions. The subwoofer output terminal adds an extra layer of protection with its plastic-covered plug.
Easy Installation with High-Level Inputs
Versatility is at your fingertips—the KAC-M3001 accepts signals from various sources. Whether it's RCA cables from an aftermarket receiver or speaker wires from a factory radio, this amplifier is ready. With speaker-level inputs, the amplifier senses the signal and powers on, eliminating the need for a remote turn-on lead to your car stereo.
Key Features:
- Mono subwoofer amplifier
- 200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
- CEA-2006 compliant
- Class D amp technology
- Conformal-coated circuit board for power sports and marine applications
- Variable low-pass filter (50-200 Hz, 24 dB/octave)
- Preamp and speaker-level inputs

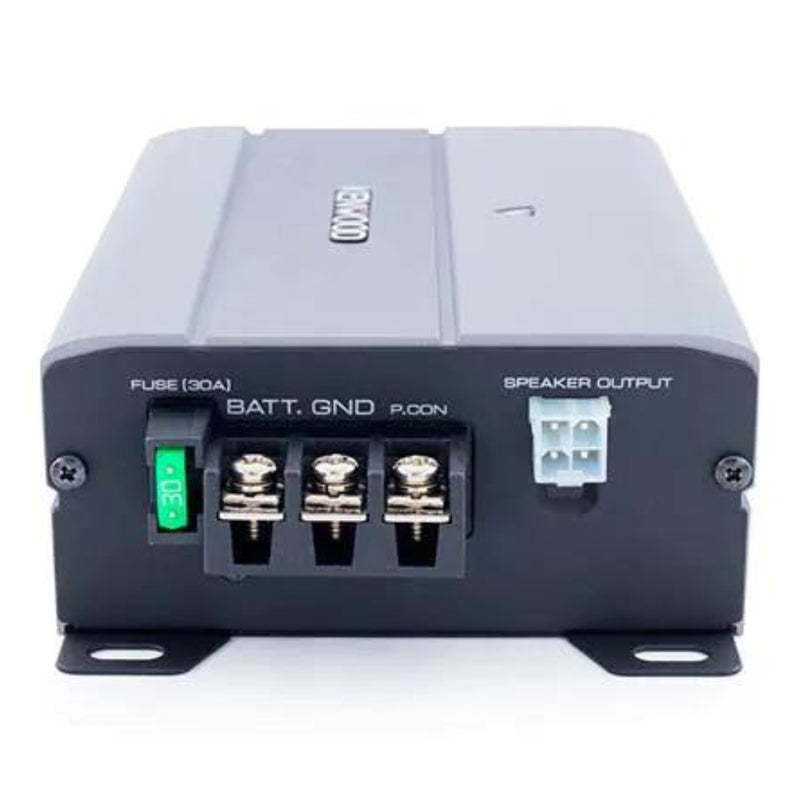

- Fuse rating: 30A x 1
- Recommended 10-gauge power and ground leads (wiring and hardware not included with amplifier)
- Dimensions: 6-7/8"W x 1-13/16"H x 3-7/8"D
