DS18 Jeep JK/JKU Loaded Sound Bar Combo w/ Speakers, Tweeters, Amplifier & Grill

• Amplifier Type: Stereo Full - Range
• Amp Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)
• Pair of 8" Speaker Grill Covers

DS18 Jeep JK/JKU Loaded Sound Bar Combo w/ Speakers, Tweeters, Amplifier & Grill

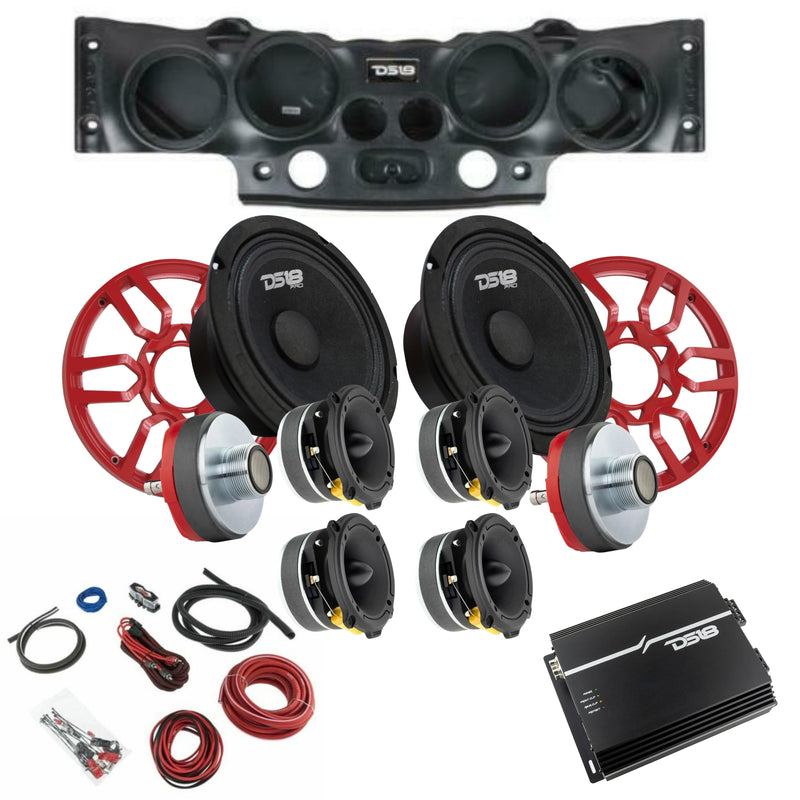

This Listing Includes:

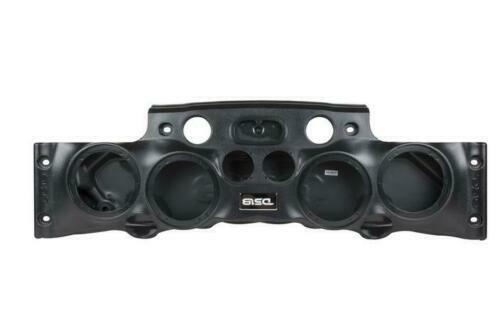

• (1) Sound bar JK-SBAR-Black


• (1) DS18 EXL-P800X4 4 Channel Full Range Korean Amplifier


• (2) 8" Inch Plastic Cover Black 2 PRO-GRILL8 RED


• (4) DS18 8" Midrange Loudspeaker PRO-GM8


• (4) PRO-TW320 1.5" Super Bullet Tweeter


• (2) 1" 240 Watt 8 Ohm Twist-On Compression Driver PRO-DR1P


• (1) 4 AWG AMP KIT 4

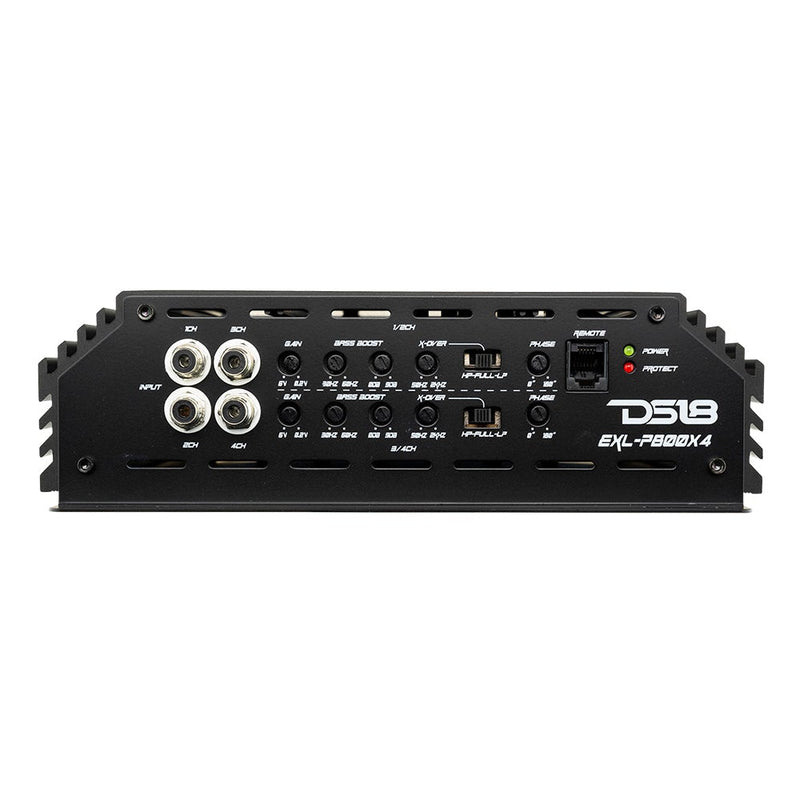

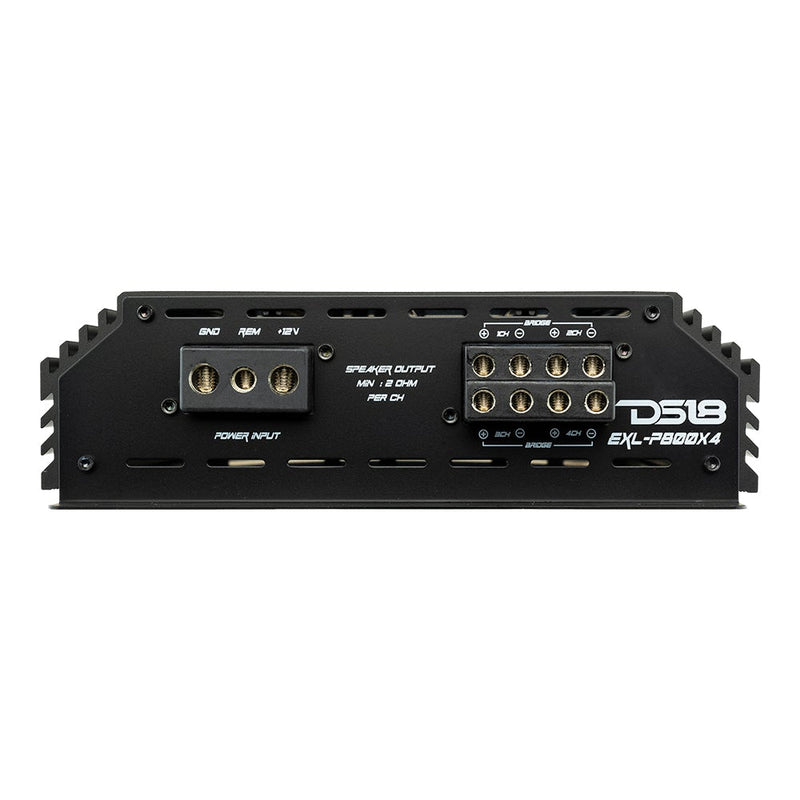

DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:

• RMS Power @ 4 Ohm: 150W x 4CH


• RMS Power @ 2 Ohm: 200W x 4CH


• RMS Power @ 4 Ohm Bridge : 400W x 2CH


• Frequency Response: 20Hz-20KHz


• Signal/Noise Ratio: Greater than 98dB


• Efficiency @4 Ohm: Greater than 63%


• Damping Factor: 140


• THD%: Greater than 0.10%


• Low Level Input Range: 200MV-6V


• Selectable X-Over: Yes, HPF/FULL/LPF


• X-Over Filter Range: 50Hz-2KHz


• Bass Boost Range: 0-+9dB


• Bass Boost Frequency: 30Hz-60Hz


• Infrasonic Filter: No


• Phase Selector: 0-180


• Class: AB (Analog)


• Amplifier Type: Stereo Full - Range


• Channels: 4 CH


• Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)


• Led Indicator: PWR / CLIP / PROTECT


• Power Input Size: 4 AWG


• Fuse Rating: 120A


• Remote Level Control: Yes - Dash Mount


• Cooling Fan: Yes


• Thermal Protection: Yes > 97C / 206F


• Over-Load Protection: Yes


• Dc Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes, greater than 15.5V


• Clipping Protection: Yes


• Body Color/Finish: Black Aluminum


• Length: 11.5 inches


• Width: 8.77 inches


• Height: 2.67 inches


• Heatsink Length: 9.84 inches

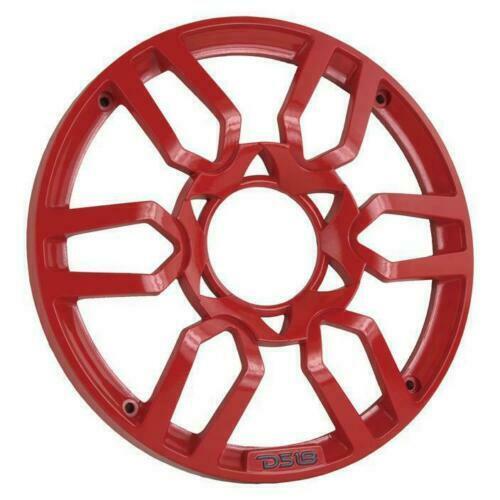

PRO-GRILL8 RED:

• Universal fit and easy installation


• Pair of 8" Speaker Grill Covers


• Material: PC/ABS


• RMS Power : 120 Watts

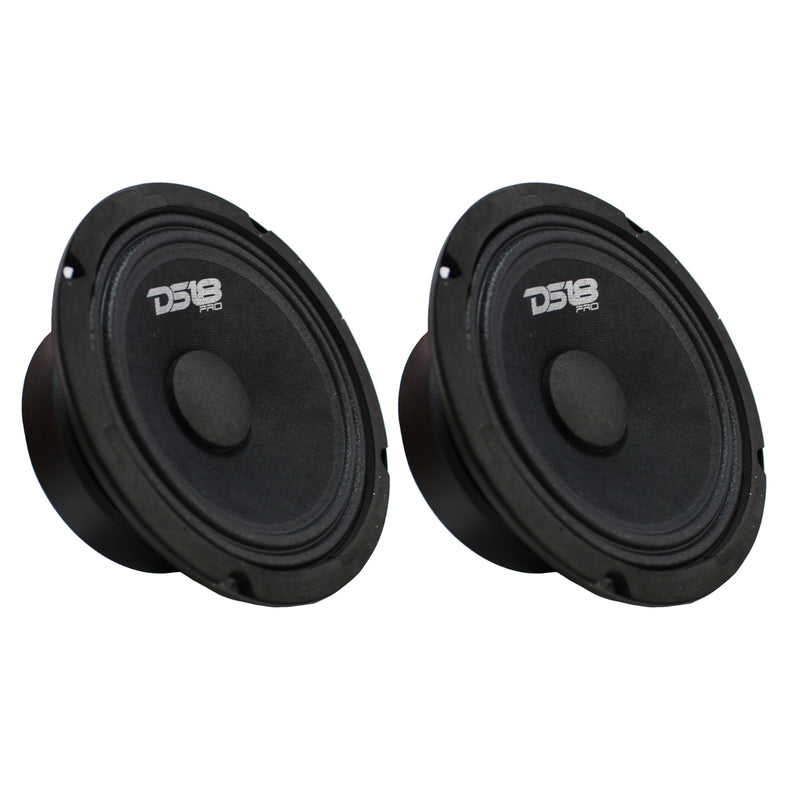

PRO-GM8:

• Type Midrange Loudspeaker


• Size: 8"


• RMS Power: 190W


• MAX Power: 580W


• Frequency Response: 90-10KHz


• Impedance: 8 ohm


• Sensitivity 93dB


• Surround Cloth Surround


• Frame: Black Stamp Steel Basket


• Cone: Black Paper Woofer Cone


• Magnet: Ferrite


• Voice Coil Wire: Kapton

Dimension:

• Voice coil size: 1.5"


• Magnet Size: 30 oz


• Mounting Depth: 3.38" (86mm)


• Cut-Out Dimension: 7.16" (182mm)

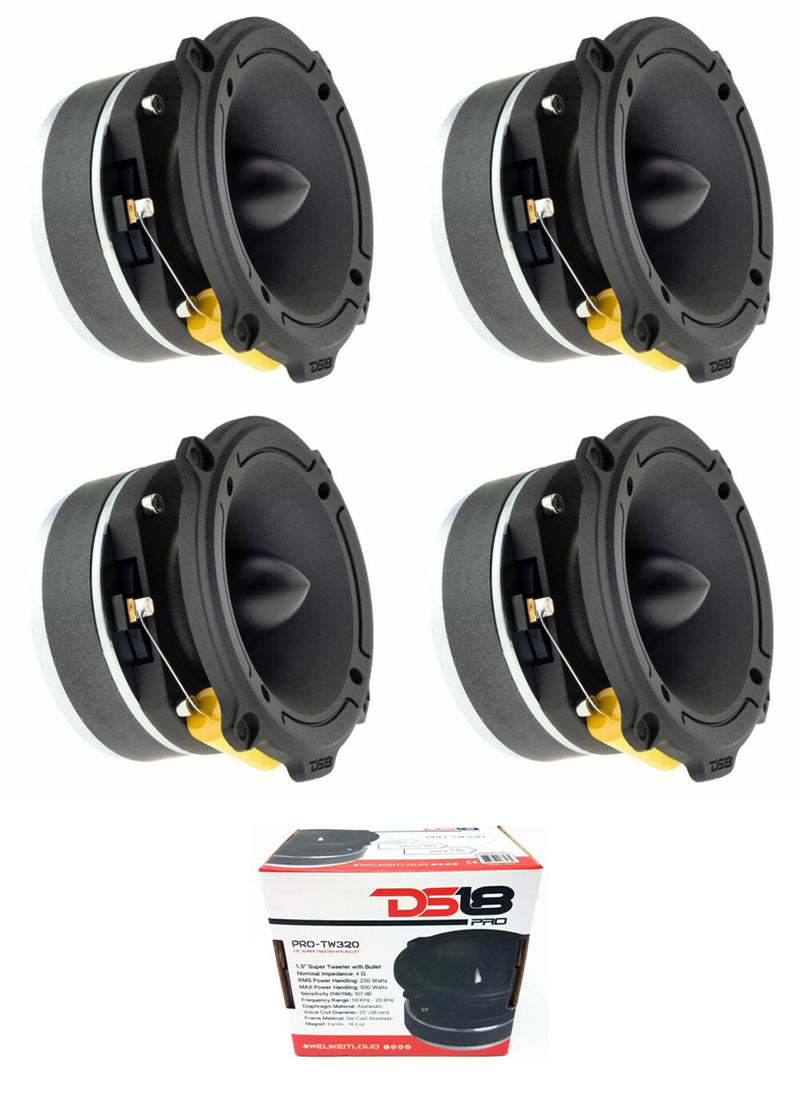

PRO-TW320:

• Type: Super Bullet Tweeter


• RMS Power: 250 Watts


• MAX Power: 500 Watts


• Diaphragm Material: Aluminum


• Sensitivity: 107dB


• Impedance: 4 Ohms


• Frequency Response: 1.6K - 20KHz


• Cutout Diameter: 3.54"


• Mounting Depth 2.26"


• Replacement Diaphragm: PRO-TW320VC

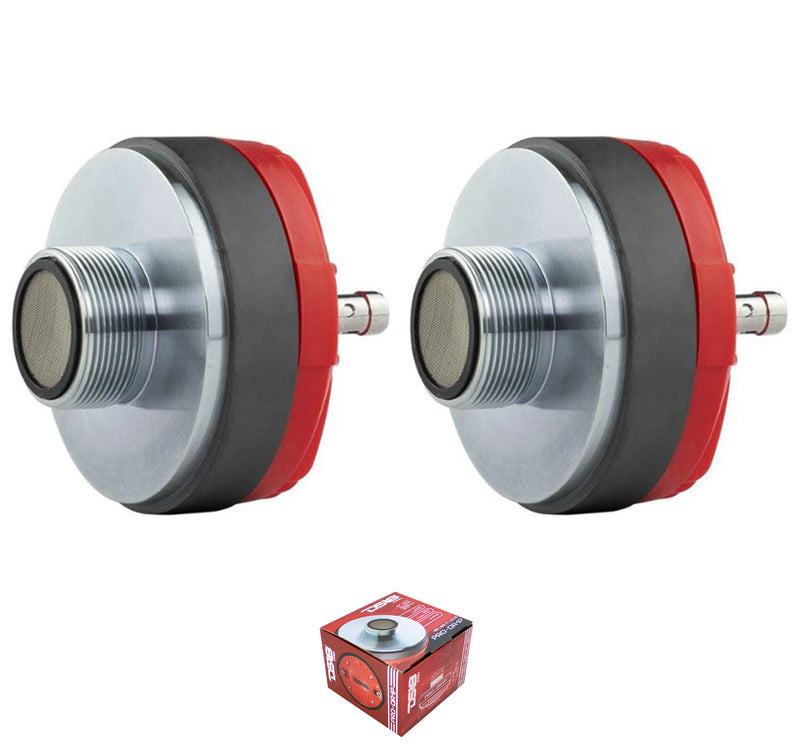

PRO-DR1P:

• Throat Diameter: 1"


• Installation Type: Screw Down


• Nominal Impedance: 8 ohms


• Peak Power Handling: 240W


• Program Power Handling: 120W


• AES Power: 60 W


• Sensitivity (1w/1m): 103dB


• Frequency Response: 800Hz-20Khz


• Recommended HI Pas Crossover : 900Hz


• Voice Coil Diameter: 1"


• Voice Coil Former Material: Kapton


• Winding Material: CCA


• Diaphragm Material: Phenolic


• Magnet Material: Ferrite


• Magnet Weight: 11oz

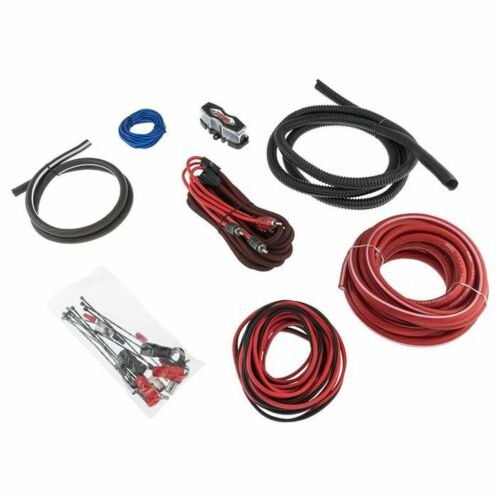

AMPKIT4:

• Mini-ANL Fuse Holder with Mini-ANL 120A


• Rubber Grommet


• 6 ft. 4GA Loom Tube


• 3 ft. Black Ground Cable: 21mm OD: 10mm


• 17 ft. Red Power Cable: 21mm OD: 10mm


• 17 ft. Red/Black Twisted RCA Cable


• 17 ft. Turn-On Remote Cable 20 x 0.15mm


• 17 ft. Red/Black Speaker Cable 1.31mm x 2C OD 3.2 x 6.4mm
