EQ9 9 Band Graphic Equalizer 7V Line Driver + 2 x 18" 2 Ch RCA M2M


SKU: MA-EQ9-ME-R2RCA18IN x 2 Massive Audio

Only 13 left!

Fast Shippng
& Handling



EQ9 9 Band Graphic Equalizer 7V Line Driver + 2 x 18" 2 Ch RCA M2M

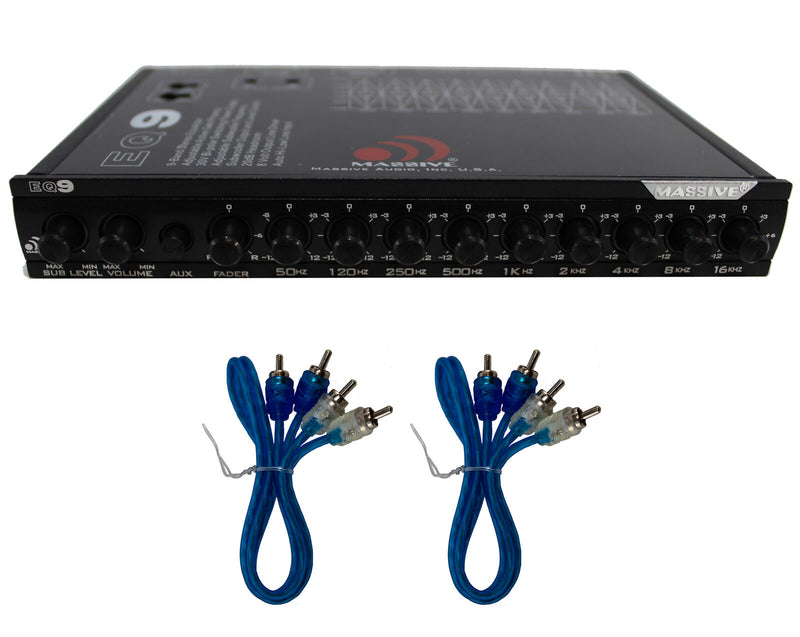

This listing includes:

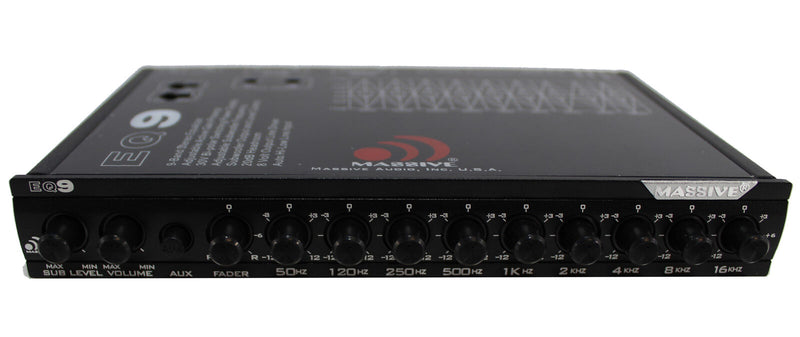

(1) Massive AudioEQ9 9 Band Graphic Equalizer 7V Line Driver
(2) 18" 2 Ch RCA M2M


S/N Ratio: 100dB
Frequency Response: 10Hz-50Hz +/-1dB
Maximum Output Voltage: 7V
THD: 0.005%
Input Sensitivity: 50mV - 3V
Hear Room: 20dB
Input Impedance: 20K Ohms
Output Impedance: 2K Ohms
Stereo Separation: 82dB/1KHz
Operating Voltage: 11V - 15V Negative Ground
Size: 7" x 4 1/8" x 1"

ATO (Auto Turn On)-DC Offset on Hi Level Input

Nine equalization bands (50Hz, 120Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz)
Each frequency adjustable from -12dB to +12dB
Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 120Hz
Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers
Auxiliary stereo RCA input for use with portable devices, such as MP3 player or DVD players
Separate controls for master volume, sub level, front/rear fader and selection of main or auxiliary inputs
Gold-plated RCA connectors to ensure the best audio signal output
ISO mounting holes and removable trim ring for custom installation

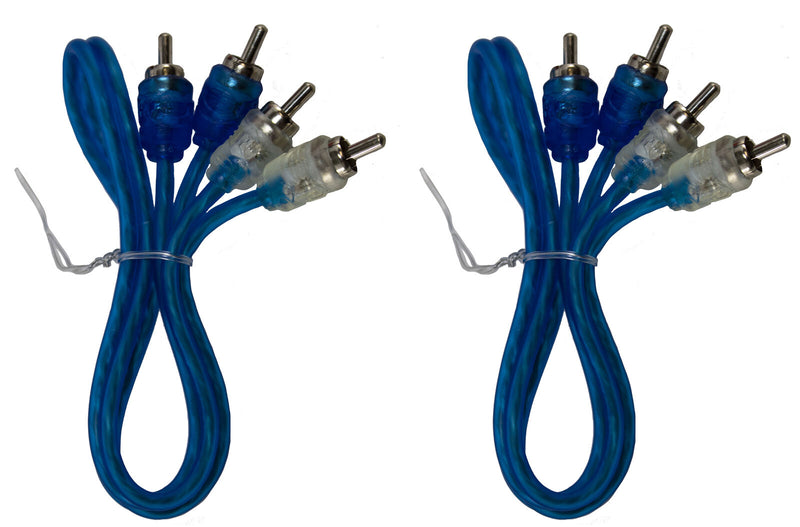

2 x R2RCA18IN 18" 2 channel RCA Cables
2 Channel RCA Cables
Male to Male (Both Channels)
Coaxial Shielded Cable
Flexible but durable construction
