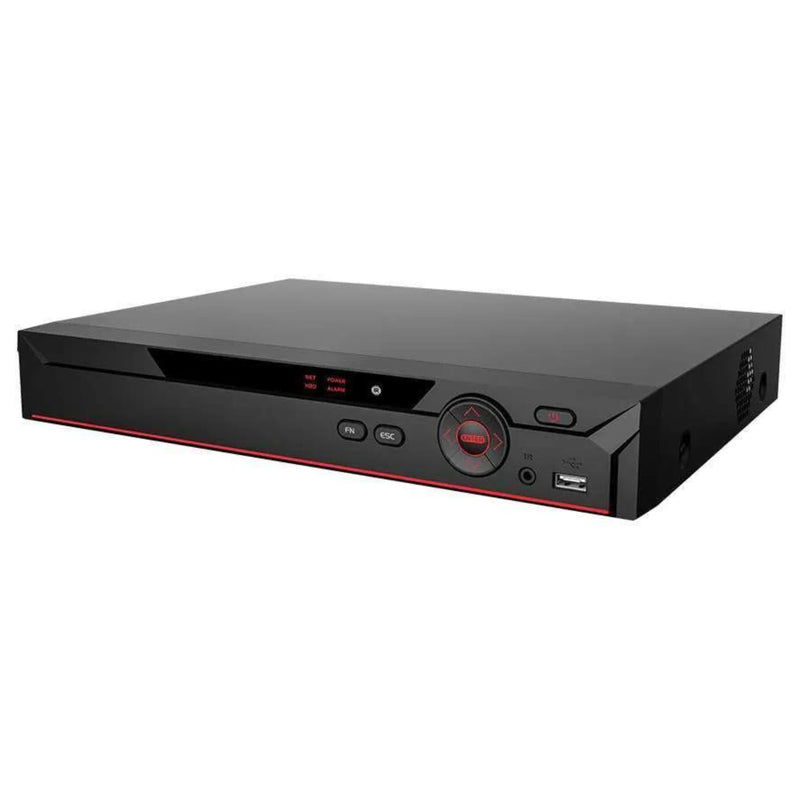

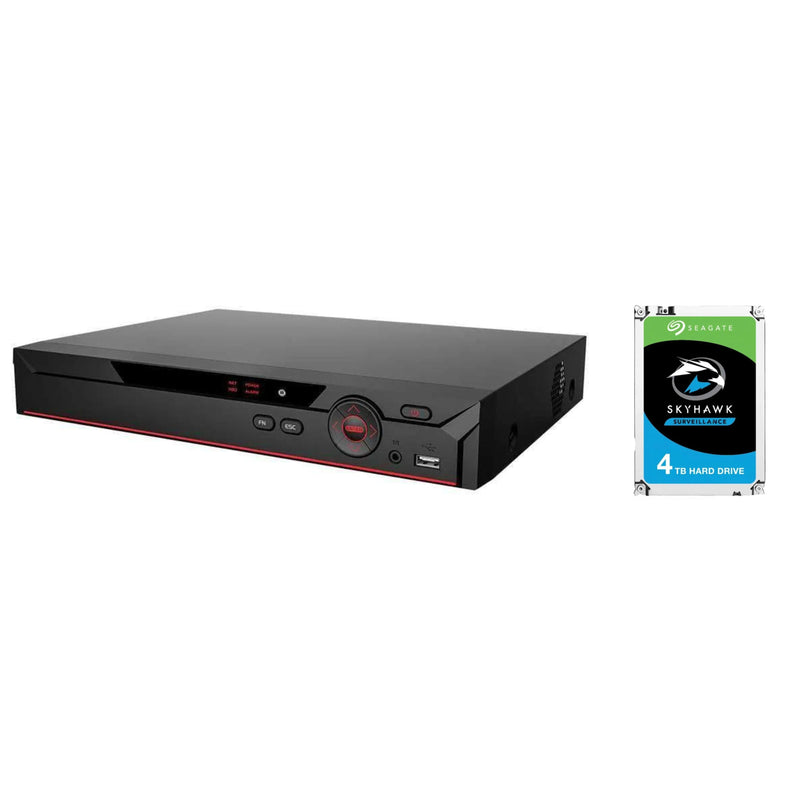

ENS Security Diamond 16Ch 4K 8MP XVR Home Security System SATA Port + 4TB HDD

• 4TB HDD Included
• Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
• HDCVI/AHD/TVI/CVBS/IP video inputs
• 8 channels video stream (analog channel) SMD Plus
• 2 channels video stream (analog channel) Perimeter Protection and human face recognition

ENS Security Diamond 16Ch 4K 8MP XVR Home Security System SATA Port + 4TB HDD

This Listing Includes:

(1) 16 Channel XVR

(1) 4TB HDD

ENS Diamond Series XVR501H-16-4KL-I3 features max. full-channel SMD Plus to benefit customers from AI upgrade. This XVR has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities. Adopting AI chip and advanced deep-learning algorithm, AI enables precise recognition of human and vehicle for accurate alarm and quick target search, making it easy for users to focus on real threats, enhancing video analysis efficiency, and thus significantly reducing labor costs. With SMD Plus, the XVR recorder only sets off an alarm for human and vehicle detection, filtering out all other movements. This helps users to focus on saving time and labor costs associated with checking false alarms. Perimeter Protection provides an intelligent analysis based on tripwire and intrusion detection. Sending alarms only when intrusions are triggered by a human or vehicle, once again reducing false alarms. ENS Face Recognition makes it possible to do image search, as well as face attribute search by comparison. By comparing the modelled object and the database, the user can identify facial characteristics, significantly enhancing accuracy and efficiency.

Features:

• H.265+/H.265 dual-stream video compression


• Supports Full-channel AI Coding


• HDCVI/AHD/TVI/CVBS/IP video inputs


• Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth


• 2 channels video stream (analog channel) Perimeter Protection and human face recognition


• 8 channels video stream (analog channel) SMD Plus


• IoT & POS functionalities


• Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable

Specifications:

• Main Processor: Industrial-grade processor


• Operating System: Embedded LINUX


• Operating Interface: Web; Local GUI


• Object classification: Human/Vehicle secondary recognition for tripwire and intrusion


• Stranger Mode: Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually


• LAN Ports: 1


• SATA: 1X SATA PORT


• Video Outputs: HDMI / VGA (Independent)

Video & Audio

• Analog Camera Input 16 BNC ports, CVI access by default, supports


• HDCVI/AHD/TVI/CVBS auto-detect


• HDCVI Camera Input 4K/6MP/5MP/4MP/1080P @ 25/30 fps


• 720P @ 50/60 fps, 720P @ 25/30 fps


• AHD Camera Input 4K/5MP/4MP/3MP/1080P @ 25/30 fps - 720P @ 25/30 fps


• TVI Camera Input 4K/5MP/4MP/3MP/1080P @ 25/30 fps -- 720P @ 25/30 fps


• IP Camera Input: Up to 32 channels of IPC access -- 16 IP ch by default + 16 ch (analog channels are converted to IP channels) --


• Incoming bandwidth: 128 Mbps, recording band-width: 128 Mbps / Outgoing bandwidth: 128 Mbps -- 1/1, RCA


• *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) well be disabled

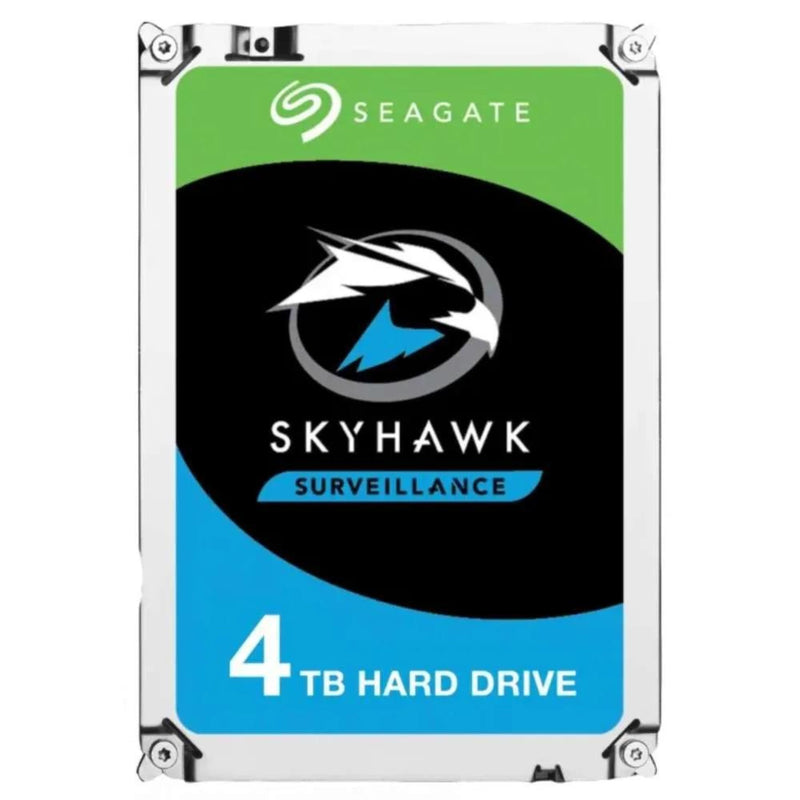

HDD Features:

• Interface: SATA 6Gb/s


• Cameras Supported: up to 64


• Max Sustained Transfer Rate OD: 190MB/s


• Cache: 64MB


• Tarnish Resistant: Yes


• Load/Unload Cycles: 600,000


• Power-On Hours per year: 8760 hrs


• Average Operating Power: 5.5W


• Dimension (WxDxH) : 4" x 5.8" x 1"


• Weight: 1.4 Lbs
