Dynamat Dynaliner Thermal Insulator & Sound Deadening Damping 1/4" Thick 32x54"
Dynaliner is a durable, crush and tear resistant material that has the highest heat blocking properties available in a single layer material. Dynaliner isn't affected by oil and does not absorb water. Dynaliner provides acoustic isolation and excellent thermal insulation for roof, firewall, floor, quarter panels, doors and even under your hood. For best results, install Dynaliner over Dynamat.

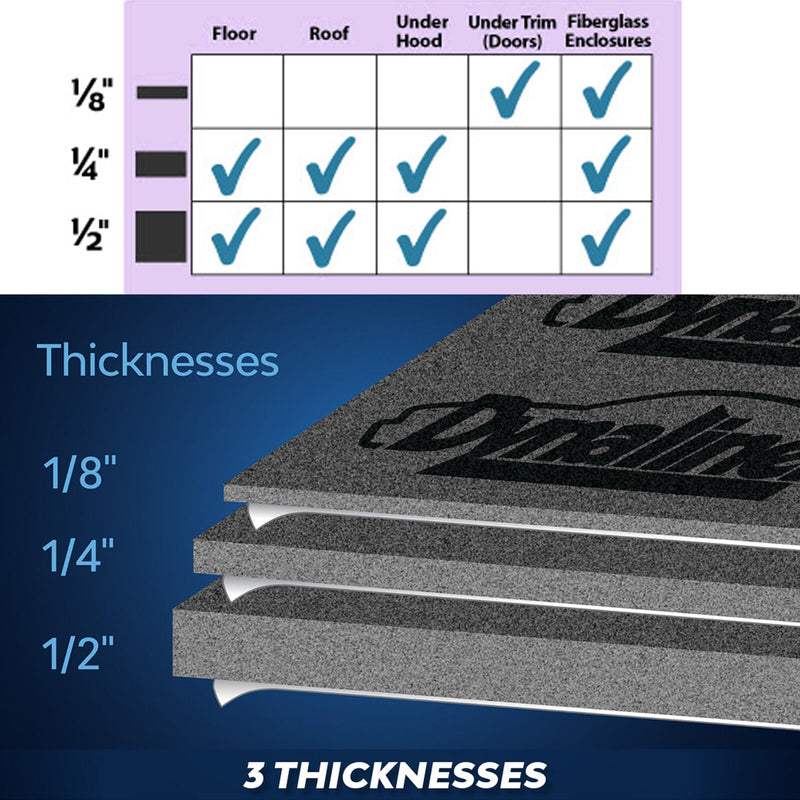

Dynaliner is an ultra-lightweight closed cell high performance insulation. Dark gray in color, Dynaliner is available in 1/8", 1/4" and 1/2" thicknesses. Dynaliner is self-adhesive with a high-temperature acrylic adhesive. Dynaliner is optimized for temperatures from -30ºF to 200ºF (-34ºC to 94ºC) and meets both UL and FMVSS flame resistance.
This listing includes:
(1) Dynamat Dynaliner 1/4" Thick 32x54" Adhesive Sheet 12SQ FT
SPECIFICATIONS:
Appearance: Gray acoustic foam, craft paper release liner
Thickness: 0.125 in.(3.18mm)
Weight: 0.042lb./ft² (0.21kg/m²)
Density: 4.0lb./ft³ (64.6kg/m³)
R Value 0.42ºFft²hr/Btu (0.07Km²hr/W)
UL Rating UL 94 HF-1
Sound Absorption Coefficients (Using Reverberation Room Method -ASTM C423-84a and
E-795-83 - Mounting A):
0.18 @ 125 Hz
0.22 @ 250 Hz
0.51 @ 500 Hz
1.00 @ 750 Hz
1.19 @ 1 kHz
1.00 @ 1.5 kHz
1.00 @ 2 kHz
1.10 @ 3 kHz
1.20 @ 4 kHz
Random Incidence Acoustical Thermal Resistivity (R): 1.9 (hr-ft2-deg.F/BTU)
Temperature Range (Optimal Performance):
-30F to +200F (-34ºC to 93ºC)
Temperature Range (Resistance):
-65F to +300F (-54C to +149C)
FMVSS 302: Meets
Fire Classification: Meets HF-1
