Dual RAGEXL V2 15" 3500W RMS D1Ohm Subwoofers & 7800 RMS 1-Ohm Mono Amplifier

• COMPLETE B2 AUDIO BASS BUNDLE: Includes (2) B2 Audio RAGEXL V2 15-inch dual 1-ohm subwoofers, model B2-RAGEXL15-D1-V2, (1) B2 Audio RAGE 7800 Class-D monoblock amplifier, model B2-RAGE-7800, and (1) bass knob with voltage/temp meter display and connection cable.
• 7,000W RMS DUAL-15 SUBWOOFER SYSTEM: Each RAGEXL V2 15 handles 3,500 watts RMS and 10,000 watts max, providing 7,000 watts RMS and 20,000 watts max combined subwoofer power handling for extreme bass builds.
• RAGE 7800 1-OHM MONOBLOCK POWER: The included Class-D amplifier delivers 7,800W RMS at 1 ohm with a sufficient electrical system. Dual 0-gauge power terminals, a 600A fuse rating, and an included voltage/temp display bass knob support serious high-current systems.
• CORRECT 1-OHM WIRING CONFIGURATION: Wire each subwoofer’s dual 1-ohm voice coils in series, then wire both subwoofers in parallel for a 1-ohm final impedance. This is the correct final load for the RAGE 7800; do not wire this bundle below 1 ohm.
• BUILT FOR HIGH-OUTPUT BASS: RAGEXL V2 subwoofers feature carbon-fiber cones, massive 3-inch dual voice coils, high-excursion capability, and custom-tooled baskets. Properly sized OFC wiring, fusing, electrical upgrades, enclosure design, and gain setting are required; installation accessories are not included.

B2 Audio Dual RAGEXL V2 15" 3500W RMS D1Ohm Subwoofers & 7800 RMS 1-Ohm Mono Amplifier

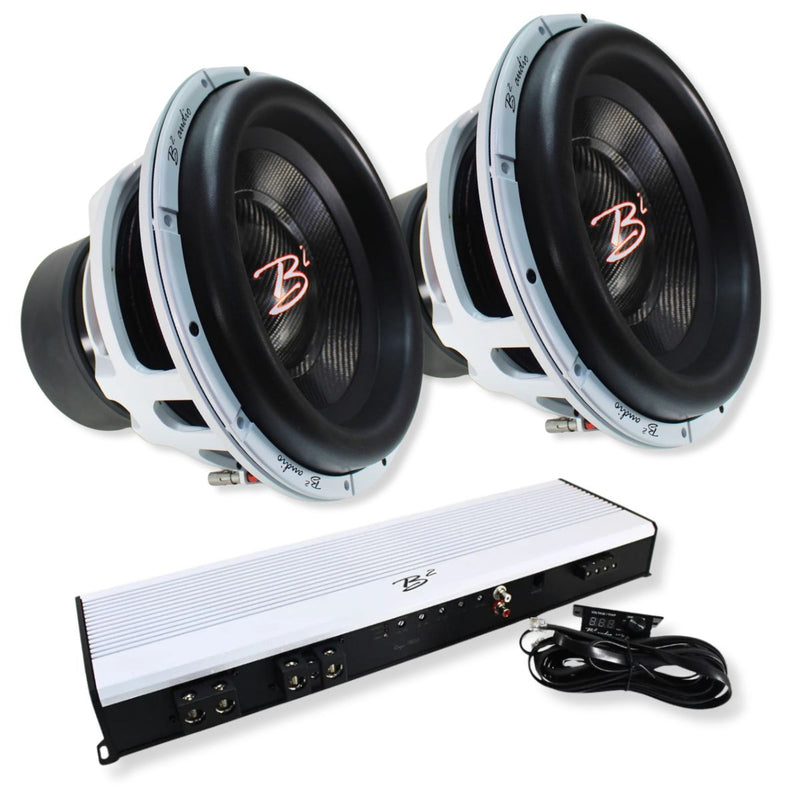

This Listing Includes:

• (2) B2 Audio 15" Subwoofer B2-RAGEXL15-D1-V2


• (1) B2 Audio Mono Amplifier B2-RAGE-7800


• (1 Bass knob w/ voltage/temp meter display & connection cable

Take your B2 Audio build to the next level with two RAGEXL V2 15-inch subwoofers and the hard-hitting RAGE 7800 monoblock amplifier. Each RAGEXL15-D1-V2 handles 3,500 watts RMS, giving this bundle a combined 7,000-watt RMS subwoofer rating.

The dual 1-ohm RAGEXL V2 subwoofers are designed to be wired to a 1-ohm final load with the included RAGE 7800. At 1 ohm, the amplifier delivers 7,800 to 8,000 watts RMS with a sufficient electrical system—more than enough clean power for this high-output dual-15 build when properly installed and tuned.

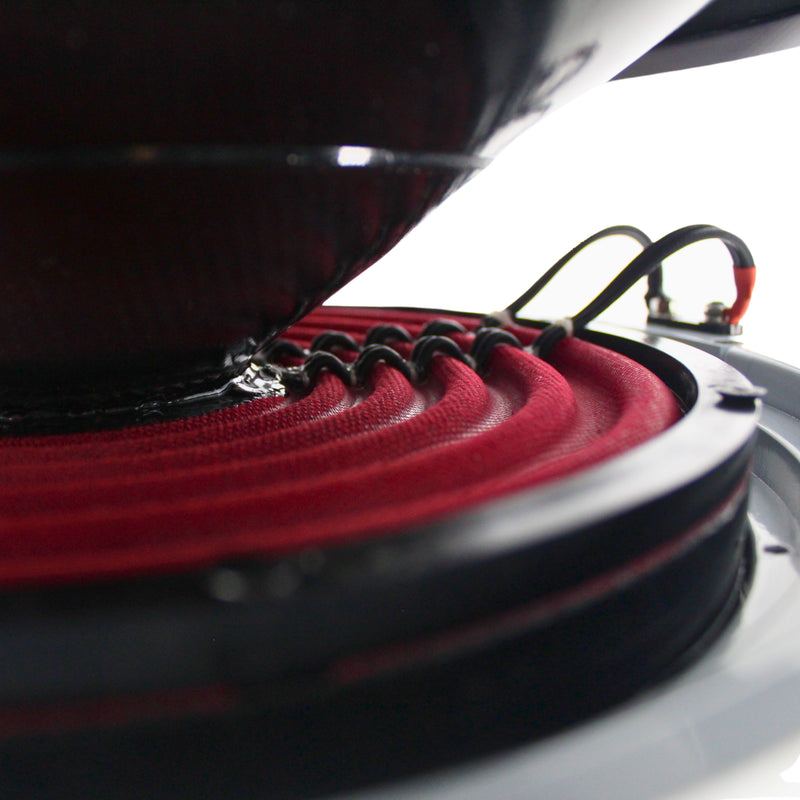

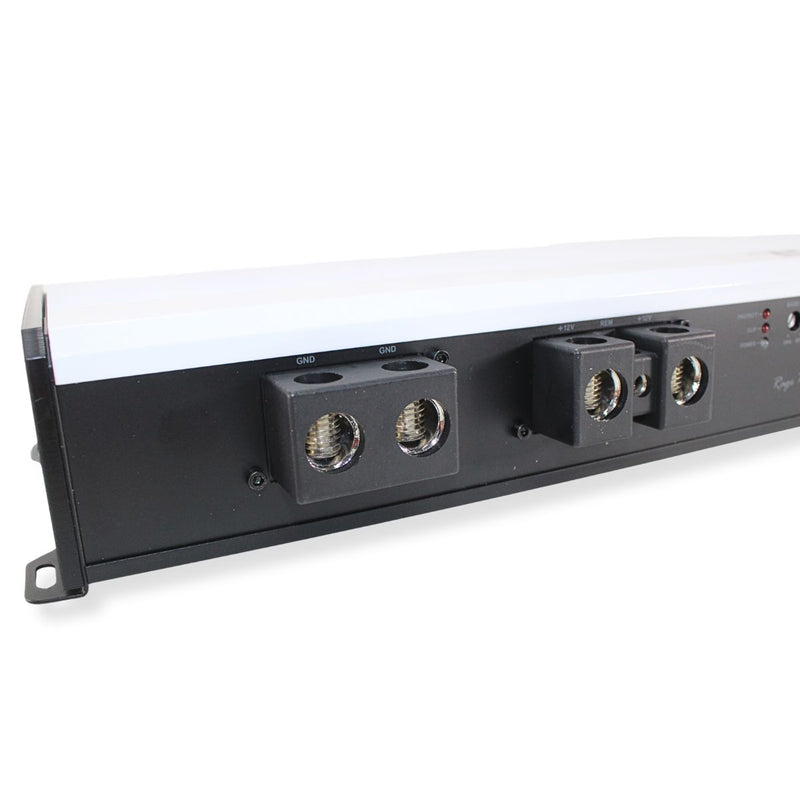

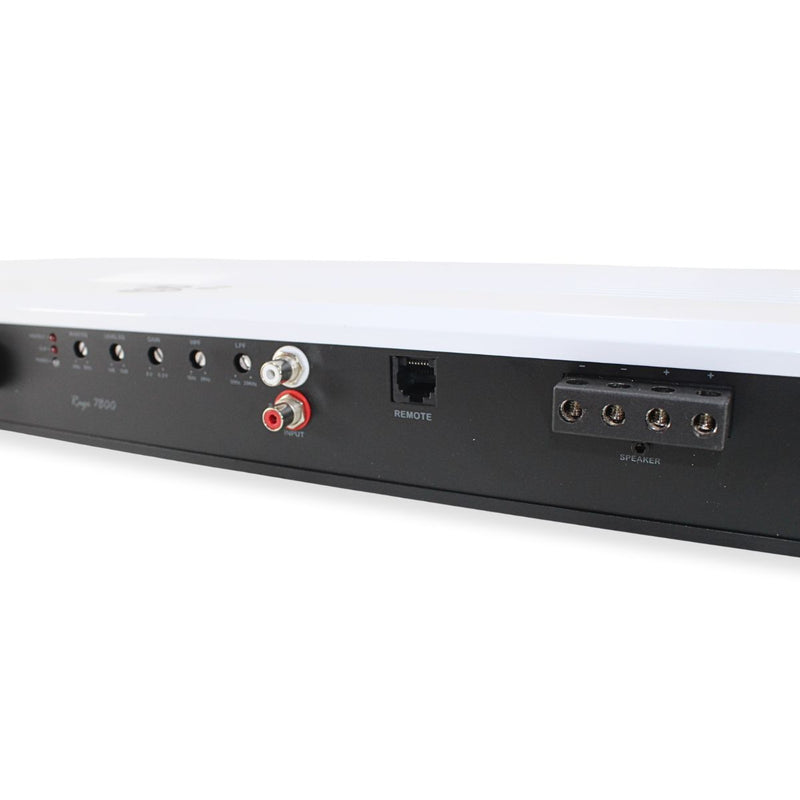

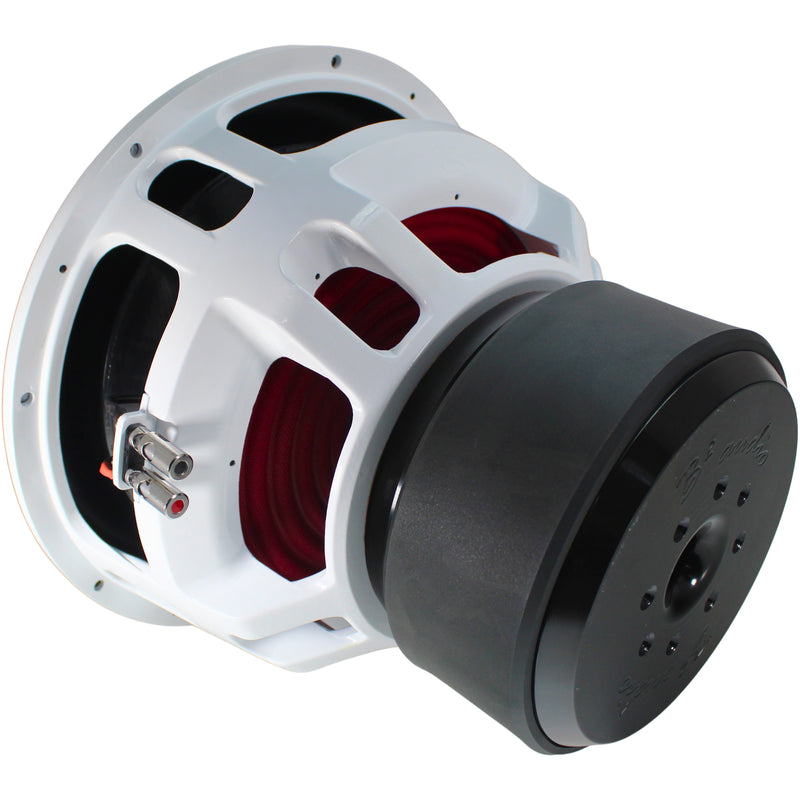

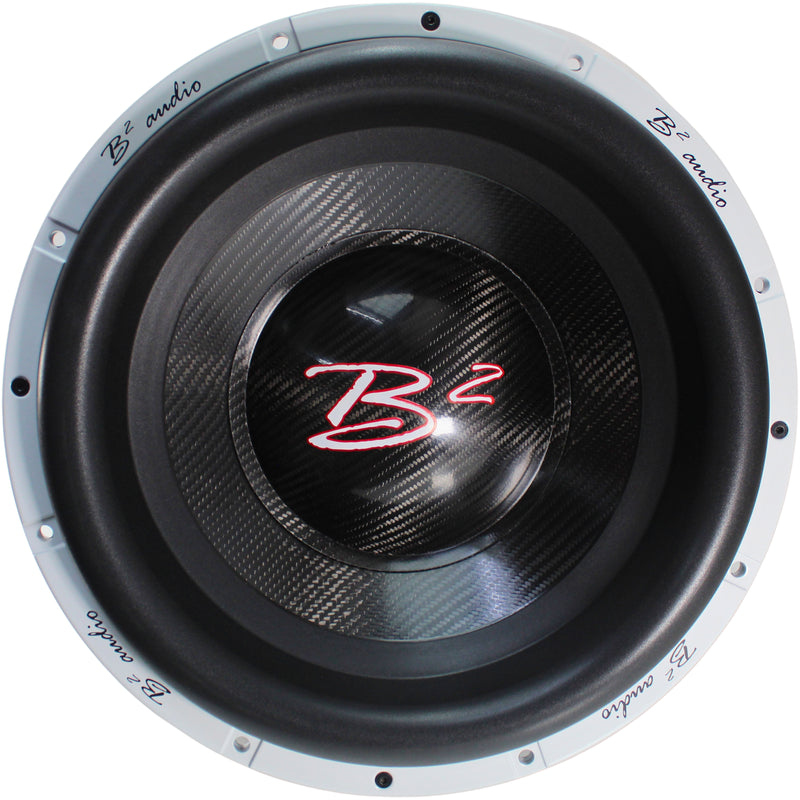

RAGEXL V2 subwoofers bring carbon-fiber cones, massive 3-inch dual voice coils, high-excursion capability, and custom-tooled baskets to the build. The RAGE 7800 adds powerful Class-D performance, variable crossover controls, dual 0-gauge power terminals, a voltage/temperature display bass knob, and protection circuitry for serious daily, demo, and SPL-focused systems.

Features

• Complete B2 Audio RAGE amplifier and dual 15-inch subwoofer bundle


• Two RAGEXL V2 15-inch dual 1-ohm subwoofers


• 7,000 watts RMS combined subwoofer power handling


• 20,000 watts max combined subwoofer power handling


• Recommended 1-ohm final load for the included RAGE 7800 amplifier


• RAGE 7800 delivers 7,800–8,000W RMS at 1 ohm with a sufficient electrical system


• Carbon-fiber cones and massive 3-inch dual voice coil platforms


• Includes voltage/temperature display bass knob and remote wire


• Built for high-output daily drivers, demos, and competition-oriented bass systems

Recommended Wiring Configuration

Wire the voice coils of each RAGEXL15-D1-V2 in series to create a 2-ohm load per subwoofer. Then wire the two subwoofers in parallel for a 1-ohm final load at the amplifier.

Do not wire this bundle below 1 ohm. The RAGE 7800 is designed for a 1-ohm minimum load.

Subwoofer Specifications (Each):

• RMS Power Handling: 3,500W


• Max Power Handling: 10,000W / 13.4 HP


• Nominal Impedance: Dual 1 ohm


• Voice Coil Diameter: 3"


• Cone Material: Carbon fiber


• Sensitivity: 90.7 dB


• Motor Assembly Displacement: 12.6 L / 0.445 cu. ft.


• Free-Air Resonance: 26.7Hz


• Xmax: 23 mm


• Xmech: 52 mm


• Overall Diameter: 15.48"


• Mounting Diameter: 13.5"


• Mounting Depth: 11.69"


• Overall Depth: 13.62"

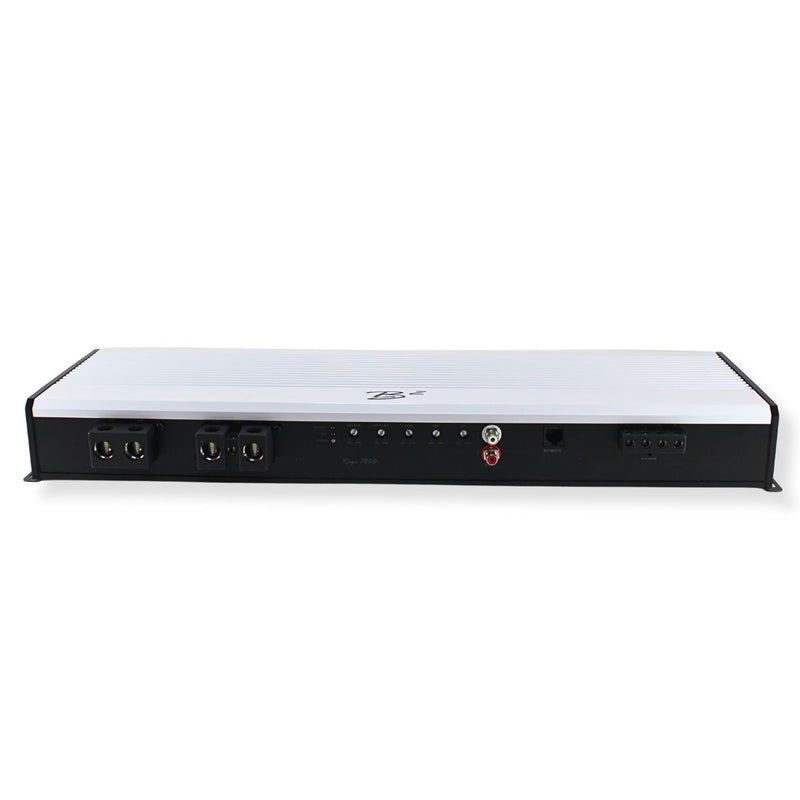

Amplifier Specifications:

• Circuit Configuration: Class-D full-range monoblock


• RMS Power at 4 Ohms: 2,400–2,600W


• RMS Power at 2 Ohms: 4,200–4,500W


• RMS Power at 1 Ohm: 7,800–8,000W


• Frequency Response: 10Hz–12.5kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 6V–0.2V


• Power Terminals: Dual 0 gauge


• Recommended Speaker Wire: 10 AWG minimum


• Fuse Rating: 600A


• Bass Level: 30Hz–80Hz


• Low-Pass Crossover: 30Hz–12.5kHz


• High-Pass/Subsonic Crossover: 10Hz–2kHz


• Dimensions: 22" L Ã 6.5" W Ã 2.5" H

Important Installation Note

This high-current system requires a properly designed electrical upgrade, quality OFC wiring, correct fusing, a suitable enclosure, and careful gain setting. Enclosure, wiring, batteries, alternator upgrades, and installation hardware are not included.
