Dual RAGEXL V2 12" 3500W RMS D1 Subwoofers & RAGE 7800W 1-Ohm Mono Amplifier

• COMPLETE B2 AUDIO BASS PACKAGE: Includes (2) B2 Audio RAGEXL V2 12-inch dual 1-ohm subwoofers, model B2-RAGEXL12-D1-V2, (1) B2 Audio RAGE 7800 Class-D monoblock amplifier, model B2-RAGE-7800, and (1) B2 voltage/temperature display bass knob with connection cable.
• 7,000W RMS DUAL-12 SUBWOOFER SYSTEM: Each RAGEXL V2 12 handles 3,500 watts RMS and 10,000 watts peak dynamic power, providing 7,000 watts RMS and 20,000 watts max combined subwoofer power handling.
• RAGE 7800 1-OHM MONOBLOCK POWER: The included Class-D amplifier delivers 7,800–8,000W RMS at 1 ohm with a sufficient electrical system. Dual 0-gauge power terminals and a 600A fuse rating support the current demands of high-output car audio systems.
• CORRECT 1-OHM WIRING CONFIGURATION: Wire each subwoofer’s dual 1-ohm voice coils in series, then wire both subwoofers in parallel for a 1-ohm final impedance. This is the correct final load for the RAGE 7800; do not wire this bundle below 1 ohm.

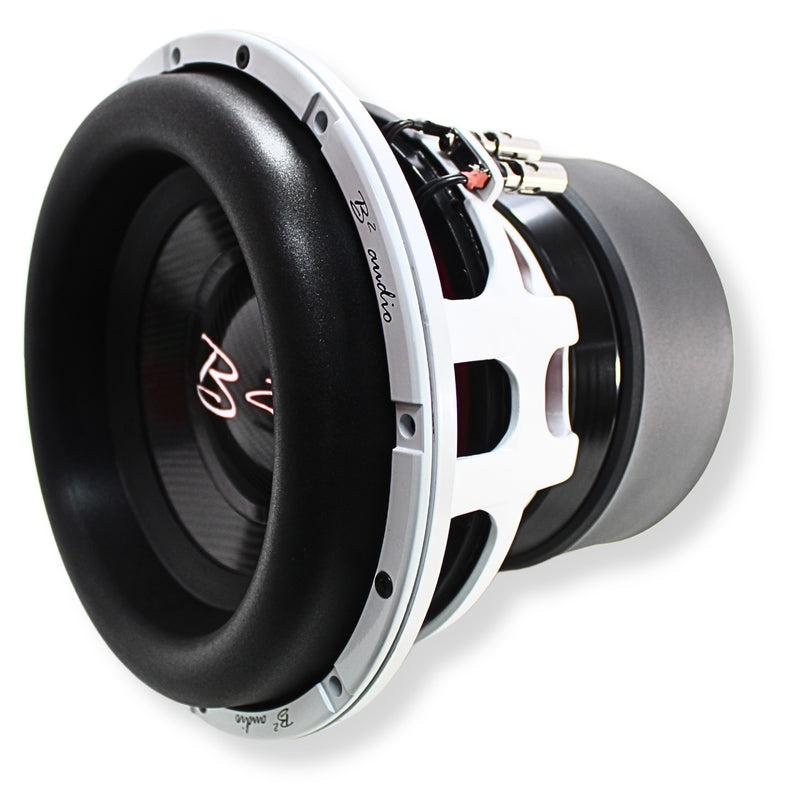

• BUILT FOR HIGH-OUTPUT BASS: RAGEXL V2 subwoofers feature carbon-fiber cones, massive 3-inch dual voice coils, high-excursion capability, and purpose-built baskets. Properly sized OFC wiring, fusing, electrical upgrades, enclosure design, and gain setting are required; installation accessories are not included.

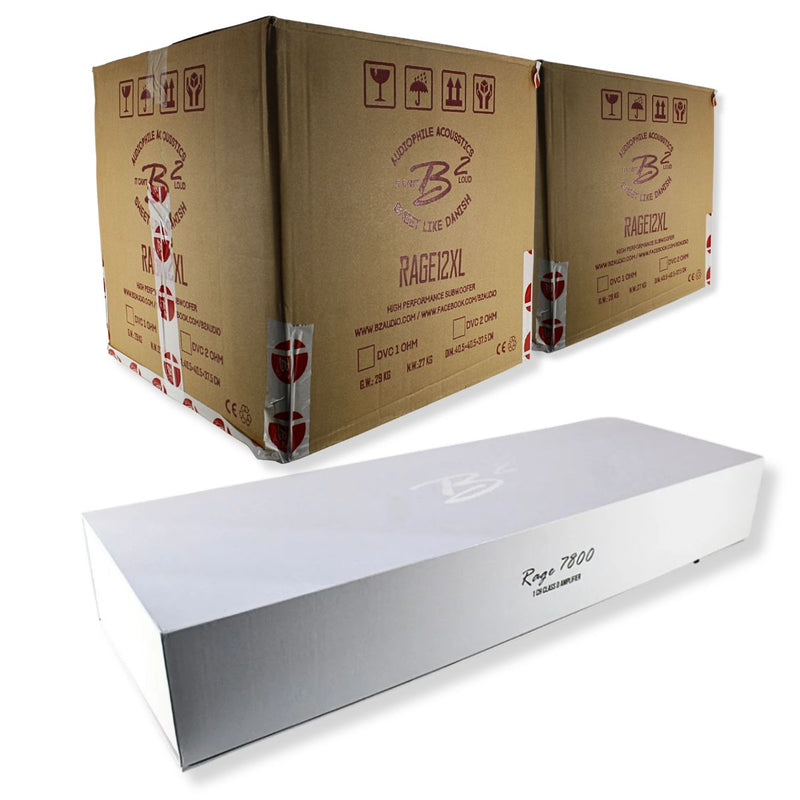

B2 Audio Dual RAGEXL V2 12" 3500W RMS D1 Subwoofers & RAGE 7800W 1-Ohm Mono Amplifier Package

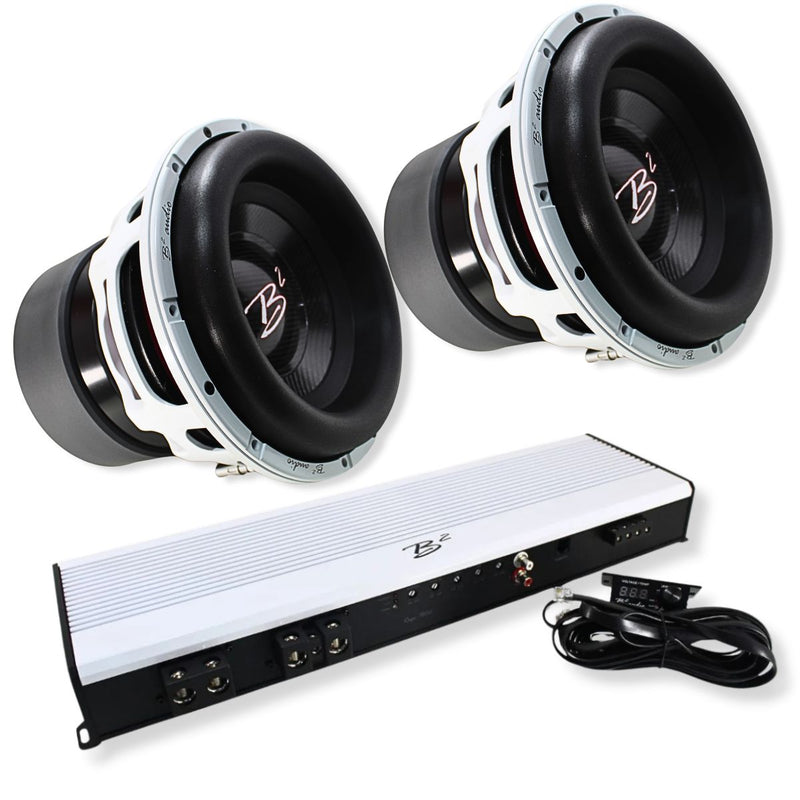

This Listing Includes:

• (2) B2 Audio 12" Subwoofer B2-RAGEXL12-D1-V2


• (1) B2 Audio Mono Amplifier B2-RAGE-7800


• (1) B2 voltage/temperature display bass knob w/ connection cable

Bring serious output to your build with two B2 Audio RAGEXL V2 12-inch subwoofers and the B2 RAGE 7800 monoblock amplifier. Each RAGEXL V2 subwoofer handles 3,500 watts RMS, giving this package a combined 7,000-watt RMS subwoofer rating.

The included dual 1-ohm subwoofers are matched to wire at a 1-ohm final load for the RAGE 7800. At 1 ohm, the amplifier is rated to deliver 7,800–8,000 watts RMS with a sufficient upgraded electrical system—making this a high-output setup for bassheads ready to build loud.

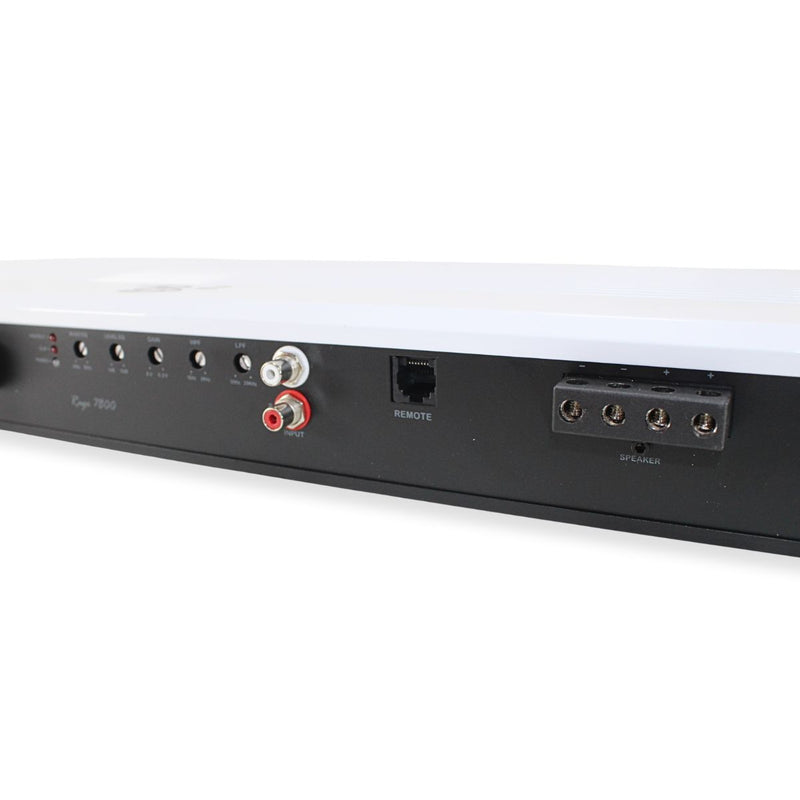

With adjustable crossover controls, a voltage and temperature display bass knob, and protection against thermal overload, short circuits, and overcurrent, the RAGE 7800 gives you the control and power support needed to get the most from these RAGEXL V2 subs.

Features

• Complete B2 Audio RAGE amplifier and dual 12-inch subwoofer bundle


• Two RAGEXL V2 12-inch dual 1-ohm subwoofers


• 7,000 watts RMS combined subwoofer power handling


• 20,000 watts max combined subwoofer power handling


• Recommended 1-ohm final load for the included RAGE 7800 amplifier


• RAGE 7800 delivers 7,800–8,000W RMS at 1 ohm with a sufficient electrical system


• Carbon-fiber cones and massive 3-inch dual voice coil platforms


• Includes voltage/temperature display bass knob with connection cable


• Built for high-output daily drivers, demos, and competition-oriented bass systems

Recommended Wiring Configuration

Wire the voice coils of each RAGEXL12-D1-V2 in series to create a 2-ohm load per subwoofer. Then wire the two subwoofers in parallel for a 1-ohm final load at the amplifier.

Do not wire this bundle below 1 ohm. The RAGE 7800 is designed for a 1-ohm minimum load.

Subwoofer Specifications (Each):

• RMS Power Handling: 3,500W


• Peak Dynamic Power: 10,000W

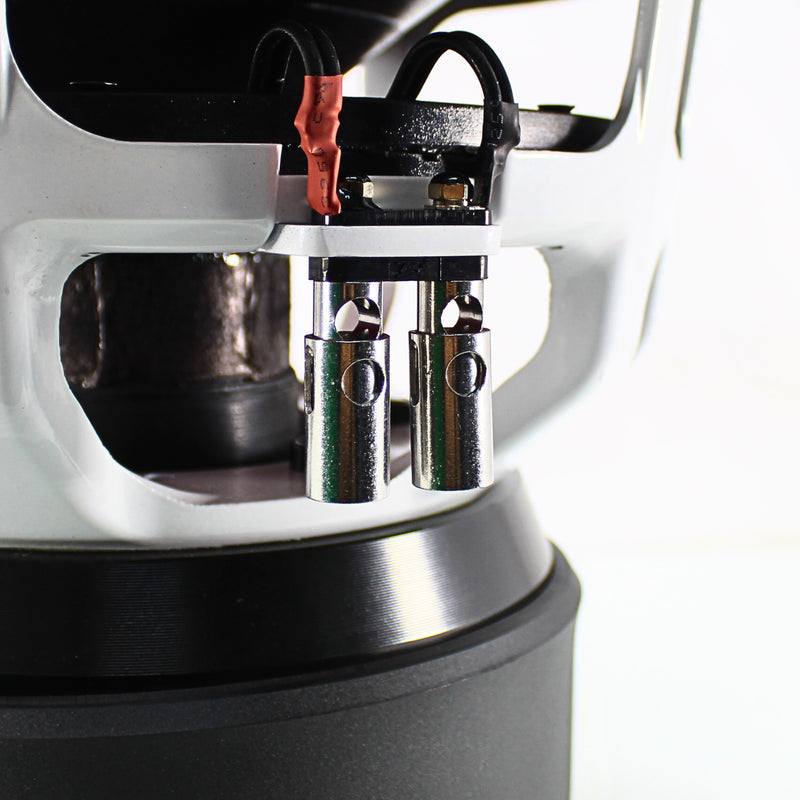

• Push Terminal Wire Gauge: 4 gauge


• Nominal Impedance: Dual 1 ohm


• Voice Coil Diameter: 3"

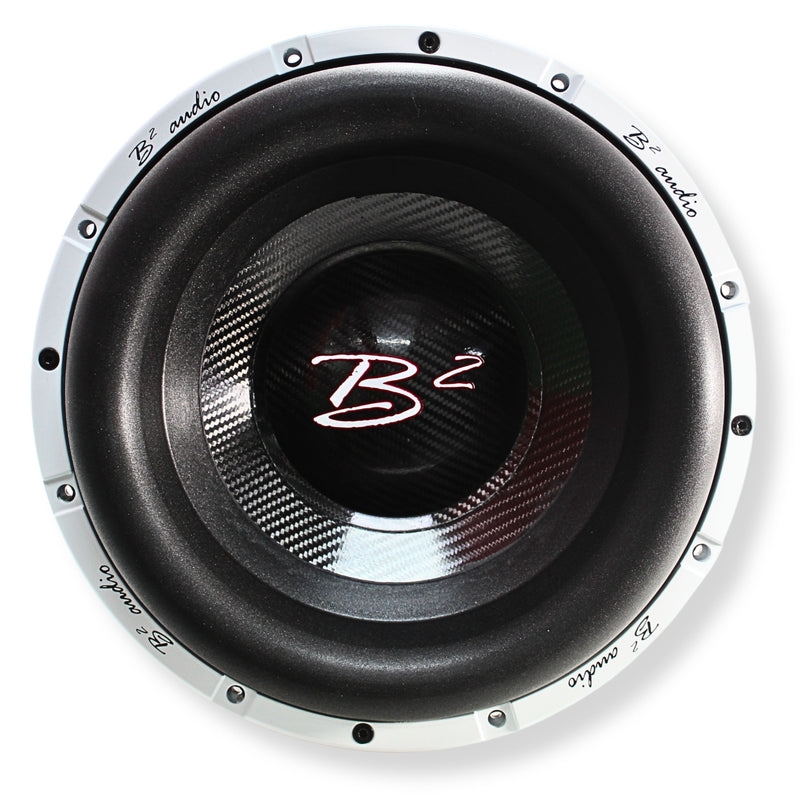

• Cone Material: Carbon fiber


• Frequency Response: 10Hz–500Hz


• Sensitivity: 88.6 dB

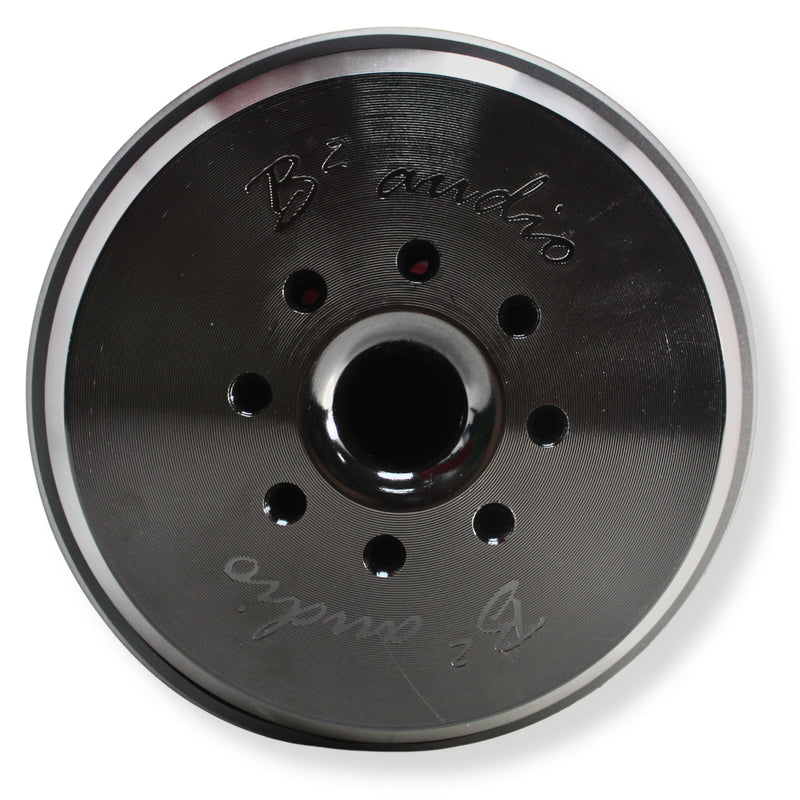

• Magnet Weight: 880 oz


• Displacement Volume: 8.9 L / 0.314 cu. ft.


• Free-Air Resonance (Fs): 28Hz


• Resistance (Re): 2 ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.49


• Equivalent Volume (Vas): 23.7 L


• Compliance (Cms): 80 um/N


• BL Factor: 131.5 BL/Re


• Moving Mass (Mms): 403.9 g


• Xmax: 23 mm


• Overall Diameter: 12.25"


• Mounting Diameter: 11.10"


• Bolt Pattern Diameter: 11.57"


• Mounting Depth: 10.12"


• Overall Depth: 12.12"

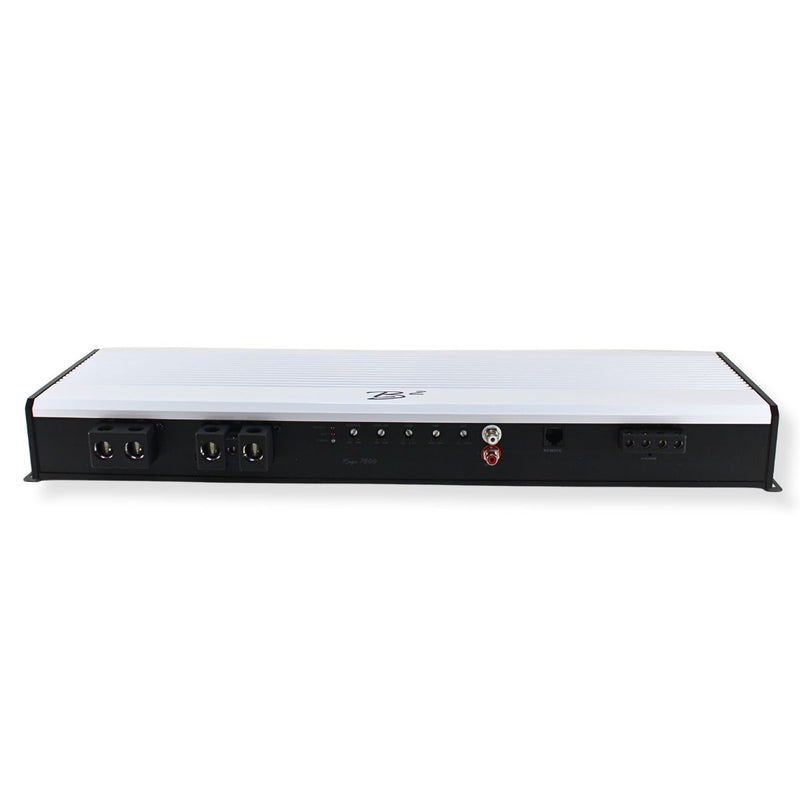

Amplifier Specifications:

• Circuit Configuration: Class-D full-range monoblock


• RMS Power at 4 Ohms: 2,400–2,600W


• RMS Power at 2 Ohms: 4,200–4,500W


• RMS Power at 1 Ohm: 7,800–8,000W


• Frequency Response: 10Hz–12.5kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 6V–0.2V

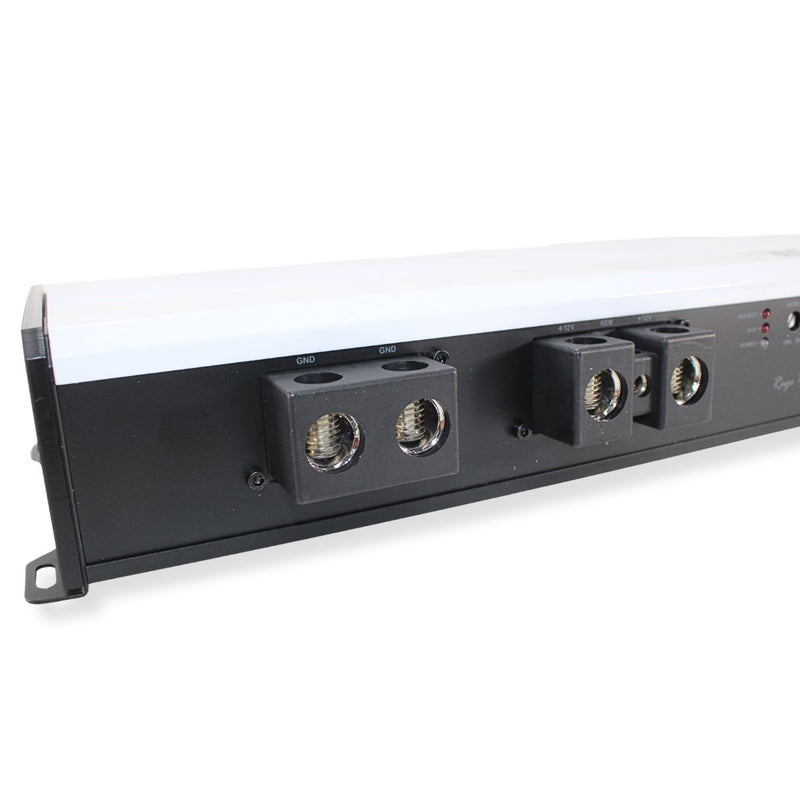

• Power Terminals: Dual 0 gauge


• Recommended Speaker Wire: 10 AWG minimum


• Fuse Rating: 600A


• Bass Level: 30Hz–80Hz


• Low-Pass Crossover: 30Hz–12.5kHz


• High-Pass Crossover: 10Hz–2kHz


• Subsonic Crossover: 10Hz–2kHz


• Dimensions: 22" L Ã 6.5" W Ã 2.5" H

Important Installation Note

This high-current system requires a properly designed electrical upgrade, quality OFC wiring, correct fusing, a suitable enclosure, and careful gain setting. Enclosure, wiring, batteries, alternator upgrades, and installation hardware are not included.
