- COMPLETE B2 AUDIO BASS PACKAGE: Includes (2) B2 Audio RAGE V4 12-inch dual 2-ohm subwoofers, model B2-RAGE12-D2-V4, (1) B2 Audio RAGE 7800 Class-D monoblock amplifier, model B2-RAGE-7800, and (1) B2 voltage/temperature display bass knob with connection cable.
- 4,000W RMS DUAL-12 SUBWOOFER SYSTEM: Each RAGE V4 12 handles 2,000 watts RMS and 4,000 watts max, providing 4,000 watts RMS and 8,000 watts max combined subwoofer power handling.
- RAGE 7800 2-OHM MONOBLOCK POWER: The included Class-D amplifier delivers 4,200–4,500W RMS at 2 ohms with a sufficient electrical system. Dual 0-gauge power terminals and a 600A fuse rating support high-output car audio systems.
- CORRECT 2-OHM WIRING CONFIGURATION: Wire each subwoofer’s dual 2-ohm voice coils in series, then wire both subwoofers in parallel for a 2-ohm final impedance. This is the recommended load for this package; do not wire the subwoofers to 0.5 ohm.
- BUILT FOR HIGH-OUTPUT BASS: RAGE V4 subwoofers feature enlarged surrounds for increased excursion, massive 630 oz magnet assemblies, 3-inch voice coils, and 4-gauge push terminals. Properly sized OFC wiring, fusing, electrical upgrades, enclosure design, and gain setting are required; installation accessories are not included.

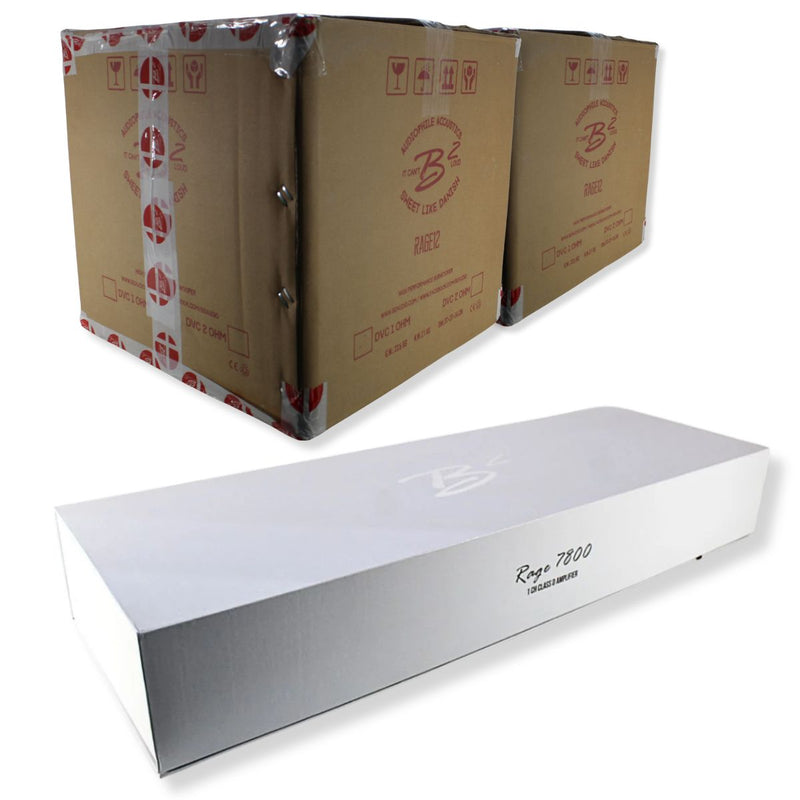

B2 Audio Dual RAGE V4 12" 2000W RMS D2 Subwoofers & RAGE 7800W RMS Mono Amplifier Package

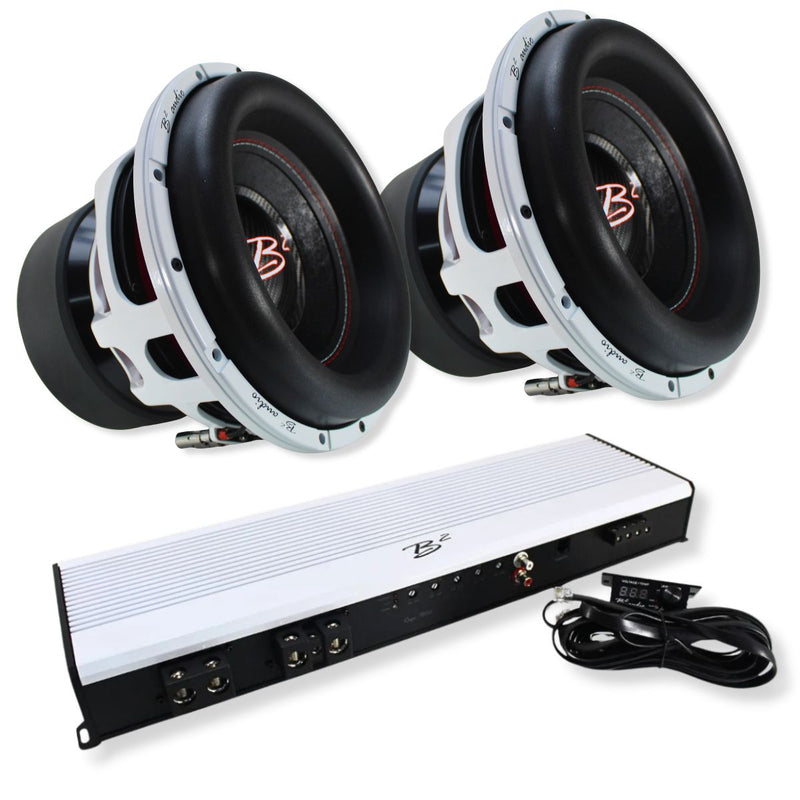

This Listing Includes:
- (2) B2 Audio 12" Subwoofer B2-RAGE12-D2-V4
- (1) B2 Audio Mono Amplifier B2-RAGE-7800
- (1) B2 voltage/temperature display bass knob w/ connection cable
Build a powerful B2 Audio bass system with two RAGE V4 12-inch subwoofers and the hard-hitting RAGE 7800 monoblock amplifier. Each B2-RAGE12-D2-V4 handles 2,000 watts RMS, giving this package a combined 4,000-watt RMS subwoofer rating.
The dual 2-ohm RAGE V4 subwoofers are designed to be wired to a 2-ohm final load with the included RAGE 7800. At 2 ohms, the amplifier delivers 4,200 to 4,500 watts RMS with a sufficient electrical system-an excellent power match for this high-output dual-12 build when properly installed and tuned.

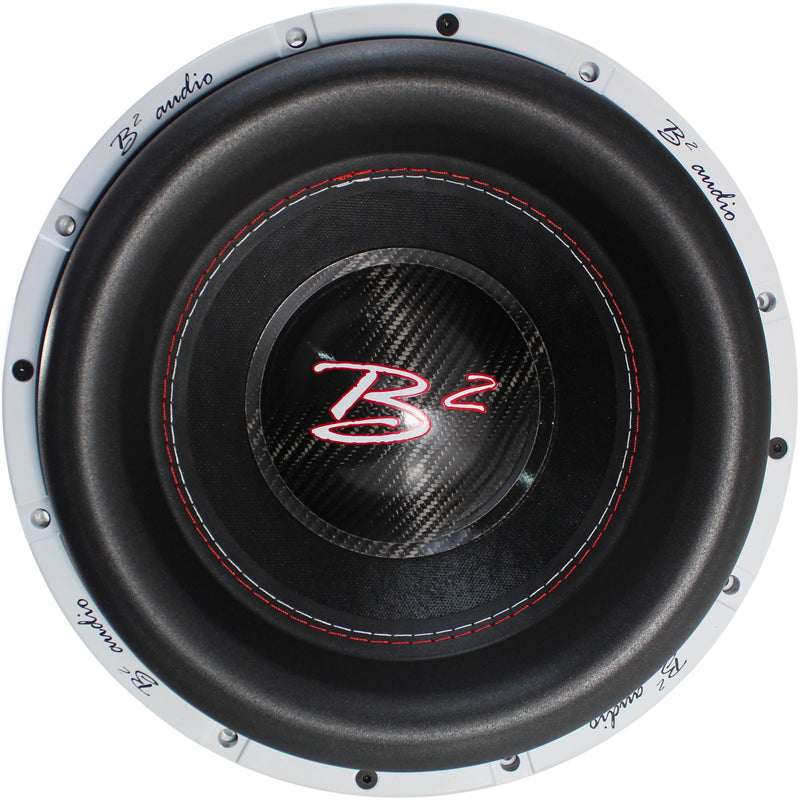

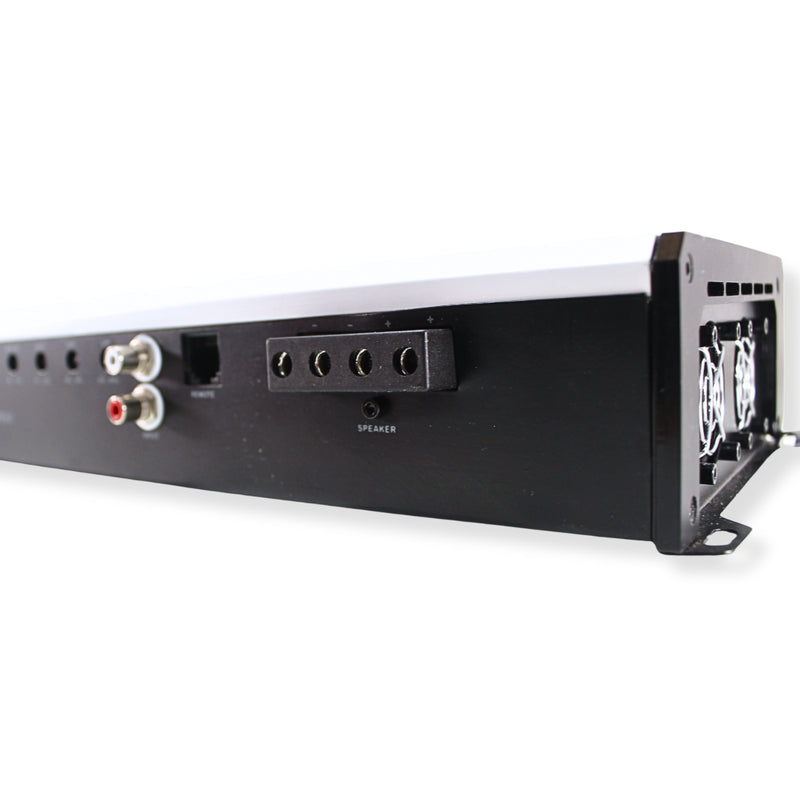

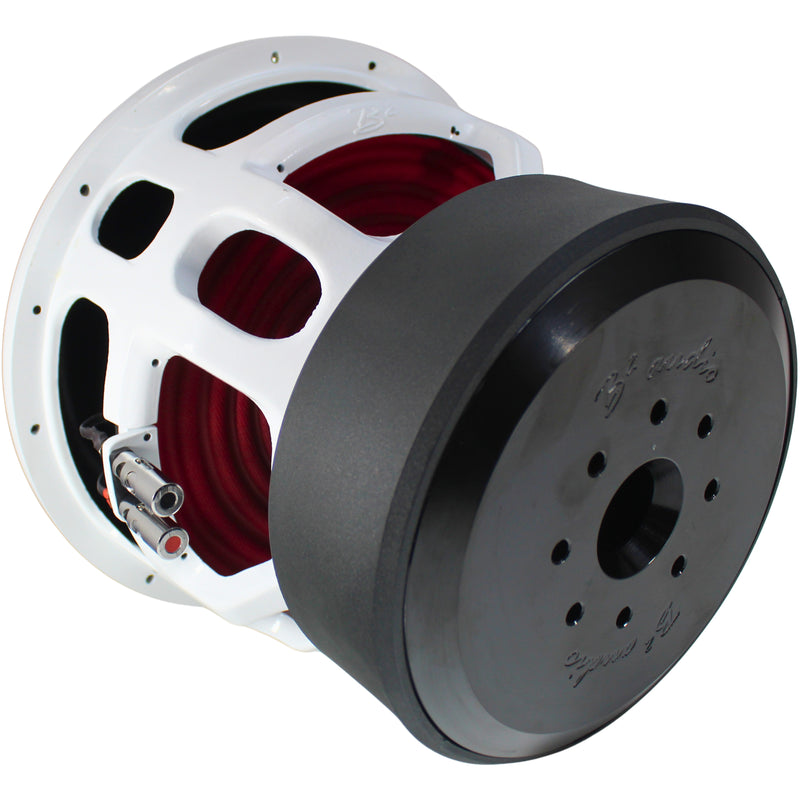

RAGE V4 subwoofers feature an enlarged V4 surround for increased excursion, massive 630 oz magnet assemblies, and 3-inch voice coils built for serious power handling. The RAGE 7800 adds powerful Class-D performance, variable crossover controls, dual 0-gauge power terminals, a voltage/temperature display bass knob, and protection circuitry for serious daily-driver, demo, and SPL-focused systems.
Features
- Complete B2 Audio RAGE amplifier and dual 12-inch subwoofer package
- Two RAGE V4 12-inch dual 2-ohm subwoofers
- 4,000 watts RMS combined subwoofer power handling
- 8,000 watts max combined subwoofer power handling
- Recommended 2-ohm final load for the included RAGE 7800 amplifier
- RAGE 7800 delivers 4,200–4,500W RMS at 2 ohms with a sufficient electrical system
- Enlarged V4 surrounds, 630 oz motors, and 3-inch voice coil platforms
- Includes voltage/temperature display bass knob with connection cable
- Built for high-output daily drivers, demos, and SPL-focused bass systems
Recommended Wiring Configuration
Wire the voice coils of each B2-RAGE12-D2-V4 in series to create a 4-ohm load per subwoofer. Then wire the two subwoofers in parallel for a 2-ohm final load at the amplifier.
Do not wire this package to 0.5 ohm. The RAGE 7800 is designed for a 1-ohm minimum load.
Subwoofer Specifications (Each):
- RMS Power Handling: 2,000W
- Max Power Handling: 4,000W

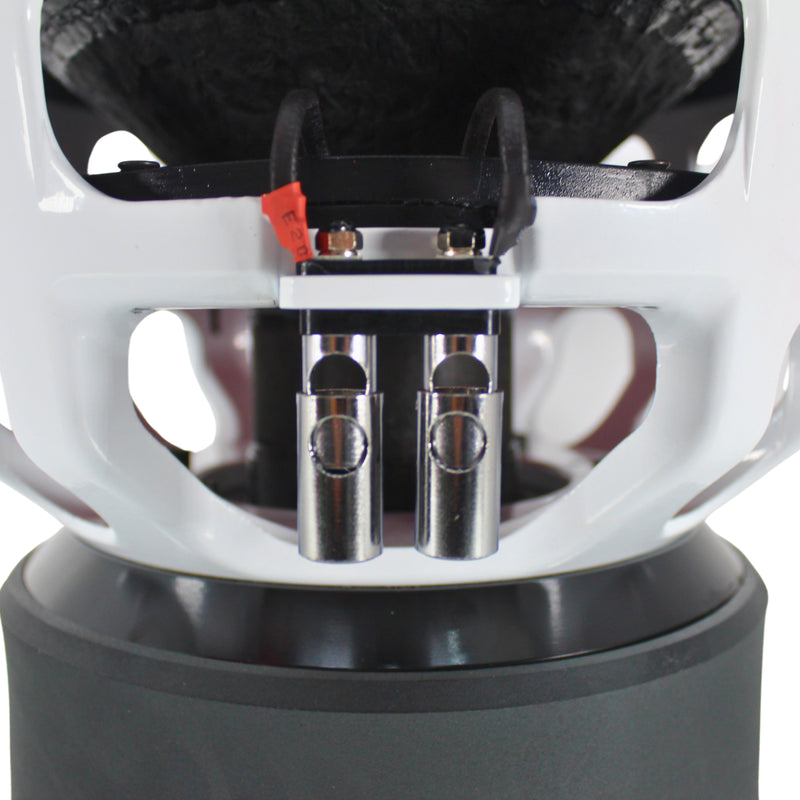

- Push Terminal Wire Gauge: 4 gauge
- Nominal Impedance: Dual 2 ohm
- Voice Coil Diameter: 3"
- Frequency Response: 10Hz-500Hz
- Sensitivity: 88 dB

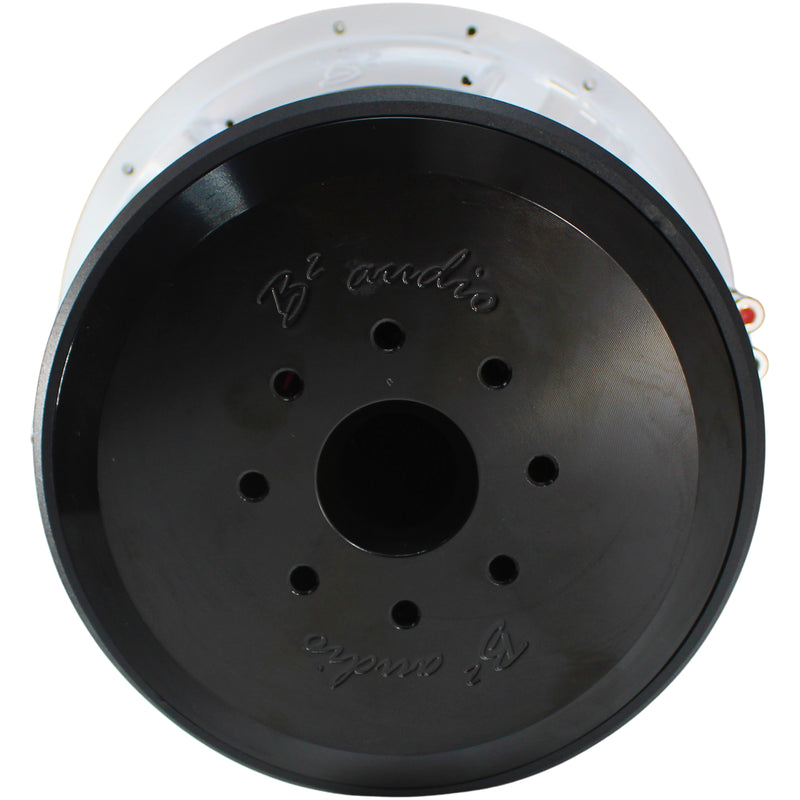

- Magnet Weight: 630 oz
- Displacement Volume: 7.4 L / 0.26 cu. ft.
- Free-Air Resonance (Fs): 28.1Hz
- Resistance (Re): 1.9 ohm
- Mechanical Factor (Qms): 5.4
- Electrical Factor (Qes): 0.39
- Total Factor (Qts): 0.36
- Equivalent Volume (Vas): 28.9 L
- Compliance (Cms): 80 um/N
- BL Factor: 183.4
- Moving Mass (Mms): 384.7 g
- Xmax: 20 mm
- Overall Diameter: 12.24"
- Mounting Diameter: 11.11"
- Bolt Pattern Diameter: 11.57"
- Mounting Depth: 8.85"
- Overall Depth: 10.21"

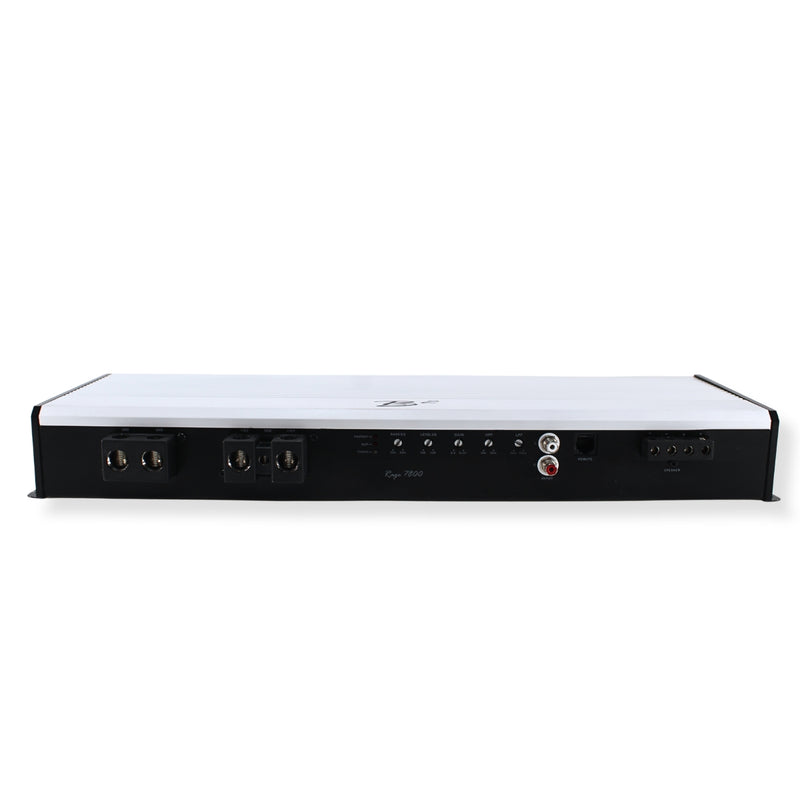

Amplifier Specifications:
- Circuit Configuration: Class-D full-range monoblock
- RMS Power at 4 Ohms: 2,400-2,600W
- RMS Power at 2 Ohms: 4,200–4,500W
- RMS Power at 1 Ohm: 7,800-8,000W
- Frequency Response: 10Hz-12.5kHz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 6V–0.2V

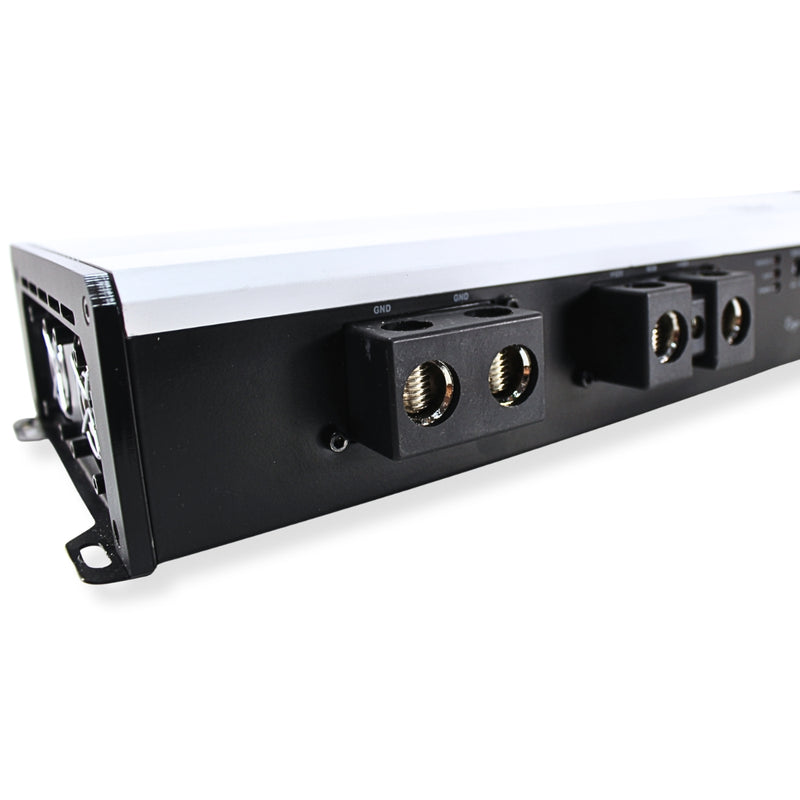

- Power Terminals: Dual 0 gauge
- Recommended Speaker Wire: 10 AWG minimum
- Fuse Rating: 600A
- Bass Level: 30Hz–80Hz
- Low-Pass Crossover: 30Hz-12.5kHz
- High-Pass Crossover: 10Hz-2kHz
- Subsonic Crossover: 10Hz-2kHz
- Dimensions: 22" L x 6.5" W x 2.5" H
Important Installation Note
This high-current system requires a properly designed electrical upgrade, quality OFC wiring, correct fusing, a suitable enclosure, and careful gain setting. Enclosure, wiring, batteries, alternator upgrades, and installation hardware are not included.
