- Properly Matched 2000W RMS Package: the amplifier delivers between 1850 and 2150 watts RMS at the recommended 2-ohm final load.
- Dual 15-Inch Bass: two RIOT15-D2 subwoofers provide increased cone area and powerful low-frequency output.
- Heavy-Duty Construction: each subwoofer features a 3-inch high-temperature voice coil, 18 mm Xmax, and a 240 oz motor assembly.
- Correct Wiring Configuration: wire each subwoofer’s coils in series, then connect both subwoofers in parallel for a 2-ohm final load.
- Flexible Enclosure Options: works with sealed, ported, or fourth-order bandpass enclosures.

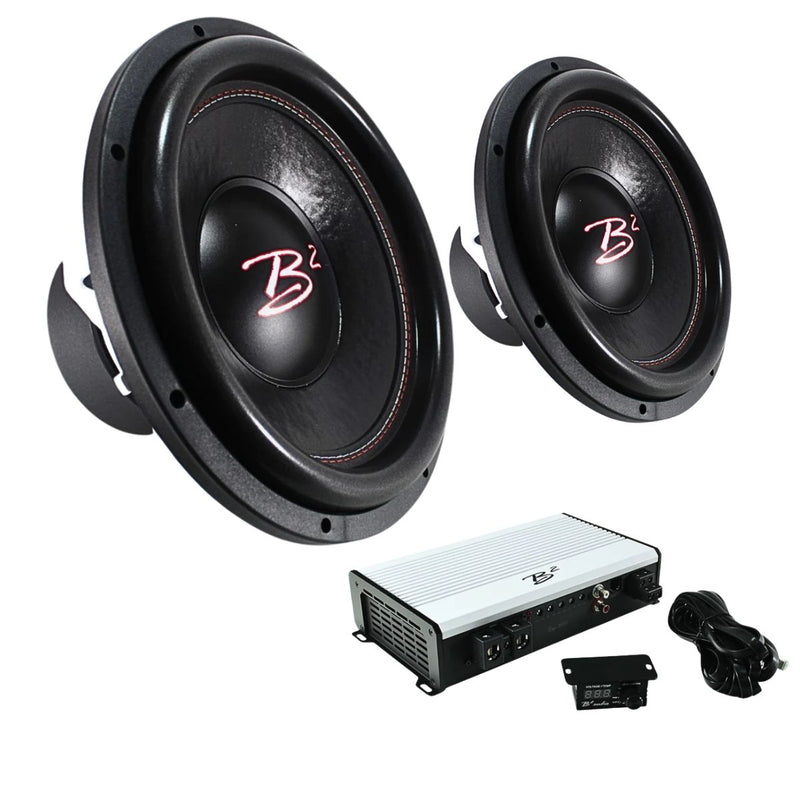

Dual B2 Audio RIOT15-D2 15" 1000W RMS Subs with RAGE 3500 Amp
This Listing Includes:
- (2) B2 Audio RIOT15-D2 15" Dual 2-Ohm Subwoofers

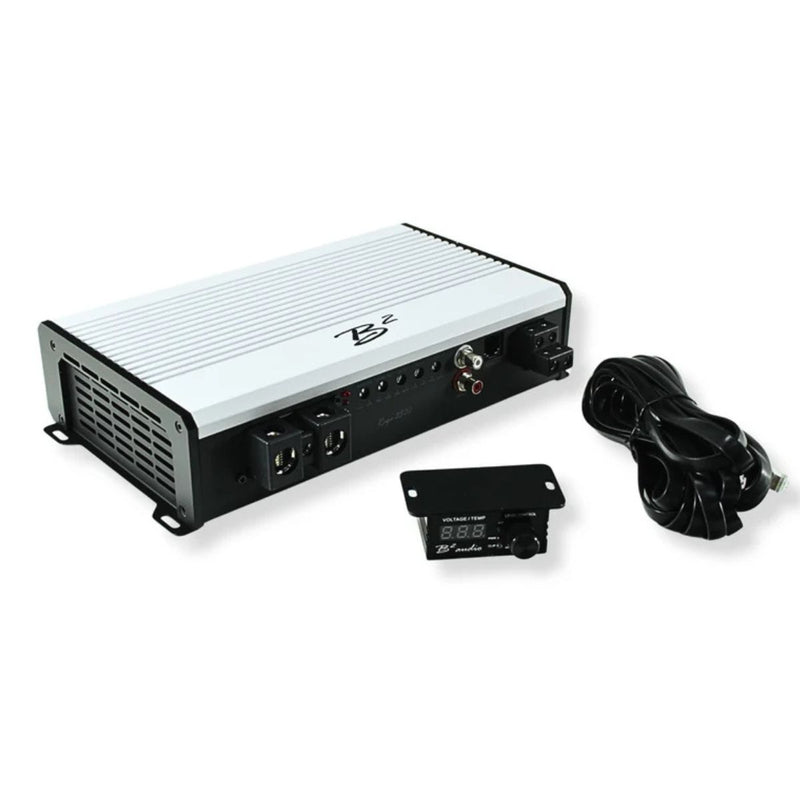

- (1) B2 Audio RAGE 3500 Monoblock Amplifier

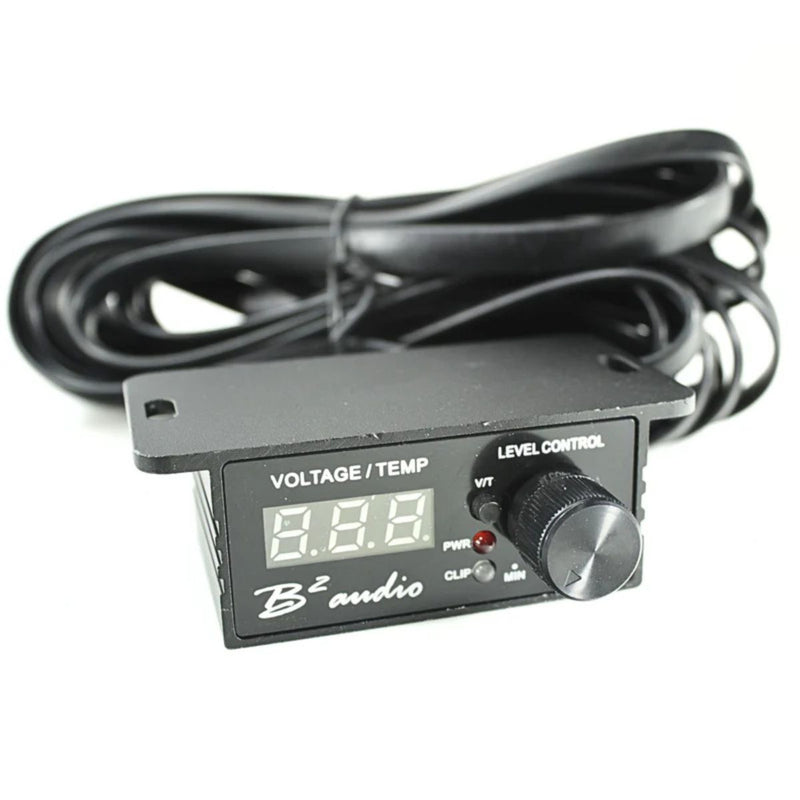

- (1) Bass Knob with Voltage and Temperature Display
- (1) Remote Wire
- (2) Hex Wrenches
- Mounting Hardware
This B2 Audio package combines two RIOT15-D2 15-inch subwoofers with the RAGE 3500 monoblock amplifier. The subwoofers handle 2000 watts RMS combined, while the amplifier produces between 1850 and 2150 watts RMS at the recommended 2-ohm final load.
Wire each subwoofer’s dual 2-ohm voice coils in series to create a 4-ohm load per subwoofer. Then connect both subwoofers in parallel for a 2-ohm final load at the amplifier. This configuration closely matches the combined RMS rating of the two subwoofers.
Features
- Two 15-inch RIOT high-excursion subwoofers
- 2000W combined RMS power handling
- 6000W combined peak power handling
- Dual 2-ohm voice coils on each subwoofer
- Recommended 2-ohm final system load
- Heavy-duty 3-inch high-temperature voice coils
- 18 mm one-way Xmax
- 240 oz motor assembly per subwoofer
- Compatible with sealed, ported, and fourth-order bandpass enclosures
- RAGE 3500 full-range Class-D monoblock amplifier
- 1850 to 2150 watts RMS at the recommended 2-ohm load
- Adjustable low-pass, high-pass, and subsonic crossovers
- Bass knob with voltage and temperature display included
- Thermal, short-circuit, and overcurrent protection
Specifications

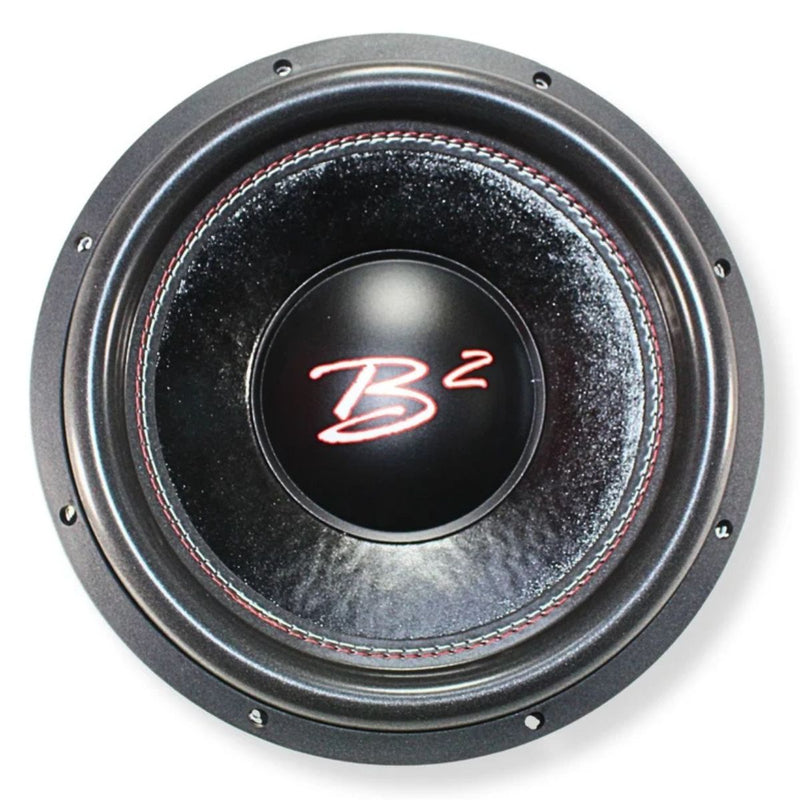

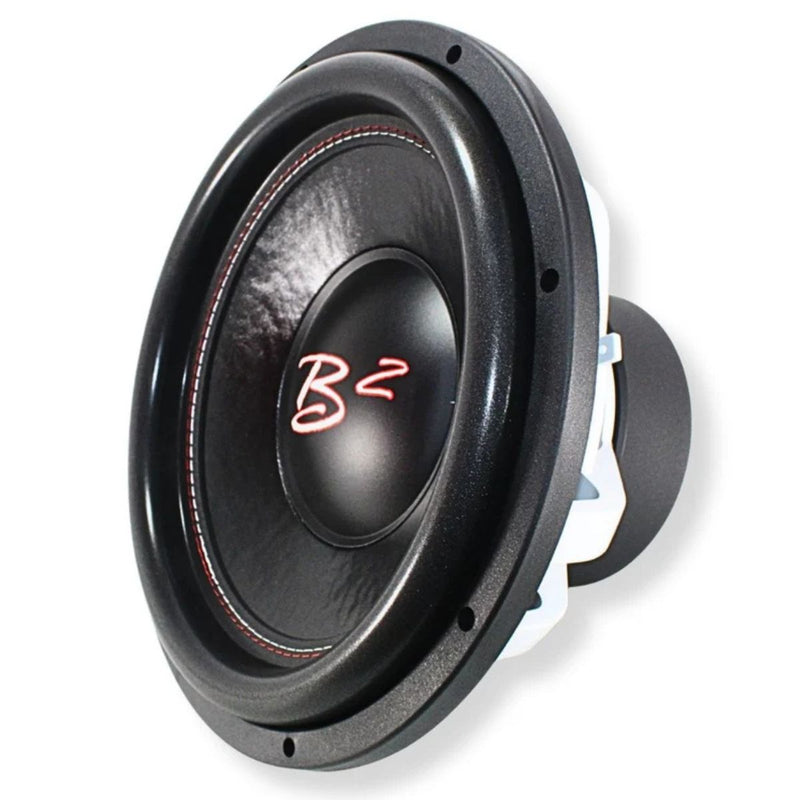

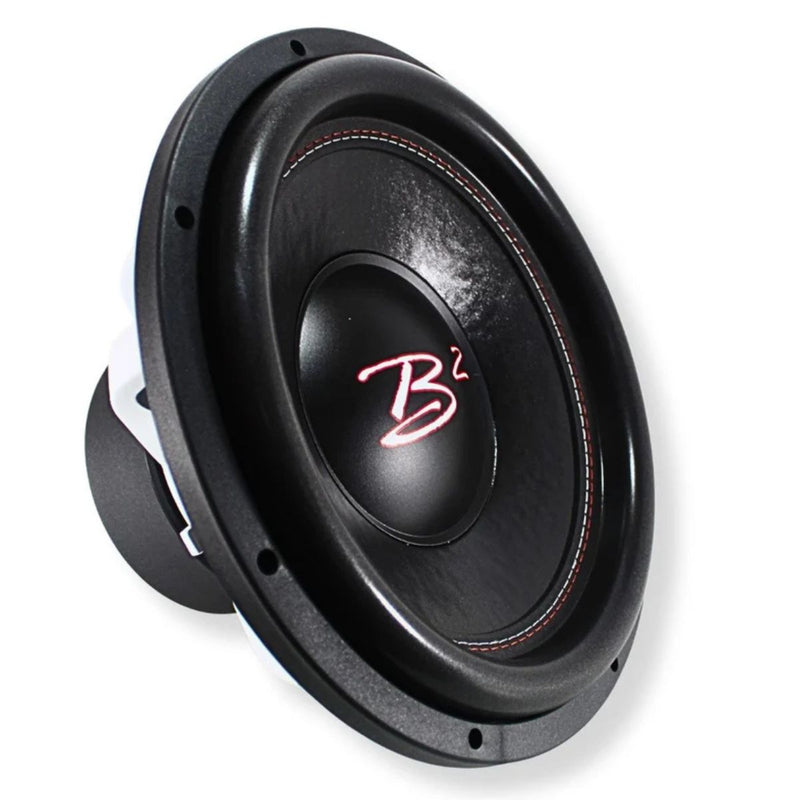

RIOT15-D2 Subwoofers
- Quantity: Two
- Size: 15 inches each
- RMS Power Handling: 1000 watts each
- Combined RMS Power Handling: 2000 watts
- Peak Power Handling: 3000 watts each
- Combined Peak Power Handling: 6000 watts
- Nominal Impedance: Dual 2 ohms each
- Recommended Final System Load: 2 ohms
- Voice Coil Diameter: 3 inches
- Sensitivity: 86 dB
- Xmax: 18 mm one way
- Motor Assembly Weight: 240 oz each
- Displacement Volume: 0.26 cubic feet each
- Overall Diameter: 15.35 inches each
- Mounting Diameter: 14.76 inches each
- Cutout Diameter: 13.78 inches each
- Magnet Width: 7.40 inches each
- Mounting Depth: 8.11 inches each
- Overall Depth: 8.78 inches each
Thiele and Small Parameters Per Subwoofer
- Free-Air Resonance: 30 Hz
- Qms: 7.5
- Qes: 0.8
- Qts: 0.72
- Vas: 60.1 L
- Cms: 70 μm/N
- Moving Mass: 379 g
- BL²/Re: 106.8
- Xmax: 18 mm one way
Recommended Enclosures Per Subwoofer
- Sealed Volume: 2.24 cubic feet
- Sealed Qtc: 0.72
- Sealed Resonance Frequency: 42.8 Hz
- Compact Ported Volume: 2.83 cubic feet
- Compact Port Area: 20 square inches
- Compact Port Length: 12.8 inches
- Compact Tuning Frequency: 35 Hz
- Ported Volume: 5 cubic feet
- Port Area: 20 square inches
- Port Length: 9.1 inches
- Ported Tuning Frequency: 30 Hz
- Fourth-Order Bandpass Ratio: 3:1
Enclosure recommendations are listed per subwoofer. Double the net volume when placing both subwoofers in a shared enclosure. Port dimensions may need to be recalculated for a shared chamber.

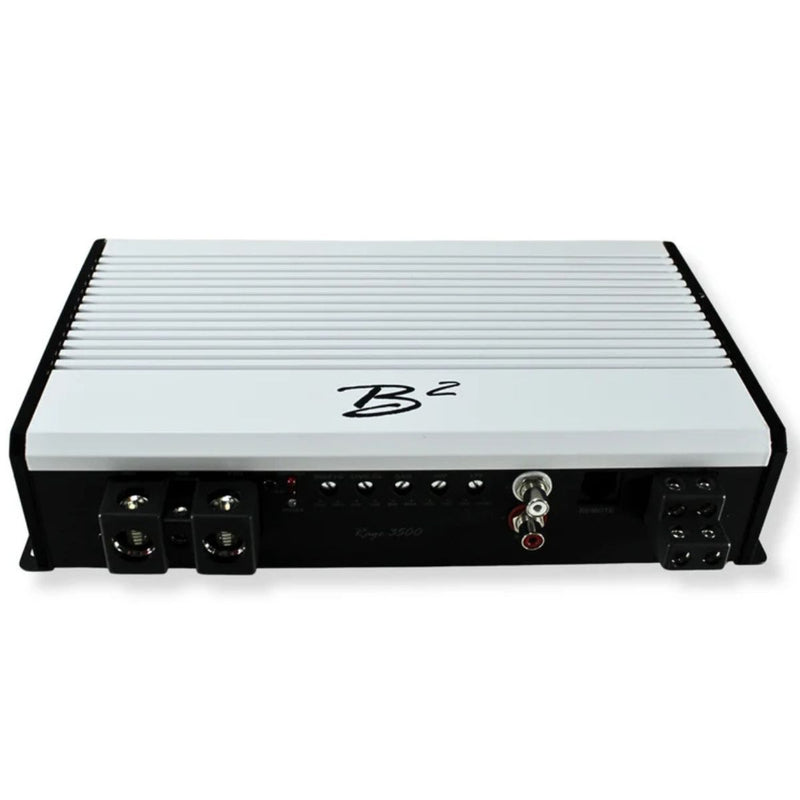

RAGE 3500 Amplifier
- Amplifier Type: Full-Range Class-D Monoblock
- RMS Power at 4 Ohms: 1050 to 1200 watts
- RMS Power at 2 Ohms: 1850 to 2150 watts
- RMS Power at 1 Ohm: 3000 to 3500 watts
- Recommended Configuration: 2-ohm final system load
- Frequency Response: 10 Hz to 20 kHz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 0.2V to 6V
- Power Terminal Size: 0 gauge
- Fuse Rating: 250 amps
- Bass Control Frequency: 30 Hz to 80 Hz
- Low-Pass Crossover: 50 Hz to 20 kHz
- High-Pass Crossover: 10 Hz to 2 kHz
- Subsonic Crossover: 10 Hz to 2 kHz
- Length: 11.5 inches
- Width: 7.25 inches
- Height: 2.5 inches
- Weight: 7.25 lb
Two high-excursion 15-inch subwoofers, 2000 watts RMS combined, and properly matched amplifier power at 2 ohms.
