Dual B2 Audio RIOT V3 12" 2000W RMS Subs with RAGE 3500 Amp

• Properly Matched 2000W RMS Package: the amplifier delivers between 1850 and 2150 watts RMS at the recommended 2-ohm final load.
• Dual 12-Inch Bass: two RIOT V3 subwoofers provide increased cone area and powerful low-frequency output.
• Heavy-Duty Construction: each subwoofer features a 3-inch voice coil, 18 mm Xmax, and a 240 oz motor assembly.
• Correct Wiring Configuration: wire each subwoofer’s coils in series, then connect both subwoofers in parallel for a 2-ohm final load.
• Flexible Enclosure Options: works with sealed, ported, or fourth-order bandpass enclosures.

Dual B2 Audio RIOT V3 12" 2000W RMS Subs with RAGE 3500 Amp

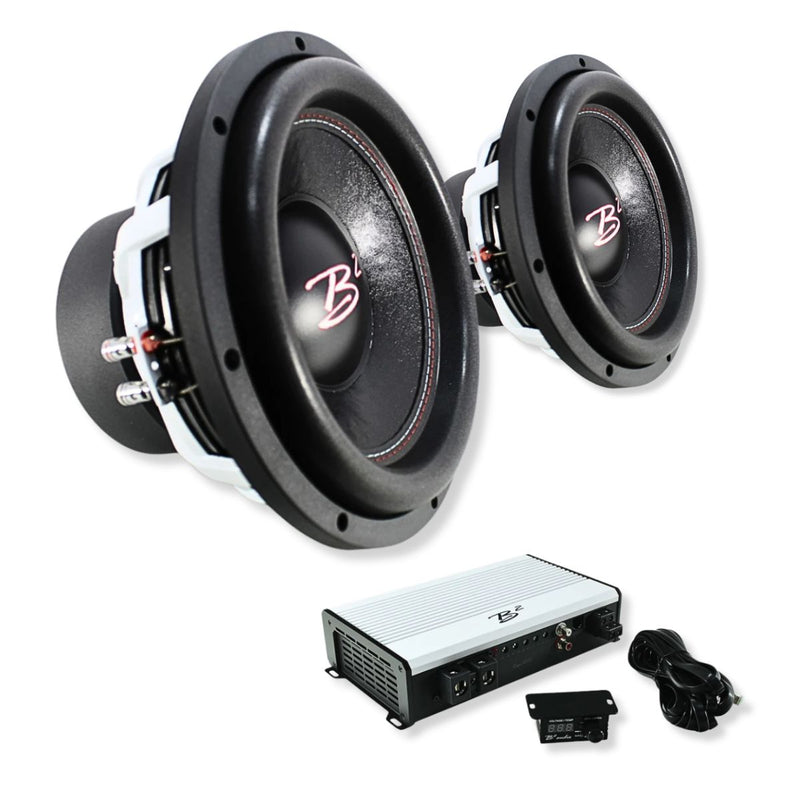

This Listing Includes:

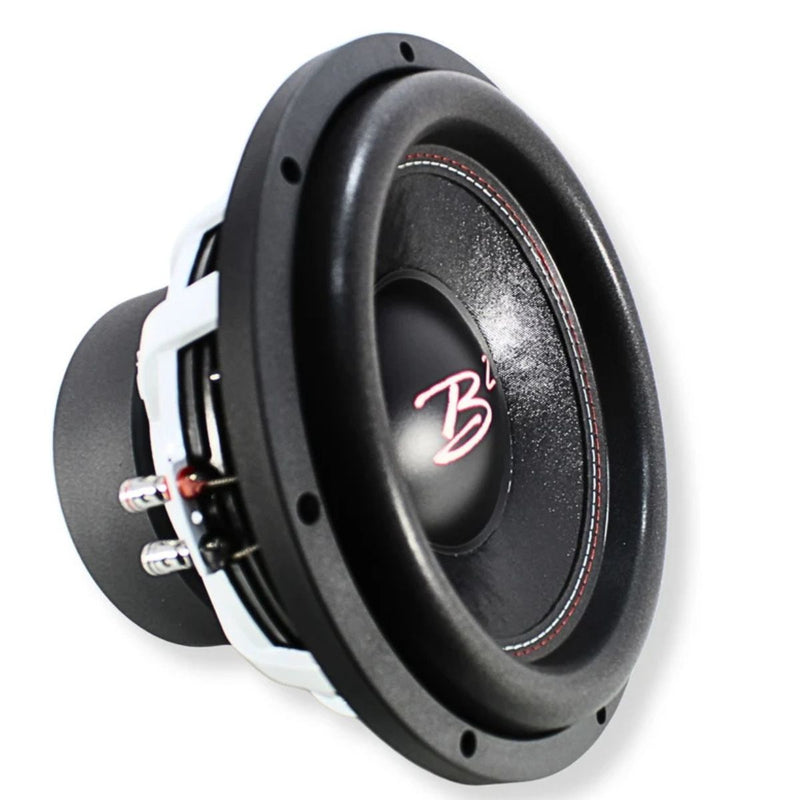

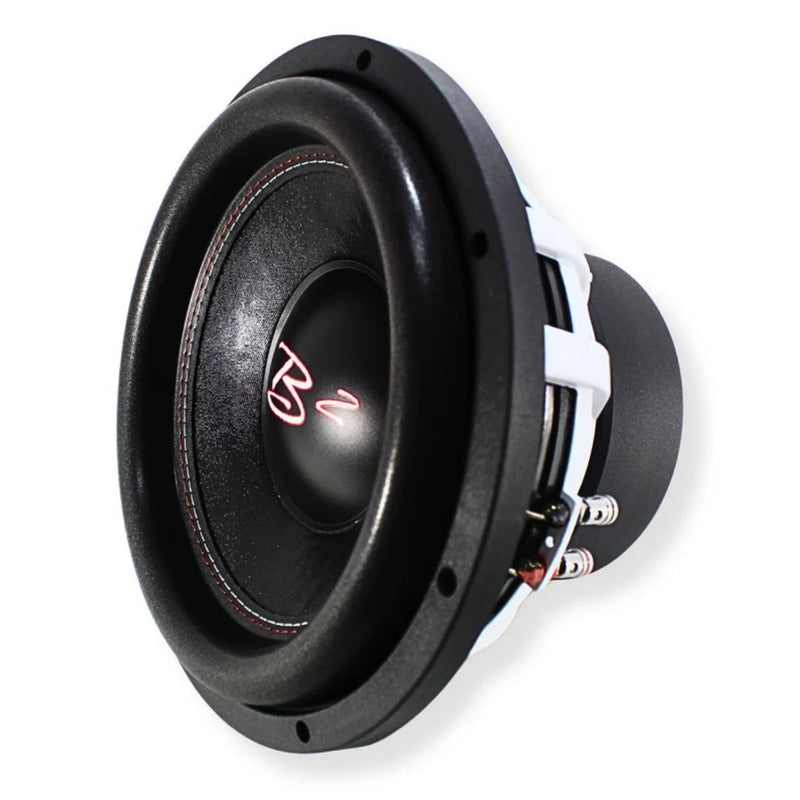

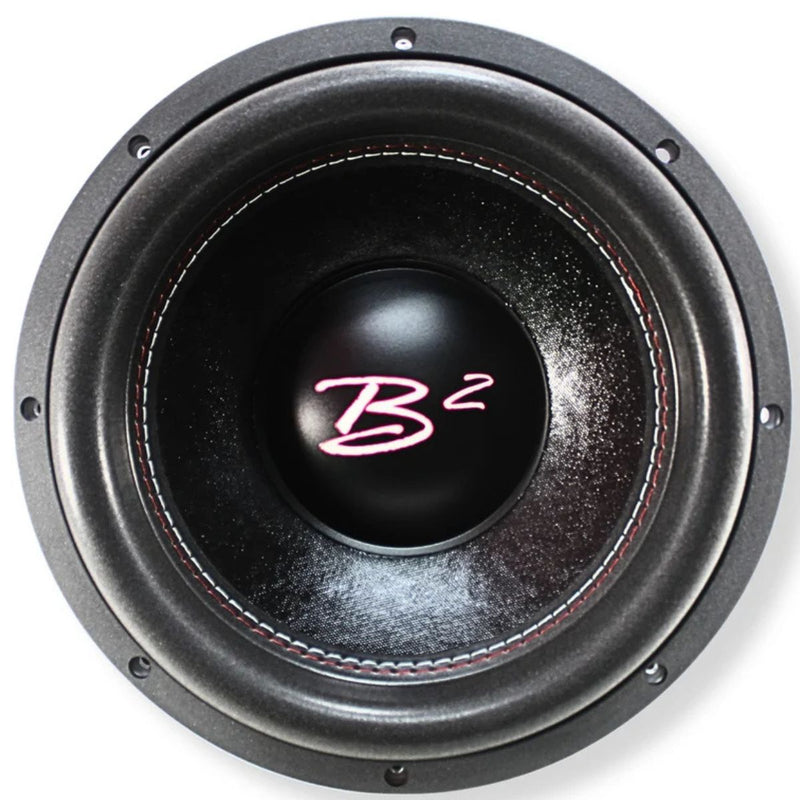

• (2) B2 Audio RIOT V3 12" Dual 2-Ohm Subwoofers

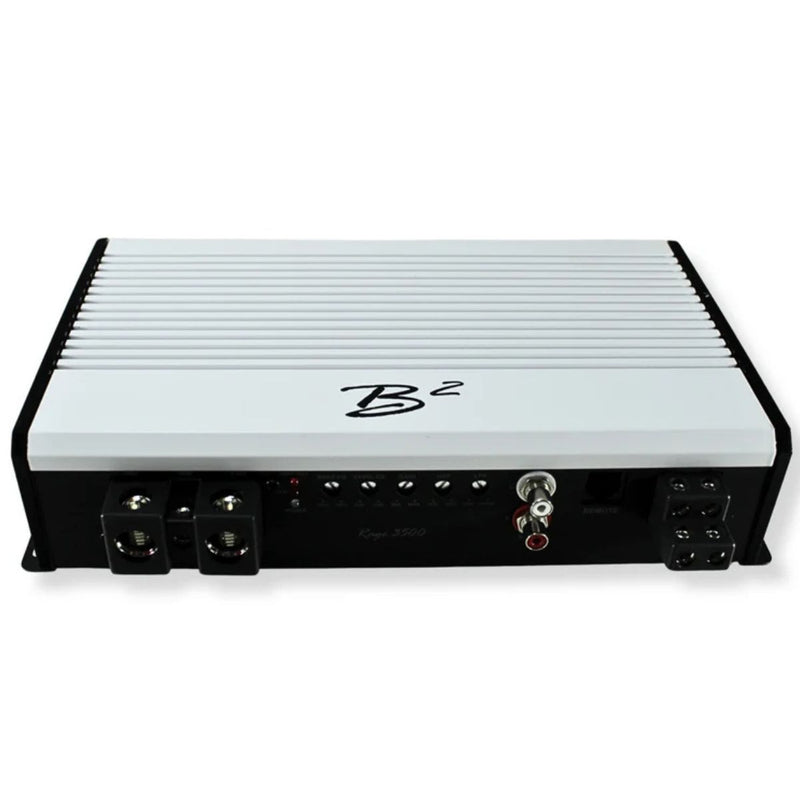

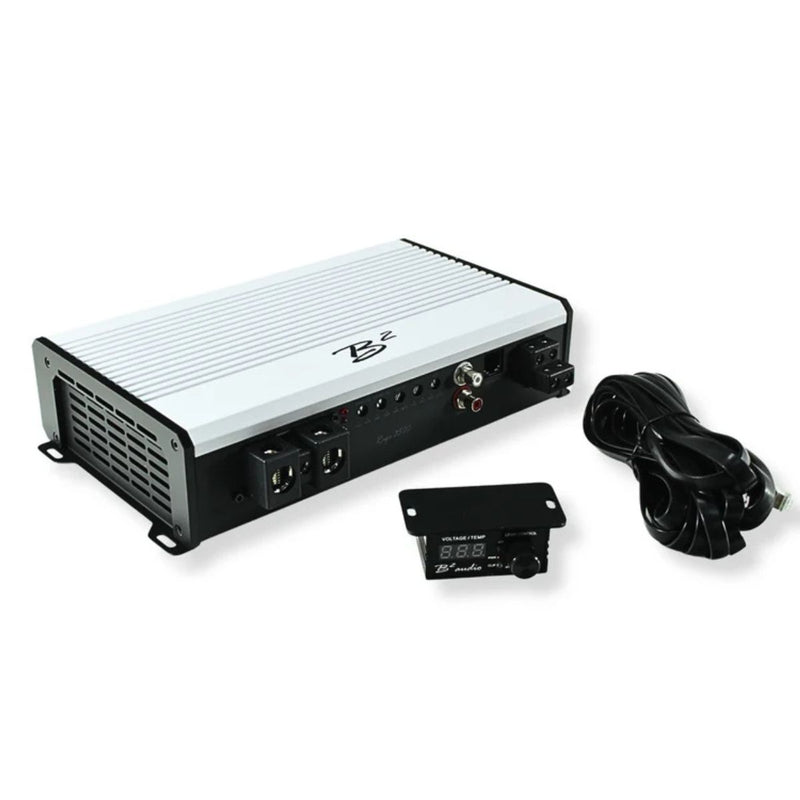

• (1) B2 Audio RAGE 3500 Monoblock Amplifier

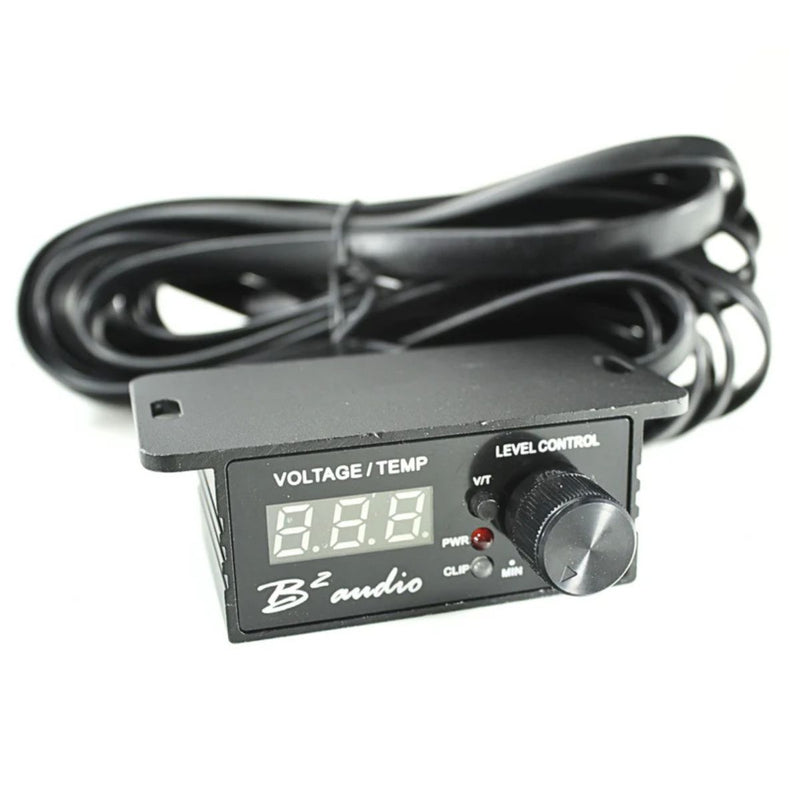

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• (2) Hex Wrenches


• Mounting Hardware

This B2 Audio package combines two RIOT V3 12-inch subwoofers with the RAGE 3500 monoblock amplifier. The subwoofers handle 2000 watts RMS combined, while the amplifier produces between 1850 and 2150 watts RMS at the recommended 2-ohm final load.

Wire each subwoofer’s dual 2-ohm voice coils in series to create a 4-ohm load per subwoofer. Then wire both subwoofers together in parallel for a 2-ohm final load at the amplifier. This configuration closely matches the combined RMS rating of the subwoofers.

Features

• Two 12-inch RIOT V3 high-excursion subwoofers


• 2000W combined RMS power handling


• 6000W combined maximum power handling


• Dual 2-ohm voice coils on each subwoofer


• Recommended 2-ohm final system load


• Heavy-duty 3-inch voice coils


• 18 mm Xmax for powerful low-frequency output


• 240 oz motor assembly per subwoofer


• Heavy-duty 8-gauge push terminals


• Compatible with sealed, ported, and fourth-order bandpass enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• 1850 to 2150 watts RMS at the recommended 2-ohm load


• Adjustable low-pass, high-pass, and subsonic crossovers


• Bass knob with voltage and temperature display included

Specifications

RIOT V3 12" Subwoofers

• Quantity: Two


• Size: 12 inches each


• RMS Power Handling: 1000 watts each


• Combined RMS Power Handling: 2000 watts


• Maximum Power Handling: 3000 watts each


• Combined Maximum Power Handling: 6000 watts


• Nominal Impedance: Dual 2 ohms each


• Recommended Final System Load: 2 ohms


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 82.4 dB


• Xmax: 18 mm


• Motor Assembly Weight: 240 oz each


• Push Terminal Capacity: 8 gauge


• Displacement Volume: 0.19 cubic feet each


• Overall Diameter: 12.80 inches each


• Mounting Diameter: 11.22 inches each


• Bolt Pattern Diameter: 11.93 inches each


• Overall Depth: 7.99 inches each


• Mounting Depth: 7.23 inches each

Thiele and Small Parameters Per Subwoofer

• Free-Air Resonance: 29.9 Hz


• Resistance: 1.9 ohms


• Qms: 6.55


• Qes: 0.61


• Qts: 0.55


• Vas: 34.9 L


• Cms: 90 m/N


• BL Factor: 95.5


• Moving Mass: 300.8 g


• Xmax: 18 mm

Recommended Enclosures Per Subwoofer

• Sealed Volume: 0.89 cubic feet


• Sealed Qtc: 0.64


• Sealed F3: 49.3 Hz


• Compact Ported Volume: 1.41 cubic feet


• Compact Port Area: 12.6 square inches


• Compact Port Length: 13 inches


• Compact Tuning Frequency: 38 Hz


• Ported Volume: 2.65 cubic feet


• Port Area: 16 square inches


• Port Length: 13.3 inches


• Ported Tuning Frequency: 32 Hz


• Fourth-Order Bandpass Ratio: 3:1

Enclosure recommendations are listed per subwoofer. Double the net volume when installing both subwoofers in a shared enclosure. Port dimensions may need to be recalculated for a shared chamber.

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Recommended Configuration: 2-ohm final system load


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

The subwoofer boxes may be marked V2, but the subwoofers packed inside are the V3 version.
