Dual B2 Audio RIOT 12" D4 1000W RMS Subs with DD Audio SS2000 Amp

• PROPERLY MATCHED 2000W RMS PACKAGE: The two subwoofers handle 2000 watts RMS combined while the DD Audio SS2000 delivers 2000 watts RMS at the recommended 1-ohm final load.
• DUAL 12-INCH BASS: Two RIOT subwoofers provide increased cone area, 18 mm Xmax, and powerful low-frequency output for daily, street, and demo systems.
• CORRECT 1-OHM WIRING: Wire each subwoofer’s dual 4-ohm coils in parallel for 2 ohms per subwoofer, then connect both subwoofers in parallel for a 1-ohm final load.
• COMPACT FULL-RANGE MONOBLOCK: The DD Audio SS2000 delivers high-efficiency Class-D performance from a compact 7.7" × 7.3" × 2.4" aluminum chassis.
• FLEXIBLE ENCLOSURE OPTIONS: The RIOT subwoofers perform in sealed, compact ported, or standard ported enclosures for different space and output requirements.

Dual B2 Audio RIOT 12" D4 1000W RMS Subs with DD Audio SS2000 Amp

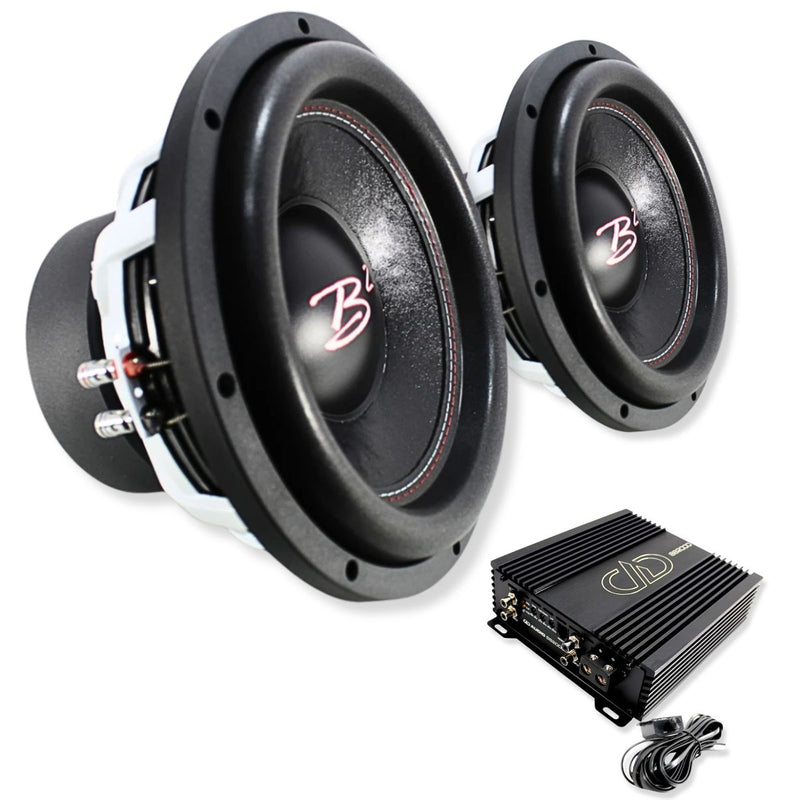

This Listing Includes:

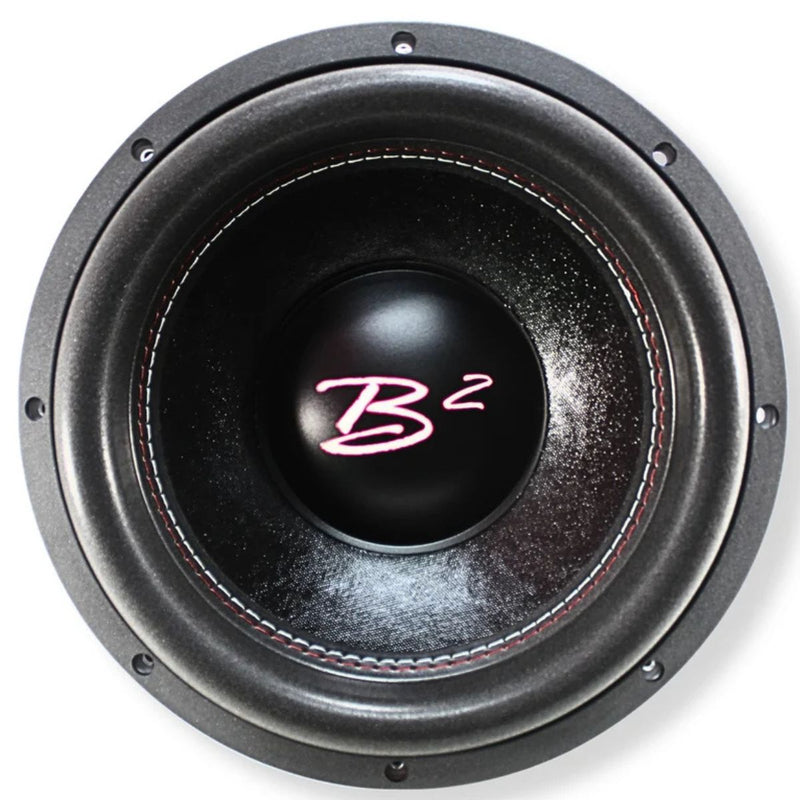

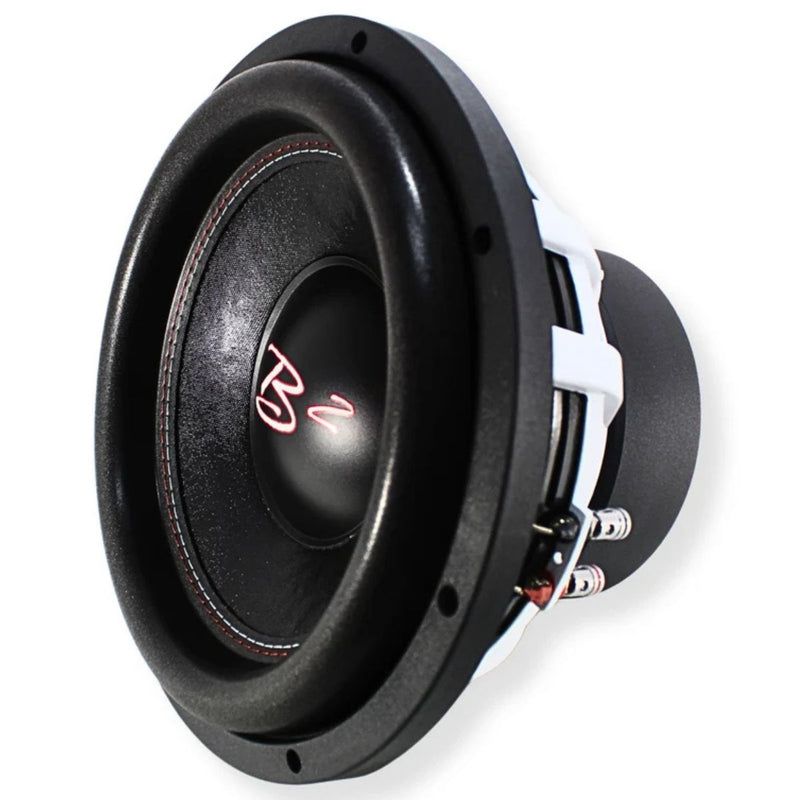

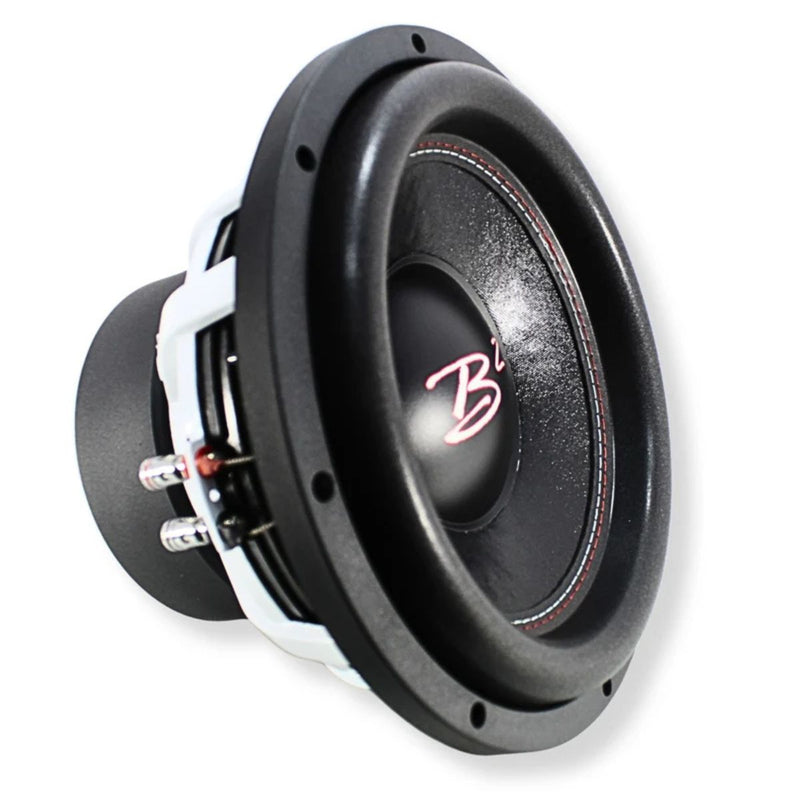

• (2) B2 Audio RIOT 12" Dual 4-Ohm Subwoofers

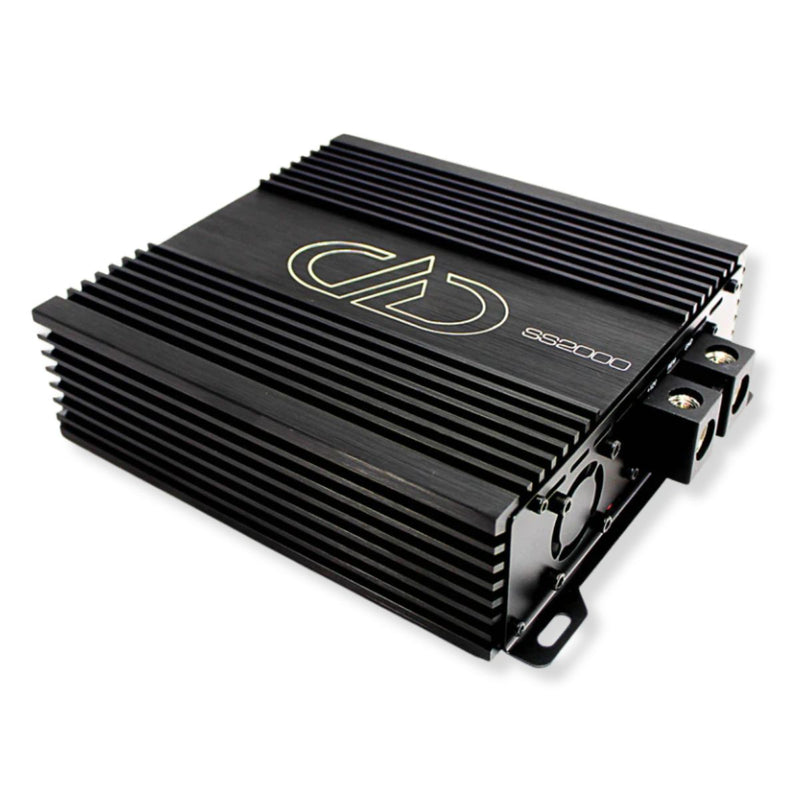

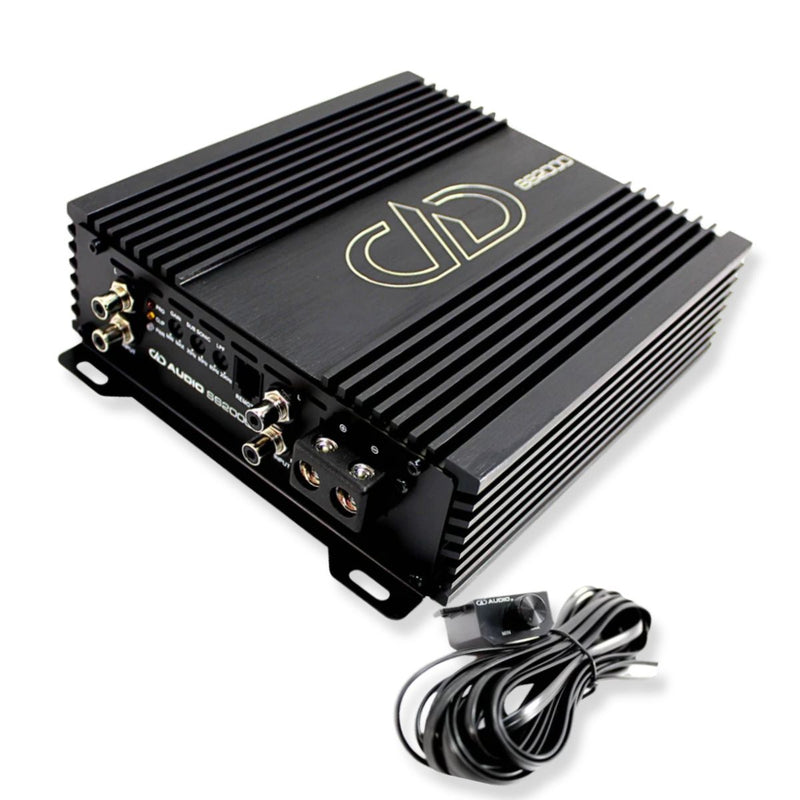

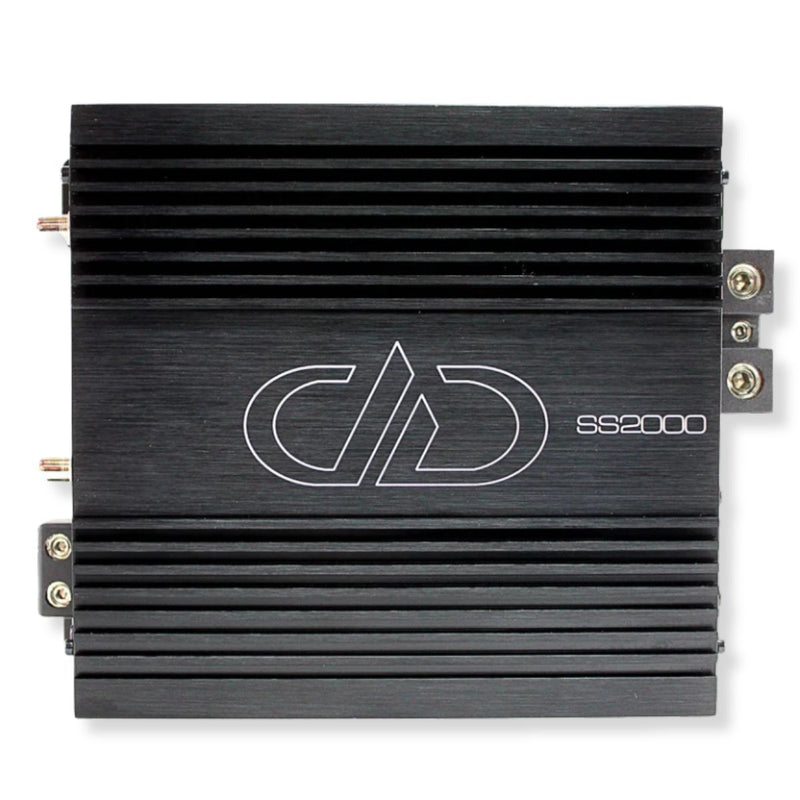

• (1) DD Audio SS2000 Monoblock Amplifier


• (1) Remote Gain Control

This bass package combines two B2 Audio RIOT 12-inch subwoofers with the compact DD Audio SS2000 Class-D monoblock amplifier. Together, the subwoofers handle 2000 watts RMS while the SS2000 delivers 2000 watts RMS at 1 ohm, creating a properly matched high-output system.

Each RIOT subwoofer features dual 4-ohm voice coils. Wire the two coils on each subwoofer in parallel to create a 2-ohm load per subwoofer. Connect both 2-ohm subwoofers to the SS2000 in parallel to create the recommended 1-ohm final load.

The RIOT subwoofers combine heavy-duty 3-inch voice coils, 18 mm Xmax, 240 oz motor assemblies, and high-current 8-gauge push terminals. The SS2000 delivers the power they need through a compact aluminum chassis with 0-gauge power terminals, adjustable filtering, ZVL inputs, and an included remote gain control.

Features

• Two B2 Audio RIOT 12-inch high-excursion subwoofers


• 2000W combined RMS power handling


• 6000W combined maximum power handling


• Dual 4-ohm voice coils on each subwoofer


• Recommended 1-ohm final amplifier load


• Heavy-duty 3-inch voice coils


• 18 mm Xmax for deep low-frequency output


• 240 oz ferrite motor assembly per subwoofer


• Heavy-duty 8-gauge push terminals


• Compatible with sealed and ported enclosures


• DD Audio SS2000 Class-D full-range monoblock amplifier


• 2000 watts RMS at 1 ohm


• 1400 watts RMS at 2 ohms


• Compact heavyweight aluminum chassis


• Adjustable high-pass and low-pass filters


• ZVL and high-level inputs


• Remote gain control included


• 0-gauge power terminals

Specifications

B2 Audio RIOT 12" Dual 4-Ohm Subwoofers

• Quantity: Two


• Size: 12 Inches Each


• RMS Power Handling: 1000 Watts Each


• Combined RMS Power Handling: 2000 Watts


• Maximum Power Handling: 3000 Watts Each


• Combined Maximum Power Handling: 6000 Watts


• Nominal Impedance: Dual 4 Ohms Each


• Voice Coil Diameter: 3 Inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 83.9 dB


• Xmax: 18 mm


• Motor Assembly Weight: 240 oz Each


• Push Terminal Capacity: 8 Gauge


• Displacement Volume: 5.2 L / 0.19 Cubic Feet Each


• Overall Diameter: 12.80 Inches Each


• Mounting Diameter: 11.22 Inches Each


• Bolt Pattern Diameter: 11.93 Inches Each


• Overall Depth: 8.82 Inches Each


• Mounting Depth: 7.32 Inches Each

Thiele and Small Parameters Per Subwoofer

• Free-Air Resonance, Fs: 30.4 Hz


• Resistance, Re: 6.4 Ohms


• Mechanical Quality Factor, Qms: 6.56


• Electrical Quality Factor, Qes: 0.7


• Total Quality Factor, Qts: 0.63


• Equivalent Compliance Volume, Vas: 35.6 L


• Suspension Compliance, Cms: 90 m/N


• BL Factor: 81.2


• Moving Mass, Mms: 287.2 g


• Maximum Linear Excursion, Xmax: 18 mm

Recommended Enclosures Per Subwoofer

Sealed Enclosure

• Net Volume: 25 L / 0.88 Cubic Feet


• Qtc: 0.6

Compact Ported Enclosure

• Net Volume: 40 L / 1.41 Cubic Feet


• Port Diameter: 4 Inches


• Port Length: 12.8 Inches / 32.5 cm


• Tuning Frequency: 38 Hz

Standard Ported Enclosure

• Net Volume: 75 L / 2.63 Cubic Feet


• Port Configuration: Two 3-Inch Ports


• Port Length: 10.7 Inches / 27.2 cm


• Tuning Frequency: 32 Hz

Enclosure recommendations are listed per subwoofer. Double the recommended net volume when installing both subwoofers in a shared enclosure. Port dimensions may need to be recalculated for a shared chamber.

DD Audio SS2000 Amplifier

• Amplifier Type: Class-D Full-Range Monoblock


• Input Channels: Two


• Output Channels: One


• Continuous Power at 2 Ohms: 1400 Watts RMS


• Continuous Power at 1 Ohm: 2000 Watts RMS


• Recommended Configuration: 1-Ohm Final Load


• Operating Voltage: 9 to 16 Volts


• Test Voltage: 14.4 Volts


• Maximum Current Draw: 200 Amps


• RCA Input Sensitivity: 6 to 0.25 Volts


• High-Level Input Sensitivity: 20 to 1.1 Volts


• Signal-to-Noise Ratio: Greater Than 95 dB


• Damping Factor: Greater Than 100


• Total Harmonic Distortion: Less Than 1.0%


• Frequency Response: 20 Hz to 20 kHz


• High-Pass Filter: 20 Hz to 80 Hz


• Low-Pass Filter: 80 Hz to 20 kHz


• Filter Slope: 12 dB per Octave


• ZVL Input: Yes


• Remote Gain Control: Included


• Power Terminal Size: 0 Gauge


• Speaker Terminal Size: 8 Gauge


• Dimensions: 7.7" x 7.3" x 2.4"


• Dimensions: 195 x 185 x 60 mm


• Shipping Weight: 6.15 lb

Two powerful B2 Audio RIOT 12-inch subwoofers, 2000 watts RMS combined, and one compact DD Audio amplifier properly matched at a 1-ohm final load.
