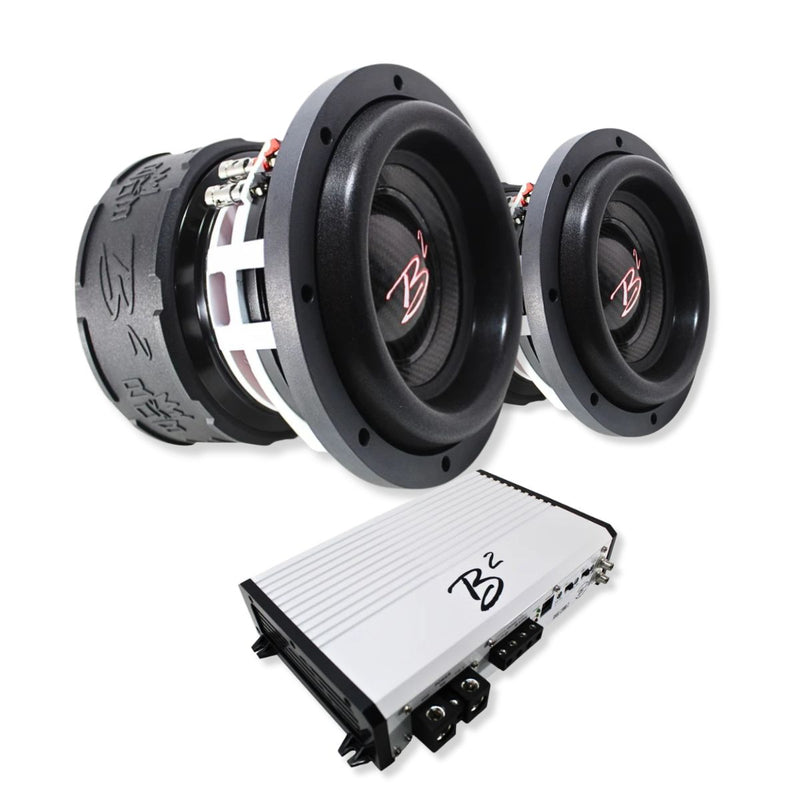

Dual B2 Audio RAMPAGE8-D1-V3 8" 1000W RMS Subs with RAGE 2300.2 Amp

• Dual 1000W RMS Subwoofers: includes two RAMPAGE8-D1-V3 8-inch subwoofers delivering 2000 watts RMS of combined power handling.
• Properly Matched Per Channel: wire each subwoofer’s dual 1-ohm coils in series, then connect one 2-ohm subwoofer to each 1150W amplifier channel.
• Carbon-Fiber High-Excursion Design: rigid cones, tall U-shaped surrounds, and 17 mm one-way Xmax deliver strong bass from a compact footprint.
• Massive Motor Construction: each subwoofer uses a 2-inch copper voice coil, 330 oz ferrite motor, and 8-gauge terminals for high-power performance.
• Multiple Enclosure Options: compatible with sealed, ported, and fourth-order bandpass boxes for daily, demo, and custom high-output systems.

Dual B2 Audio RAMPAGE8-D1-V3 8" 1000W RMS Subs with RAGE 2300.2 Amp

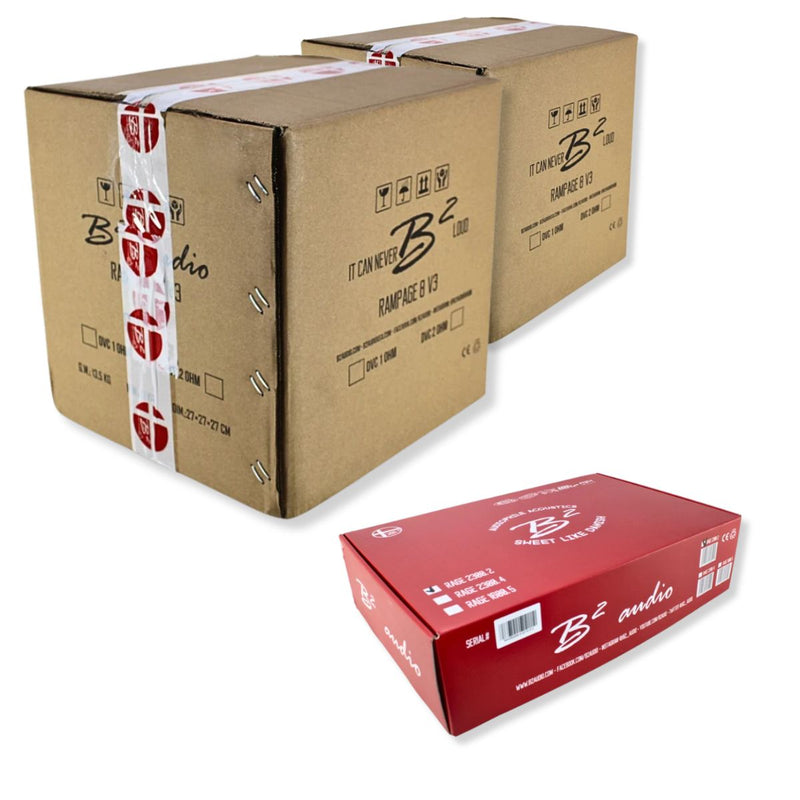

This Listing Includes:

• (2) B2 Audio RAMPAGE8-D1-V3 8" Dual 1-Ohm Subwoofers


• (1) B2 Audio RAGE-2300.2 2-Channel Amplifier


• (1) User Manual


• (2) Hex Wrenches


• Mounting Hardware

This B2 Audio package combines two RAMPAGE8-D1-V3 8-inch subwoofers with the RAGE-2300.2 two-channel amplifier. Together, the subwoofers handle 2000 watts RMS and deliver powerful bass from a compact, high-excursion platform.

Each subwoofer features dual 1-ohm voice coils that should be wired in series to create a 2-ohm load. Connect one subwoofer to each amplifier channel. At 2 ohms, the RAGE-2300.2 produces 1150 watts RMS per channel, providing a strong power match for each subwoofer’s 1000W RMS rating.

The RAMPAGE8-D1-V3 combines a rigid carbon-fiber cone with a tall U-shaped foam surround, 17 mm of one-way Xmax, and a massive 330 oz ferrite motor. Its 2-inch copper voice coil and 8-gauge push terminals support reliable performance in demanding daily, demo, and SPL-capable systems.

The RAGE-2300.2 uses high-efficiency Class-D technology and includes adjustable low-pass and high-pass crossovers. Both channels should receive the same mono signal and be adjusted equally to provide balanced output from the two subwoofers.

Do not bridge the amplifier for this configuration. Each subwoofer should operate independently on one amplifier channel at 2 ohms.

Features

• Two RAMPAGE V3 8-inch high-excursion subwoofers


• 2000W combined RMS power handling


• 4000W combined maximum power handling


• Dual 1-ohm voice coils on each subwoofer


• Recommended 2-ohm load per amplifier channel


• High-temperature 2-inch copper voice coils


• Carbon-fiber cones for strength and rigidity


• Tall U-shaped foam surrounds


• 17 mm one-way Xmax


• Massive 330 oz ferrite motor per subwoofer


• Heavy-duty 8-gauge push terminals


• Sealed, ported, and fourth-order bandpass compatibility


• RAGE-2300.2 high-efficiency Class-D amplifier


• 1150W RMS per channel at 2 ohms


• Adjustable low-pass and high-pass crossovers

Specifications

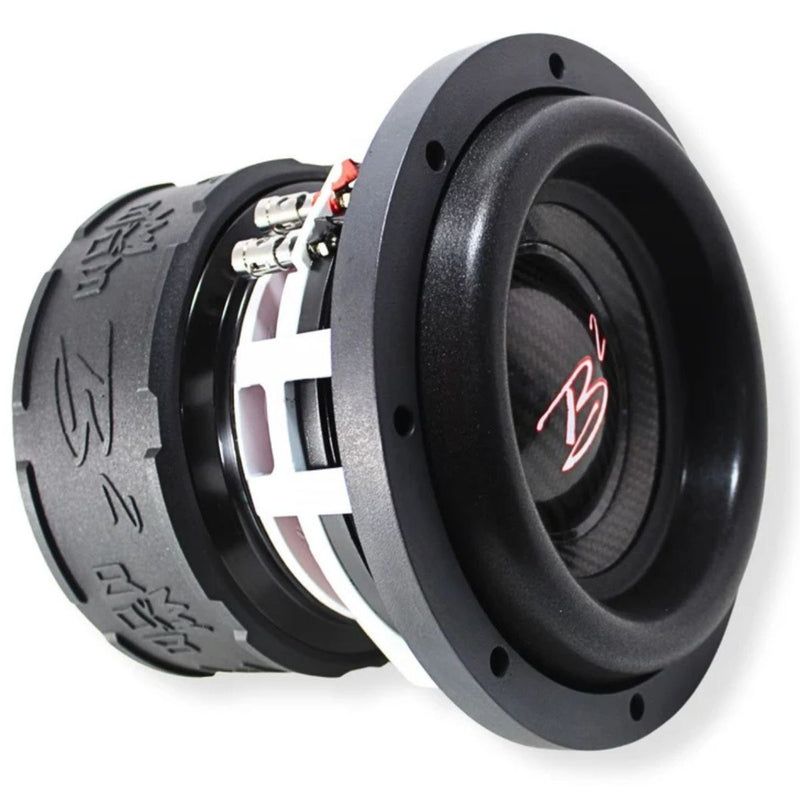

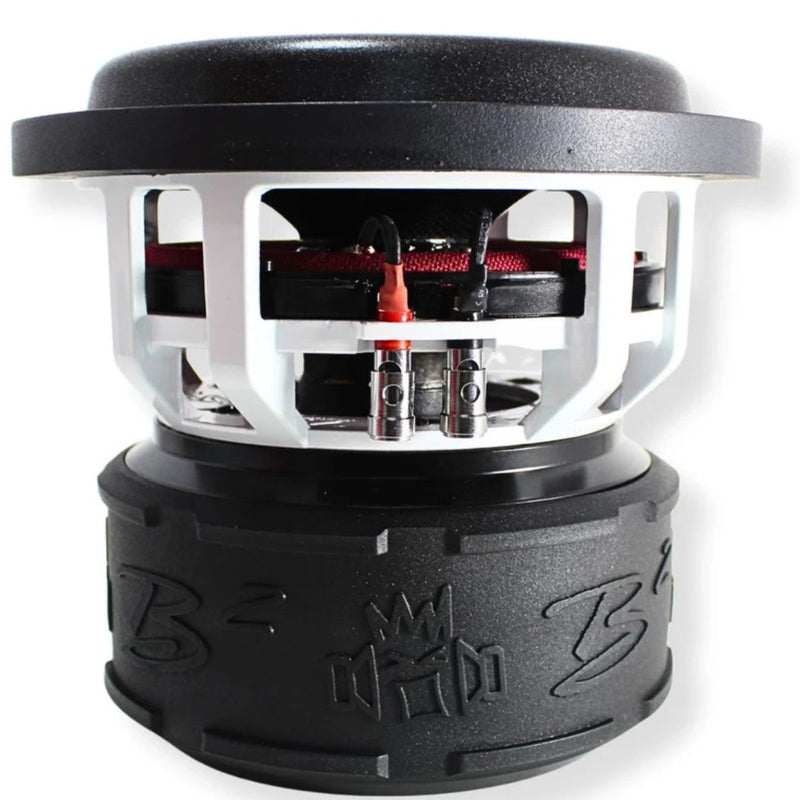

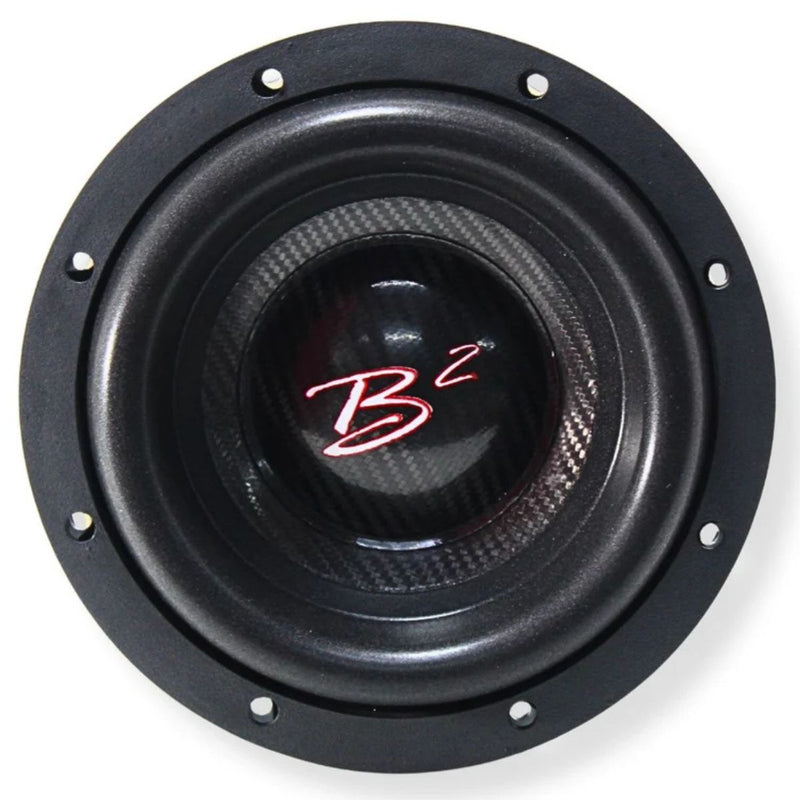

RAMPAGE8-D1-V3 Subwoofers

• Quantity: Two


• Size: 8 inches each


• RMS Power Handling: 1000 watts each


• Combined RMS Power Handling: 2000 watts


• Maximum Power Handling: 2000 watts each


• Combined Maximum Power: 4000 watts


• Nominal Impedance: Dual 1 ohm each


• Recommended Load: 2 ohms per subwoofer


• Voice Coil Diameter: 2 inches


• Voice Coil Material: Copper


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 80.1 dB


• Resonance Frequency: 39.9 Hz


• Xmax: 17 mm one way


• Cone Material: Carbon fiber


• Surround: Tall U-shaped foam


• Magnet Type: Ferrite


• Magnet Weight: 330 oz each


• Terminal Type: 8-gauge push


• Overall Diameter: 8.66 inches


• Cutout Diameter: 7.28 inches


• Total Depth: 6.49 inches


• Mounting Depth: 5.90 inches


• Magnet Diameter: 6.42 inches


• Net Weight: 25.35 lb each


• Combined Subwoofer Weight: 50.70 lb

Thiele and Small Parameters Per Subwoofer

• Free-Air Resonance: 39.9 Hz


• Resistance: 1.8 ohms


• Qms: 5.82


• Qes: 0.54


• Qts: 0.49


• Vas: 5 L


• Cms: 90 m/N


• Moving Mass: 162 g


• Cone Area: 196.8 square centimeters


• EBP: 72.5

Suggested Enclosures Per Subwoofer

• Sealed Volume: 0.33 cubic feet


• Sealed Qtc: 0.488


• Sealed F3: 67 Hz


• Compact Ported Tuning Frequency: 45 Hz


• Compact Port Area: 18 square inches


• Compact Port Length: 15.7 inches


• Standard Ported Tuning Frequency: 38 Hz


• Standard Port Area: 7.49 square inches


• Standard Port Length: 12.6 inches


• Fourth-Order Bandpass Ratio: 2:1

Enclosure recommendations are listed per subwoofer. Double the required net volume when installing both subwoofers in a shared chamber. Port requirements may need to be recalculated for a shared enclosure.

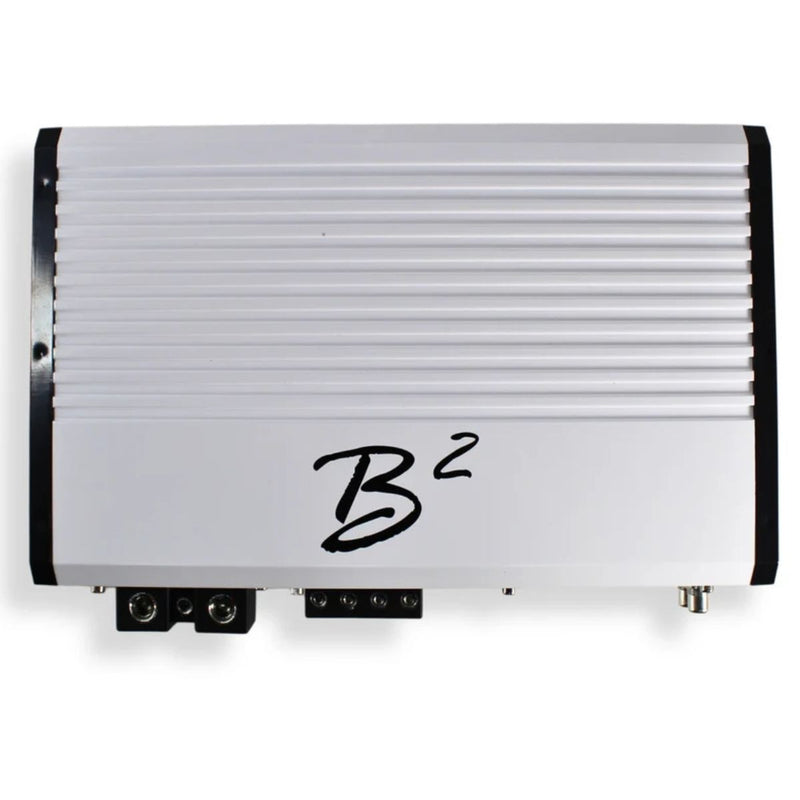

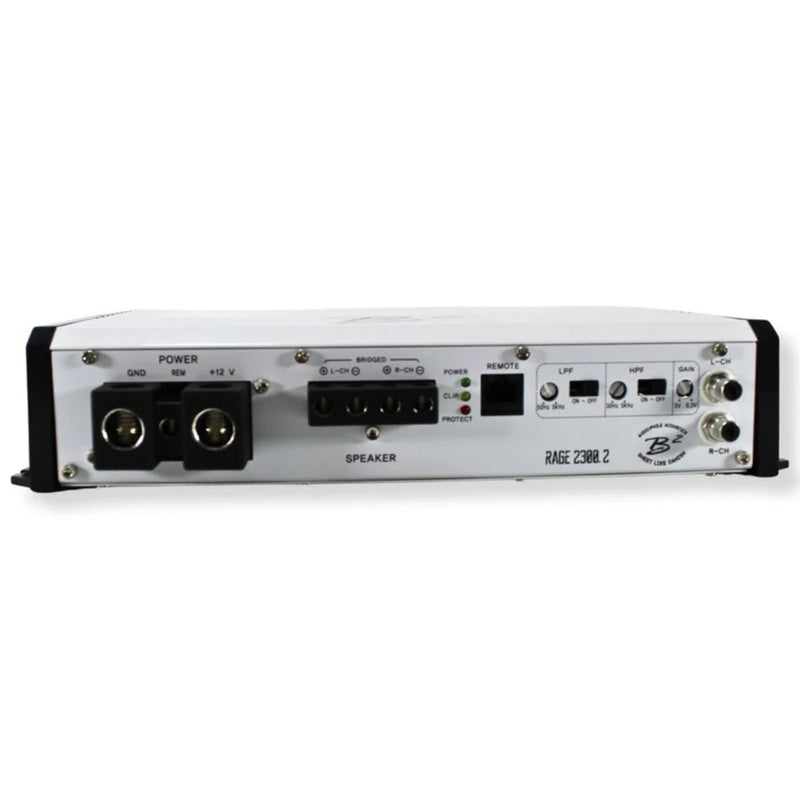

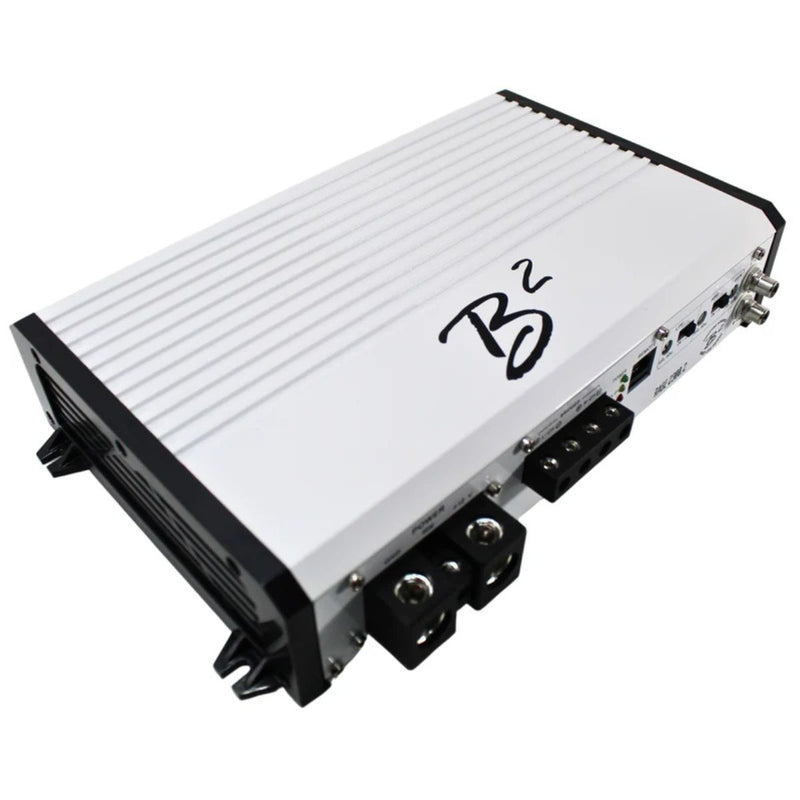

RAGE-2300.2 Amplifier

• Amplifier Type: 2-Channel Hi-EF Class-D


• RMS Power at 4 Ohms: 650 watts x 2


• RMS Power at 2 Ohms: 1150 watts x 2


• RMS Power Bridged at 4 Ohms: 2300 watts x 1


• Recommended Configuration: One 2-ohm subwoofer per channel


• Frequency Response: 10 Hz to 27 kHz


• Signal-to-Noise Ratio: Greater than 95 dB


• Input Sensitivity: 0.2V to 5V


• Crossover Slope: 24 dB per octave


• Low-Pass Crossover: 50 Hz to 5 kHz


• High-Pass Crossover: 30 Hz to 5 kHz


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Length: 12 inches


• Width: 7.87 inches


• Height: 2.75 inches

Two carbon-fiber mini monsters, 2000 watts RMS combined, and one amplifier properly matched at 2 ohms per channel.
