- High-Output Dual-Sub Package: combines 4000W RMS of subwoofer handling with up to 3500W RMS of amplifier output.
- Dual 12-Inch Bass: two RAGE V4 subwoofers provide increased cone area and powerful low-frequency output.
- Upgraded V4 Excursion: each subwoofer features a larger surround, 20 mm Xmax, and a 630 oz magnet assembly.
- Correct 1-Ohm Configuration: wire each subwoofer’s coils in series, then connect both subwoofers in parallel.
- Flexible Enclosure Options: performs in sealed, compact ported, or standard ported enclosures.

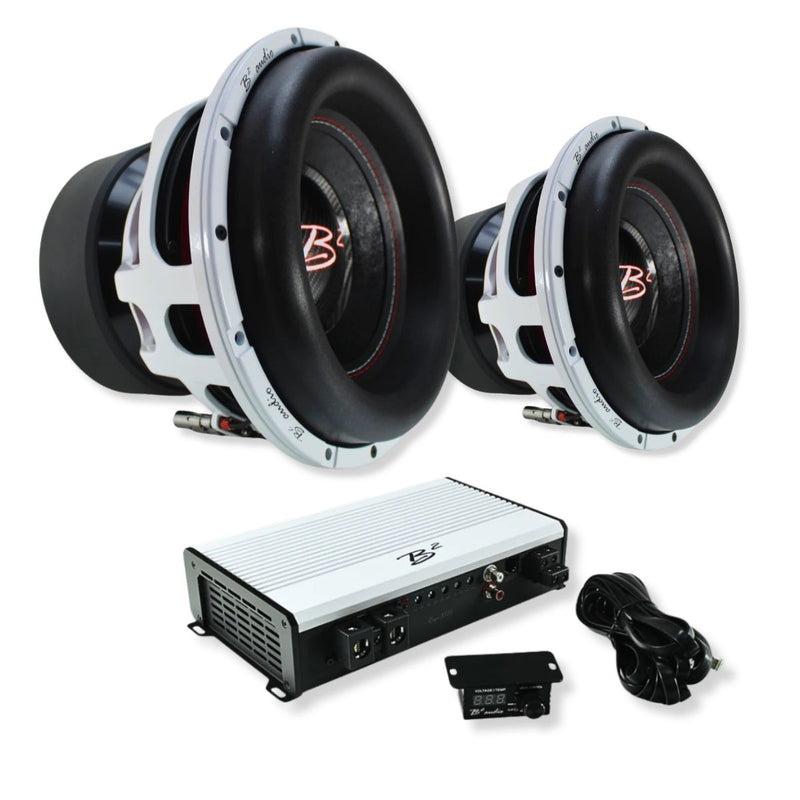

Dual B2 Audio RAGE12-D1-V4 12" 4000W RMS Subs with RAGE 3500 Amp
This Listing Includes:
- (2) B2 Audio RAGE12-D1-V4 12" Dual 1-Ohm Subwoofers
- (1) B2 Audio RAGE 3500 Monoblock Amplifier

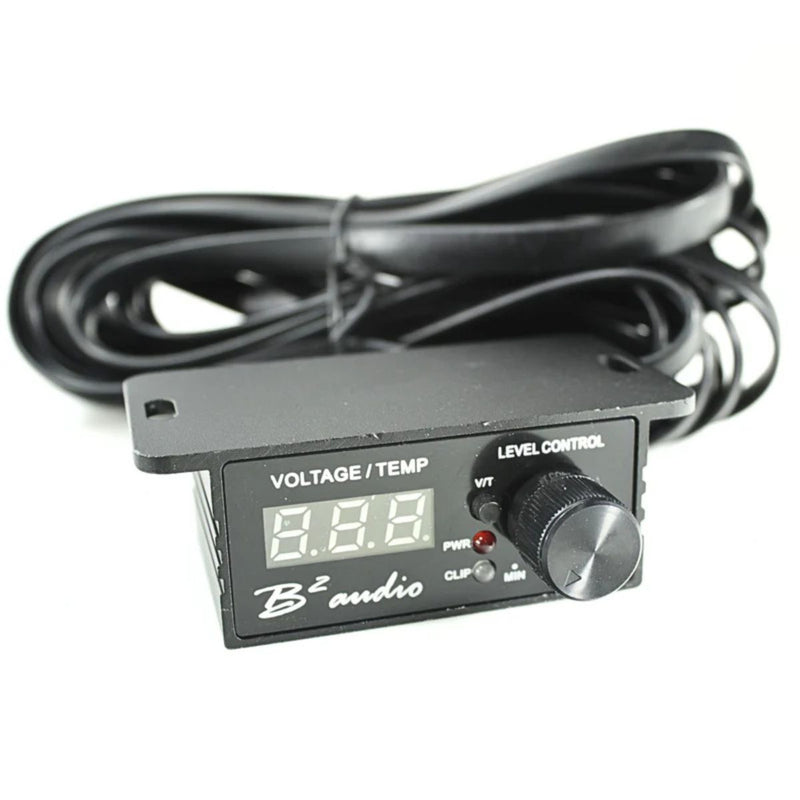

- (1) Bass Knob with Voltage and Temperature Display
- (1) Remote Wire
- (2) Hex Wrenches
- Mounting Hardware
This B2 Audio package combines two RAGE12-D1-V4 12-inch subwoofers with the RAGE 3500 monoblock amplifier. Together, the subwoofers handle 4000 watts RMS, while the amplifier delivers between 3000 and 3500 watts RMS at the recommended 1-ohm final load.
Wire each subwoofer’s dual 1-ohm voice coils in series to create a 2-ohm load per subwoofer. Then connect both subwoofers in parallel for a 1-ohm final load at the amplifier. This configuration provides powerful output while keeping the amplifier within its rated impedance range.
Features
- Two 12-inch RAGE Series V4 high-excursion subwoofers
- 4000W combined RMS power handling
- 8000W combined maximum power handling
- Dual 1-ohm voice coils on each subwoofer
- Recommended 1-ohm final system load
- Heavy-duty 3-inch voice coils
- Enlarged V4 surrounds for increased excursion
- 20 mm Xmax per subwoofer
- Massive 630 oz magnet assembly per subwoofer
- Heavy-duty 4-gauge push terminals
- Compatible with sealed and ported enclosures
- RAGE 3500 full-range Class-D monoblock amplifier
- 3000 to 3500 watts RMS at the recommended 1-ohm load
- Adjustable low-pass, high-pass, and subsonic crossovers
- Bass knob with voltage and temperature display included
Specifications

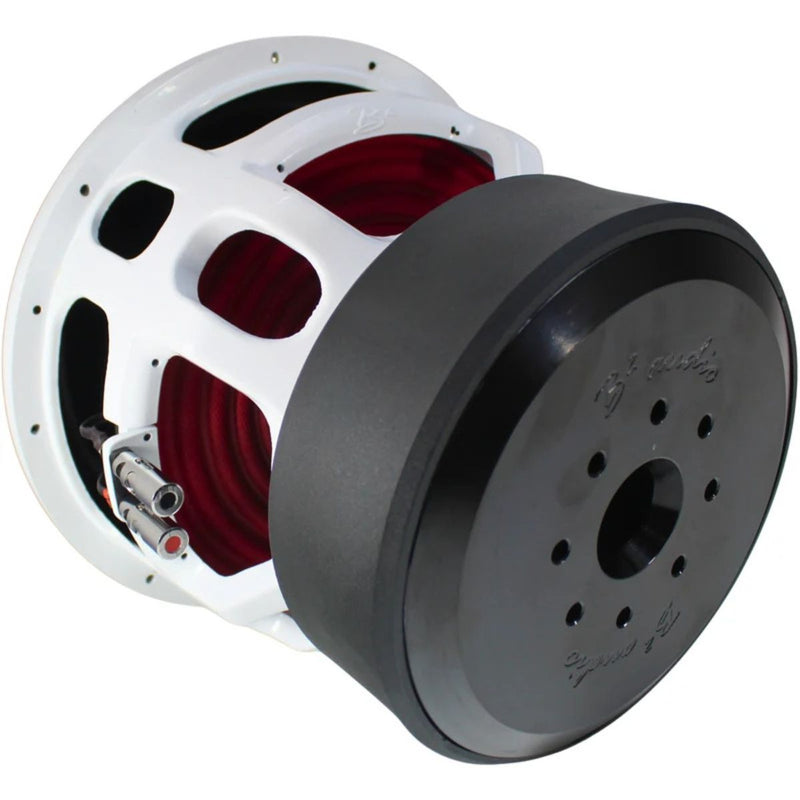

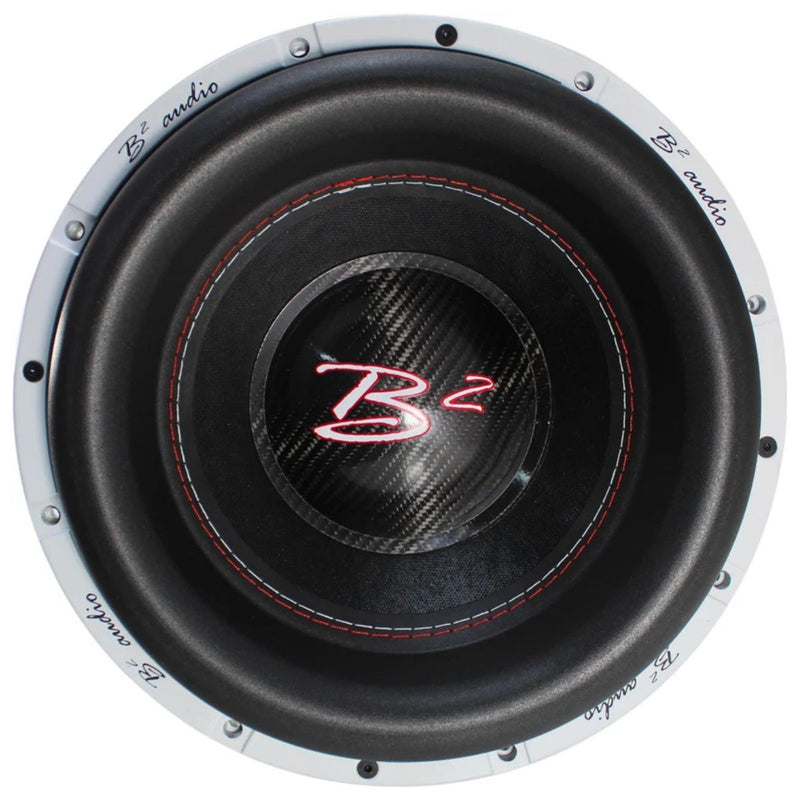

RAGE12-D1-V4 Subwoofers
- Quantity: Two
- Size: 12 inches each
- RMS Power Handling: 2000 watts each
- Combined RMS Power Handling: 4000 watts
- Maximum Power Handling: 4000 watts each
- Combined Maximum Power Handling: 8000 watts
- Nominal Impedance: Dual 1 ohm each
- Recommended Final System Load: 1 ohm
- Voice Coil Diameter: 3 inches
- Frequency Response: 10 Hz to 500 Hz
- Sensitivity: 91.2 dB
- Xmax: 20 mm each
- Magnet Weight: 630 oz each
- Push Terminal Capacity: 4 gauge
- Displacement Volume: 0.26 cubic feet each
- Overall Diameter: 12.24 inches each
- Mounting Diameter: 11.11 inches each
- Bolt Pattern Diameter: 11.57 inches each
- Mounting Depth: 8.85 inches each
- Overall Depth: 10.21 inches each
Thiele and Small Parameters Per Subwoofer
- Free-Air Resonance: 29.5 Hz
- Resistance: 1 ohm
- Qms: 5.19
- Qes: 0.44
- Qts: 0.4
- Vas: 29.4 L
- Cms: 80 μm/N
- BL Factor: 151.38
- Moving Mass: 334.6 g
- Xmax: 20 mm
Recommended Enclosures Per Subwoofer
- Sealed Volume: 1.05 cubic feet
- Sealed Qtc: 0.451
- Compact Ported Volume: 1.13 cubic feet
- Compact Port Diameter: 4 inches
- Compact Port Length: 13.2 inches
- Compact Tuning Frequency: 42 Hz
- Ported Volume: 2.25 cubic feet
- Port Area: 18.6 square inches
- Port Length: 19.7 inches
- Ported Tuning Frequency: 32 Hz
Enclosure recommendations are listed per subwoofer. Double the net volume when installing both subwoofers in a shared enclosure. Port dimensions may need to be recalculated for a shared chamber.

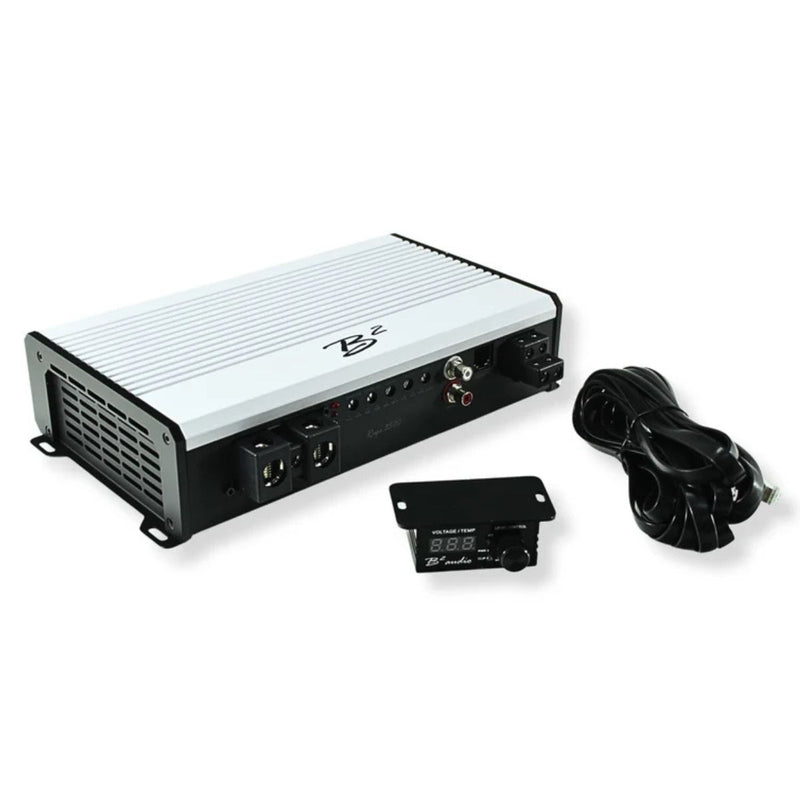

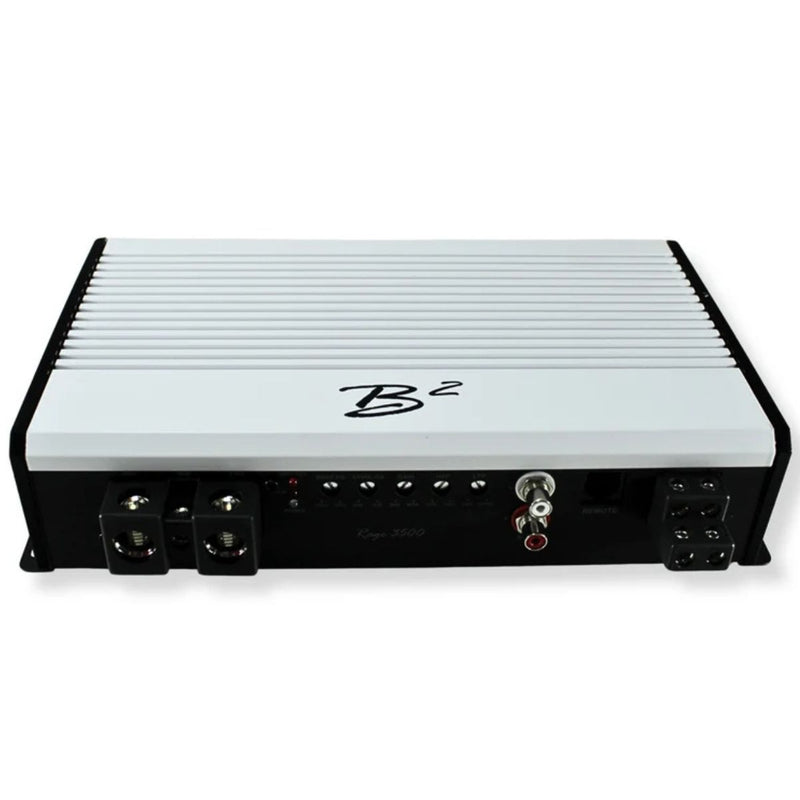

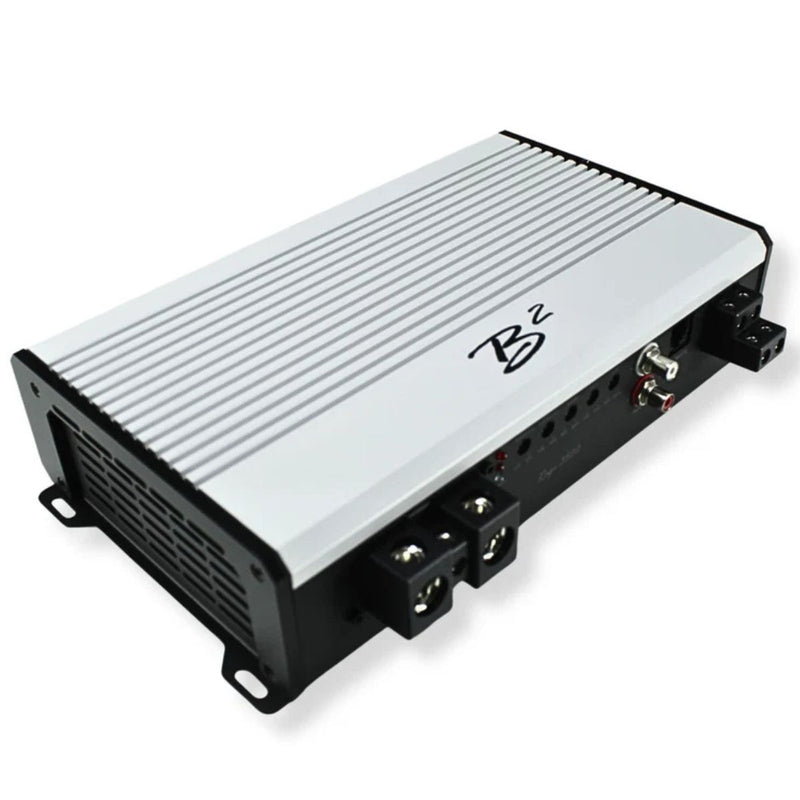

RAGE 3500 Amplifier
- Amplifier Type: Full-Range Class-D Monoblock
- RMS Power at 4 Ohms: 1050 to 1200 watts
- RMS Power at 2 Ohms: 1850 to 2150 watts
- RMS Power at 1 Ohm: 3000 to 3500 watts
- Recommended Configuration: 1-ohm final system load
- Frequency Response: 10 Hz to 20 kHz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 0.2V to 6V
- Power Terminal Size: 0 gauge
- Fuse Rating: 250 amps
- Bass Control Frequency: 30 Hz to 80 Hz
- Low-Pass Crossover: 50 Hz to 20 kHz
- High-Pass Crossover: 10 Hz to 2 kHz
- Subsonic Crossover: 10 Hz to 2 kHz
- Length: 11.5 inches
- Width: 7.25 inches
- Height: 2.5 inches
- Weight: 7.25 lb
Two high-excursion 12-inch subwoofers, 4000 watts RMS combined, and up to 3500 watts RMS of amplifier power at 1 ohm.
