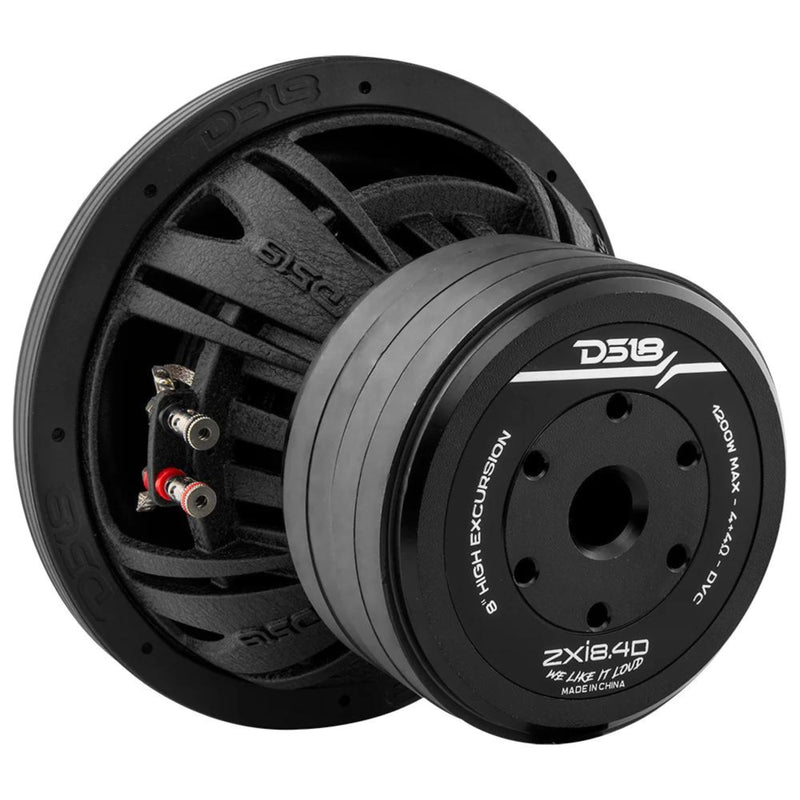

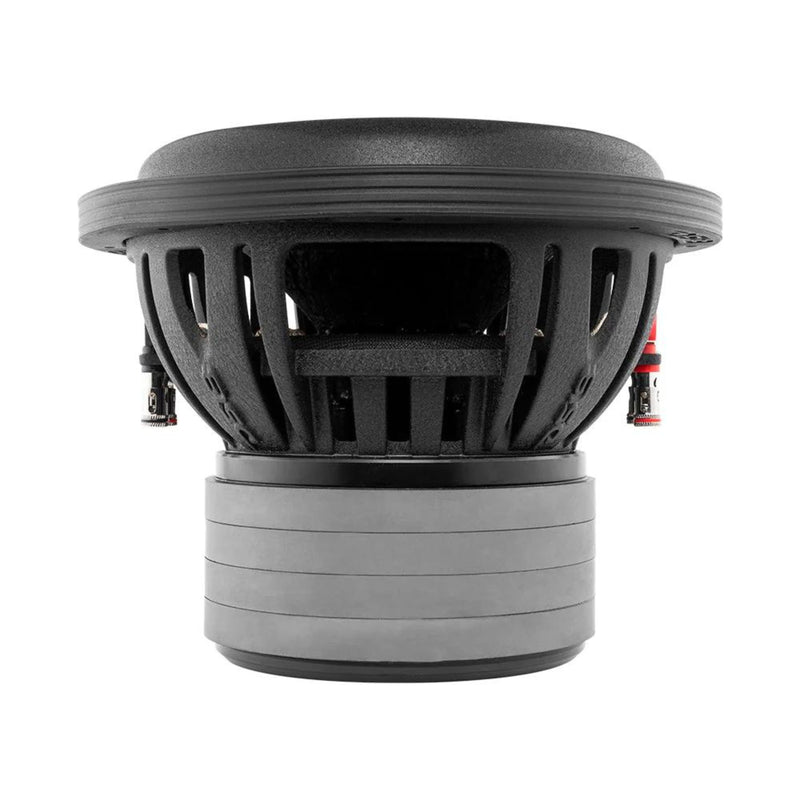

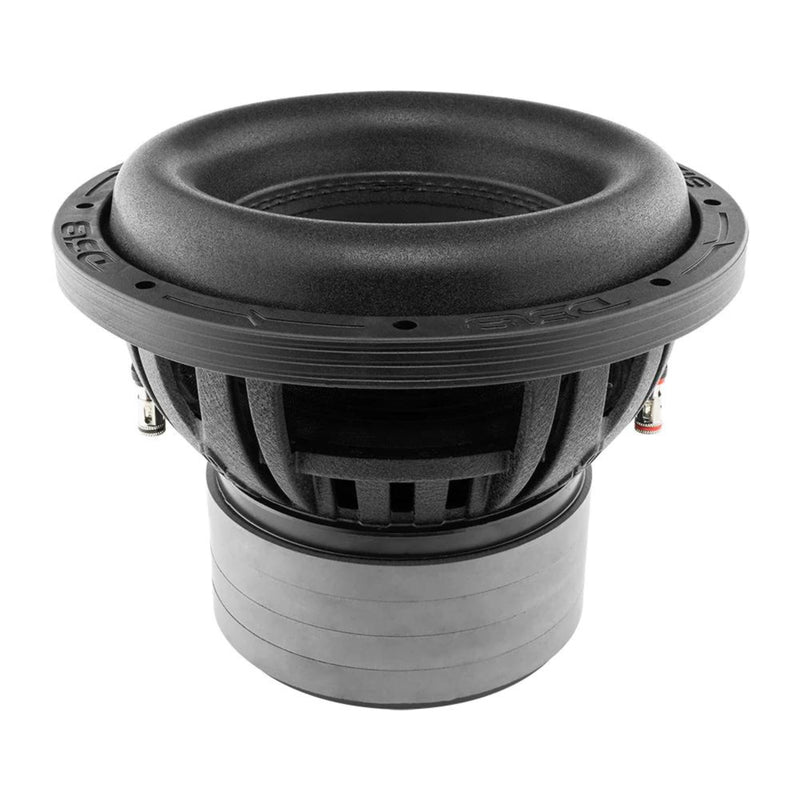

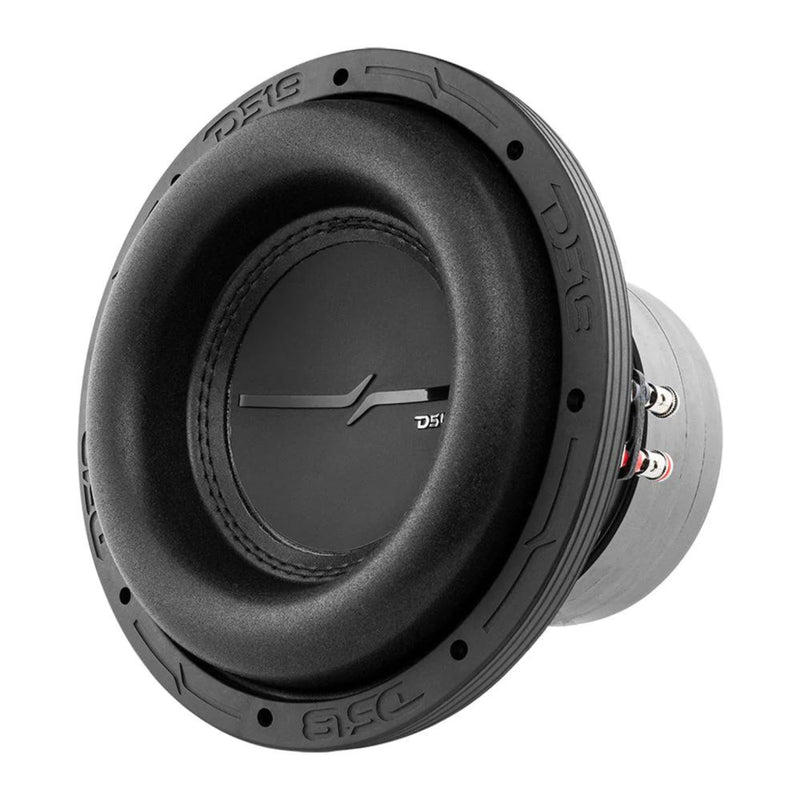

DS18 ZXI Quad Stacked 8" 600 Watt RMS Dual 4-Ohm 2" Voice Coil Subwoofer ZXI8.4D

• POWERFUL 8" SUBWOOFER: Delivers 600W RMS and 1200W max power for strong, low-frequency bass in compact car audio builds.
• DUAL 4-OHM VOICE COIL: Dual 4-ohm configuration gives installers flexible wiring options for matching amplifiers and system setups.
• QUAD-STACKED MOTOR: Built with a massive 104 oz ferrite magnet structure using four stacked 26 oz magnets for serious bass control.
• HIGH-EXCURSION DESIGN: Foam surround, non-pressed paper cone, and PPI dust cap help produce smooth, deep, responsive bass output.
• SEALED OR PORTED READY: Designed to perform in sealed or ported enclosures, making it a versatile option for daily drivers and custom installs.

DS18 ZXI Quad Stacked 8" 600 Watt RMS Dual 4-Ohm 2" Voice Coil Subwoofer ZXI8.4D

This listing includes:

• (1) DS18 ZXI 8" Dual 4-Ohm Subwoofer

Experience thunderous bass like never before with the DS18 ZXI8.4D 8" Quad Stacked Subwoofer. Renowned for its high excursion capabilities, this subwoofer handles up to 1200W of maximum power, delivering smooth ultra-low frequency responses and exceptional audio performance. Whether you prefer sealed or ported boxes, the ZXI8.4D excels in both, offering flexibility and optimal placement in any vehicle. Elevate your audio experience with crisp, smooth bass that permeates every corner of your vehicle.

Features

• 8" quad-stacked subwoofer


• 600W RMS / 1200W max power


• Dual 4-ohm voice coil


• 2" black aluminum voice coil former


• 104 oz ferrite magnet structure


• High-excursion bass design


• Non-pressed paper cone


• Foam surround for deep movement


• Black sandblasted aluminum basket


• Works in sealed or ported enclosures


• Compact size with big bass output


• Great for custom car audio builds

Specifications:

• Nominal Diameter: 8" / 203.2mm


• Nominal Impedance: Dual 4 Ohm


• RMS Power Handling: 600 Watts


• Maximum Power Handling: 1200 Watts


• Sensitivity (1w/1m): 1200 Watts


• Frequency Response: 25Hz - 880Hz


• Recommended Lo-Pass Crossover: 90Hz


• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Black Aluminum


• Winding Material: CCAW


• Cone Material: Non-Pressed Paper


• Dust Cap Material: PPI


• Surround Material: Foam


• Basket Material: Aluminum


• Basket Color/Finish: Black Sandblasted


• Magnet Material: Ferrite


• Magnet Weight: 104 Oz (4 x 26 Oz)


• Displacement Volume: 1.02L / 0.036ft

Thiele & Small Parameters:

• Equivalent Volume Vas: 6.75L / 0.238ft3


• Free Air Resonance Fs: 45Hz


• Mechanical Factor Qms: 5.318


• Electrical Factor Qes: 0.791


• Total Factor Qts: 0.689


• Moving Mass Mms: 87.65g


• Compliance Cms: 0.135mm/N


• Bl Factor Bl: 8.073


• Voice Coil Inductance Le: 0.476 mH


• Diaphragm Area Sd: 188.69cm2


• DC Resistance Re: 4.0+4.0 ohms


• Efficiency Bandwidth Product EBP: 58.4

Recommended Enclosures:

• Sealed Internal Volume: 17L / 0.6ft3


• Sealed Box Output Response F3: 50Hz


• Ported Internal Volume: 28.3L / 1ft3


• Port Size *Square (W x H x Long): 1.75" x 7.99" x 14.67" / 44.5 x 203 x 372.7mm


• Port Tuning Frequency FB: 35Hz


• Ported Box Output Response F3: 28Hz

Measurements:

• Overall Diameter: 8.58" / 218mm


• Overall Depth: 6.83" / 173.5mm


• Front Mount Baffle Cutout: 7.31" / 185.8mm


• Mounting Depth: 5.51" / 140mm


• Motor Diameter: 5.27" / 134mm


• Gross Single Unit Weight: 14 lb
