2x DS18 Universal 5.6uF 100V Non-Polarized Bass Blocker Capacitor for Horn Driver/Tweeter

Case quantity N/A

Package weight 0.13 LB

SKU DS-BB5.6UF-100V x 2
by DS18
Save 67% Save 67%
Original price $50.99
Original price $50.99 - Original price $50.99
Original price $50.99
Current price $16.95
$16.95 - $16.95
Current price $16.95

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Flexible payment options

  • PAIR OF BASS BLOCKERS: Includes (2) DS18 BB5.6UF/100V non-polarized bass blocking capacitors designed for compatible horn drivers and tweeters. Ideal for two separate speaker circuits.
  • 5.6UF 100V CAPACITORS: Each capacitor features 5.6uF capacitance and a 100V DC rating, providing high-pass frequency filtering to help reduce unwanted low-frequency signals.
  • HIGH-PASS FREQUENCY FILTERING: Provides an approximate 7 kHz cutoff at 4 ohms or 3.5 kHz at 8 ohms, with a first-order 6 dB per octave roll-off to help protect compatible high-frequency drivers.
  • EASY INLINE INSTALLATION: Compact cylindrical design with axial wire leads allows convenient series installation in compatible speaker wiring, custom crossover systems, and car audio applications.
  • VERSATILE SPEAKER PROTECTION: Suitable for select DS18 horn drivers, tweeters, speaker repairs, and custom audio installations. Not recommended for phenolic compression drivers. Verify crossover compatibility before installation.

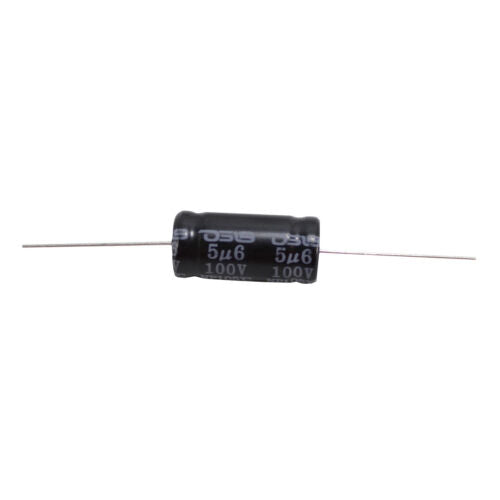

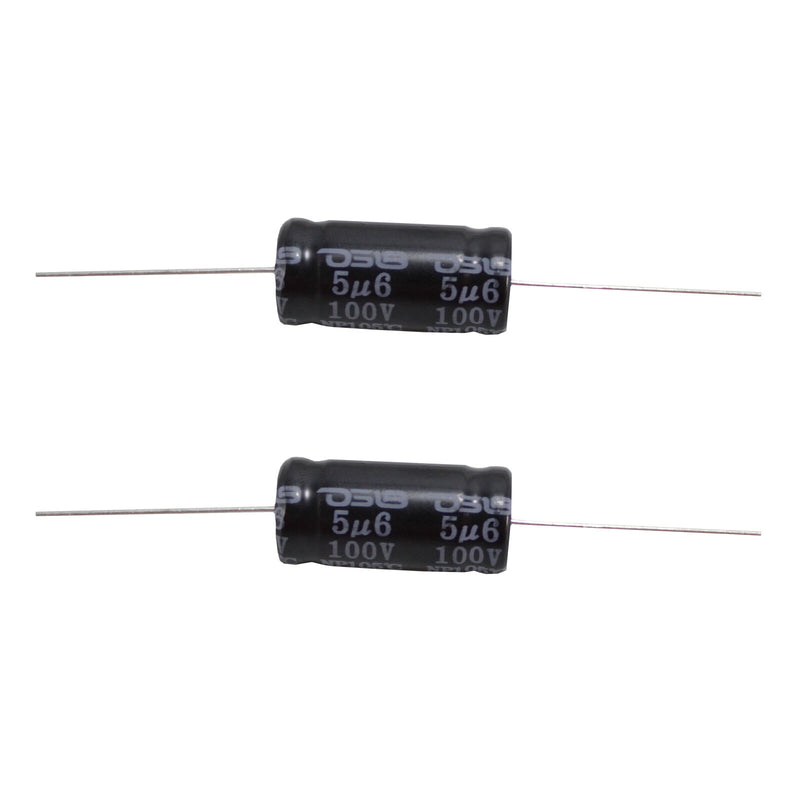

2x DS18 Universal 5.6uF 100V Non-Polarized Bass Blocker Capacitors for Horn Drivers & Tweeters BB5.6UF/100V


This Listing Includes:



  • (2) DS18 BB5.6UF/100V Bass Blocking Capacitors


Protect your high-frequency speakers from unwanted low-frequency signals with the DS18 BB5.6UF/100V Bass Blocking Capacitors. Designed for compatible horn drivers and tweeters, these non-polarized capacitors help reduce potentially damaging low-frequency signals reaching sensitive high-frequency components. Whether you're building a custom car audio system or replacing crossover components, this pair provides a simple, affordable solution for frequency filtering.


Featuring a 5.6uF capacitance and 100V DC rating, each capacitor creates a first-order high-pass filter when installed in series with a compatible speaker. The capacitors provide an approximate 7 kHz cutoff with a 4-ohm load or 3.5 kHz with an 8-ohm load, gradually attenuating lower frequencies at 6 dB per octave. This helps protect properly matched high-frequency drivers while allowing higher frequencies to pass through.


Designed for convenient installation, these compact capacitors feature axial wire leads that can be integrated into compatible speaker wiring configurations. Their non-polarized construction makes them suitable for AC audio signals. With two individual capacitors included, this pair is ideal for dual-speaker installations, custom crossover projects, speaker repairs, and high-frequency driver protection.


Features



  • Includes two DS18 5.6uF bass blocking capacitors

  • Two individual capacitors for up to two separate compatible speaker circuits

  • Designed for compatible horn drivers and high-frequency speakers

  • Helps reduce unwanted low-frequency signals reaching sensitive drivers

  • 5.6uF capacitance for high-pass frequency filtering

  • 100V DC rated capacitor construction

  • Non-polarized design suitable for AC audio signals

  • Approximately 7 kHz cutoff frequency with a 4-ohm speaker load

  • Approximately 3.5 kHz cutoff frequency with an 8-ohm speaker load

  • First-order high-pass filtering with a 6 dB per octave roll-off

  • Axial wire leads for convenient inline installation

  • Compact cylindrical design for custom audio applications

  • Suitable for speaker repairs and crossover modifications

  • Helps protect properly matched drivers from excessive low-frequency energy

  • Compatible with select DS18 horn drivers and tweeters

  • Sold as a pair for two separate compatible speaker circuits

  • Not recommended for phenolic compression drivers


Specifications:



  • Brand: DS18

  • Model: BB5.6UF/100V

  • Product Type: Bass Blocking Capacitor

  • Capacitor Type: Non-Polarized

  • Capacitance: 5.6uF Each

  • Rated Voltage: 100V DC Each

  • Cutoff Frequency @ 4 Ohms: Approximately 7 kHz

  • Cutoff Frequency @ 8 Ohms: Approximately 3.5 kHz

  • Filter Type: First-Order High-Pass

  • Filter Slope: 6 dB/Octave

  • Connection Type: Axial Wire Leads

  • Installation Method: Inline Series Connection

  • Polarity: Non-Polarized

  • Speaker Compatibility: Select Horn Drivers and Tweeters

  • Phenolic Driver Compatibility: Not Recommended

  • Application: Automotive and Pro Audio Speaker Systems

  • Quantity: 2 Capacitors

  • Package Configuration: Pair


Important: These capacitors are not recommended for phenolic drivers. Verify your driver's minimum recommended crossover frequency before installation. A bass blocker provides basic first-order filtering and does not replace a properly designed crossover network when additional protection is required.
