DS18 Amplifier Class D Full Range 4 Channel 3600W w/ LED Clip Indicator G3600.4D

DS18 Amplifier Class D Full Range 4 Channel 3600W w/ LED Clip Indicator G3600.4D

The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released. We have completely redesigned the GEN-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency. The G3600.4D has a power rating of 4x300 watts RMS at 4 Ohms, 4x420 RMS at 2 Ohms, 2x740 at 4 Ohm bridge, and 3600 MAX at the two load it was designed for, giving you pure and clean power on demand.

This amp has the power to drive your speakers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.

Highlights:

- Small and powerful design so you can power your subs with great efficiency and power without taking up much space.

- Integrated low pass and high pass filter to help you get the perfect response you are looking for.

- High quality terminals that look great and will transfer your power and signal with no loss.

Listing Includes:

(1) DS18 Amplifier Full Range G3600.4D

(2) 40 Watt Fuses

(4) Phillip Head Screws

(4) Washers

(4) Spacers

POWER SPECIFICATIONS:

Total Watts (Peak): 3600W

RMS Power @ 4 Ohm: 4 x 300W

RMS Power @ 2 Ohm 4 x 420W

RMS Power @ 4 Ohm Bridge: 2 x 740W

AUDIO SPECIFICATIONS:

Frequency Response: 20Hz ~ 20KHz

Signal to Noise Ratio: Greater than 90 dB

Efficiency @ 4 Ohms: 80%

Damping Factor: 78

Input Impedance: 22 K

Channel Separation: 70 dB

Total  Harmonic Distortion (THD): 0.01%

Low Level Input Range: 0.25 -6V

High Level Input: No

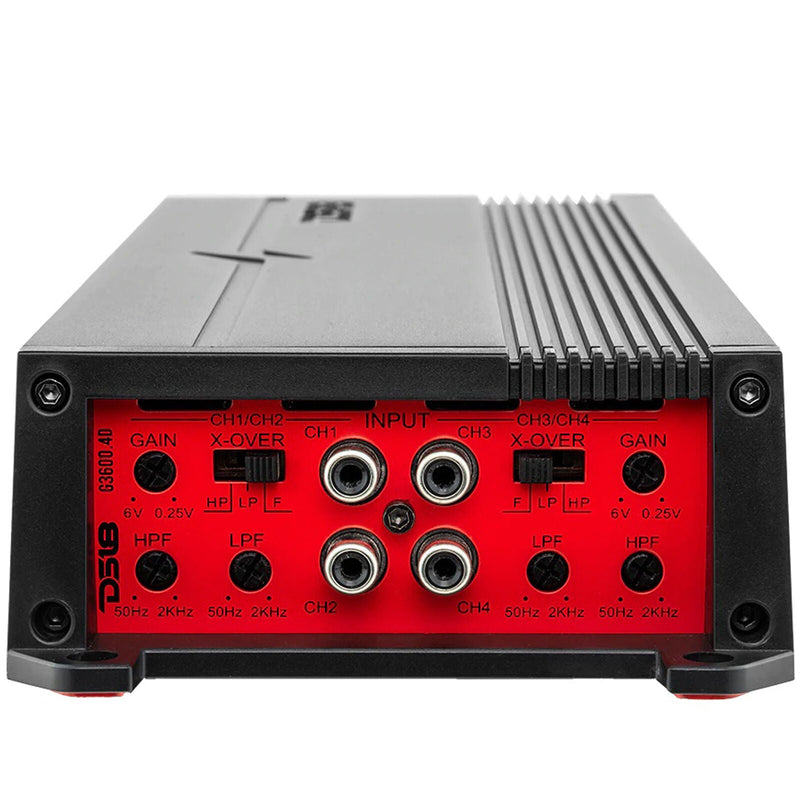

Selectable X-over: LPF/FLAT/HPF

X-over Filter Range: 50 - 250 Hz

FEATURES:

Amplifier Class: Digital (D)

Amplifier Type: 4 Channel Full Range

Number of Channels: 4

Minimum Impendence: 2 Ohm St / 4 Ohm Bridge

Led Indicator: Power / Protection / Clip

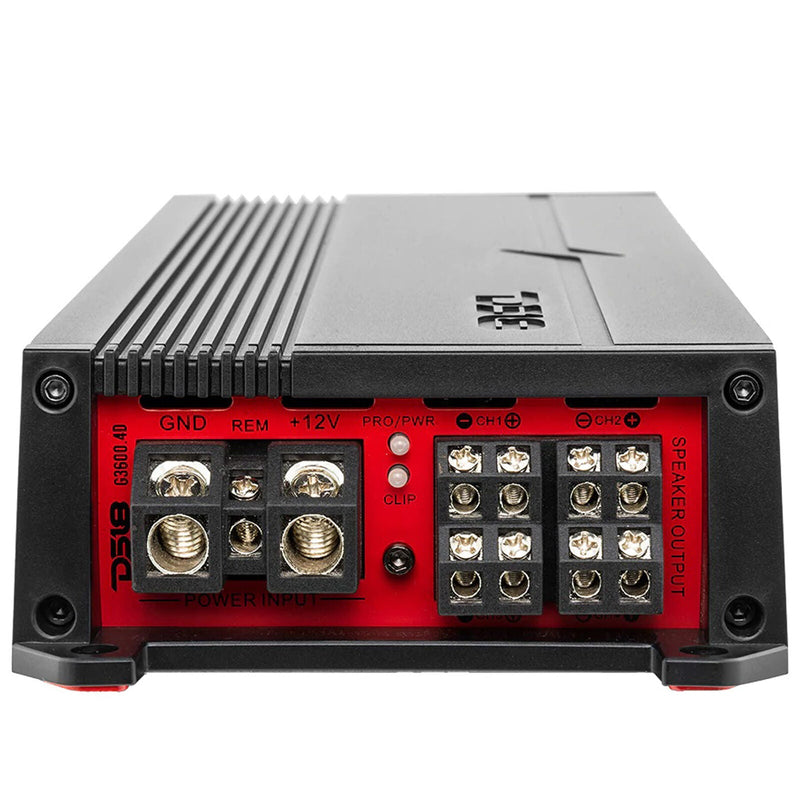

Power Input Terminal  Size: 4 GA

Fuse Size: External 3 x 40A

Thermal Protection: Yes

Over-Load Protection: Yes

DC Output Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes

Clipping protection: Yes

Body Color / Finish: Matte Black

MEASUREMENTS:

Overall Length: 12" (305mm)

Overall Width: 4.72" (120mm)

Overall Height: 1.96" (50mm)

Heatsink Length: 10.15 (258mm)

Weight: 4.2 Lbs (1.905 Kg)
