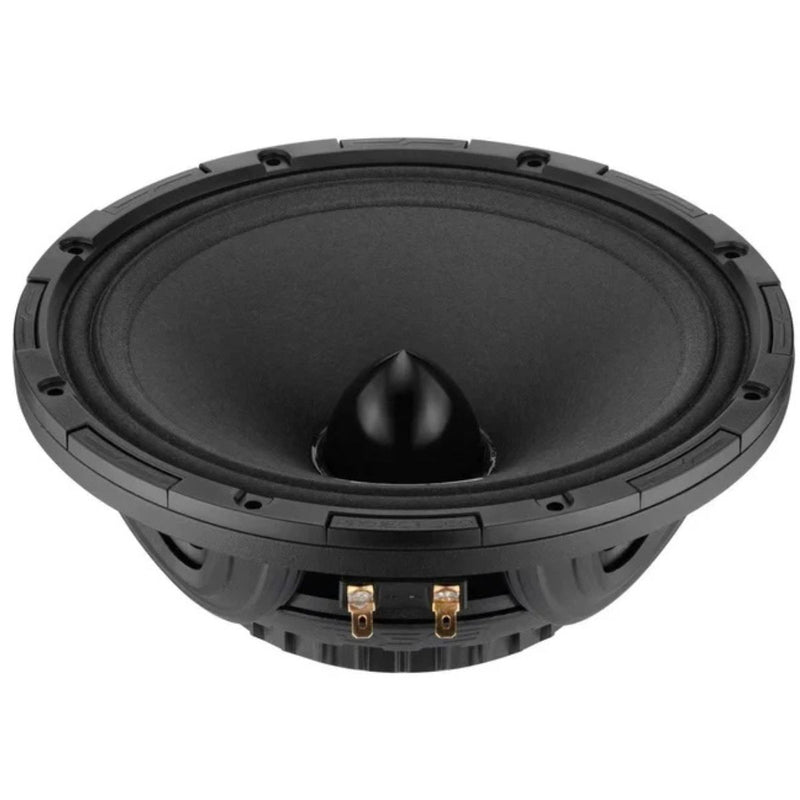

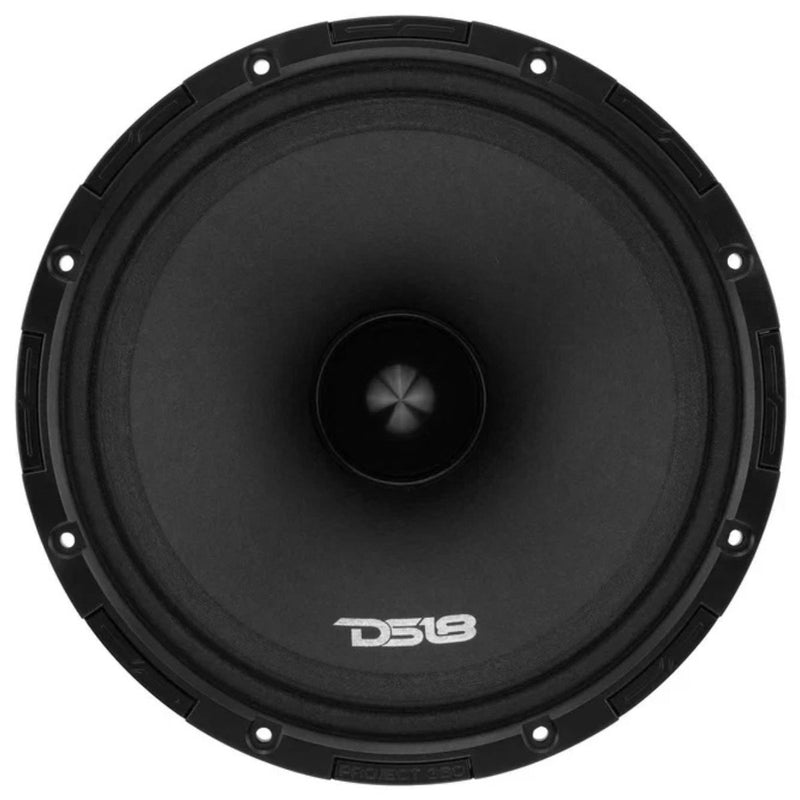

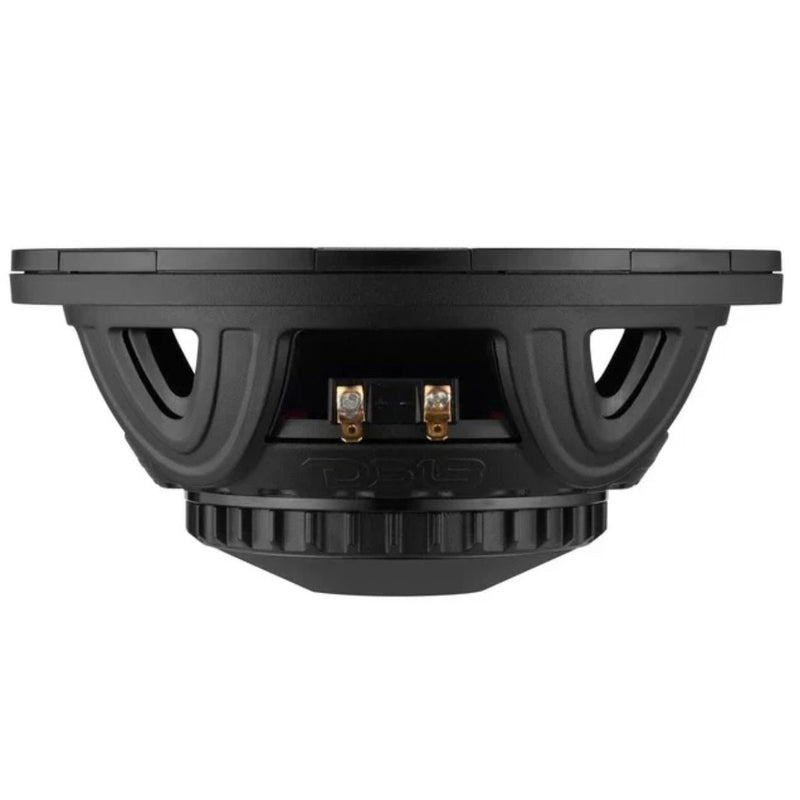

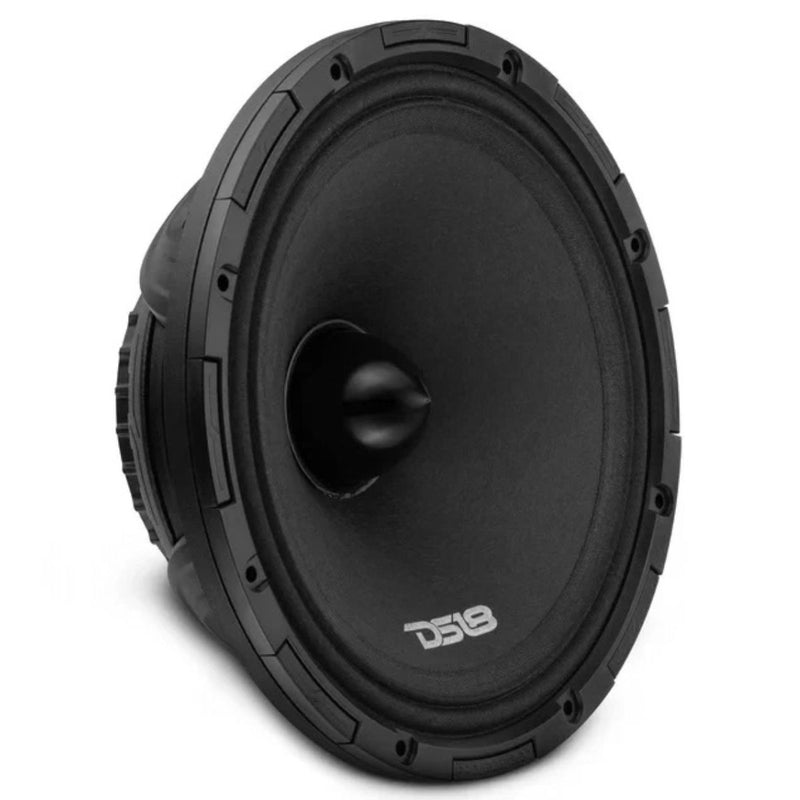

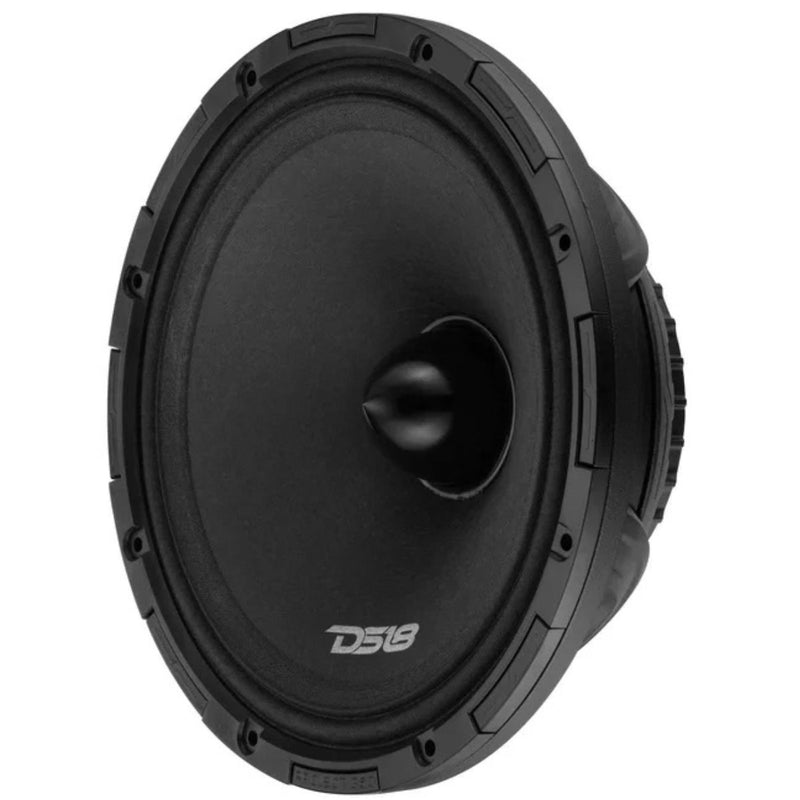

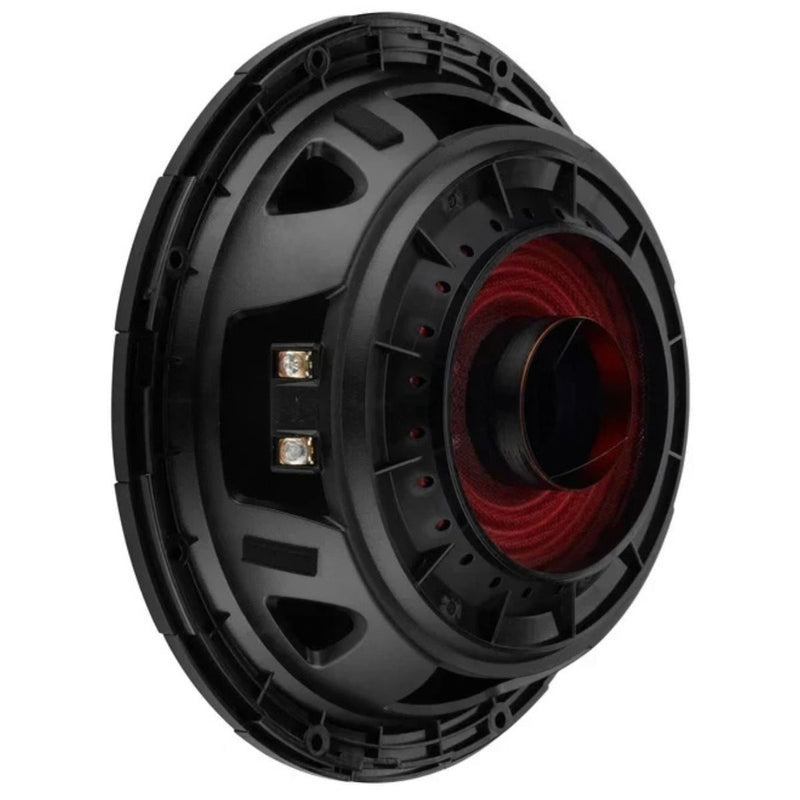

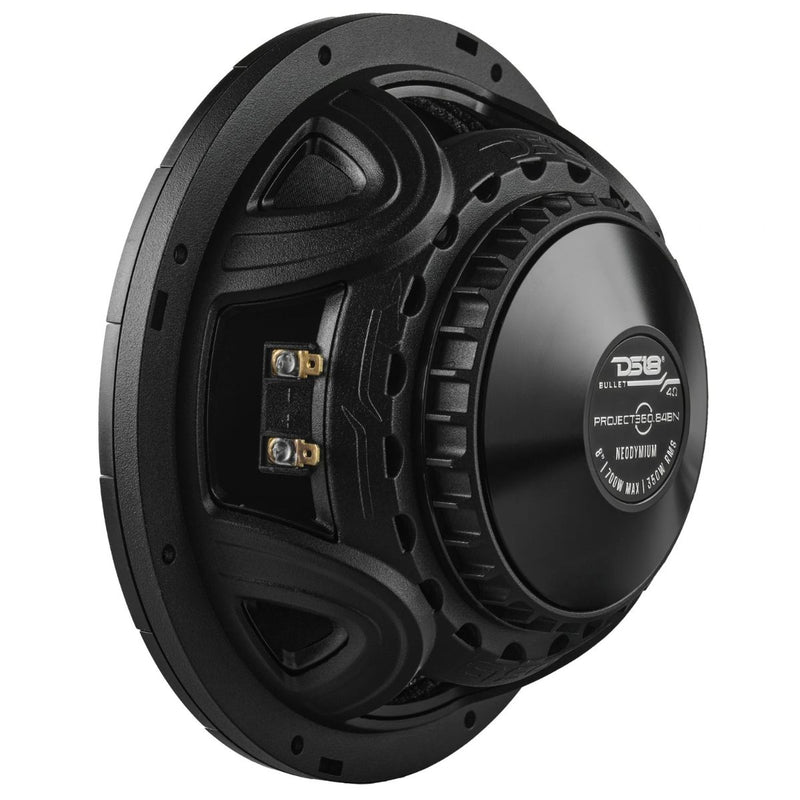

DS18 PROJECT360 8" 350W RMS 4-Ohm Neodymium Mid-High Bullet Speaker

• 350W RMS Power Handling: Handles 350 watts RMS and 700 watts maximum at 4 ohms for powerful midrange and high-frequency reproduction.
• 102 dB High Sensitivity: Delivers strong output across a 95Hz to 17kHz frequency range, with a recommended high-pass crossover of 120Hz.
• Lightweight Neodymium Motor: Features a 12.8 oz neodymium magnet paired with a 1.75" CCAW voice coil and Kapton former.
• Quick Rotating Recone Design: Patent-pending construction allows easy replacement of moving components without the traditional glue-curing process.
• 8" Mid-High Speaker Construction: Combines a CNC aluminum bullet and aluminum basket for improved heat dissipation with a paper cone and cloth surround. Sold individually without a grille.

DS18 PROJECT360 8" 350W RMS 4-Ohm Neodymium Mid-High Bullet Speaker

This Listing Includes:

• (1) DS18 PROJECT360 Series 8" 4-Ohm Mid-High Loudspeaker

  Grille Not Included

The DS18 PROJECT360 8" mid-high loudspeaker delivers powerful midrange and detailed highs with 350 watts RMS power handling and a 102 dB sensitivity rating. Its lightweight neodymium motor, paper cone, and cloth surround support a frequency response of 95Hz to 17kHz for high-output car audio systems.

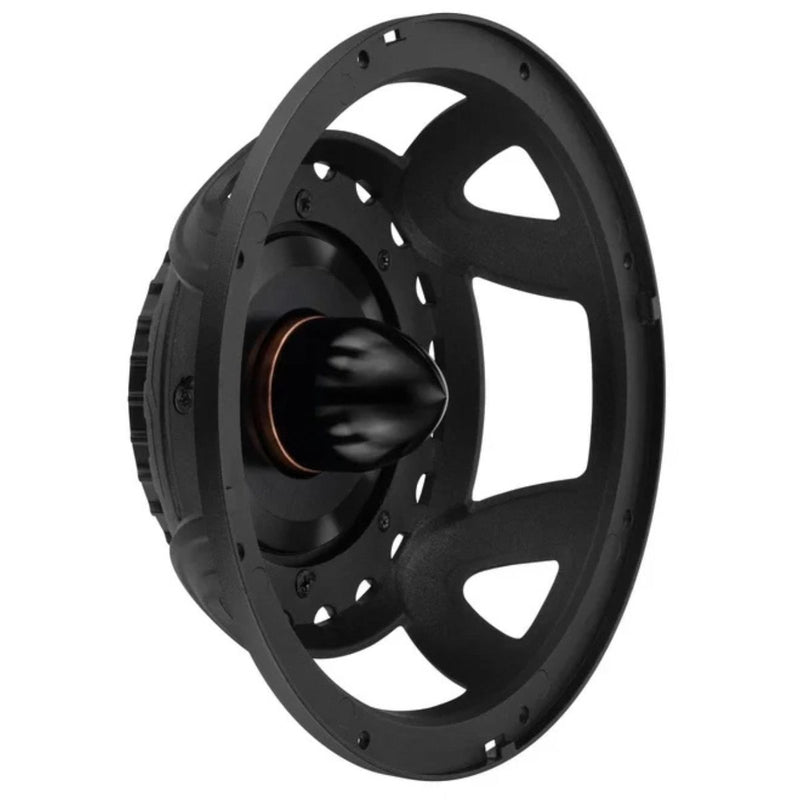

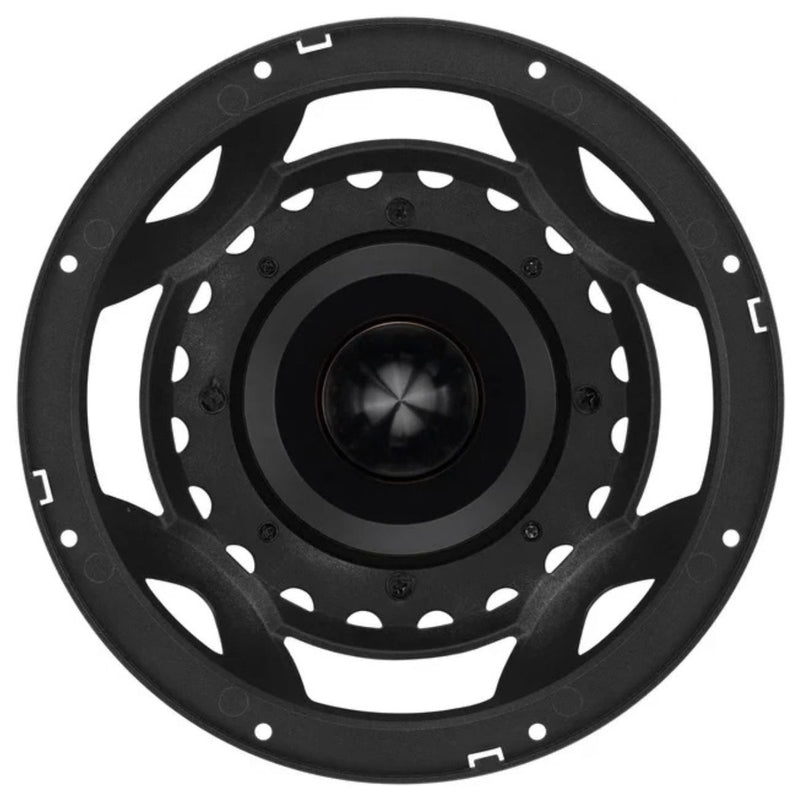

DS18’s patent-pending Rotating Recone Design allows quick replacement of the speaker’s moving components without the traditional glue-curing process. A black CNC aluminum bullet and aluminum basket help dissipate heat, while the 1.75" CCAW voice coil uses a Kapton former.

Features:

• 350W RMS Power Handling: Handles 350 watts RMS and 700 watts maximum at 4 ohms for powerful midrange and high-frequency reproduction.


• 102 dB High Sensitivity: Delivers strong output across a 95Hz to 17kHz frequency range, with a recommended high-pass crossover of 120Hz.


• Lightweight Neodymium Motor: Combines a 12.8 oz neodymium magnet with a 1.75" CCAW voice coil and Kapton former.


• Quick Rotating Recone Design: Patent-pending construction allows easy replacement of moving components without the traditional glue-curing process.


• Aluminum Bullet and Basket: Features a black CNC aluminum bullet for improved heat dissipation, a paper cone, and cloth surround. Sold individually without a grille.

Specifications:

• Brand: DS18


• Series: PROJECT360.BN


• Speaker Type: Mid-High Loudspeaker with Bullet


• Nominal Diameter: 8" / 203mm


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 350W


• Maximum Power Handling: 700W


• Sensitivity: 102 dB at 1W/1m


• Frequency Response: 95Hz to 17kHz


• Recommended High-Pass Crossover: 120Hz


• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes


• Cone Shape: Curvilinear


• Speaker Terminals: Spade


• Rotating Recone Design: Yes


• Grille Included: No


• Quantity: Sold Individually

Motor and Construction:

• Voice Coil Diameter: 1.75" / 44.5mm


• Voice Coil Former: Kapton


• Voice Coil Winding: CCAW


• Cone Material: Paper


• Bullet Material: CNC Aluminum


• Bullet Color: Black


• Surround Material: Cloth


• Spider Diameter: 4" / 102mm


• Lead Connection Type: Round Crossed


• Basket Material: Aluminum


• Basket Finish: Black


• Magnet Material: Neodymium


• Magnet Weight: 12.8 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 6.947 L / 0.245 ft


• One-Way Excursion: 0.3mm


• Free-Air Resonance (Fs): 126Hz


• Mechanical Q (Qms): 8.216


• Electrical Q (Qes): 0.245


• Total Q (Qts): 0.238


• Moving Mass (Mms): 18.80 g


• Mechanical Compliance (Cms): 0.085 mm/N


• BL Factor: 13.545


• Voice Coil Inductance (Le): 0.042 mH


• Cone Area (Sd): 240.53 cm


• DC Resistance (Re): 3 Ohms

Dimensions:

• Overall Diameter: 8.19" / 208mm


• Overall Depth: 3.59" / 91.2mm


• Front Mount Baffle Cutout: 7.13" / 181mm


• Mounting Depth: 77.3mm / Approximately 3.04"


• Motor Diameter: 3.94" / 100mm
