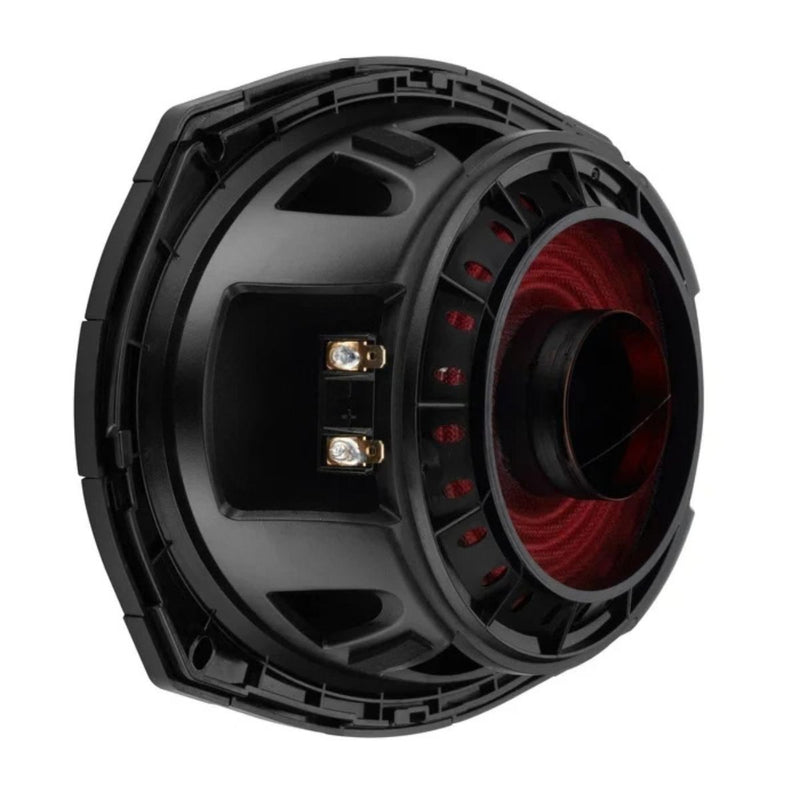

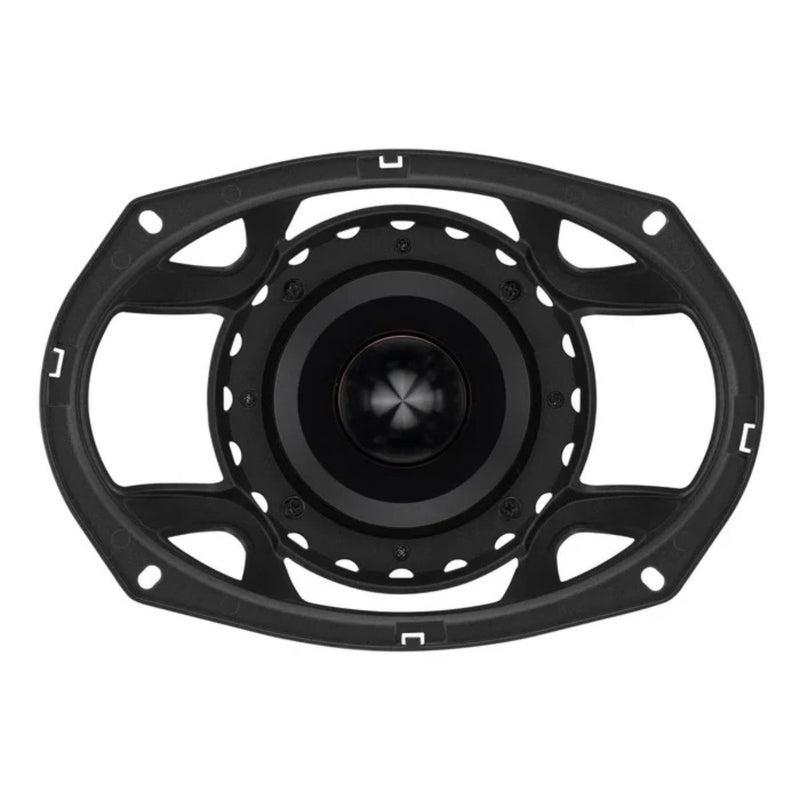

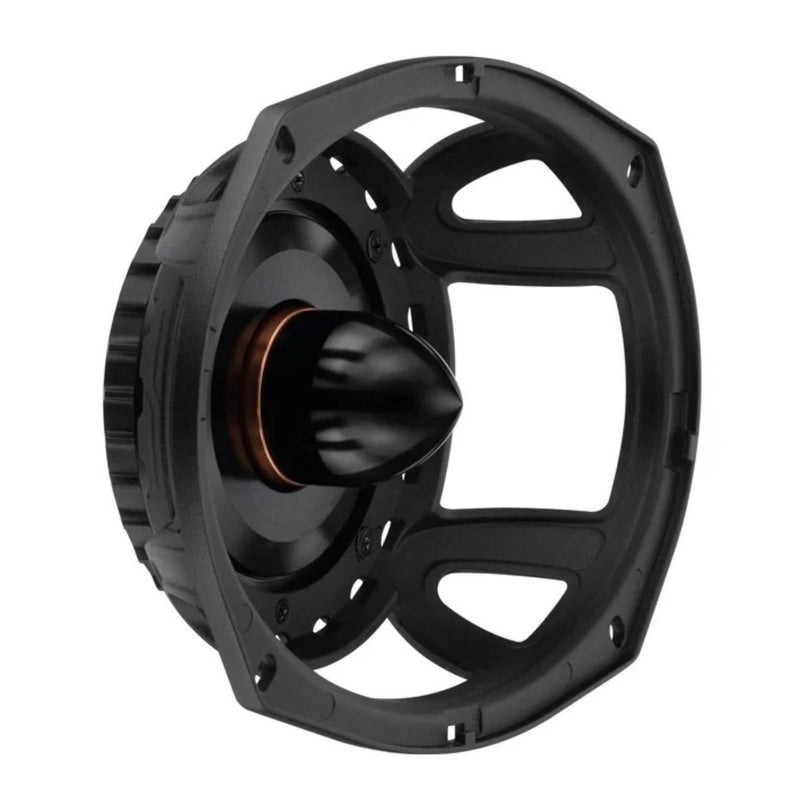

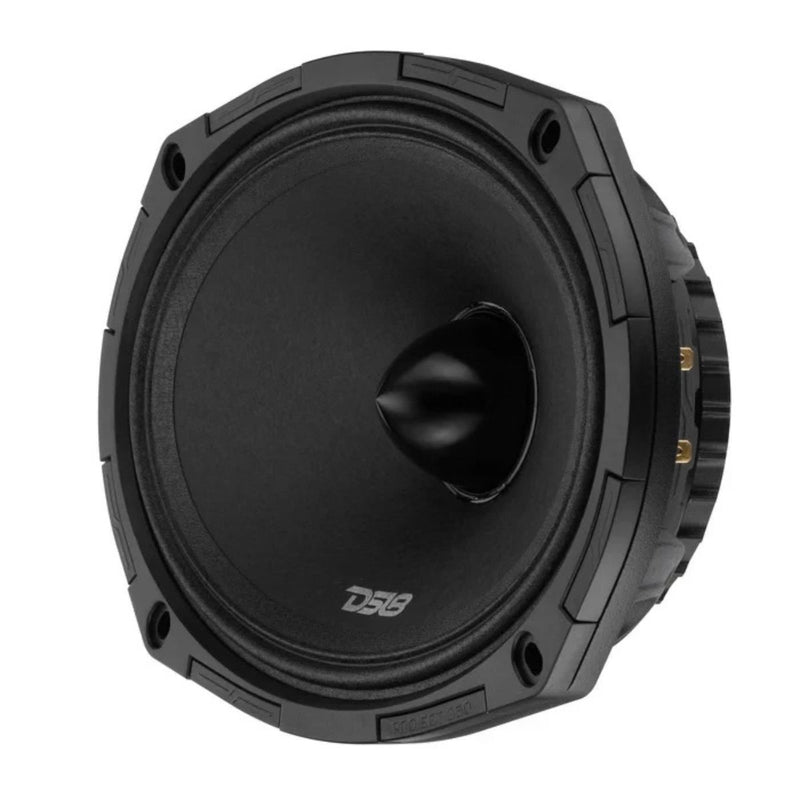

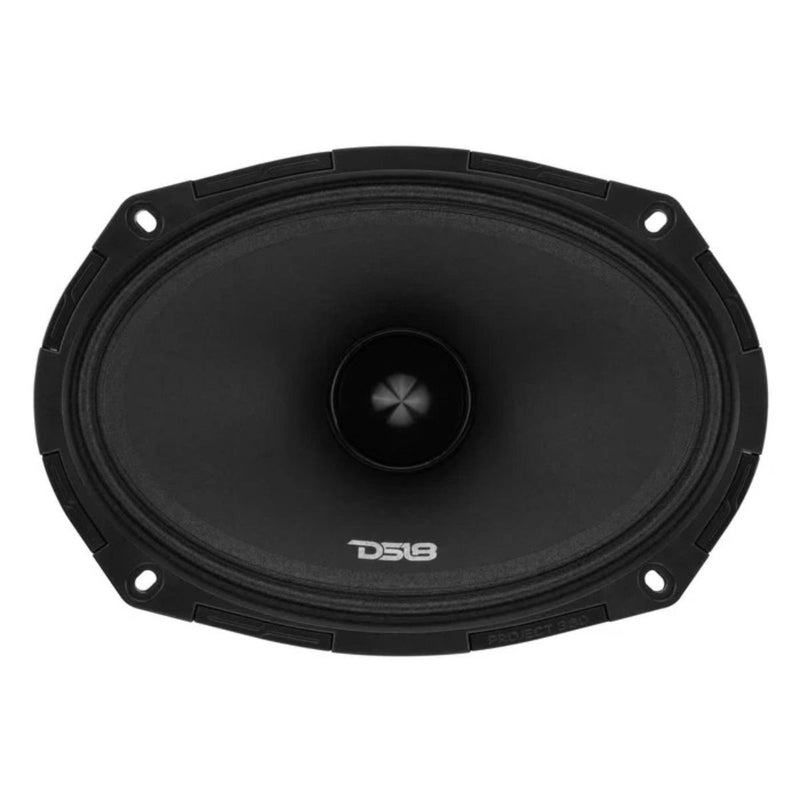

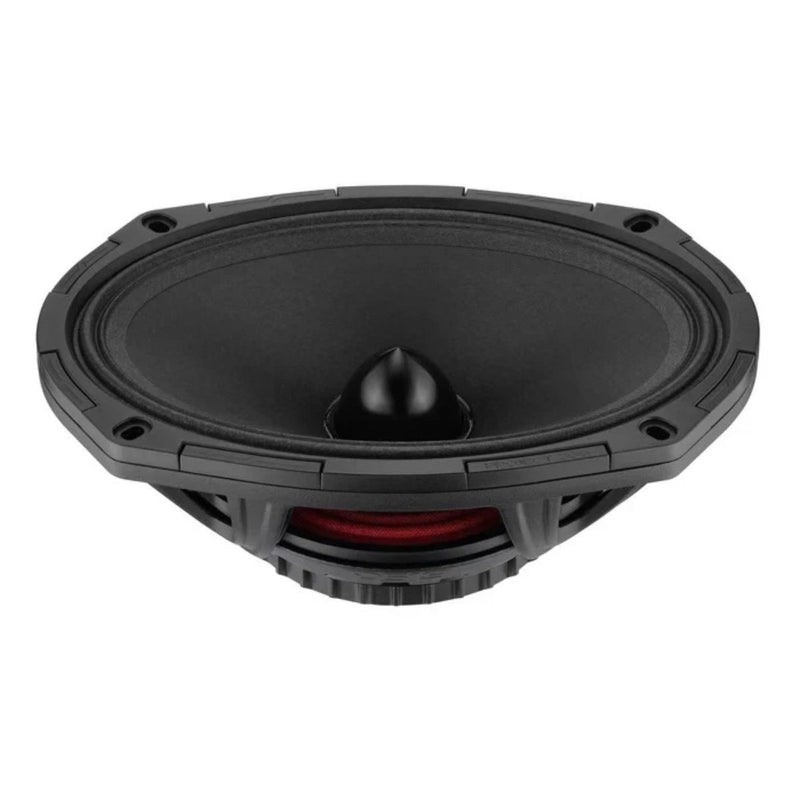

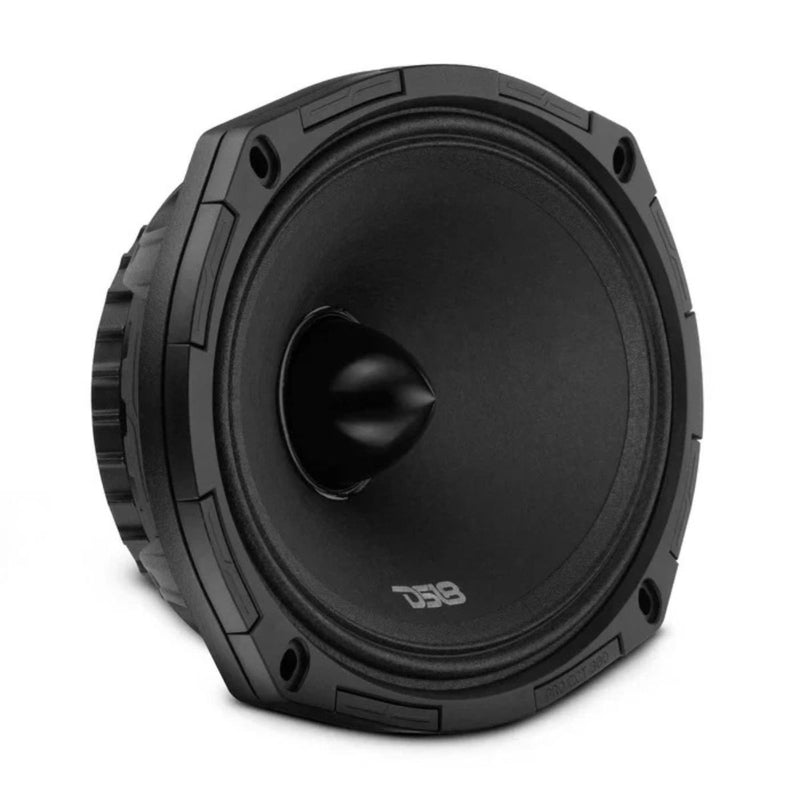

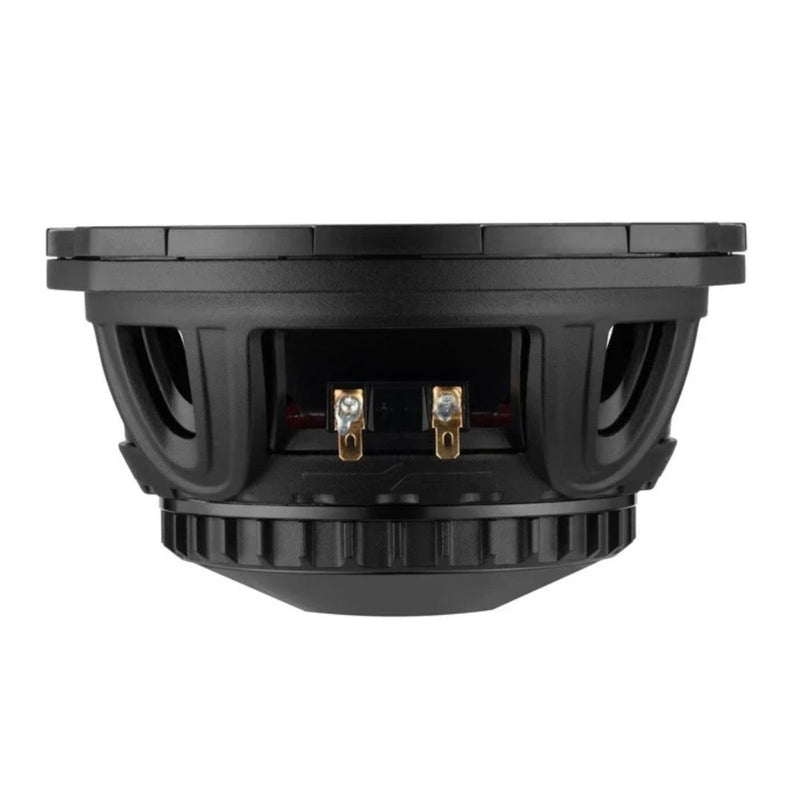

DS18 PROJECT360 6x9" 350W RMS 4 Ohm Mid-High Loudspeaker Rotating Recone Neo

• HIGH OUTPUT 6X9: 350W RMS and 700W MAX power handling with 102 dB sensitivity for efficient mid-high output.
• ROTATING RECONE DESIGN: Patent-pending PROJECT360 system allows the speaker's moving assembly to be replaced using the compatible PROJECT360.694BRCK recone module.
• NEODYMIUM MOTOR: Neodymium magnet construction provides the PROJECT360.694BN's motor structure while helping keep overall size and weight under control.
• 1.75" CCAW VOICE COIL: Uses a CCAW winding on a Kapton former with improved heat dissipation for high-output applications.
• CNC ALUMINUM BULLET: Black CNC aluminum bullet, curvilinear paper cone, cloth surround, aluminum basket, and demodulating rings complete the mid-high driver design.

DS18 PROJECT360 6x9" 350W RMS 4 Ohm Mid-High Loudspeaker Rotating Recone Neo

This Listing Includes:

• (1) DS18 Loudspeaker PRO-JECT360.694BN

The DS18 PROJECT360.694BN brings the PROJECT360 rotating recone system to a high-output 6x9" mid-high loudspeaker. Rated for 350 watts RMS and 700 watts MAX, this 4-ohm speaker delivers 102 dB sensitivity with a 95 Hz to 17 kHz frequency response, making it built for systems that need strong, efficient midrange and high-frequency projection. DS18 recommends a 120 Hz high-pass crossover. At the center of the PROJECT360.694BN is DS18's patent-pending rotating recone design. Instead of replacing the complete speaker when the moving assembly is damaged, the compatible PROJECT360.694BRCK recone module allows the voice coil, connecting wires, dust cap, suspension, cone, and surround to be replaced together as a pre-assembled module. The damaged assembly rotates out and the replacement module locks into the basket, helping reduce repair time compared with a traditional recone process. The speaker uses a 1.75" CCAW voice coil on a Kapton former, curvilinear paper cone, cloth surround, CNC aluminum bullet, aluminum basket, and neodymium motor. DS18 also specifies demodulating rings and improved heat dissipation.

Features

• 6x9" high-sensitivity mid-high loudspeaker


• 350W RMS power handling


• 700W MAX power handling


• 4-ohm nominal impedance


• 102 dB sensitivity at 1W/1m


• 95 Hz to 17 kHz frequency response


• Recommended 120 Hz high-pass crossover


• Patent-pending rotating recone design


• Compatible with PROJECT360.694BRCK replacement recone module


• 1.75" CCAW voice coil


• Kapton voice coil former


• CNC aluminum bullet


• Curvilinear paper cone


• Cloth surround


• Aluminum basket


• Neodymium magnet


• Demodulating rings


• Improved heat dissipation


• Spade speaker terminals


• Sold individually

Specifications

General

• Model: PROJECT360.694BN


• Nominal Diameter: 6x9" / 152 x 228 mm


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 350 Watts


• MAX Power Handling: 700 Watts


• Sensitivity (1W/1m): 102 dB


• Frequency Response: 95 Hz - 17 kHz


• Recommended High-Pass Crossover: 120 Hz


• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes


• Cone Shape: Curvilinear


• Speaker Terminals: Spade


• Rotating Recone Design: Yes


• Sold As: Single

Motor

• Voice Coil Diameter: 1.75" / 44.5 mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Bullet Material: CNC Aluminum


• Bullet Color: Black


• Surround Material: Cloth


• Spider Diameter: 4" / 102 mm


• Leads Connection Type: Round Crossed


• Basket Material: Aluminum


• Basket Color: Black


• Magnet Material: Neodymium


• Magnet Weight: 12.8 oz

Thiele & Small Parameters

• Vas: 3.929 L / 0.138 ft


• Xmax: 0.3 mm One Way


• Fs: 164 Hz


• Qms: 10.401


• Qes: 0.324


• Qts: 0.314


• Mms: 17.978 g


• Cms: 0.052 mm/N


• BL: 13.224


• Le: 0.037 mH


• Sd: 230.90 cm


• Re: 3 Ohms

Dimensions:

• Overall Diameter: 6.57 x 9.45" / 167 x 240 mm


• Overall Depth: 3.59" / 91.2 mm


• Front Mount Baffle Cutout: 5.9 x 8.8" / 150 x 223 mm


• Mounting Depth: 3" / 77.3 mm


• Motor Diameter: 3.94" / 100 mm
