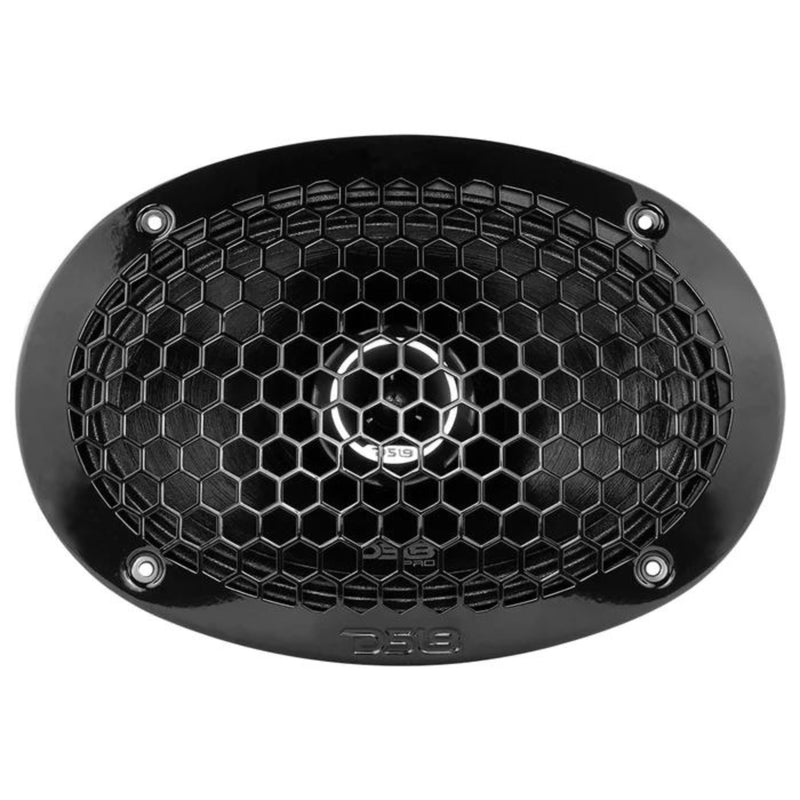

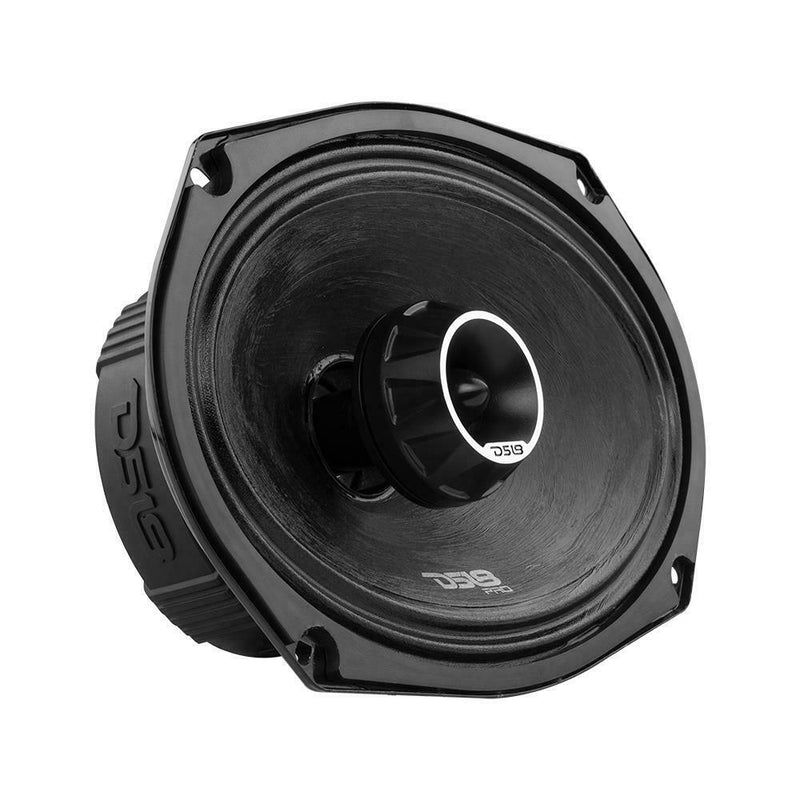

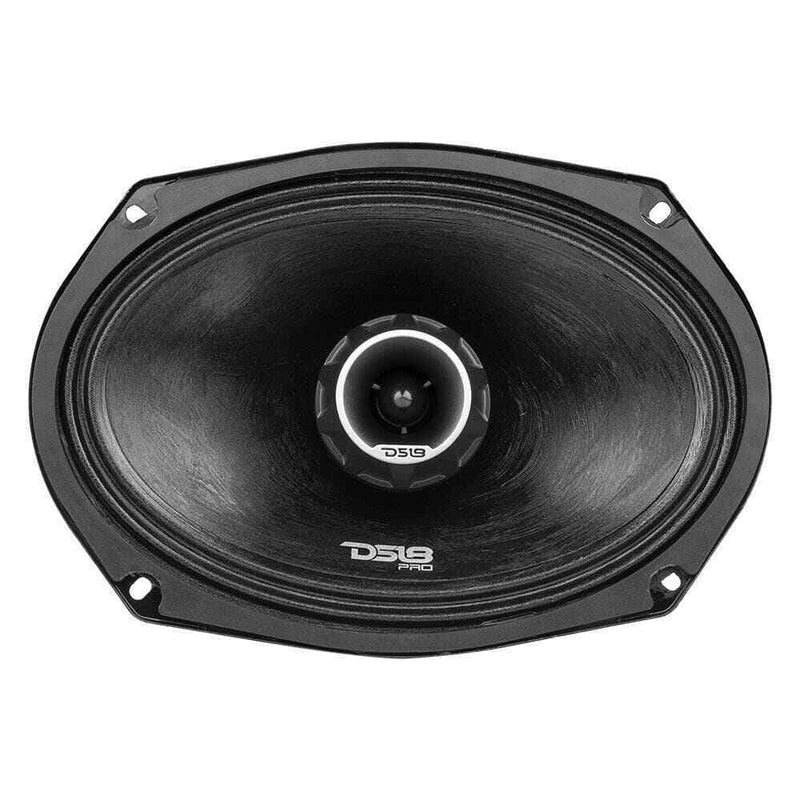

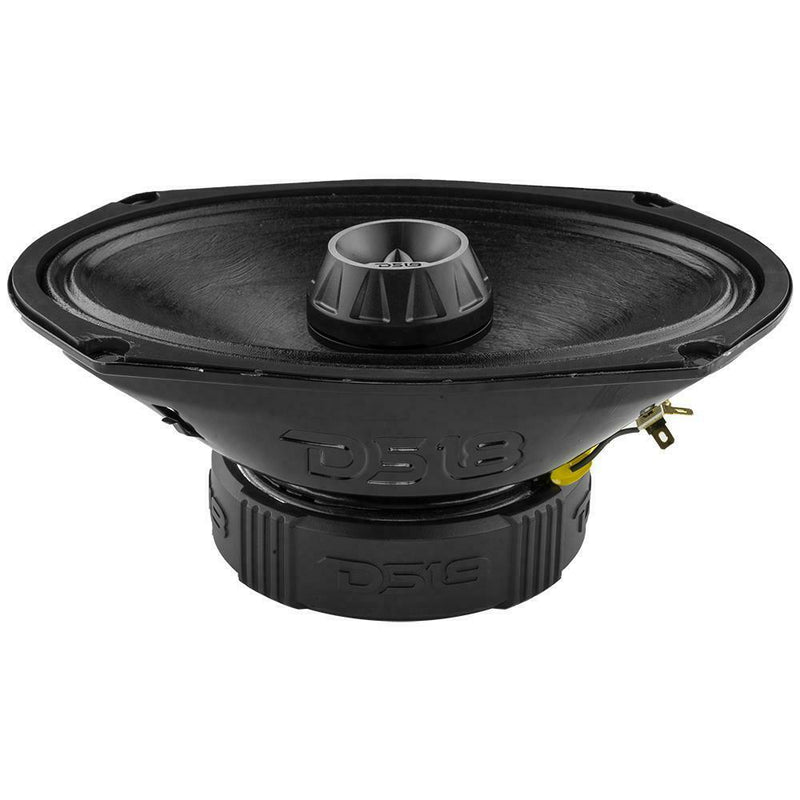

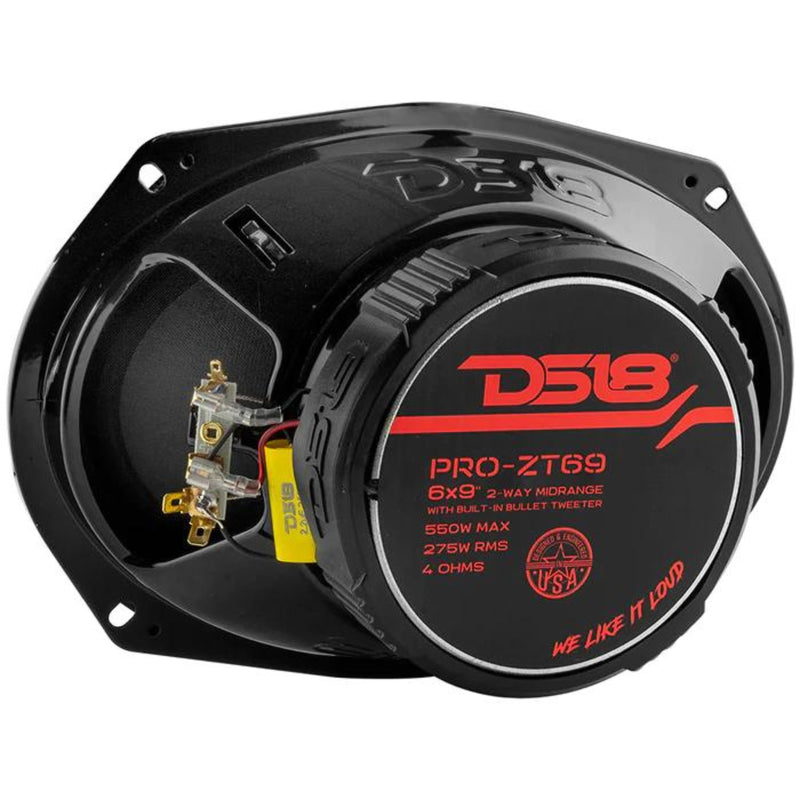

DS18 PRO-Z69 6X9" 550W 4-ohm 2-Way Midrange Loud Speaker with ZT69 tweeter

$84.95

SKU: DS-PRO-ZT69 DS18

Sold Out

Fast Shippng
& Handling

Secure
Checkout

Satisfaction
Guaranteed

DS18 PRO-Z69 6X9" 550W 4-ohm 2-Way Midrange Loud Speaker with ZT69 tweeter

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

This Listing Includes:
(1) Speaker
(1) Grill

Specifications:
Nominal Diameter: 6 x 9"
Nominal Impedance: 4 Ohms
RMS Power Handling: 275 Watts
MAX Power Handling: 550 Watts
Sensitivity (1w/1m): 98dB
Frequency Response: 60Hz - 22KHz
Recommended Hi-Pass Crossover: 80Hz
Midrange Voice Coil Diameter: 1.5" (38.1mm)
Midrange Voice Coil Former Material: Kapton
Midrange Winding Material: CCAW
Midrange Basket Material: Steel
Midrange Magnet Weight: 27 oz
Tweeter Voice Coil Diameter: 1"
Tweeter Voice Coil Material:  Kapton
Tweeter Winding Material:  CCAW
Tweeter Diaphragm Material: Aluminum Alloy
Tweeter Magnet Weight: 0.44 oz
Tweeter Magnet Material: Neodymium
Equivalent Volume / Vas: 14.6927 LTR
Excursion / Xmax: 1.6mm
Free Air Resonance / Fs: 85Hz
Mechanical Factor / Qms: 3.906
Electrical Factor / Qes: 0.639
Total Factor / Qts: 0.602
DC Resistance / Re: 3.2 ohms

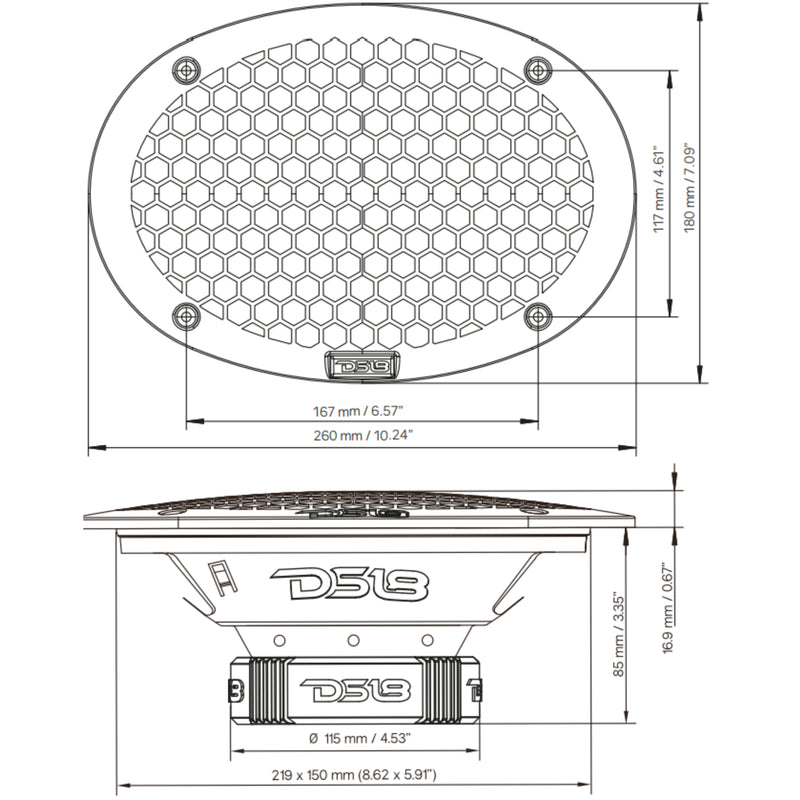

Dimensions:
Overall Diameter: 260 x 180mm (10.24 x 7.09")
Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91")
Mounting Depth: 85 mm (3.35")
Overall Depth:  97 mm (3.81")
