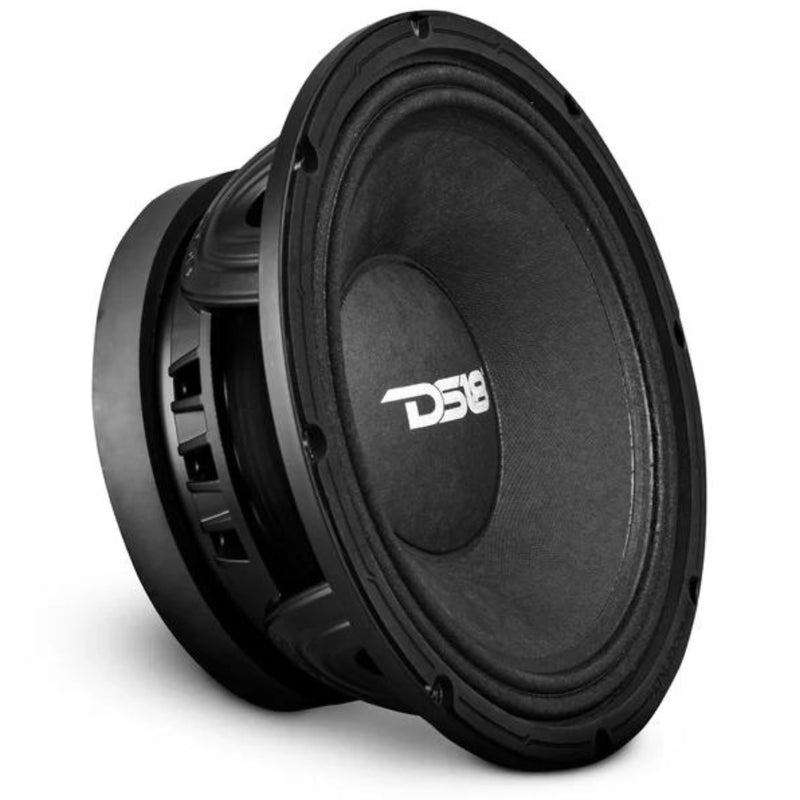

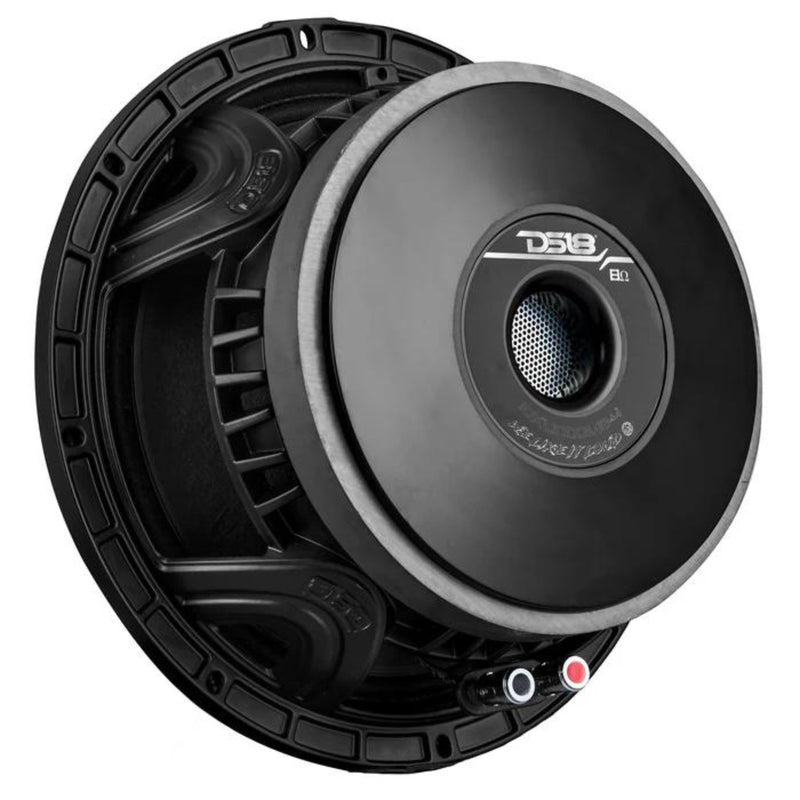

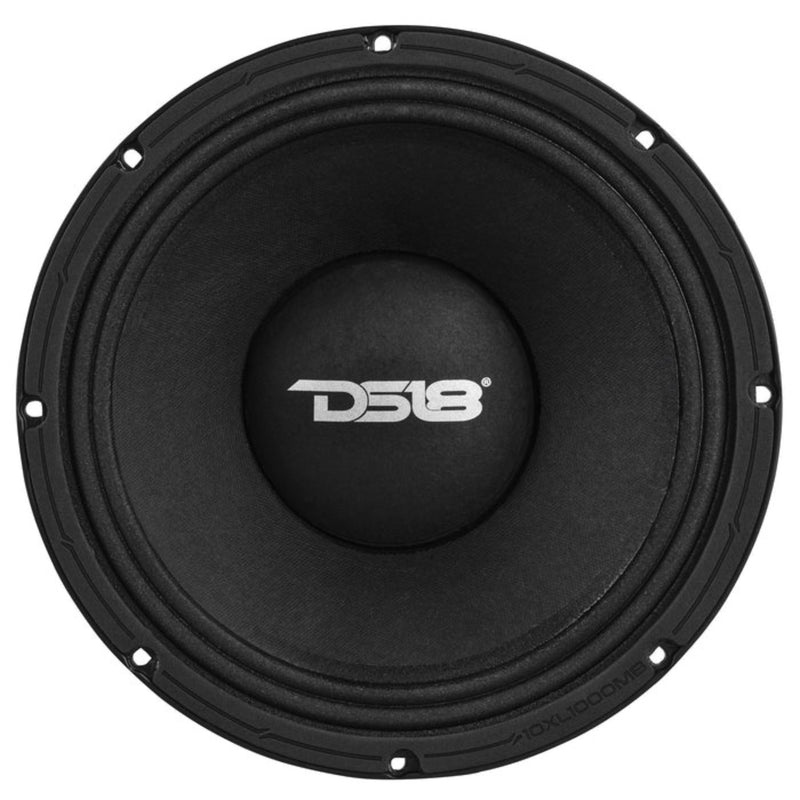

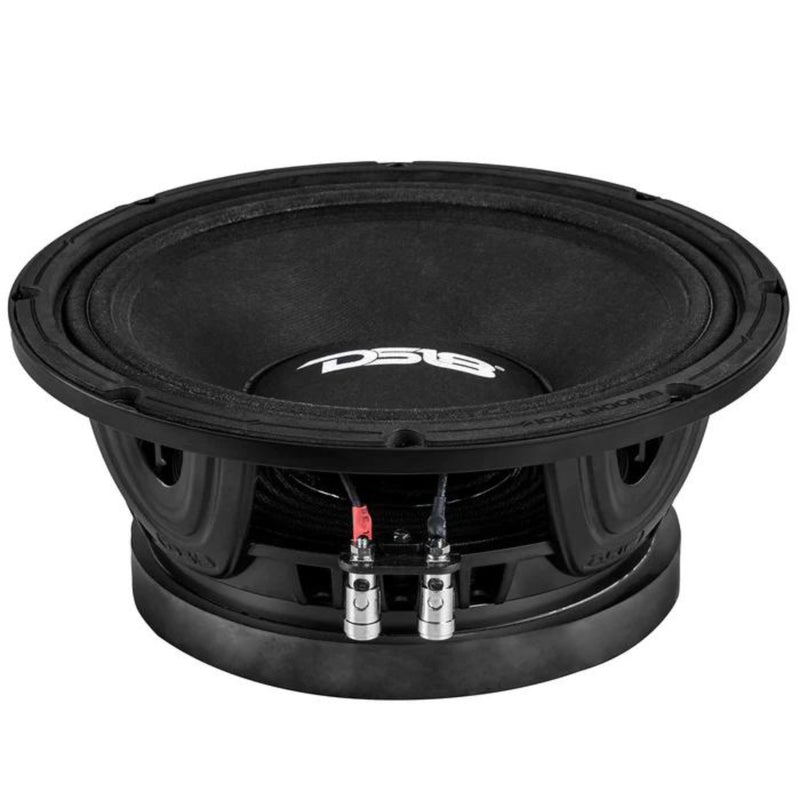

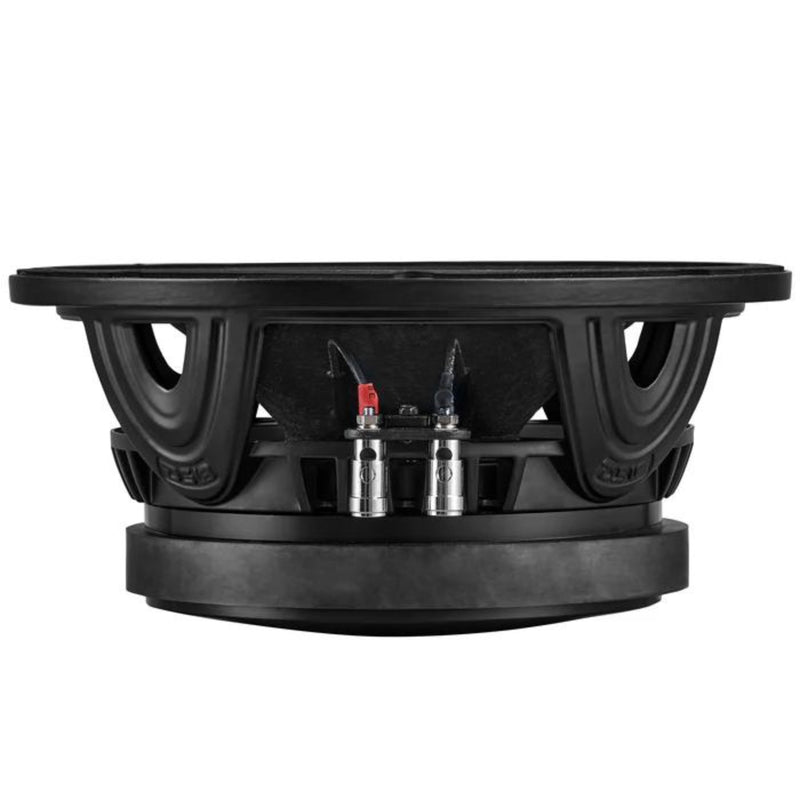

DS18 PRO XL Series 10" 500 Watts RMS 4-Ohm Mid-Bass Loudspeaker 10XL1000MB-4

• Powerhouse Performance: With a maximum power handling of 1000 Watts and RMS power handling of 500 Watts, this mid-bass speaker delivers robust and clear audio.
• High Sensitivity: Boasting a sensitivity of 99.5dB, even at high volumes, your music remains pure and distortion-free.
• Durable Construction: Features an interleaved sandwich voice coil (ISV) and demodulating rings for precise control and durability, paired with a rugged ferrite magnet.
• Enhanced Connectivity: Equipped with 8GA push terminals for secure connections, ensuring consistent performance.
• Wide Frequency Response: Offers a frequency response range of 75Hz-5KHz, delivering rich and dynamic sound reproduction.

DS18 PRO XL Series 10" 500 Watts RMS 4-Ohm Mid-Bass Loudspeaker 10XL1000MB-4

This Listing Includes:

• (1) DS18 10" Loudspeaker 10XL1000MB-4

Elevate your car audio experience with the DS18 10XL1000MB-4 10" Mid-Bass Speaker. Designed for premium quality audio, this speaker sets a new standard for car stereo upgrades. With a nominal diameter of 10 inches and a 4-ohm nominal impedance, it guarantees compatibility with a variety of car audio systems. The high sensitivity ensures distortion-free sound even at high volumes. In contrast, the robust construction and advanced features like the interleaved sandwich voice coil and demodulating rings ensure precise control and durability. Installation is made easy with the included 8GA push terminals, ensuring secure connections and consistent performance.

Features:

• Interleaved Sandwich Voice Coil (ISV)


• Demodulating Rings


• Cone Shape: Exponential


• Speaker Terminals: Push 8ga (4.7mm)


• Motor Diameter: 7.48" / 190mm


• Basket Material: Aluminum


• Basket Color/Finish: Satin Black


• Magnet Material: Ferrite


• Magnet Weight: 80 Oz


• Specifications:


• Nominal Diameter: 10" / 254mm


• Nominal Impedance: 4 ohms


• RMS Power Handling: 500 Watts


• MAX Power Handling: 1000 Watts


• Sensitivity (1w/1m): 99.5dB


• Frequency Response: 75Hz-5KHz


• Recommended High-Pass Crossover: 100Hz


• Sold as Single Unit

Thiele & Small Parameters:

• Voice Coil Inductance VAS: 36.6L / 1.292ft3


• Excursion (one way) XMAS: 2mm


• Free Air Resonance FS: 68Hz


• Mechanical Factor QMS: 3.69


• Electrical Factor QES: 0.18


• Total Factor QTS: 0.172


• Mechanical Mass MMS: 29.64g


• Mechanical Compliance CMS: 0.21mm/N


• BL Factor BL: 14.2


• Voice Coil Inductance LE: 0.27mH


• Cone Area SD: 346.36cm2


• DC Resistance RE: 3.2 ohms


• Mechanical Mass w/o air MMD: 26g

Dimensions:

• Overall Diameter: 10.3" / 261.5mm


• Overall Depth: 4.73" / 120mm


• Front Mount Baffle Cutout: 9.2" / 233mm


• Mounting Depth: 4.29" / 109mm
