- HIGH-OUTPUT 5.25" MIDRANGE LOUDSPEAKER: DS18 PRO-X5.4M delivers powerful vocal reproduction and strong midrange clarity with 150 Watts RMS and 300 Watts MAX power handling for custom car audio and pro audio style systems.
- 93DB HIGH-SENSITIVITY PERFORMANCE: Engineered for loud and efficient output, this speaker produces clear vocals and detailed instrumentation with less amplifier strain while maintaining strong projection at higher volume levels.
- WIDE FREQUENCY RESPONSE FOR VOCAL DETAIL: Covers a 200Hz to 16KHz frequency range for crisp mids, detailed vocals, and strong musical presence in doors, kick panels, pods, and custom installations.
- DURABLE PRO AUDIO CONSTRUCTION: Features a non-pressed paper cone, cloth edge surround, red steel basket, 1.2" Kapton voice coil, and 18.5 oz ferrite magnet for reliable long-term performance and improved heat resistance.
- COMPACT DESIGN WITH EASY INSTALLATION: Shallow 2.6" mounting depth and 4.33" cutout diameter make the PRO-X5.4M ideal for a wide range of car audio applications where loud, clean mids are the priority.

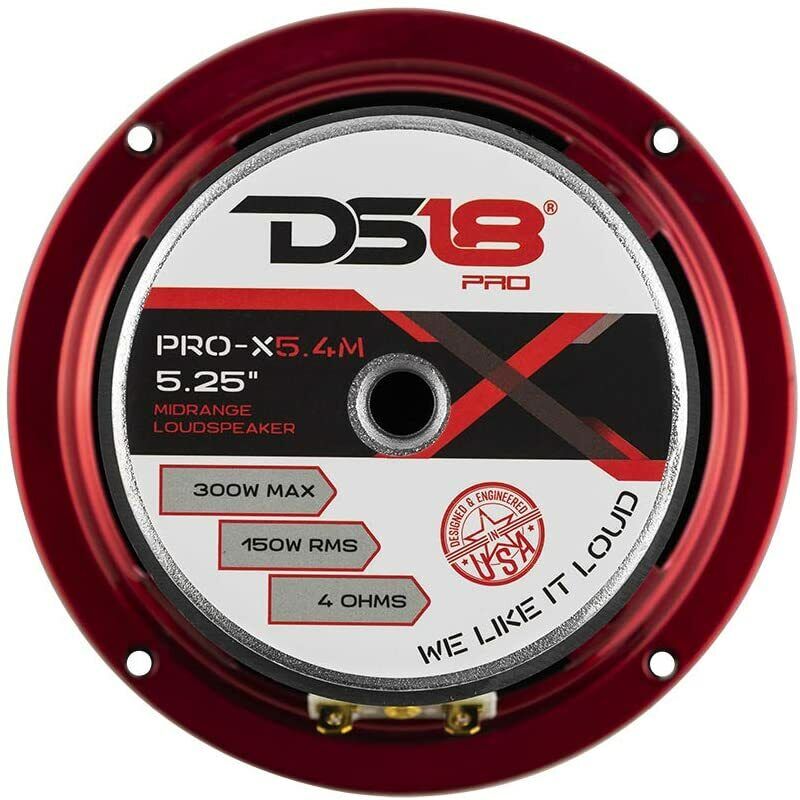

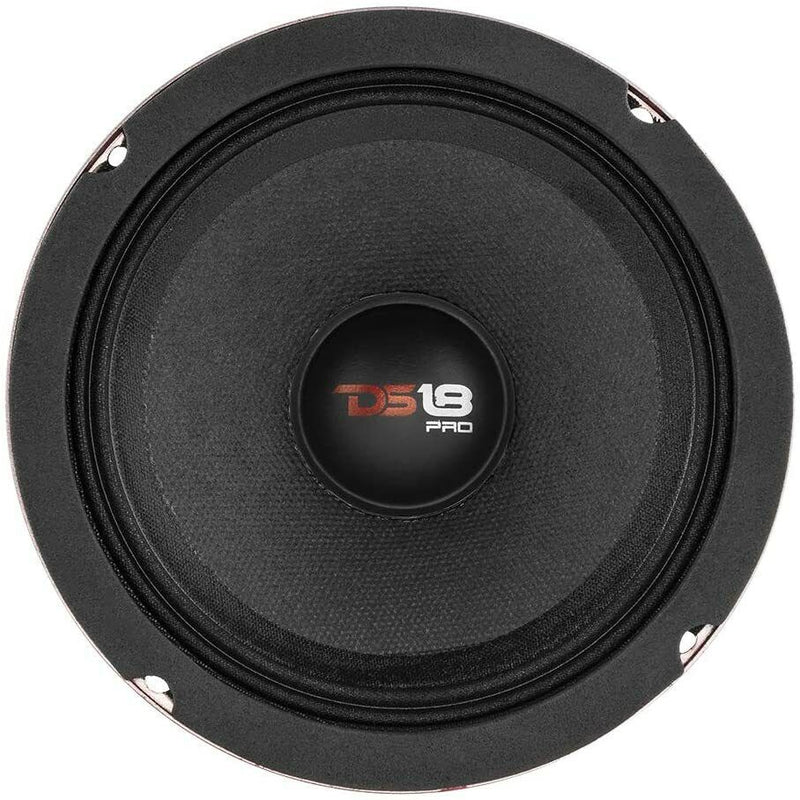

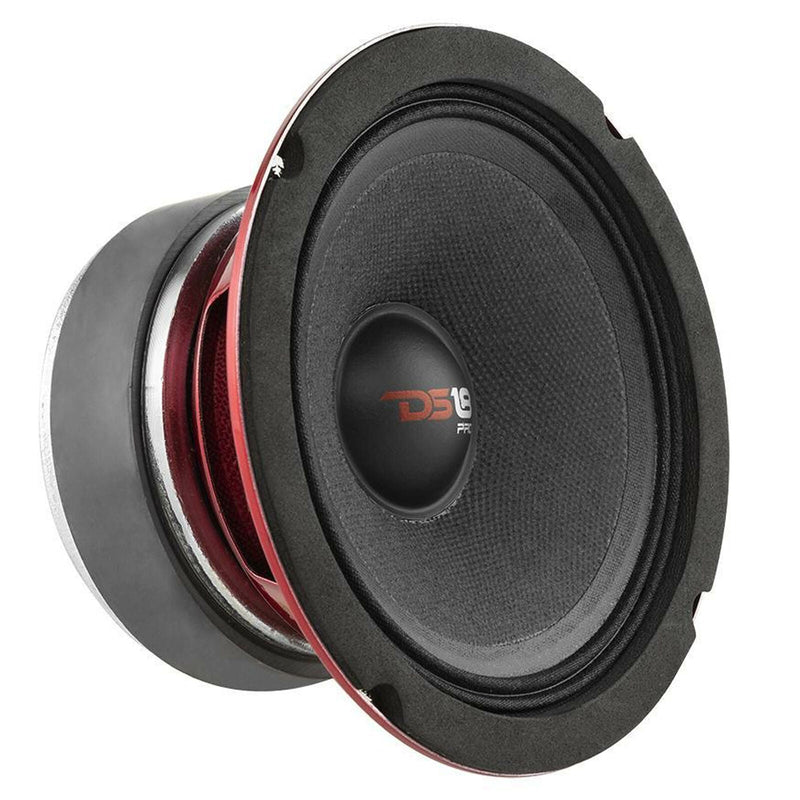

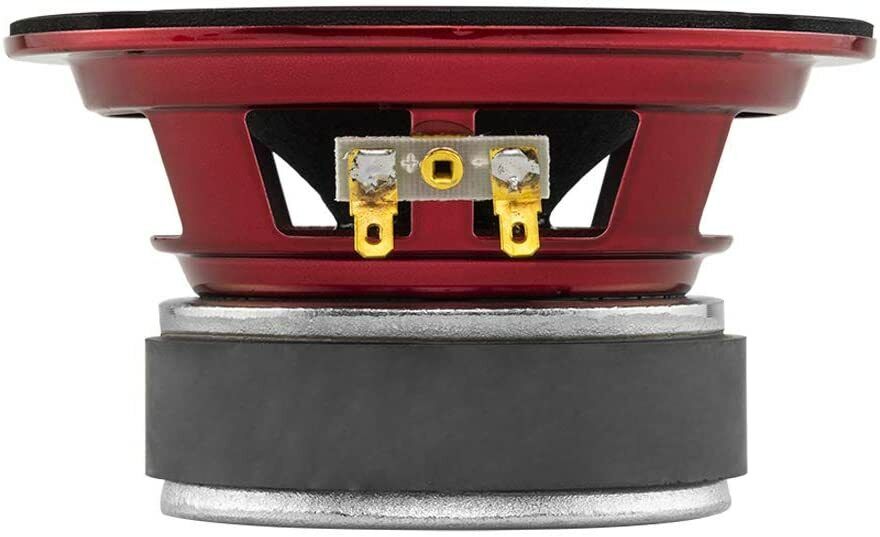

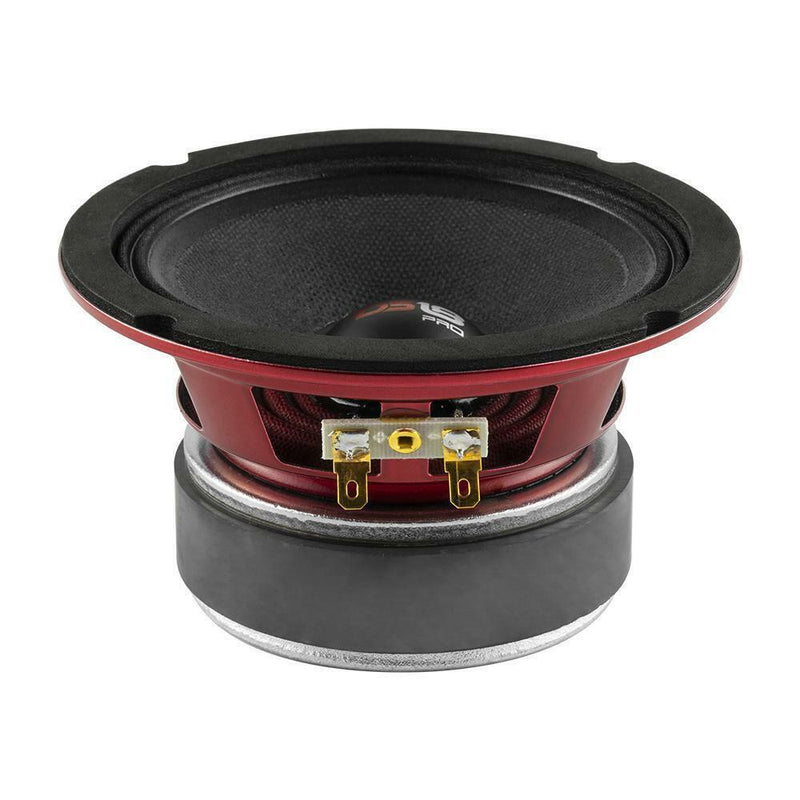

DS18 Car Audio 5.25" Mid-Range Loudspeaker 150 Watts RMS 4-Ohm PRO-X5.4M
This Listing Includes:

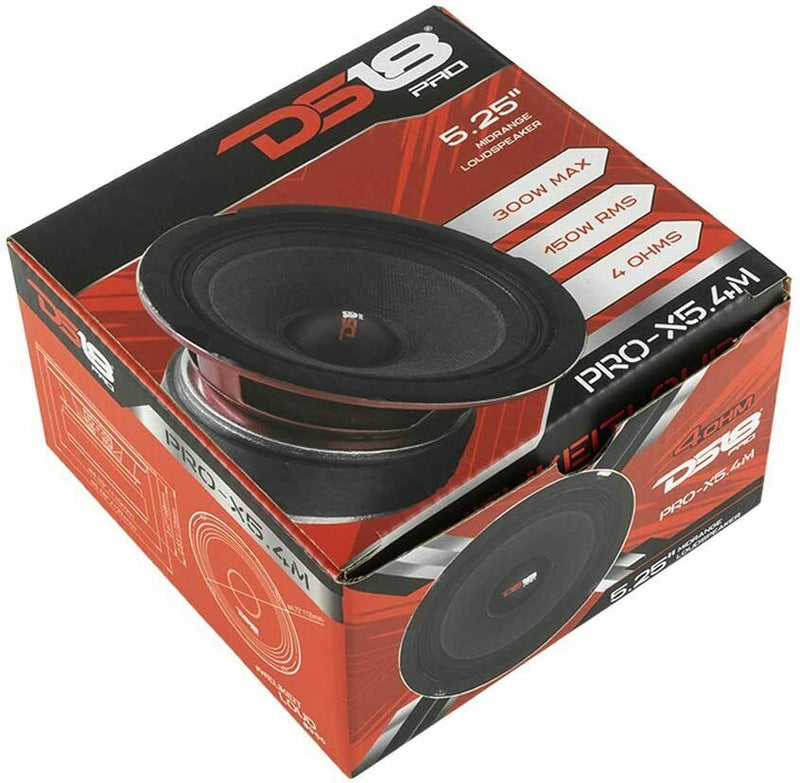

- (1) DS18 PRO-X5.4M 5.25" Midrange Loudspeaker
Step into powerful, high-output sound with the DS18 PRO-X5.4M 5.25" Midrange Loudspeaker. Designed for loud and clear vocal reproduction, this pro audio style speaker delivers strong midrange performance with excellent clarity and efficiency, making it ideal for custom car audio systems and high-output builds.
Featuring a high 93dB sensitivity rating and a wide 200Hz to 16KHz frequency response, the PRO-X5.4M produces crisp vocals, detailed instrumentation, and strong projection even at higher volume levels. Its lightweight non-pressed paper cone and cloth surround help maintain accurate response while minimizing distortion under demanding conditions.
The PRO-X5.4M handles 150 Watts RMS and 300 Watts MAX power while utilizing a durable 1.2" Kapton voice coil and an 18.5 oz ferrite magnet structure for reliable performance and excellent thermal handling during extended listening sessions.
With its compact design and shallow mounting depth, the PRO-X5.4M is an excellent choice for doors, kick panels, pods, and custom installations where loud, clean mids are the priority.
Features:
- High-output 5.25" midrange loudspeaker
- 150 Watts RMS / 300 Watts MAX power handling
- 93dB high-sensitivity design
- Wide frequency response for detailed vocal reproduction
- Lightweight non-pressed paper cone
- Durable cloth edge surround
- 1.2" Kapton voice coil for improved heat resistance
- Red steel basket design
- Ideal for custom car audio and pro audio style systems
Specifications:
- Model: PRO-X5.4M
- Speaker Type: Midrange Loudspeaker
- RMS Power Handling: 150 Watts
- Maximum Power Handling: 300 Watts
- Frequency Response: 200Hz - 16KHz
- Recommended High Pass Crossover: 250Hz
- Nominal Impedance: 4 Ohms
- Sensitivity: 93 dB @ 1W/1m
- Voice Coil Diameter: 1.2" / 30.5mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Basket Material: Steel
- Magnet Weight: 18.5 Oz
- Product Weight: 3 lbs
T/S Parameters:
- Vas: 0.827 L
- Xmax: 6.7 mm
- Fs: 240 Hz
- Qms: 6.382
- Qes: 1.625
- Qts: 1.326
- Re: 3.2 Ohms
Dimensions:
- Overall Diameter: 5" / 129mm
- Cutout Diameter: 4.33" / 110mm
- Mounting Depth: 2.6" / 66mm
- Overall Depth: 2.83" / 72mm
