- 250W RMS POWER: DS18 PRO-TW5L super bullet tweeter handles 250 watts RMS and 500 watts maximum power with 4-ohm impedance for high-output car audio systems.
- BUILT-IN RGB LED LIGHTING: Transparent polycarbonate horn features integrated RGB lighting for a custom appearance. Compatible RGB controller sold separately.
- 107DB SENSITIVITY: High-efficiency super bullet tweeter with a 3kHz to 20kHz frequency response and directional flared-square horn design.
- 1.5-INCH ALUMINUM VOICE COIL: Features a high-temperature Kapton former, Y30 ferrite magnet, and serviceable voice coil assembly.
- BUILT-IN CROSSOVER: Integrated capacitor provides high-frequency filtering. Features a 2.95" mounting depth and 4.09" x 3.03" mounting cutout. Includes one tweeter.

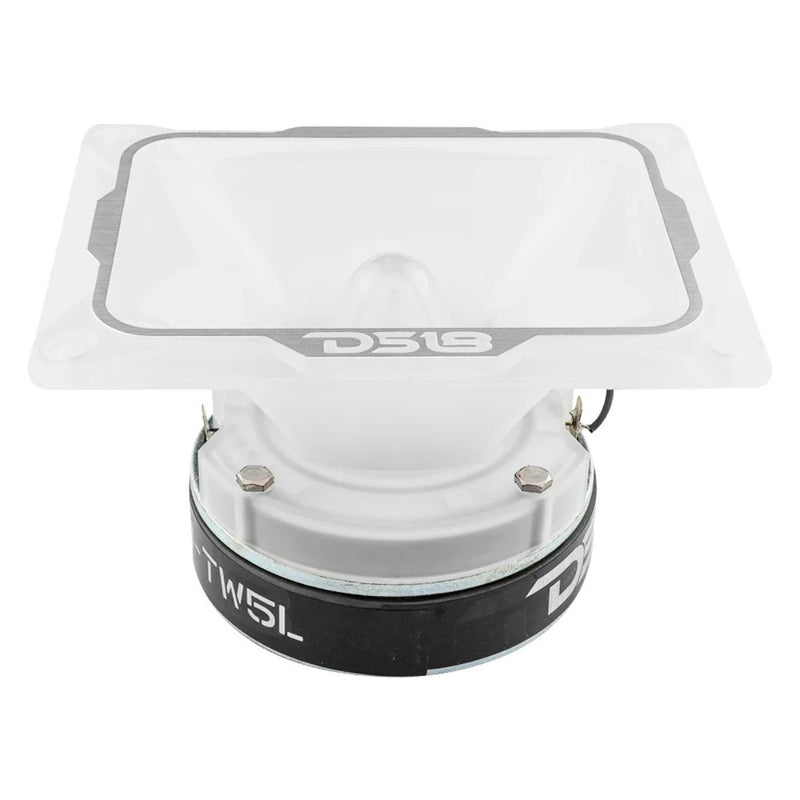

4" x 5.35" DS18 1.5" Aluminum 4-Ohm Vc Super Bullet Tweeter 250 Watt RGB LED Light PRO-TW5L
This Listing Includes
-
(1) DS18 PRO-TW5L RGB Tweeter
Bring the Highs. Light Up Your Build. Get LOUD!
Take your car audio system to the next level with the DS18 PRO-TW5L RGB Super Bullet Tweeter. Built for serious high-frequency output, this powerful tweeter combines a flared-square horn design, high sensitivity, and built-in RGB LED lighting to deliver both impressive sound and a custom look.
With 250 watts RMS and 500 watts max power handling, the PRO-TW5L is designed to deliver loud, crisp highs that stand out in high-output car audio systems. Its 107dB sensitivity and 3kHz to 20kHz frequency response make it an excellent choice for adding high-frequency presence to custom door panels, speaker walls, and powerful multi-speaker setups.

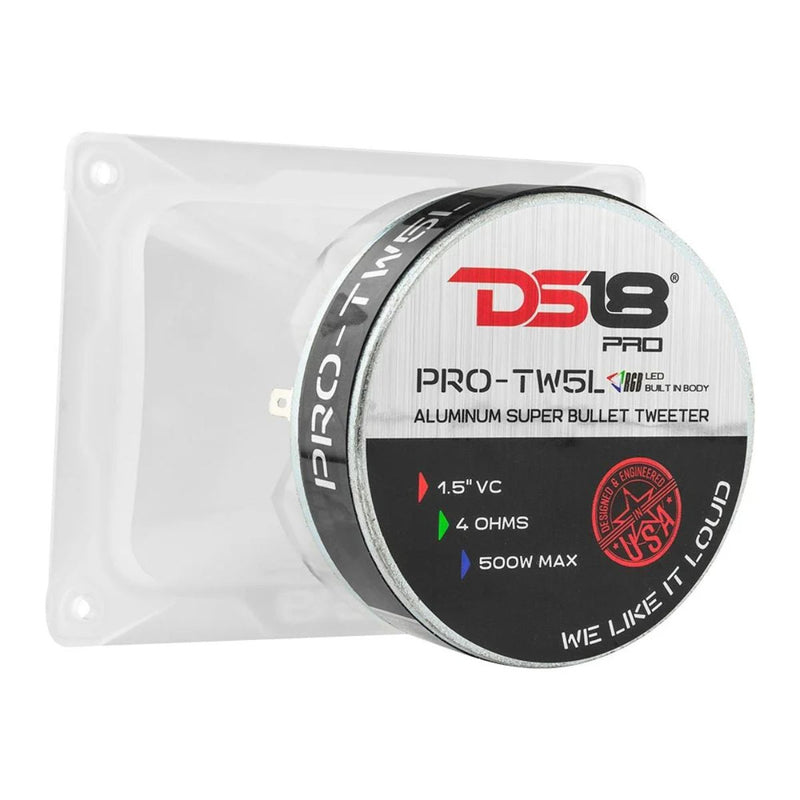

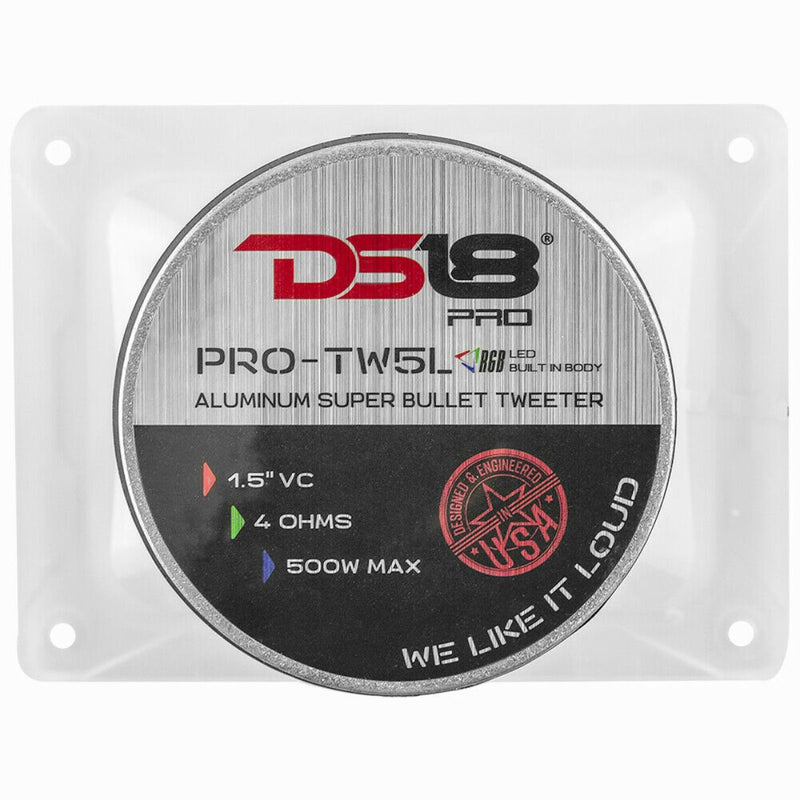

The PRO-TW5L features a 1.5" aluminum voice coil with a high-temperature Kapton former, paired with a Y30 ferrite magnet. Its transparent polycarbonate horn body allows the built-in RGB LEDs to illuminate the tweeter with vibrant colors, giving your installation a custom appearance.

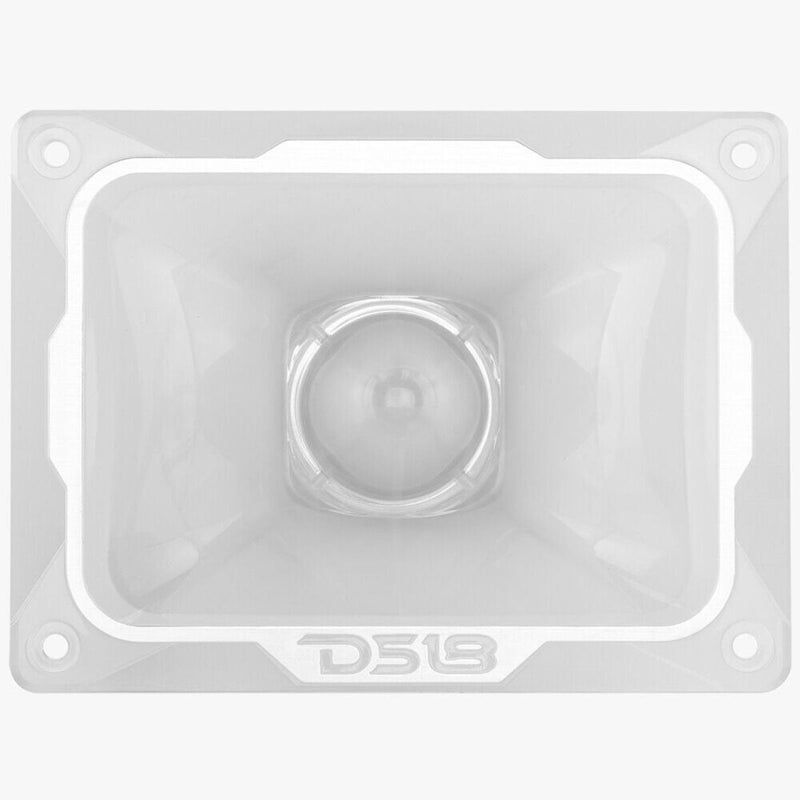

The flared-square horn design helps direct high-frequency sound toward your listening area, while the silver brushed accent ring adds a clean finishing touch.

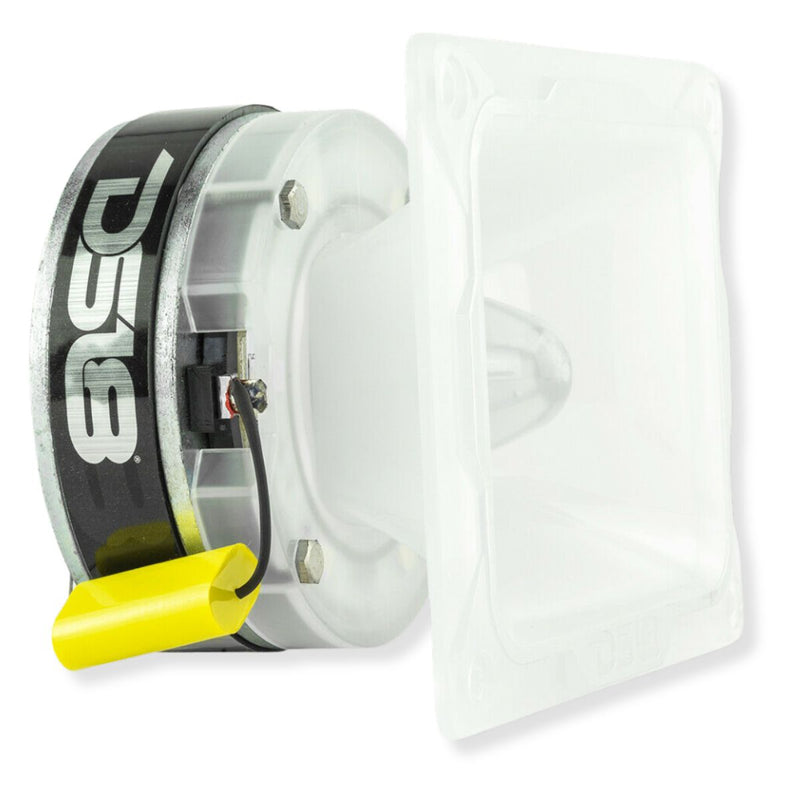

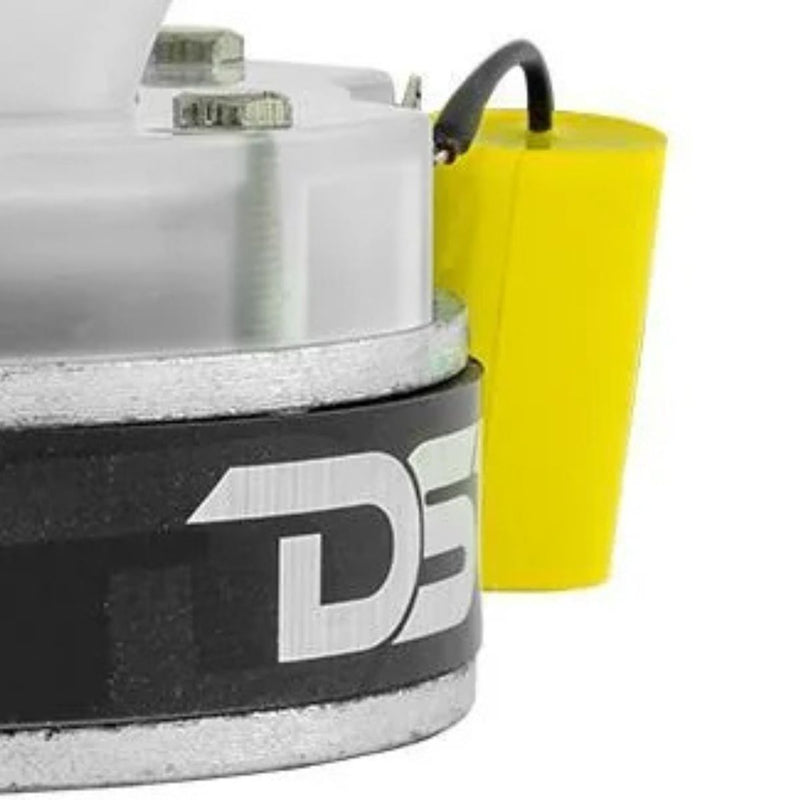

The tweeter also features a serviceable voice coil assembly and a built-in capacitor crossover for high-frequency filtering. With its 1-meter RGB wiring input, you can connect compatible lighting controls to customize your setup. A compatible RGB controller is sold separately.
Whether you're upgrading your daily driver, building custom door panels, or creating an attention-grabbing speaker wall, the DS18 PRO-TW5L delivers the high-frequency performance and RGB style your system deserves.
RGB lighting controller sold separately.
Features
- 250W RMS POWER HANDLING: Rated for 500 watts maximum power.
- 1.5" ALUMINUM VOICE COIL: High-temperature Kapton voice coil former.
- 107DB SENSITIVITY: High-efficiency design for powerful high-frequency output.
- BUILT-IN RGB LED LIGHTING: Integrated multicolor lighting illuminates the transparent horn.
- TRANSPARENT POLYCARBONATE BODY: Clear housing enhances RGB lighting effects.

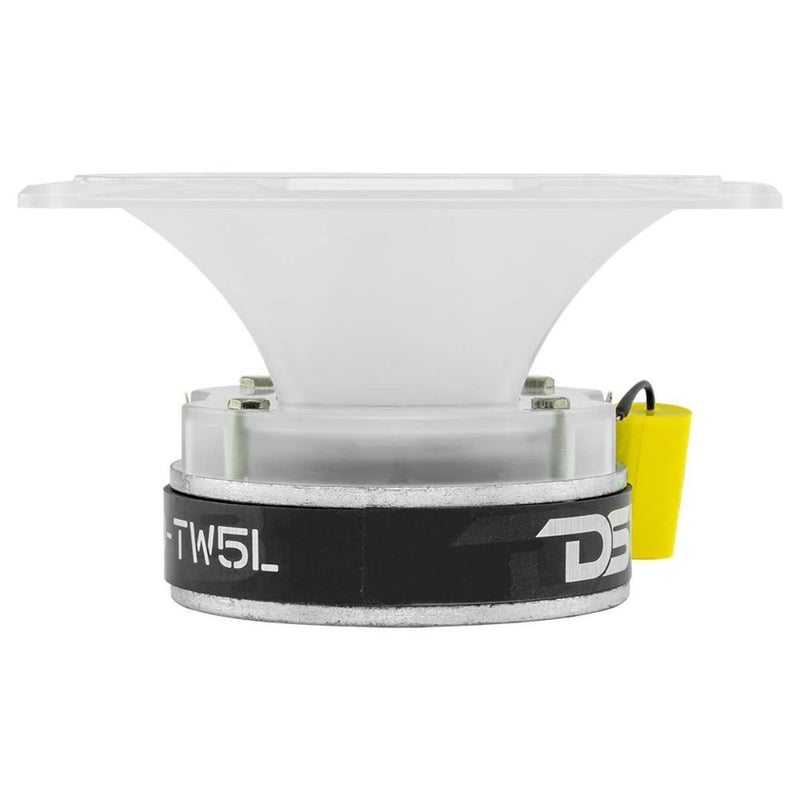

- FLARED-SQUARE HORN: Designed to provide directional high-frequency sound.
- Y30 FERRITE MAGNET: High-output ferrite magnet system.
- BUILT-IN CAPACITOR CROSSOVER: Provides high-frequency filtering.
- SERVICEABLE DESIGN: Replaceable voice coil assembly for compatible repairs.
- SILVER BRUSHED ACCENT: Decorative hot-stamp film ring.
- 1-METER RGB WIRING: Integrated lighting connection.
- SINGLE TWEETER: Sold individually.
Specifications:
- Brand: DS18
- Model: PRO-TW5L
- Speaker Type: Super Bullet Tweeter
- RMS Power Handling: 250 Watts
- Maximum Power Handling: 500 Watts
- Nominal Impedance: 4 Ohms
- Sensitivity: 107 dB
- Frequency Response: 3 kHz - 20 kHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: Aluminum
- Voice Coil Former Material: High-Temperature Kapton
- Magnet Material: Y30 Ferrite
- Magnet Specification: 14/30 oz
- Top and Back Plate Finish: Zinc-Plated
- Horn Material: Transparent Polycarbonate
- Tweeter Construction: Aluminum
- Horn Design: Flared Square
- Accent Ring: Silver Brushed Hot-Stamp Film
- Lighting Type: Built-In RGB LED
- RGB Input Wire Length: 1 Meter
- Capacitor Crossover: Built-In
- RGB Controller Included: No
- Sold As: Single
Dimensions
- Overall Width: 5.35" / 136 mm
- Overall Height: 4" / 101.5 mm
- Mounting Depth: 2.95" / 75 mm
- Front Mount Baffle Cutout Width: 4.09" / 104 mm
- Front Mount Baffle Cutout Height: 3.03" / 77 mm
