- 175W RMS / 350W MAX Power Handling: Delivers strong output with 97 dB sensitivity and a 2 Ohm nominal impedance.
- 2-Way Hybrid Design: Combines a 6x9" woofer with a 1" titanium compression driver and integrated horn for powerful midrange and clear highs.
- Slim 3.4" Mounting Depth: Ideal for space-limited fairings, speaker pods, and custom installations with compatible mounting dimensions.
- IP65-Rated Protection: Water-resistant paper cone, treated cloth surround, and included grille with water and sun protection cloth support outdoor use.
- Ferrite and Neodymium Magnets: Features a 25.5 oz ferrite woofer magnet and a lightweight neodymium compression-driver magnet.

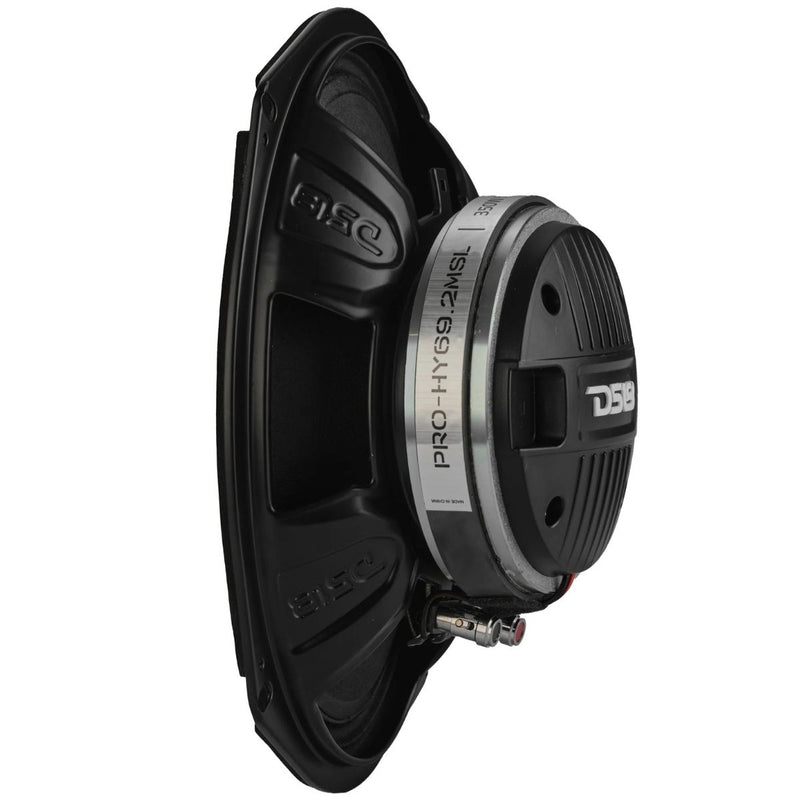

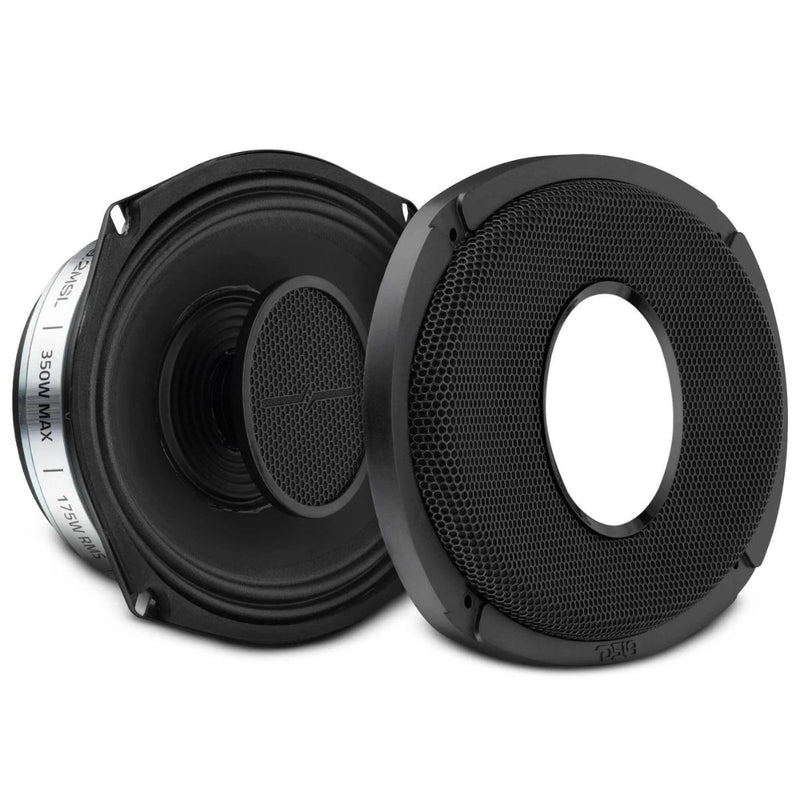

DS18 PRO-HY69.2MSL 6x9" 175W RMS 2 Ohm Slim Hybrid Neo Driver Speaker with Grille
This Listing Includes:
- (1) DS18 PRO-HY69.2MSL 6x9" 2 Ohm Slim Hybrid Loudspeaker

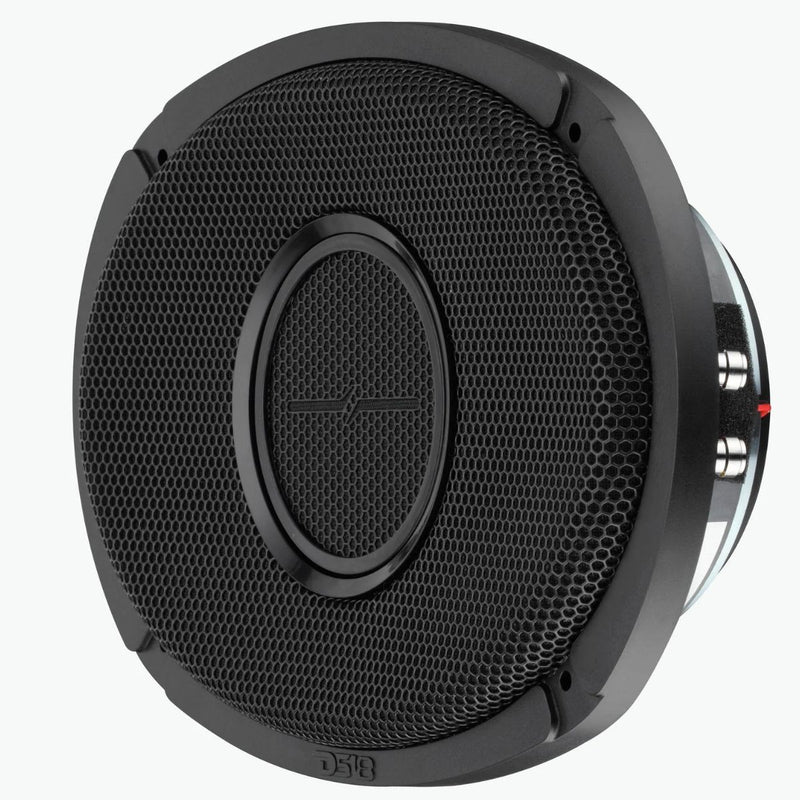

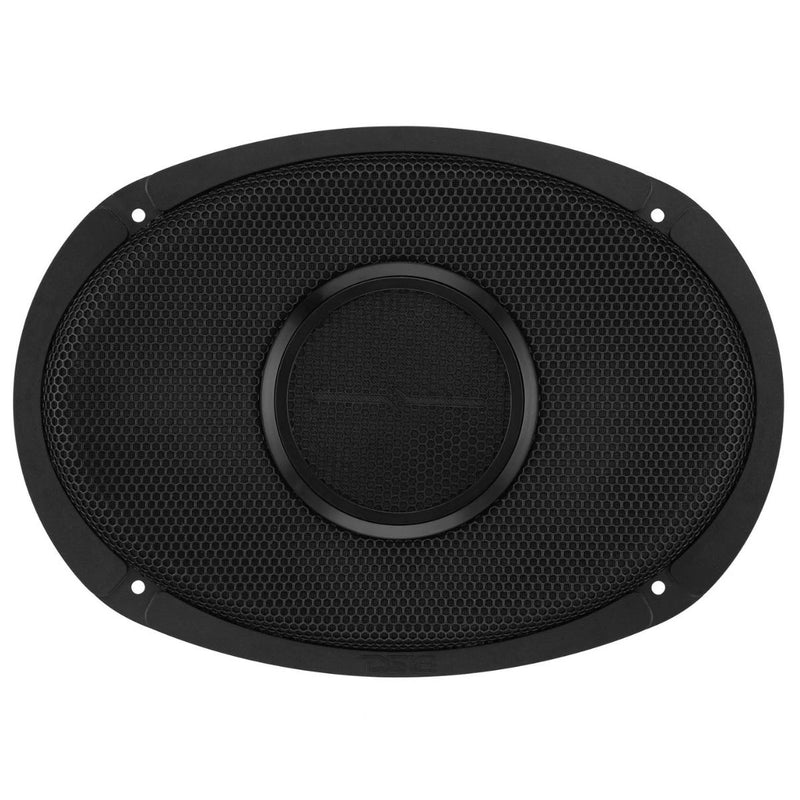

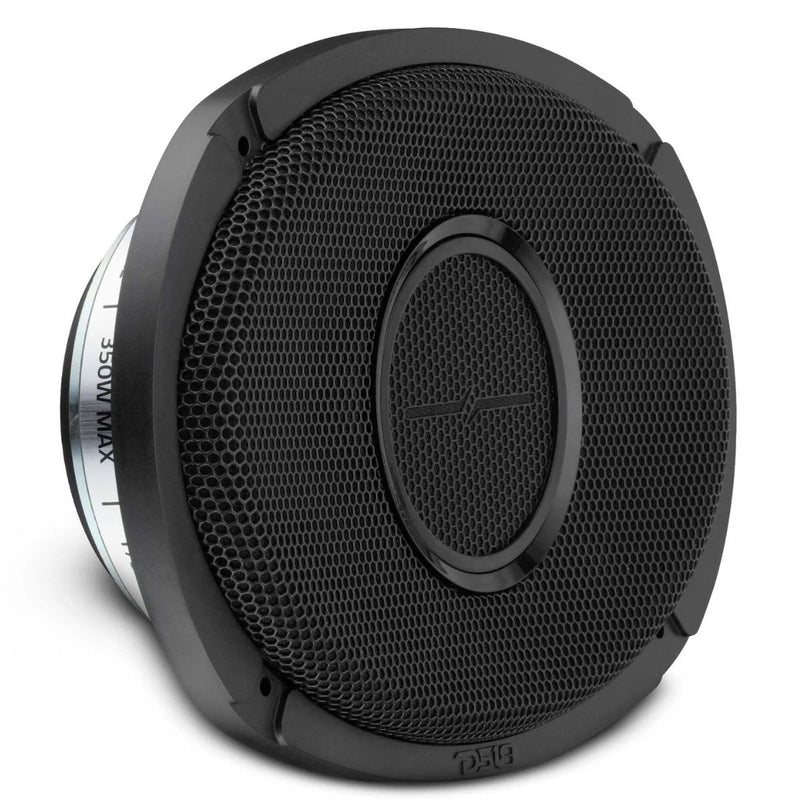

- (1) Grille with Water and Sun Protection Cloth

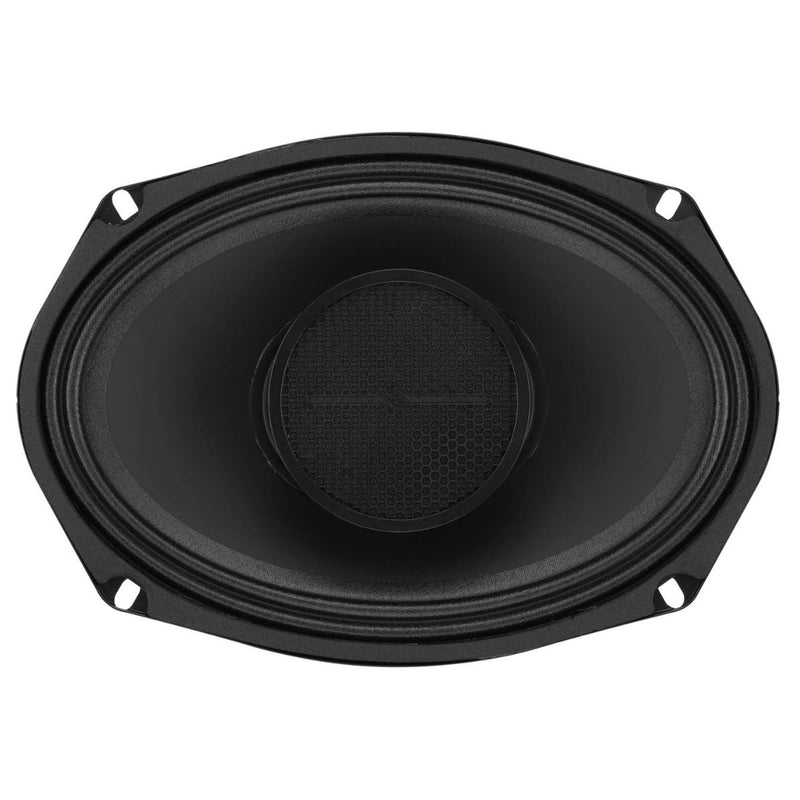

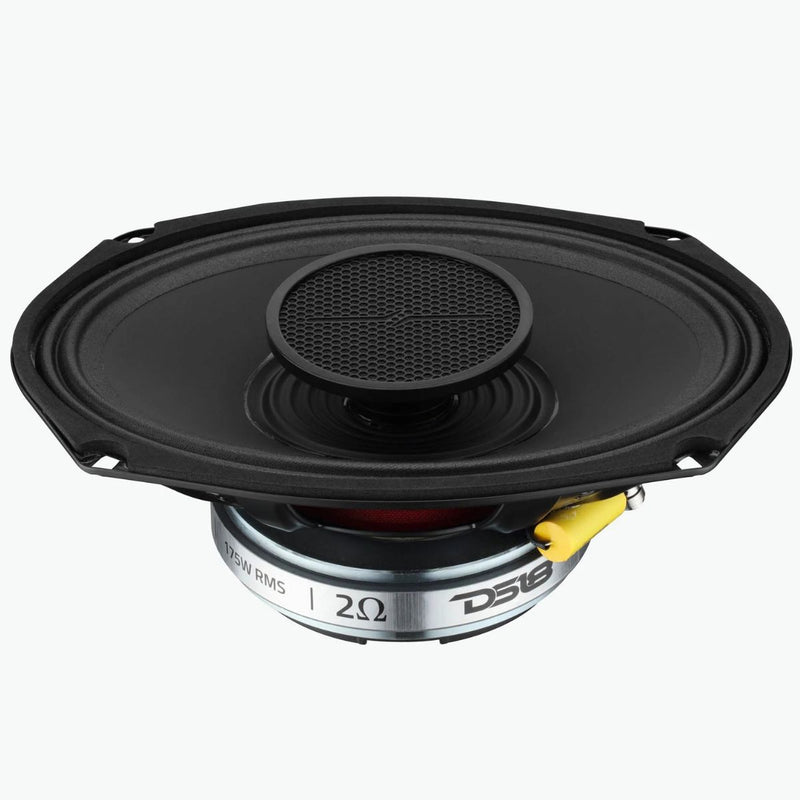

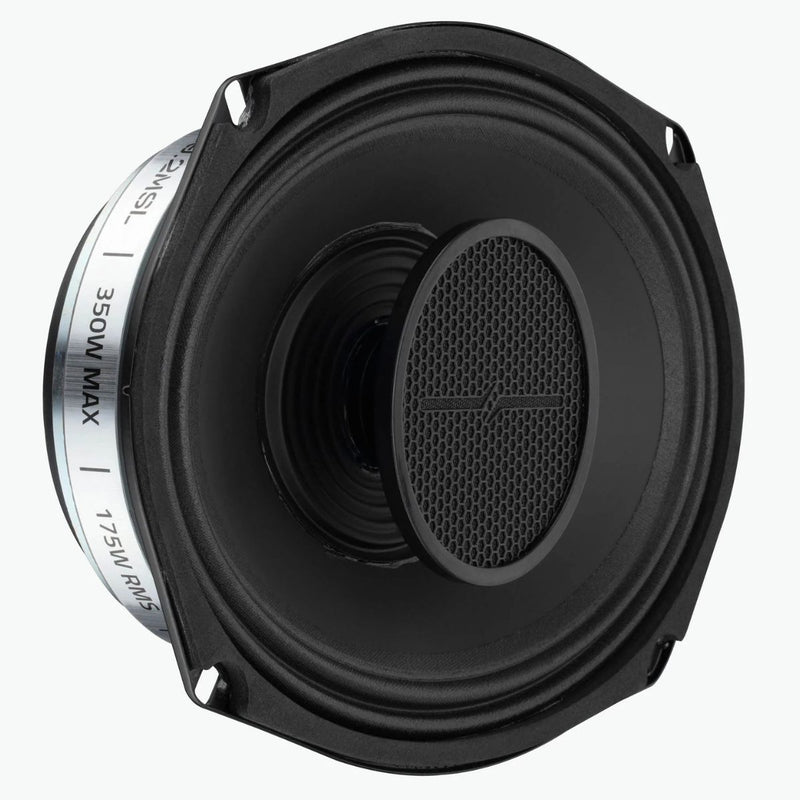

The DS18 PRO-HY69.2MSL combines a water-resistant 6x9" woofer with a 1" titanium compression driver and integrated horn for powerful midrange and clear highs. With 175W RMS power handling, 97 dB sensitivity, and a frequency response of 60 Hz to 20 kHz, this 2-way hybrid speaker delivers strong output in a compact design.
Its slim 3.4" mounting depth makes it a practical choice for motorcycle fairings, speaker pods, and custom UTV, Slingshot, and Jeep installations with compatible mounting dimensions. IP65-rated protection, a water-resistant paper cone, treated cloth surround, and included protective grille help it handle outdoor conditions.
A ferrite woofer magnet and lightweight neodymium compression-driver magnet support both midrange and high-frequency performance. Verify mounting clearance and your amplifier’s compatibility with a 2 Ohm load before installation.
Features
- 175W RMS / 350W MAX Power Handling: Delivers strong output with 97 dB sensitivity for performance-focused audio systems.
- 2-Way Hybrid Design: Combines a 6x9" woofer with a 1" titanium compression driver and integrated horn for midrange and clear highs.
- Slim 3.4" Mounting Depth: Provides a compact option for fairings, speaker pods, and custom installations with compatible dimensions.
- IP65-Rated Protection: Features a water-resistant paper cone, treated cloth surround, and grille with water and sun protection cloth.
- Ferrite and Neodymium Motors: Pairs a 25.5 oz ferrite woofer magnet with a neodymium compression-driver magnet.
Specifications
- Nominal Size: 6x9"
- Nominal Impedance: 2 Ohms
- RMS Power Handling: 175W
- MAX Power Handling: 350W
- Sensitivity: 97 dB (1W/1m)
- Frequency Response: 60 Hz to 20 kHz
- Recommended High-Pass Crossover: 80 Hz
- Configuration: 2-Way Hybrid
- Water-Resistance Rating: IP65
- Sold As: Single Unit
- Grille Included: Yes, with Water and Sun Protection Cloth
Woofer Motor and Construction
- Voice Coil Diameter: 1.5"
- Voice Coil Former Material: KSV
- Winding Material: CCAW
- Cone Material: Water-Resistant Paper
- Surround Material: Treated Cloth
- Basket Material: Steel
- Basket Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 25.5 oz
Compression Driver
- Voice Coil Diameter: 1"
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Titanium
- Magnet Material: Neodymium
- Horn Diameter: 3.15"
Dimensions
- Overall Size Without Grille: 6.4" x 9.2"
- Overall Size With Grille: 7" x 9.9"

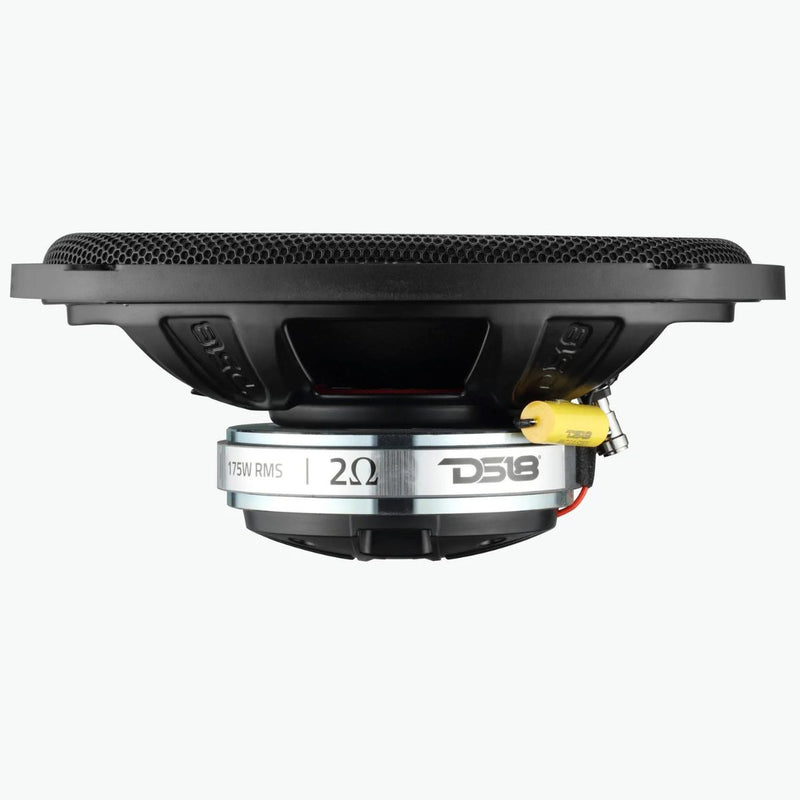

- Overall Depth Without Grille: 3.9"
- Overall Depth With Grille: 4.2"
- Mounting Cutout: 5.7" x 8.6"
- Mounting Depth: 3.4"
- Motor Diameter: 4.7"
