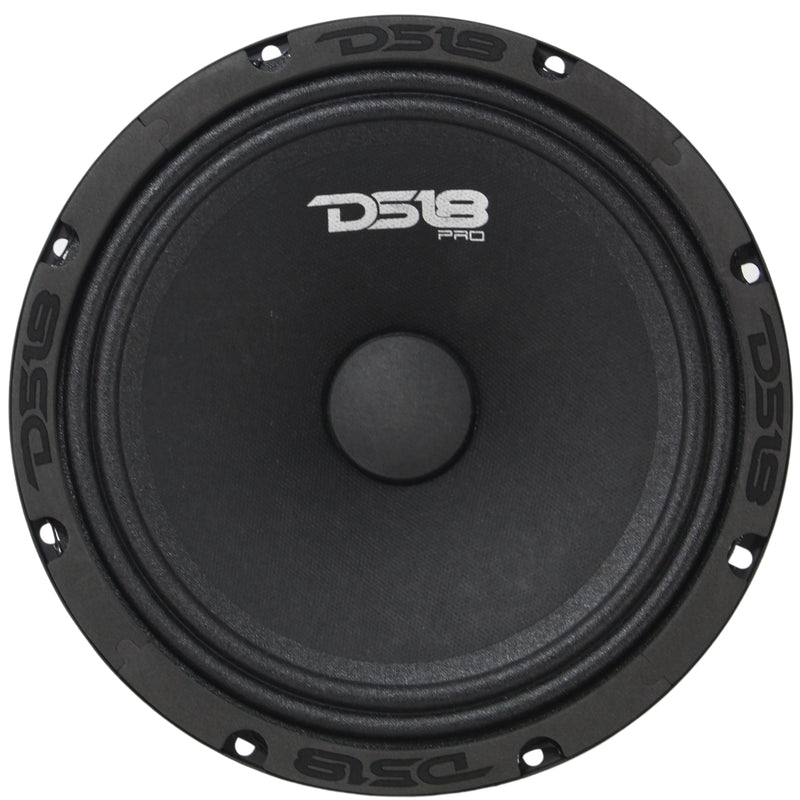

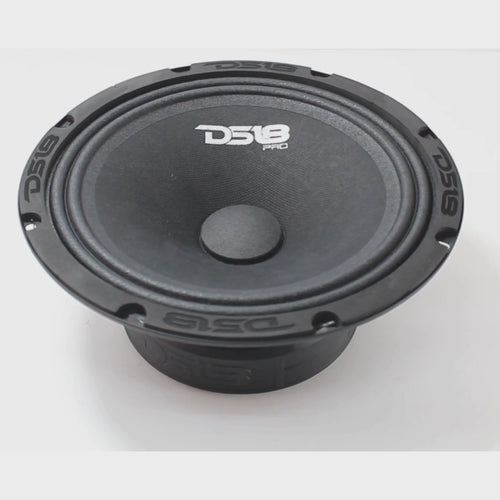

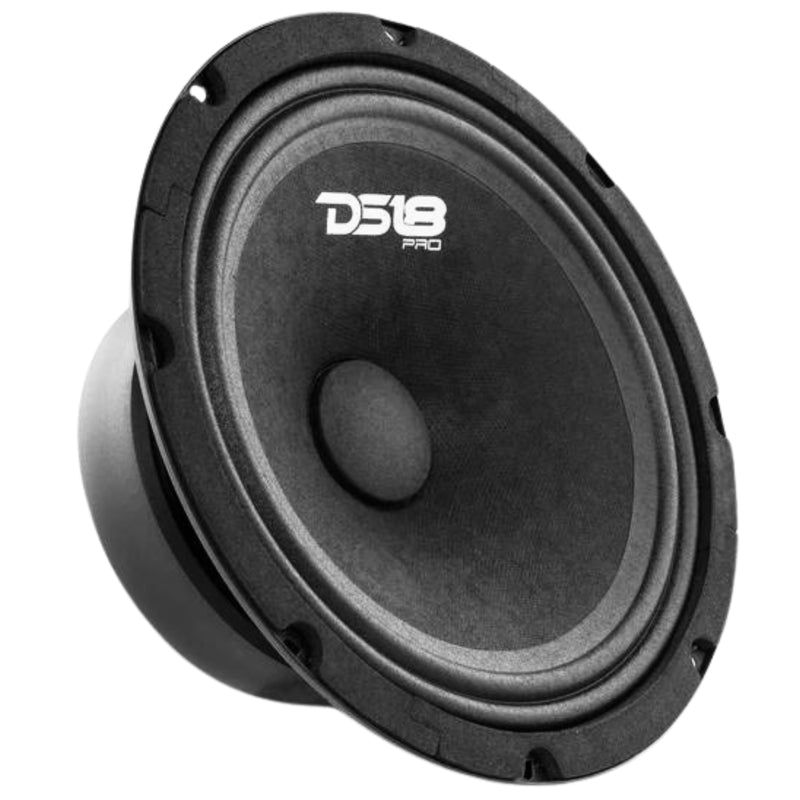

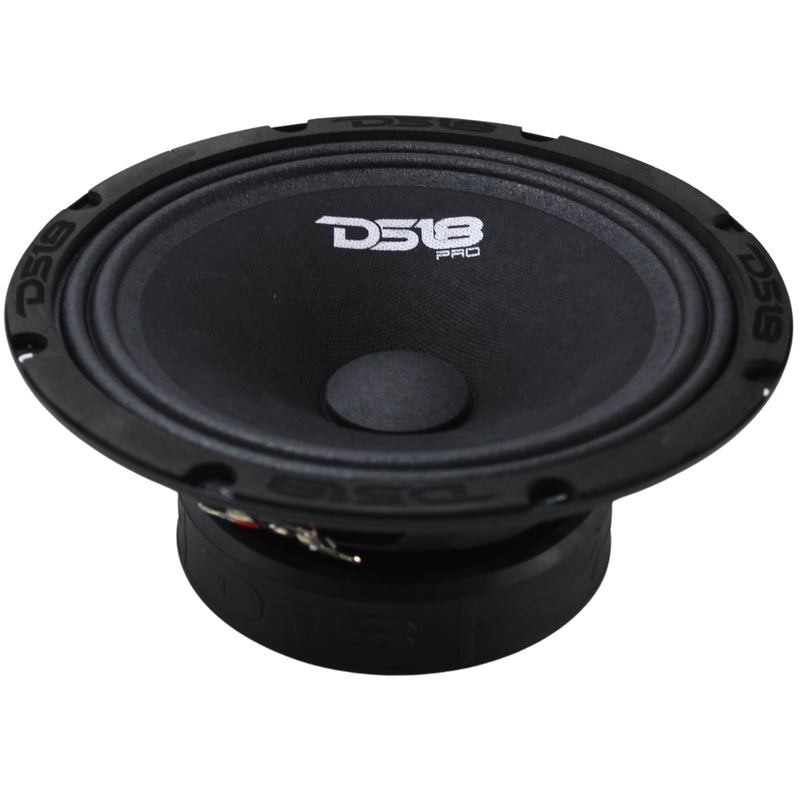

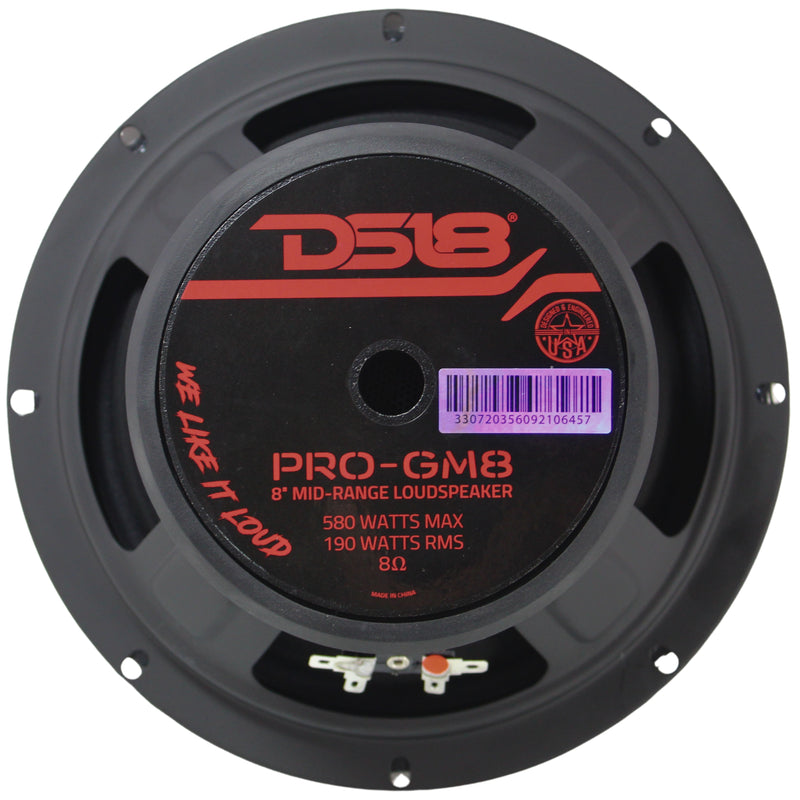

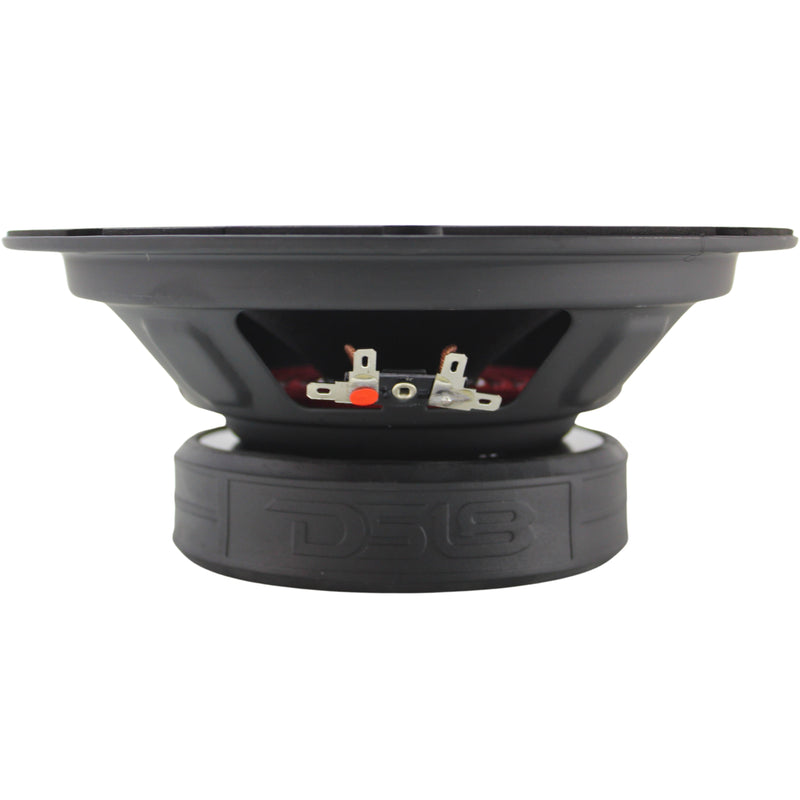

DS18 Car Audio 8" Midrange Loud Speaker 580 Watt 8 Ohm PRO-GM8

DS18 Car Audio 8" Midrange Loud Speaker 580 Watt 8 Ohm PRO-GM8

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a midrange driver of good quality be capable of low-distortion reproduction.

This listing includes:
(1) DS18 8" Midrange Loudspeaker PRO-GM8

SPECIFICATIONS:
Nominal Diameter: 8"
Nominal Impedance: 8 Ohms
RMS Power Handling: 190 Watts
Max Power Handling: 580 Watts
Sensitivity (1w/1m): 93 dB
Frequency Response: 90Hz ~ 10kHz
Recommended Hi Pass Crossover: 120Hz
Voice Coil Diameter: 1.5"
Voice Coil Former Material: Kapton
Winding Material: KCCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 Oz

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 11.078L
Free Air Resonance: Fs - 100 Hz
Mechanical Factor: Qms - 8.648
Electrical Factor: Qes - 0.983
Total Factor: Qts - 0.883
DC Resistance: Re - 6.5 Ohms

MEASUREMENTS:
Overall Diameter: 8.26" (210mm)
Overall Depth: 3.46" (88mm)
Front Mount Baffle Cutout: 7.2" (183mm)
Mounting Depth: 3.22" (82mm)
Motor Diameter: 4.72" (120mm)
