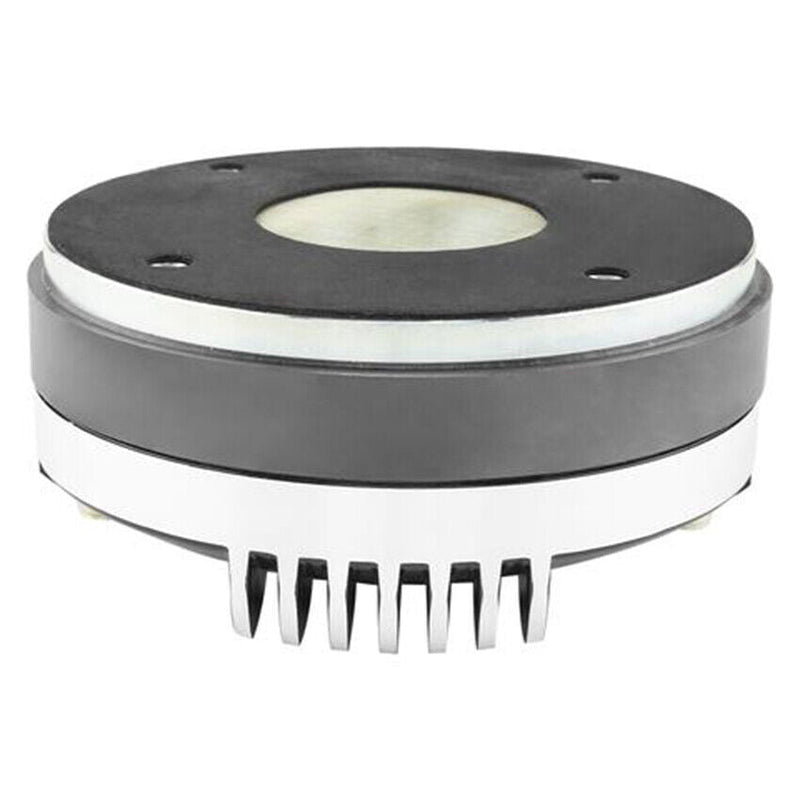

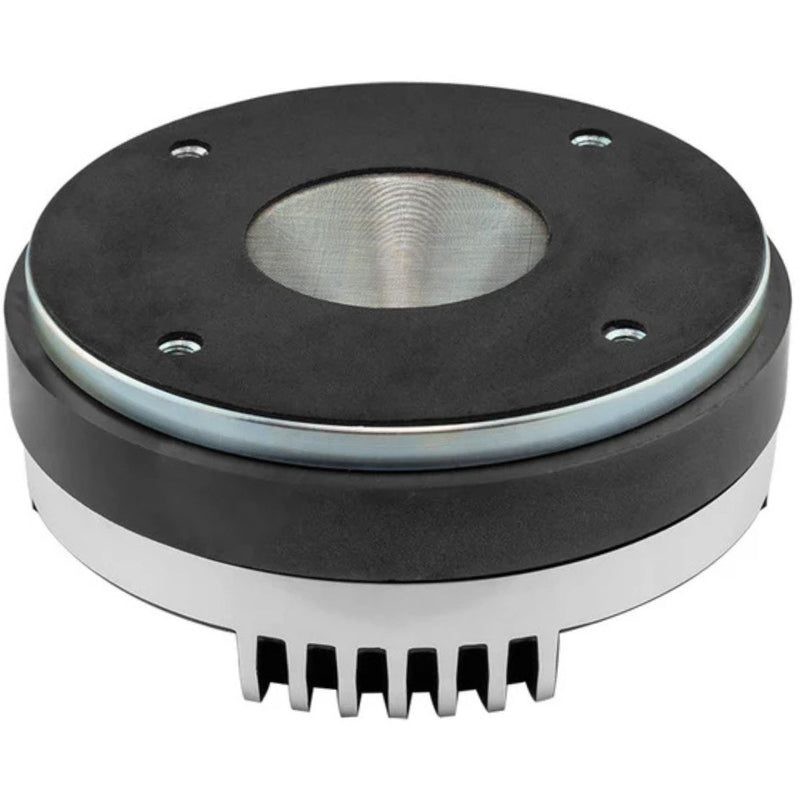

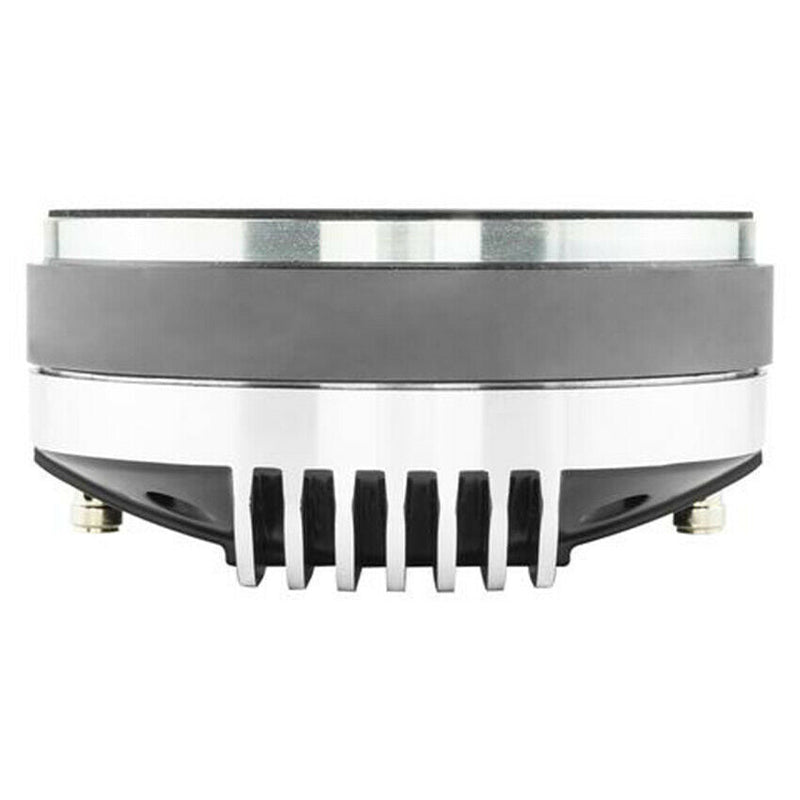

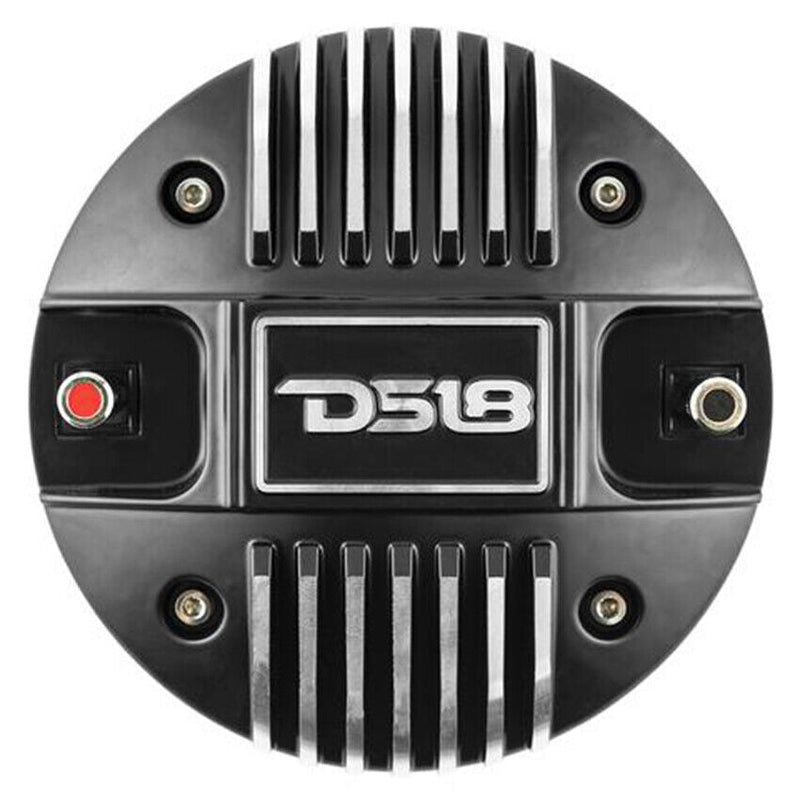

DS18 PRO-D1 2" 640W Titanium 4 Bolt Compression Driver 8 Ohm Car Audio

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.

This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.

This listing includes:

(1) PRO-D1 2" Compression Driver

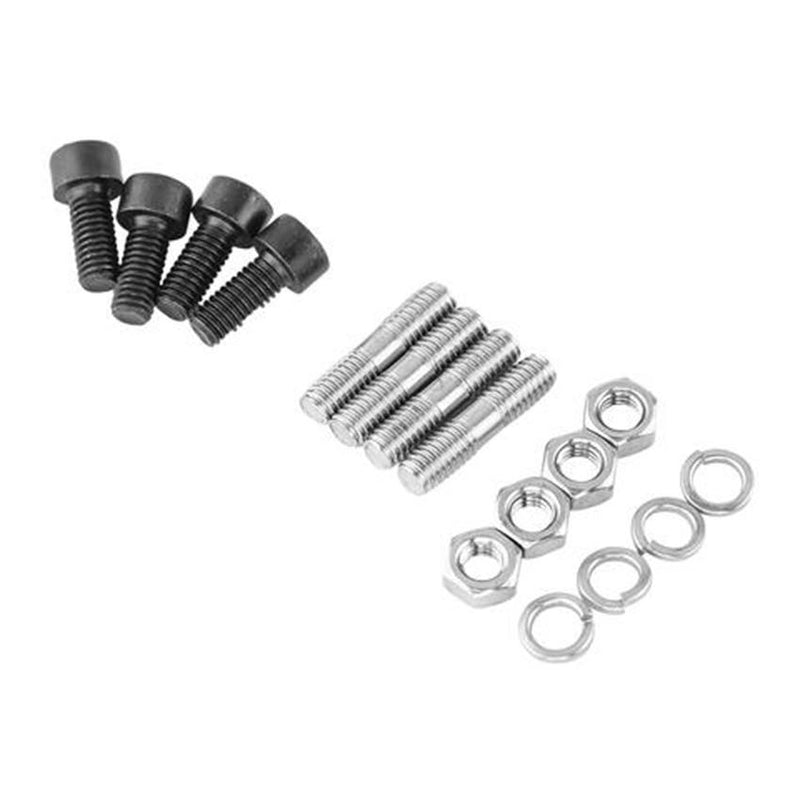

2 Hardware styles! Bolts & Studs!

FEATURES

- Ferrite motor structure that provides great motor force and loudness.

- High strength Titanium voice coil taking 160 AES watts and 640 Peak watts.

- Intense high frequency volume without sacrificing sound quality.

- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.

SPECIFICATIONS

Type: Compression

RMS Power: 320 W Per Driver

MAX Power: 640 W Per Driver

AES Power: 160W

Sensitivity: 100dB

Voice Coil Size: 2.03"

Impedance: 8 Ohm

Frequency Response: 630Hz-20KHz

Recommended Hi Pass Crossover: 800Hz

Magnet: High Strength Ferrite

Diaphragm Material: Titanium

Voice Coil Wire: KSV & Flat Wire

Voice Coil Diameter: 2.03"

Voice Coil Former Material: Kapton

Winding Material: CCA

Magnet Weight: 35oz

Throat Diameter: 2"

Overall Diameter: 5.27"

Overall Depth: 2.4"

Replacement Diaphragm Model: PRO-D1VC

Installation Type: Bolt-on
