- Full Pro audio mid-range and tweeter package that includes 4 of our high-end extremely loud PRO-EXL68 pro audio mid-range paired with two pairs of PRO-TWX2 super tweeters for a complete frequency coverage at extreme volumes.
- Our PRO-TWX2 Super tweeters are some of the most popular we offer and are sure to bring your setup absolutely screaming highs that will perfectly match your 6.5-inch midrange speakers.
- The included GFX1.4K1 high powered amplifier that is an amazing fit for your speakers with easy to install wiring kit to get you up and playing in no time and has a full range crossover to help you set your perfect crossover points for you speaker selections.
DS18 Pro Audio Package 4 x 6.5" Mid-Range Speakers, Tweeters, 1ch Amp/Wire Kit
Sometimes there are just too many selections and audio choices can be overwhelming. Leave it to our Audio experts to come up with a package with everything you need all included in one combo to ease your pain of selection. This combo has been specially picked by our top audio experts to be perfect matches for their counterparts and provide amazing clarity and loudness that will please any audio enthusiast.
This Listing Includes:
(4) DS18 PRO-EXL68 Mid-Range Loudspeaker
(4) DS18 PRO-TWX2 Aluminum Super Bullet Tweeter
(1) DS18 GFX 1.4K1 Monoblock Amplifier
(1) AMPKIT4
Features for PRO-EXL68:
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.
- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.
- Large push style connections for large wire and maximum power flow from your amp.

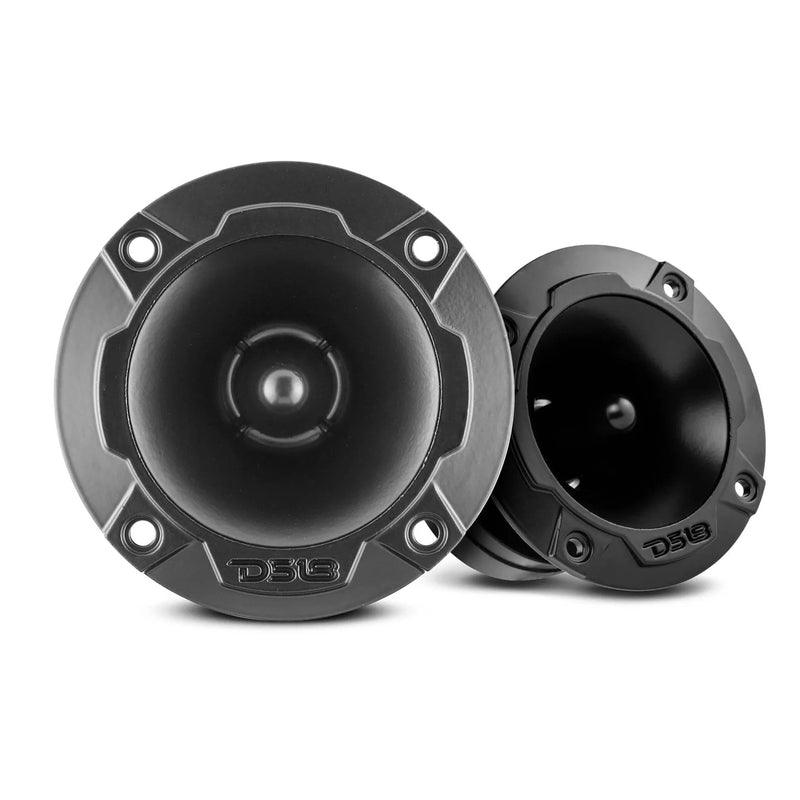

Features for PRO-TWX2:
- Handles high frequencies with ease so you can enjoy your favorite music with loudness and sound quality combined.
- Powerful and reliable Titanium 4-Ohms 1-inch voice coil rated at 60 watts AES, 120 watts program, and 240 peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Professional grade Pro-Audio tweeter that takes your sound system to the next level!
- Designed to be repaired quickly and easily with our drop in voice coil kits that can be installed in less than 5 minutes.
- Extremely high 103.5 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.
- The ferrite motor structure, with a mounting depth of only 2.56 inches is robust yet small enough to fit an a wide and almost limitless number of applications.

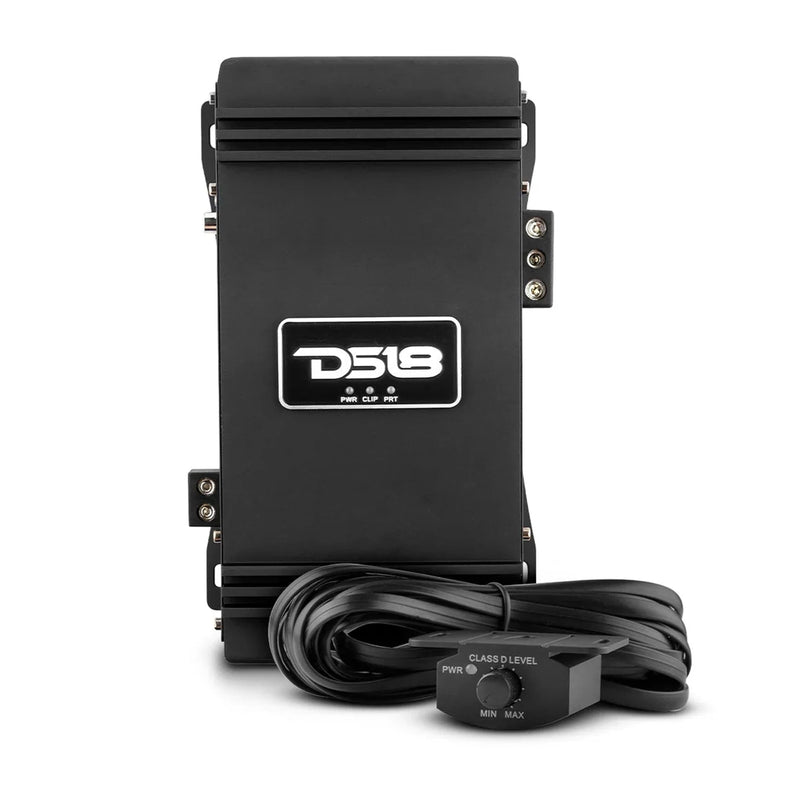

Features for GFX 1.4K1:
- Great power per size ratio packing in 1400w in a very small package
- Power rating of 550 watts @ 4-Ohms, 950 watts @ 2-Ohms, and 1400 watts @ 1-Ohm for great full range power at any of the recommended ohm loads.
- Digital Monoblock Full bridge design maximizes power by using high quality components maximizing power and size
- Adjust crossover filters to get the perfect sound for your speaker combination
- Remote level inputs for easily adjusting amplifier volume on the go
- Intelligent cooling fan system for powerful and reliable performance
- Frequency response of 15Hz-20KHz making it a great choice for Pro-Audio
- Built in High-Pass and Low-Pass filters to help you get the perfect sound
- Adjustable bass boost from 0-12dB with included Level control knob for on-the-go volume changes.
- Power, Protection, and Clipping indicators will help you monitor your amp easily with colored LEDs.
- Safety features that protect the amp from damage from clipping, thermal limits, over-load, Impedance, short-circuit and voltage failures.
Specifications:
PRO-EXL68
Nominal Diameter: 6.5"
Nominal Impedance: 8 ohms
RMS Power Handing: 300 Watts
Maximum Power Handing: 600 Watts
Sensitivity (1w/1m): 92dB
Frequency Response: 100Hz-12.5KHz
Recommended HI Pass Crossover: 180Hz
Nominal Diameter: 6.5inch
Motor
Voice Coil Diameter: 2"
Voice Coil Former Material: Glass fiber
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 32 Oz
Displacement Volume: 0.047L
Measurements
Overall Diameter: 6.81" / 173mm
Overall Depth: 3.7" / 94mm
Front Mount Baffle Cutout: 5.9" / 150mm
Mouting Depth: 3.34" / 85mm
Motor Diameter: 4.72" / 120mm
PRO-TWX2
Nominal Diameter: 3.78" / 96mm
Nominal Impedance: 4 ohm
AES Power handling: 60 Watts
Program Power handling: 120 Watts
Peak Power handling: 240 Watts
Sensitivity (1w/1m): 103.5 dB
Frequency Response: 3.5KHz-20KHz
Recommended Hi Pass Crossover: 3.5KHz
Motor
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 8 Oz
Body Material: Aluminum
Bullet Material: Aluminum
Measurements
Overall Diameter: 3.78" / 96mm
Overall Depth: 2.78" / 70.5mm
Front Mount Baffle Cutout: 2.83" / 72mm
Mounting Depth: 2.56" / 65mm
Motor Diameter: 2.76" / 70mm
GFX-1.4k1
Power @ 8 ohms (14.4V) N/A
Power @ 4 ohms (14.4V) 550 Watts
Power @ 2 ohms (14.4V) 950 Watts
Power @ 1 ohms (14.4V) 1400 Watts
Power @ 0.5 ohms (14.4V) N/A
Frequency Response: 15Hz-20KHZ
Total Harmonic Distortion (THD): 0.01
Low level Input Range: 0.5 ~ 8V
Hi Pass X-Over Filter Range: 15Hz - 2KHZ
Low Pass X-Over Filter Range: 50Hz - 20KHZ
Bass Boost Range: 0 ~ 12dB
Bass Boost Frequency: 35Hz - 70HZ
Recommended Fuse: 140A
Minimum Impedance: 1 ohm
Power Input Terminal Size: 2 AWG

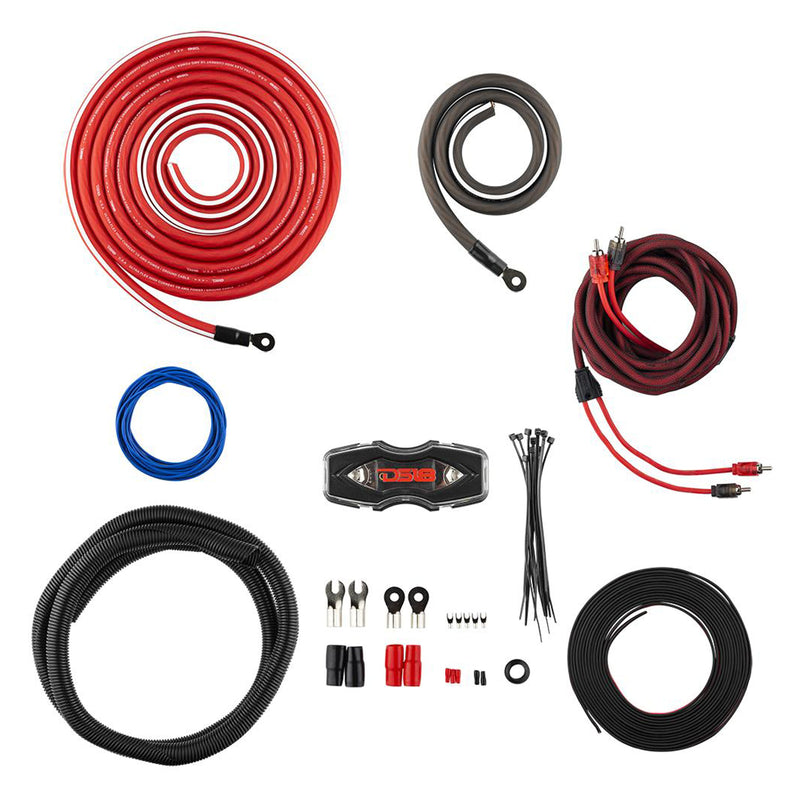

AMPKIT4
What's in the box:
ANL fuse holder with ANL-100A
6 ft. 4-GA Loom Tube
Rubber Grommet
17 ft. Red Power Cable: 21mm OD: 10mm
3 ft. Black Ground Cable: 21mm OD: 10mm
17 ft. Red/Black Twisted RCA Cable
17 ft. Remote Cable 20 x 0.15mm
17 ft. Red/Black Speaker Cable 1.31mm x 2 wires OD 3.2 x 6.4mm
4GA Accessories Set:
10 Cable Ties
2 Ring Terminals
2 Spade Terminals
5 Small Spade Terminals
1 Rubber Grommet
