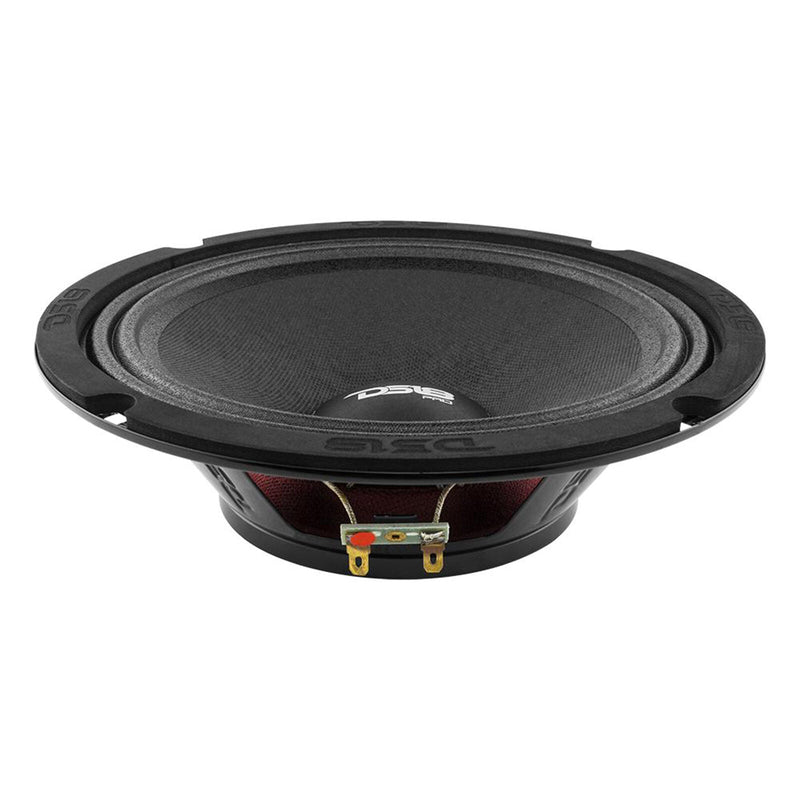

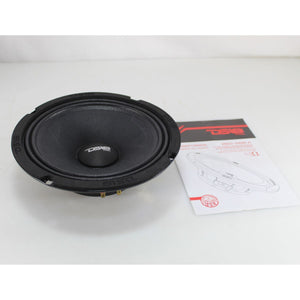

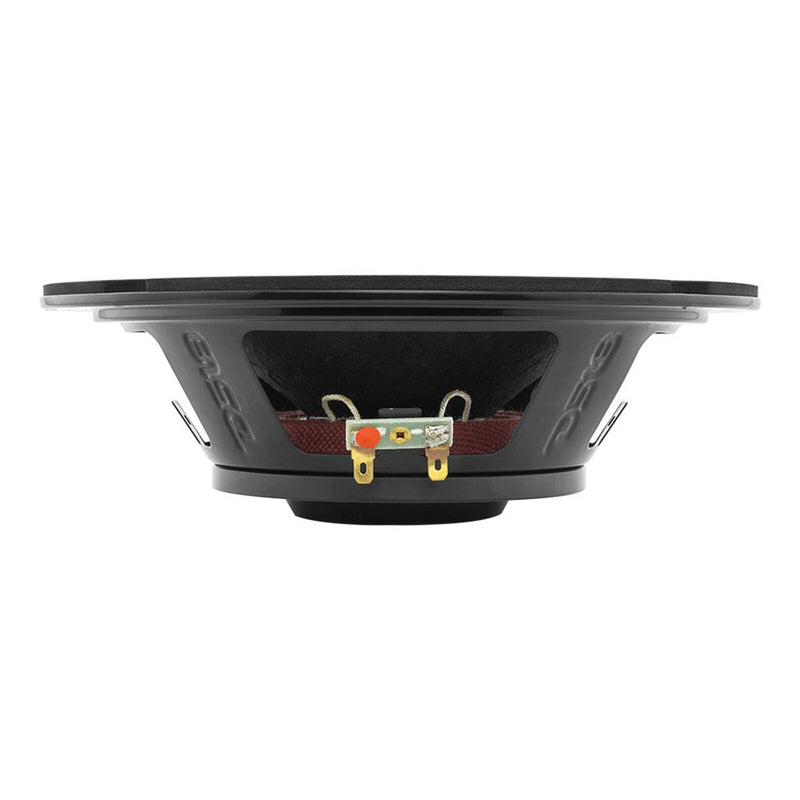

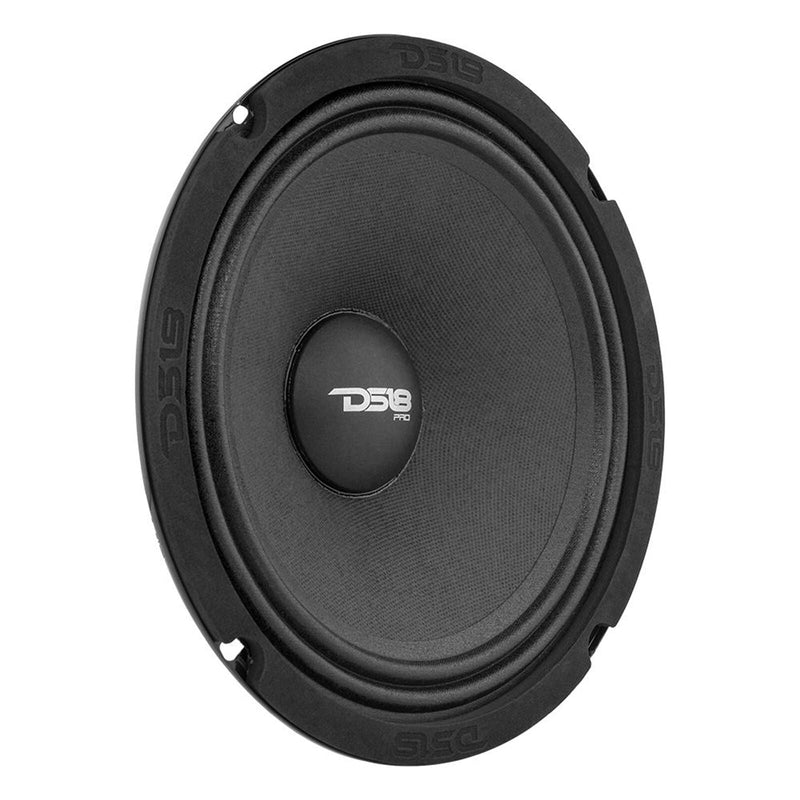

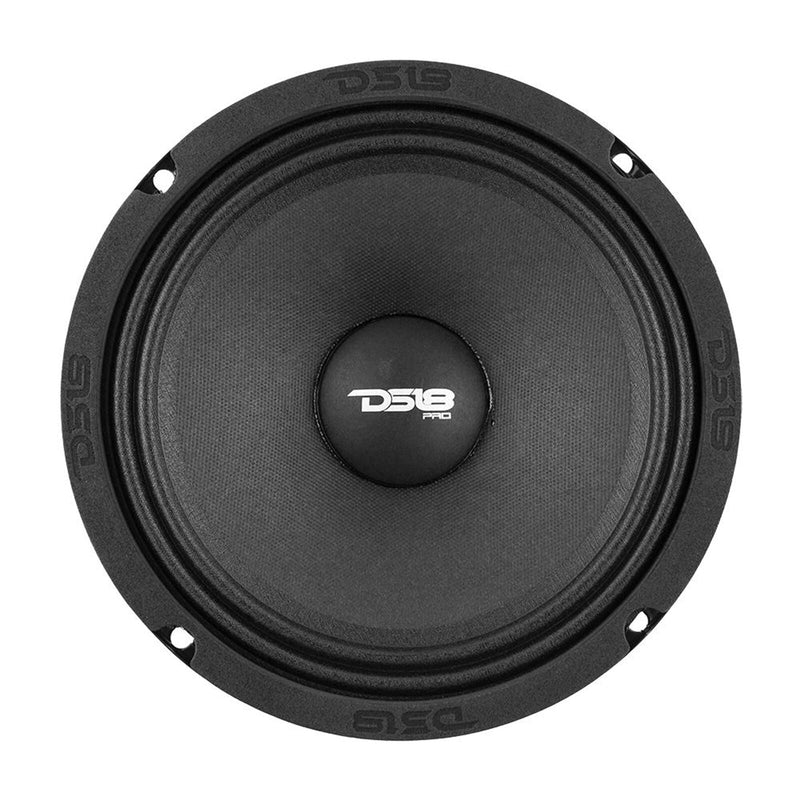

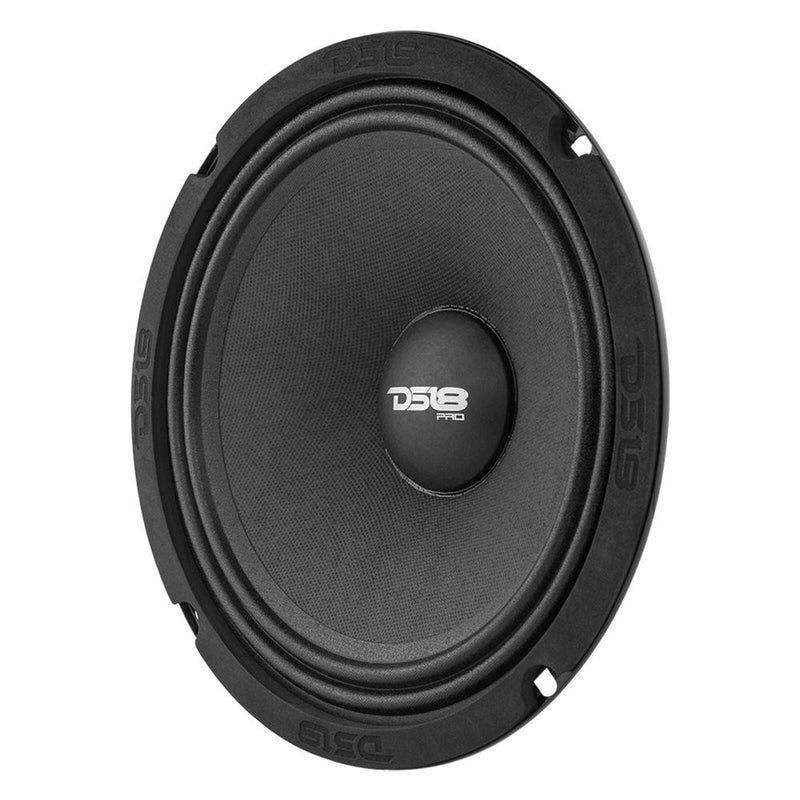

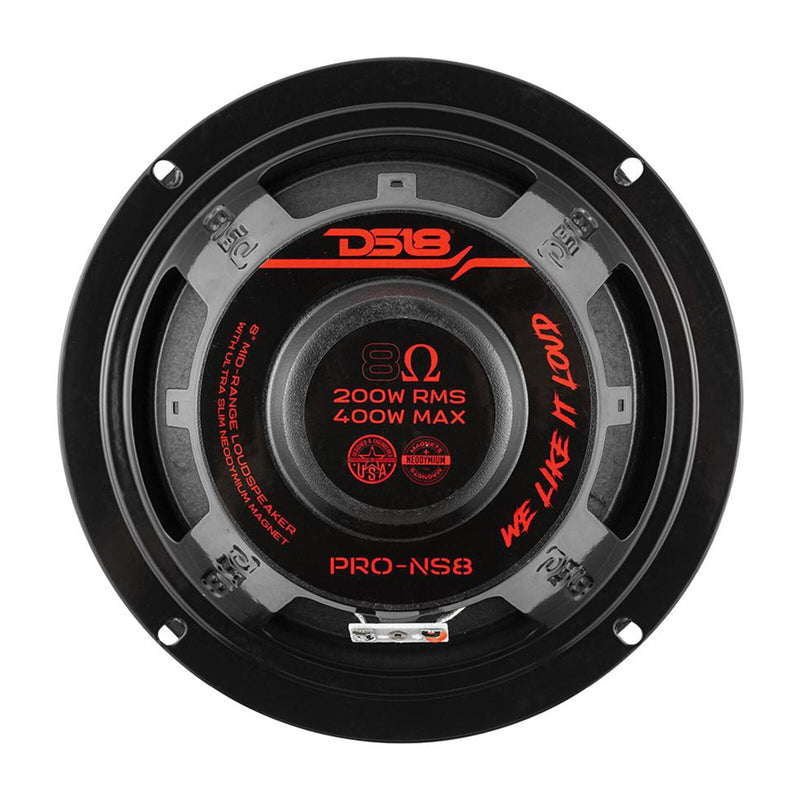

DS18 PRO 8" Mid-Range Speaker 400 Watt 8 Ohm with Ultra Slim Neodymium Magnet

DS18 SKU: DS-PRO-NS8

$79.95

Shipping calculated at checkout

Available Now!

DS18 PRO 8" Mid-Range Speaker 400 Watt 8 Ohm with Ultra Slim Neodymium Magnet

The PRO series is a special DS18 line for incredible sounding audio that not only has very high volume, but also amazing sound quality for a great price. This 8" inch, 8 ohm mid-range speaker is designed for audio enthusiasts  as these speakers have a great range of frequencies and are very loud. 400 watt max power handling so you can pump up the volume with no worries. Ultra Slim Neodymium magnet allows for a shallow mounting depth of only 2.48".

This Listing Includes:
(1)  DS18 8" Mid-Range Speaker PRO-NS8

Features:
- Ultra Slim Neodymium magnet allows for shallow mounting.
- High Power handling of 400 Watts for hi volume listening.
- Glossy Black Basket finish.

GENERAL SPECIFICATIONS:
Nominal Diameter: 8"
Nominal Impedance: 8 Ohm
RMS Power Handling: 200W
MAX Power Handling: 400W
Sensitivity (1w/1m): 96dB
Frequency Response: 97Hz-12KHz
Recommended Hi Pass Crossover: 160Hz

MOTOR SPECIFICATIONS:
Voice Coil Diameter: 2" / 50.8mm
Voice Coil Former Material: KSV
Winding Material: Copper
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Neodymium
Magnet Weight: 3.32 Oz / 94.12g

THIELE & SMALL PARAMETERS:
Equivalent Volume: 5.48L
Excursion (one way): 2 mm
Free Air Resonance: 120Hz
Mechanical Factor: 3.781
Electrical Factor: 0.952
Total Factor: .761
Mechanical Mass: 13.242 g
Mechanical Compliance: 162m cm/N
BL Factor: 6.029
Voice Coil Inductance: 7.011 mH
Cone Area: 213.825 cm3
DC Resistance: 6.5 ohm
Mechanical Mass w/o air: 13.07g

DIMENSIONS:
Overall Diameter: 8.2" / 208 mm
Overall Depth: 2.67" / 68 mm
Front Mount Baffle Cutout: 7.12"/181 mm
Mounting Depth: 2.48" / 63 mm
Motor Diameter: 4.33" / 110  mm
