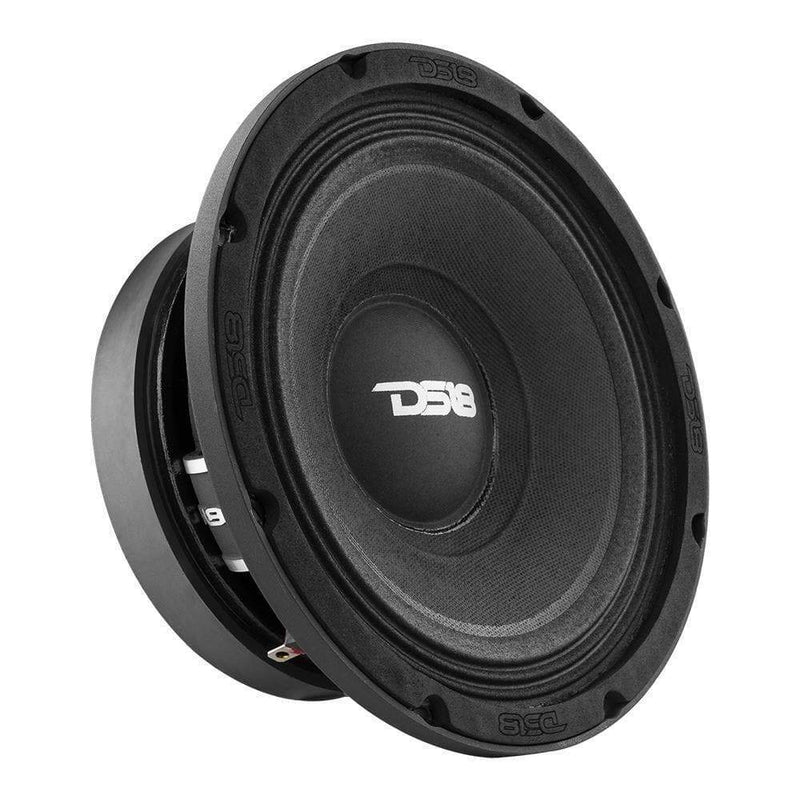

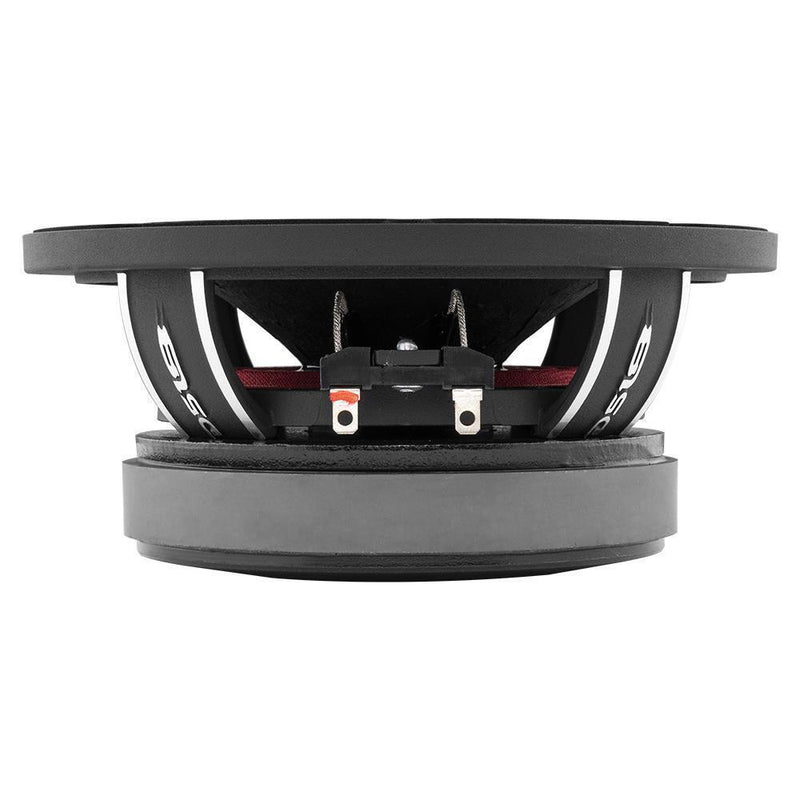

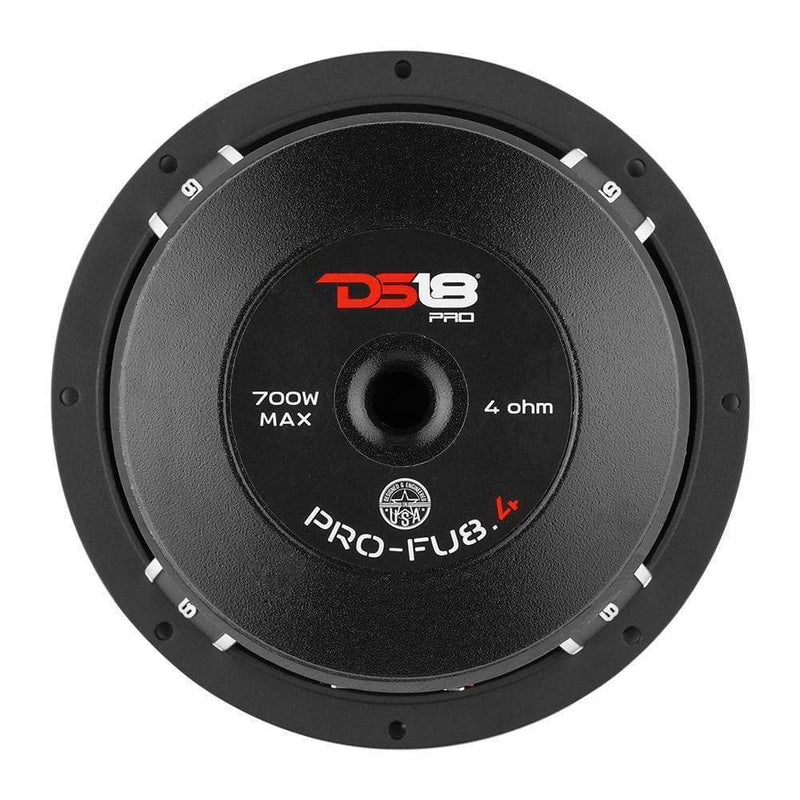

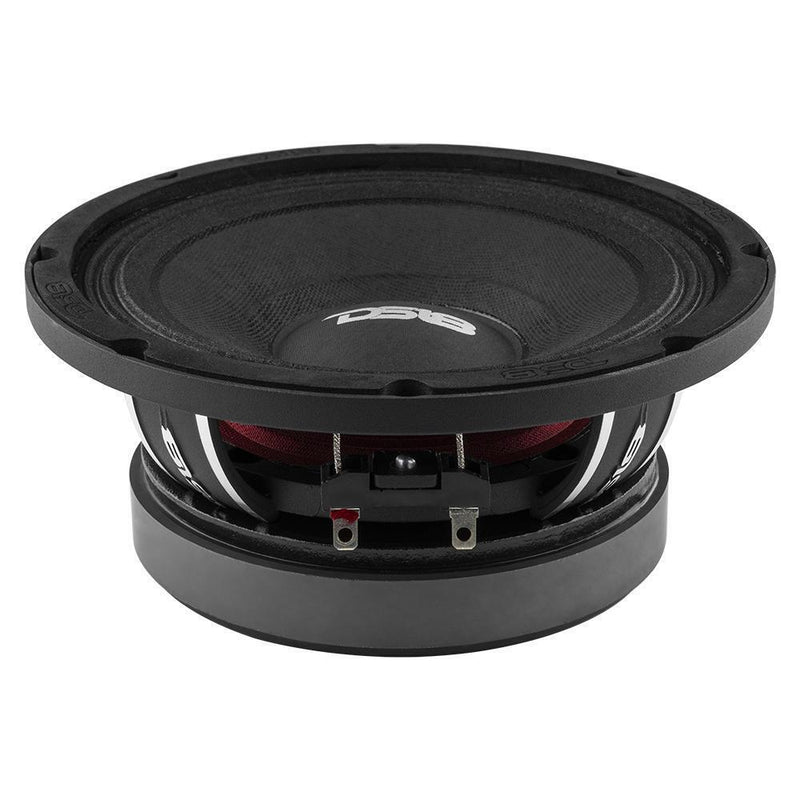

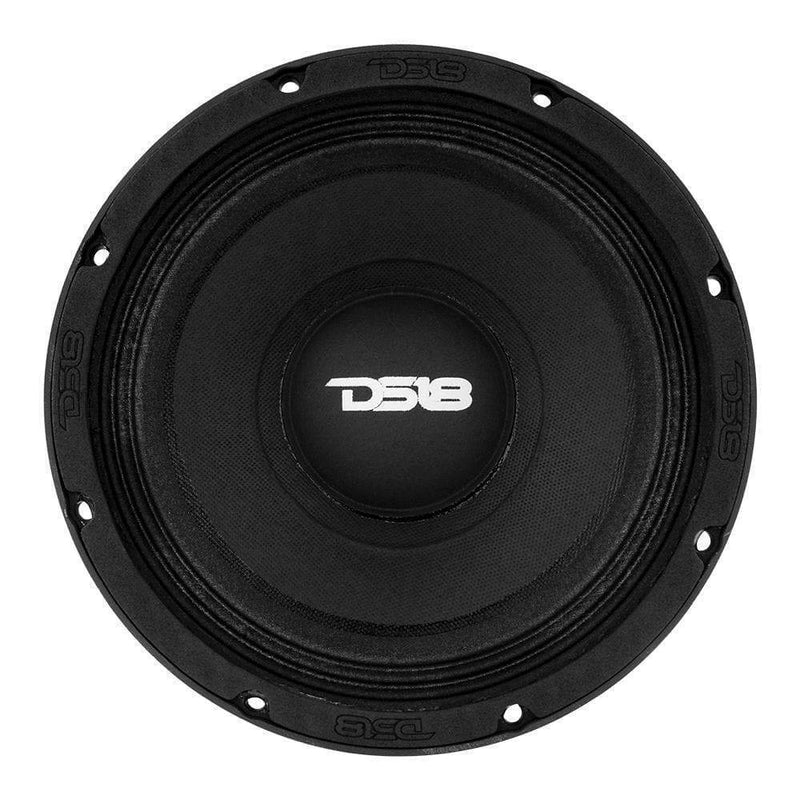

DS18 Car Audio 8" Mid-High Loudspeaker 700 Watt 4 Ohm PRO-FU8.4
A fresh new DS18 Mid-High speaker has landed on the pro audio scene! The PRO FU8.4 sports a 2 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 2 inch voice coil will take 350 Watts RMS and 700 Watts MAX with extreme efficiency and reliability. The PRO FU will will give you screaming vocals but have enough cone area to help with you with your mid-bass.
This Listing Includes:
(1) DS18 8" Mid-High Loudspeaker PRO-FU8.4
SPECIFICATIONS PER SPEAKER:
Nominal Diameter: 8"
Nominal Impedance: 4 Ohm
MAX Power Handling: 700 Watts
RMS Power Handling: 350 Watts
Sensitivity (1w/1m): 94.9dB
Frequency Response: 100Hz ~ 5KHz
Recommended HI Pass Crossover: 120Hz
Voice Coil Diameter: 2" (50.8mm)
Voice Coil Former Material: Fiber Glass
Winding Material: CCA
Cone Material: Non-Pressed Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 57 Oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 17.08L
Excursion: X-max - 0.9mm
Free Air Resonance: Fs - 72.5Hz
Mechanical Factor: Qms - 7.531
Electrical Factor: Qes - 0.322
Total Factor: Qts - 0.308
Cone Area: Sd - 207.24cm
DC Resistance: Re - 2.8 Ohm
Moving Mass: Mms - 17.187g
Compliance: Cms - 280.07 mm/N
Force Factor: BL - 8.25
Mechanical Mass w/o Air: Mmd - 15.471g
Efficiency Bandwidth Product: Ebp - 225
DIMENSIONS PER SPEAKER:
Overall Diameter: 8.34" (212mm)
Front Mount Baffle Cutout: 7.16" (182mm)
Mounting Depth: 3.26" (83mm)
Overall Depth: 3.77" (96mm)
Motor Diameter: 6.14" (156mm)
