Many DS18 fans have been wanting an 8 ohm version of the hugely popular NEO-R series of 6.5"s. We have obliged the overwhelming requests by releasing the new PRO-NRO6.8R! This Neodymium driven midrange speaker will be the LOUDEST 6.5" we have while also handling the MOST power! The great thing about NEO motor structures is that you get better performance, higher wattage handing, better efficiency, and much lighter in weight than a traditional speaker with a ferrite motor structure. This is an 8 ohm speaker that handles 300 watts RMS and 600 watts MAX power with a n incredible DB sensitivity rating of 96db. This Neo also has an amazing cone design to help this screaming mid range all the way from 90hz to 10,000hz with extreme clarity and volume.
This listing includes:

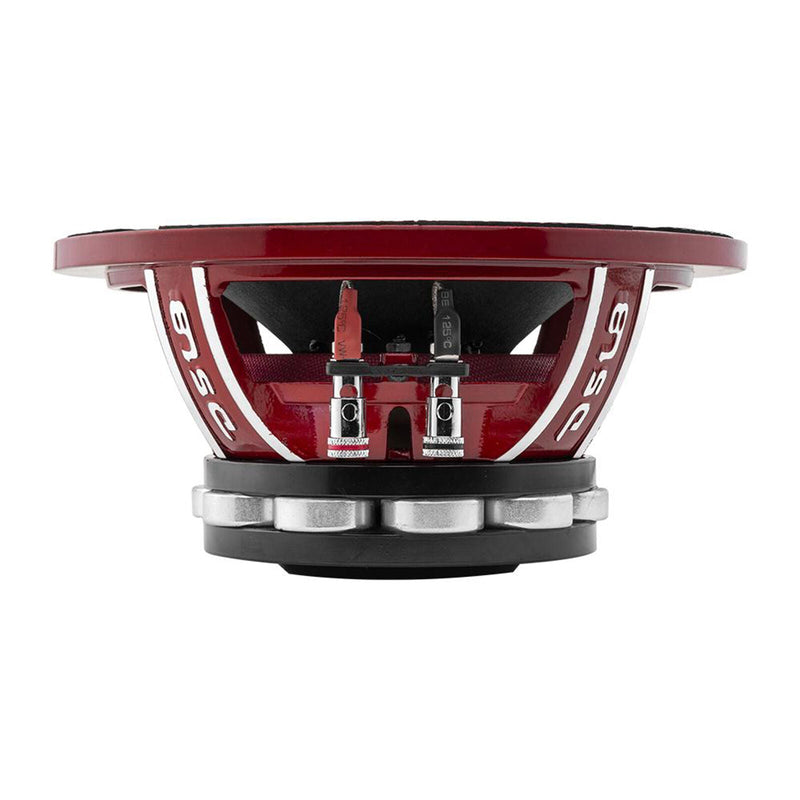

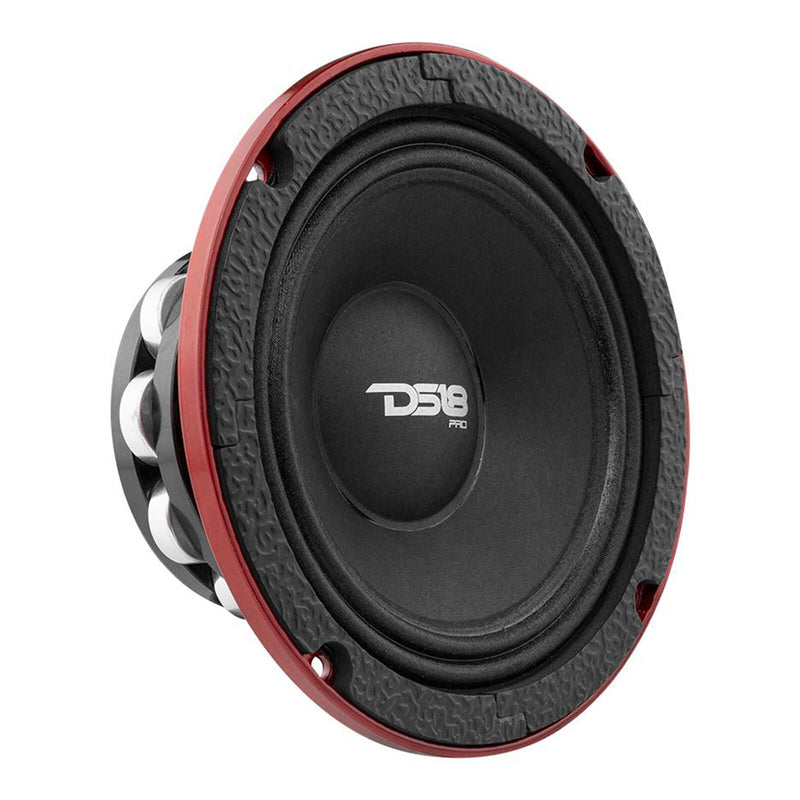

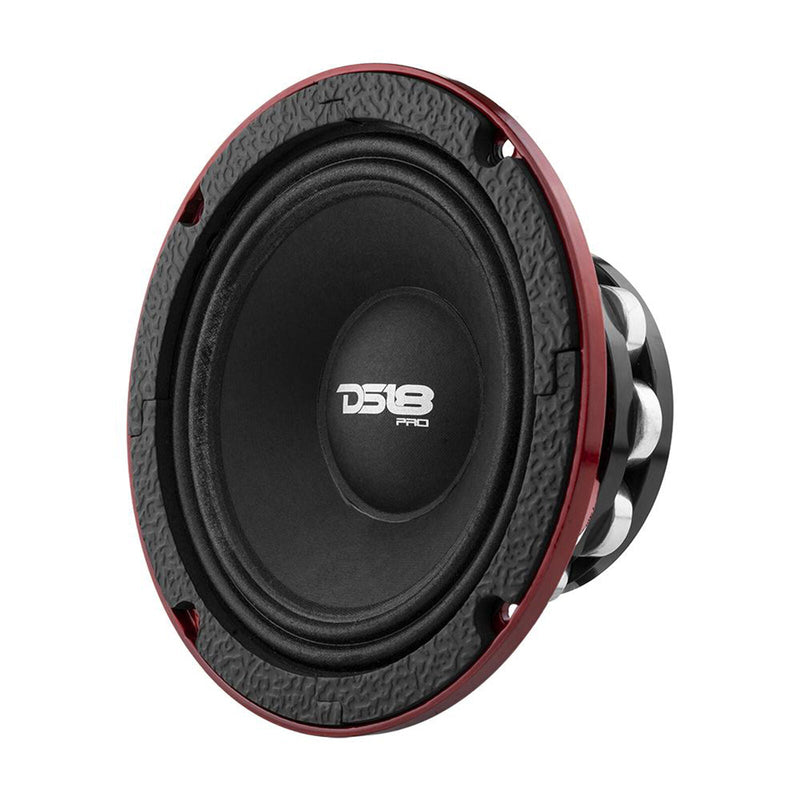

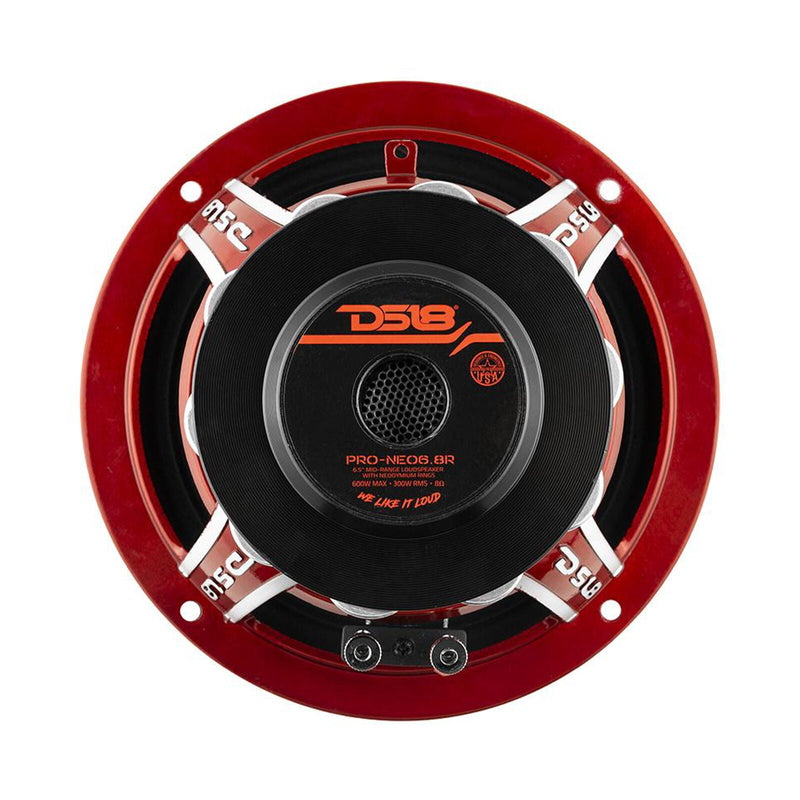

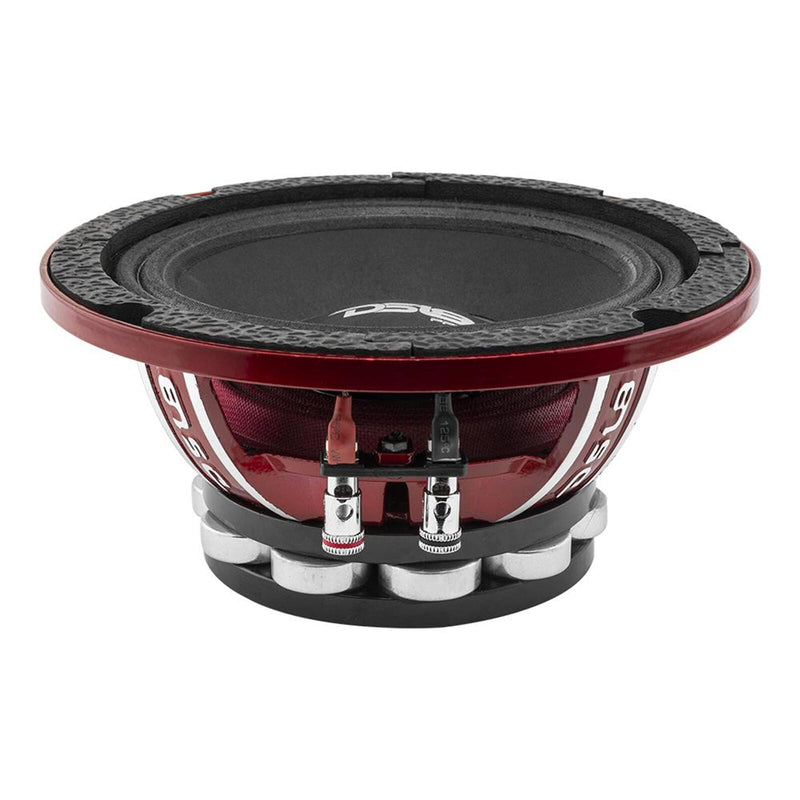

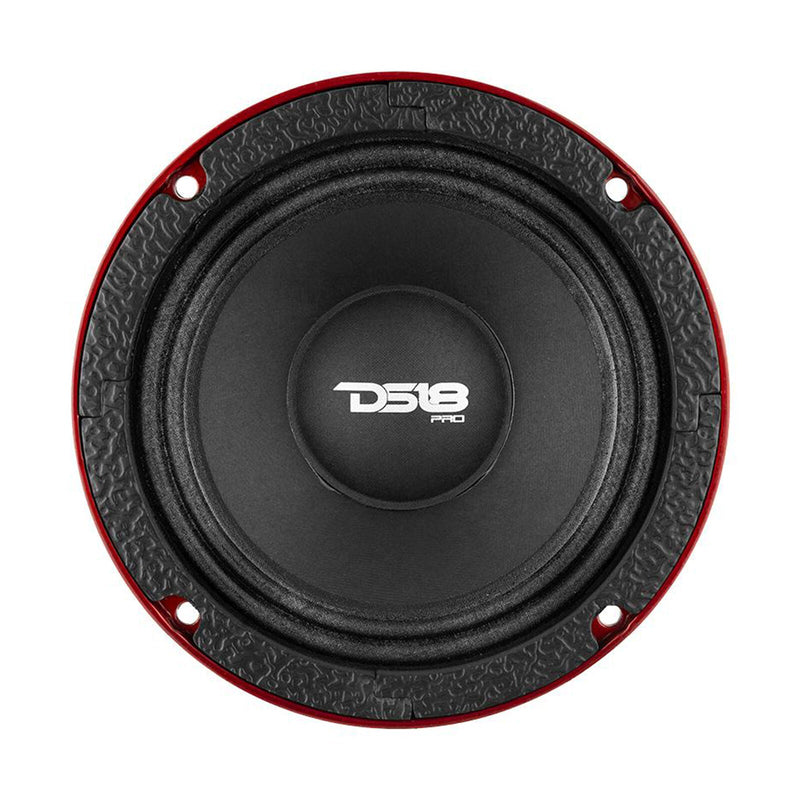

(1) DS18 6.5" Midrange Speaker PRO-NEO6.8R
FEATURES:
- Neodymium motor structure that handles more power, lighter, and more efficient than ferrite motors
- High RMS rating of 300w RMS and 600w MAX @8 ohms so you can have a very high powered 6.5" to blow away the competition
- High decibel rating so it does not take max power to get the fullest sound
- High powered aluminum voice coil backed by an intense neodymium rings magnet for more volume at the highest efficiency
- Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals
SPECIFICATIONS
Nominal Diameter: 6.5" (165mm)
Nominal Impedance: 8 Ohm
RMS Power Handling: 300W
MAX Power Handling: 600W
Sensitivity (1w/1m): 96 dB
Frequency Response: 90Hz-10000Hz
Recommended Hi Pass Crossover: 160 Hz
MOTOR SPECIFICATIONS:
Voice Coil Diameter: 2"/50.8mm
VC Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color/Finish: Glossy Red
Magnet Material: Neodymium Rings
Magnet Weight: 11.4 Oz
Displacement Volume: 0.045 L
THIELE & SMALL PARAMETERS:
Equivalent Volume: 6.498 Ltr
Excursion (one way): 3.6mm
Free Air Resonance: 83 Hz
Mechanical Factor: 4.4
Electrical Factor: 0.229
Total Factor: 0.218
Mechanical Mass: 13.248
Mechanical Compliance: 276.373 u/M/N
BL Factor: 13.466
Cone Area: 145cm
DC Resistance: 6.0 ohm
Mechanical Mass w/o air: 12.638 g
DIMENSIONS:
Overall Diameter: 6.88" (174.8mm)
Overall Depth: 3.29" (83.7mm)
Front Mount Baffle Cutout: 5.91" (150.3mm)
Mounting Depth: 3.29" (83.7mm)
Motor Diameter: 6.88" (174.8mm)
