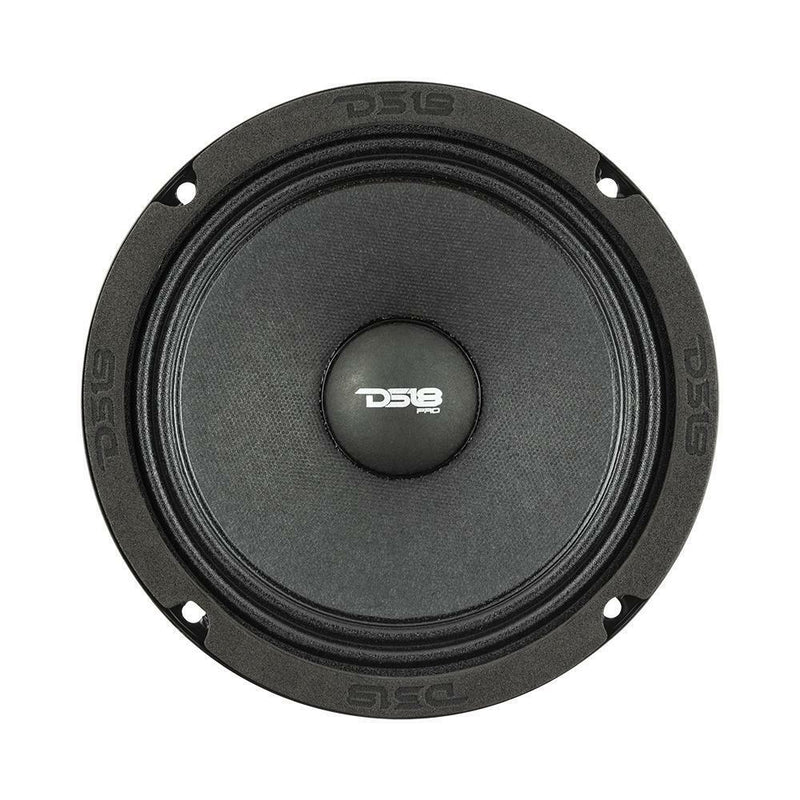

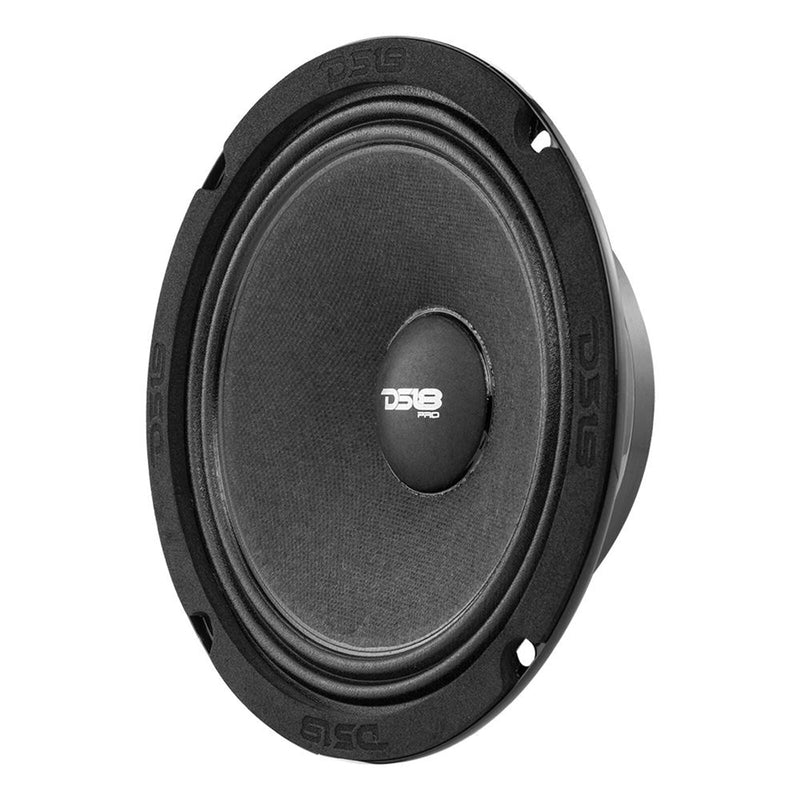

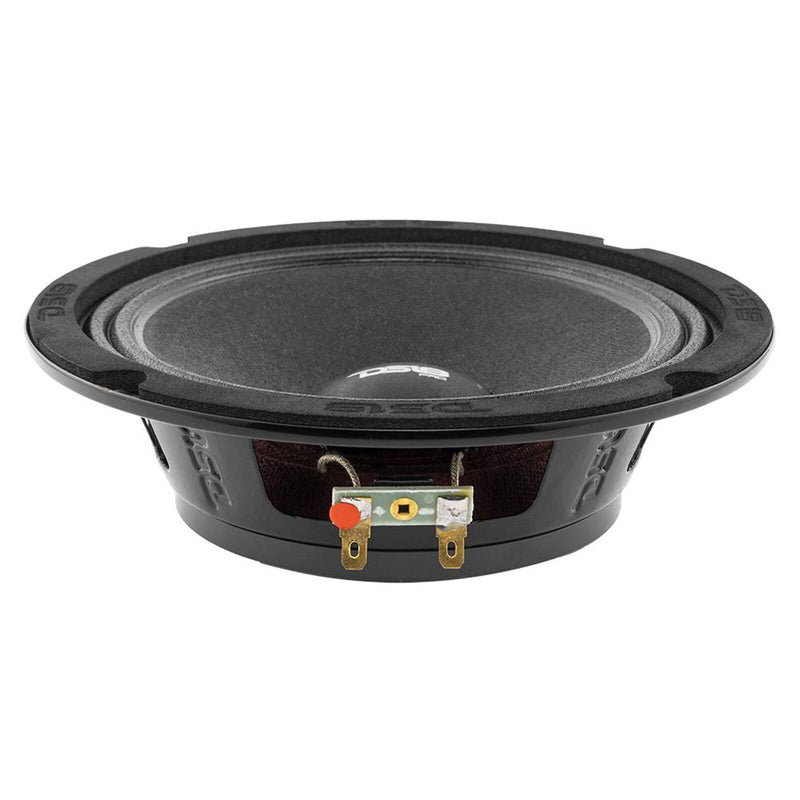

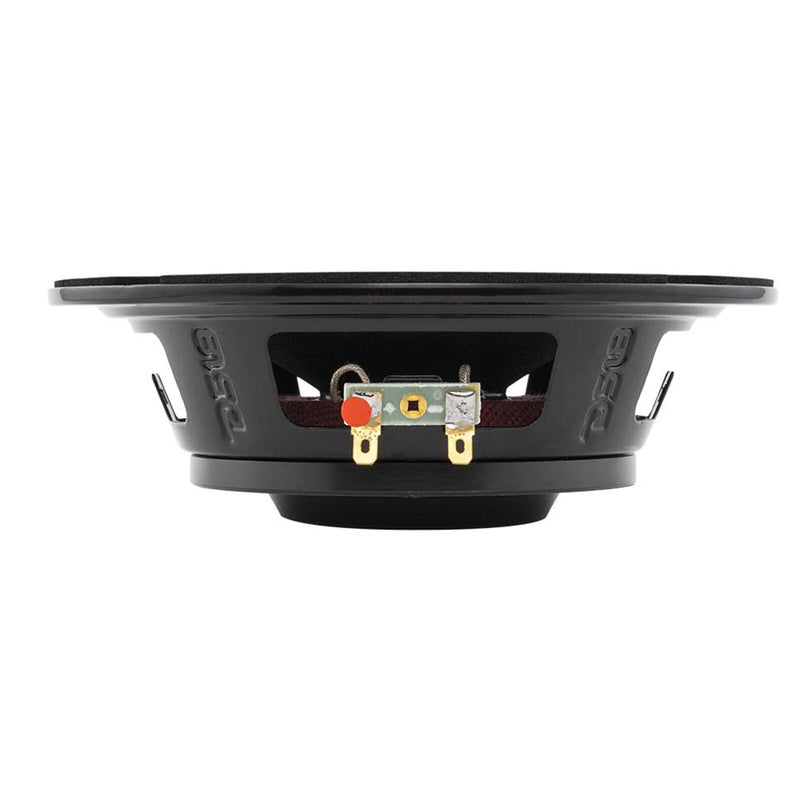

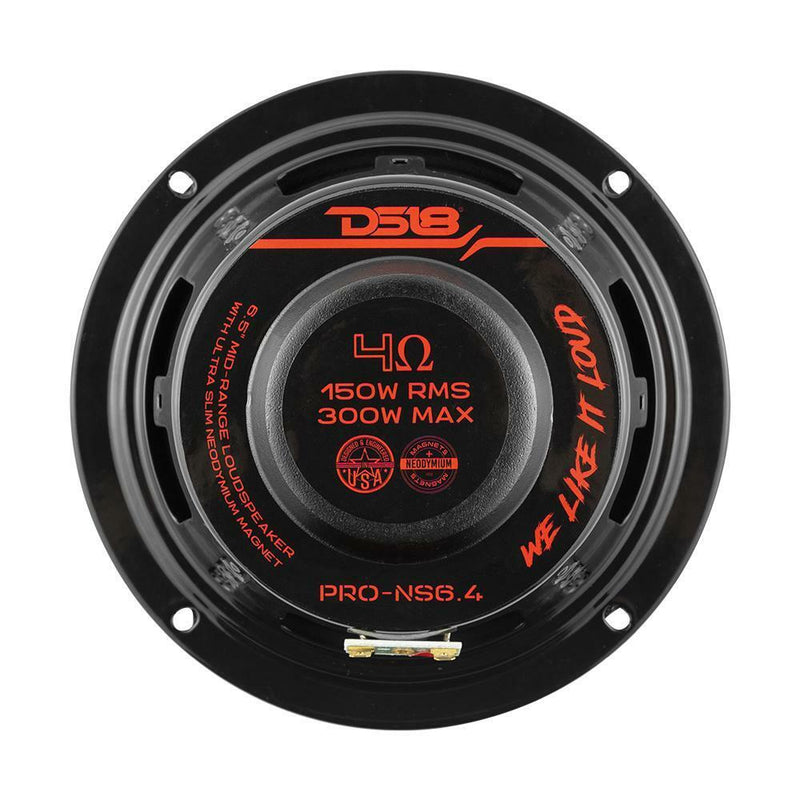

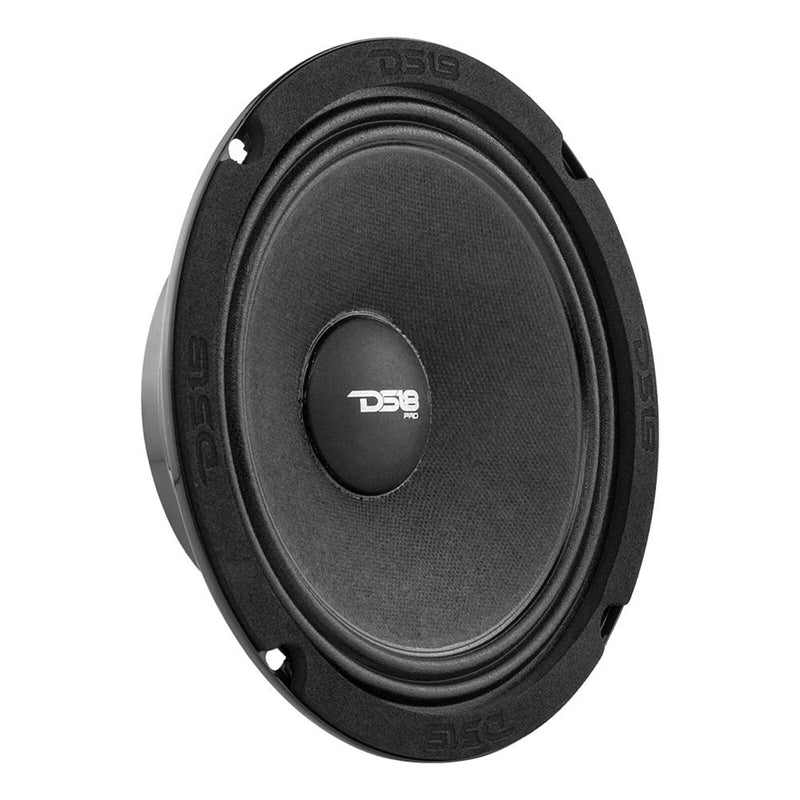

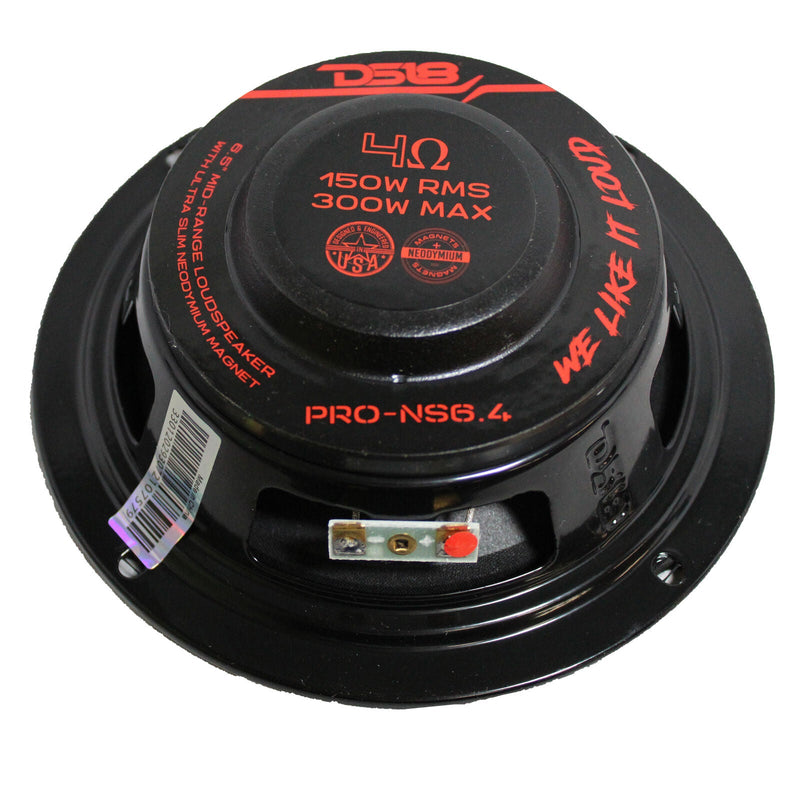

DS18 PRO 6.5" Mid-Range Speaker 300 Watt 4 Ohm with Ultra Slim Neodymium Magnet

DS18 SKU: DS-PRO-NS6.4

$59.95

Shipping calculated at checkout

Available Now!

DS18 PRO 6.5" Mid-Range Speaker 300 Watt 4 Ohm with Ultra Slim Neodymium Magnet

The PRO series is a special DS18 line for incredible sounding audio that not only has very high volume, but also amazing sound quality for a great price. This 6.5" inch, 4 ohm mid-range speaker is designed for audio enthusiasts as these speakers have a great range of frequencies and are very loud. 300 watt max power handling so you can pump up the volume with no worries. Ultra Slim Neodymium magnet allows for a shallow mounting depth of only 1.96". Small 6.5" size for a wide variety of vehicle applications.

This Listing Includes:
(1) DS18 6.5" Mid-Range Speakers PRO-NS6.4

Features:
-Ultra Slim Neodymium magnet allows for shallow mounting
-High Power handling of 300 Watts for hi volume listening
-Small 6.5" size for limitless audio applications

GENERAL SPECIFICATIONS:
Nominal Diameter: 6.5"
Nominal Impedance: 4 ohm
RMS Power Handling: 150W
MAX Power Handling: 300W
Sensitivity (1w/1m): 94dB
Frequency Response: 100Hz-12KHz
Recommended Hi Pass Crossover: 180Hz

MOTOR SPECIFICATIONS:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: KSV
Winding Material: Copper
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Neodymium
Magnet Weight: 1.79 oz / 50.74g

THIELE & SMALL PARAMETERS:
Equivalent Volume: 4.58L
Excursion (one way): 2 mm
Free Air Resonance: 137Hz
Mechanical Factor: 4.906
Electrical Factor: 1.072
Total Factor: .88
Mechanical Mass: 7.356 g
Mechanical Compliance: 183.287m cm/N
BL Factor: 4.2
Voice Coil Inductance: 2.695 mH
Cone Area: 132.732 cm3
DC Resistance: 3.2 ohm
Mechanical Mass w/o air: 6.477g

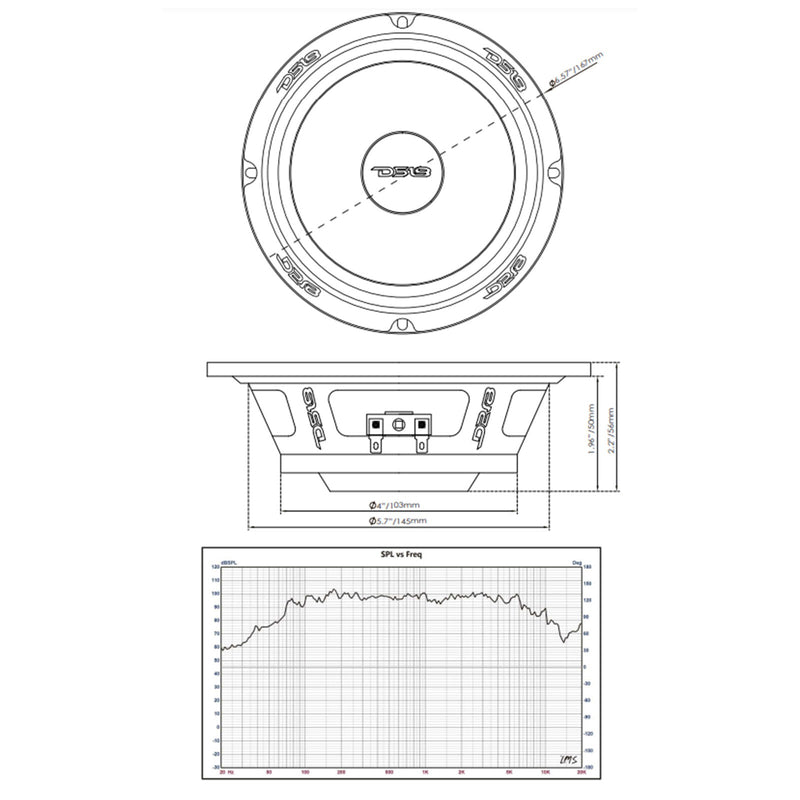

DIMENSIONS:
Overall Diameter: 6.57" / 167 mm
Overall Depth: 2.2" / 56 mm
Front Mount Baffle Cutout: 5.7"/145 mm
Mounting Depth: 1.96" / 50 mm
Motor Diameter: 4" / 103 mm
