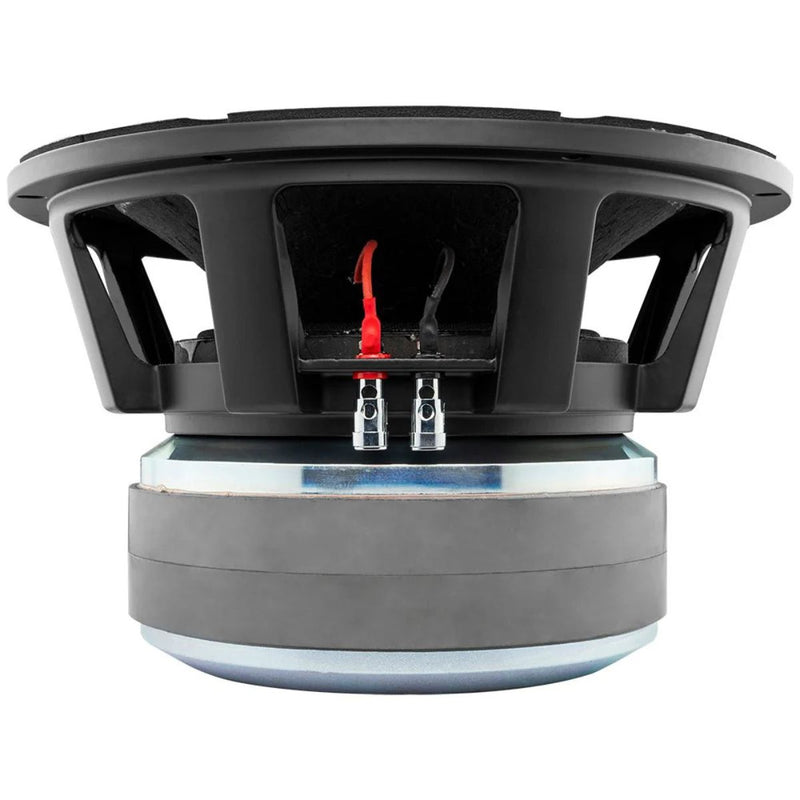

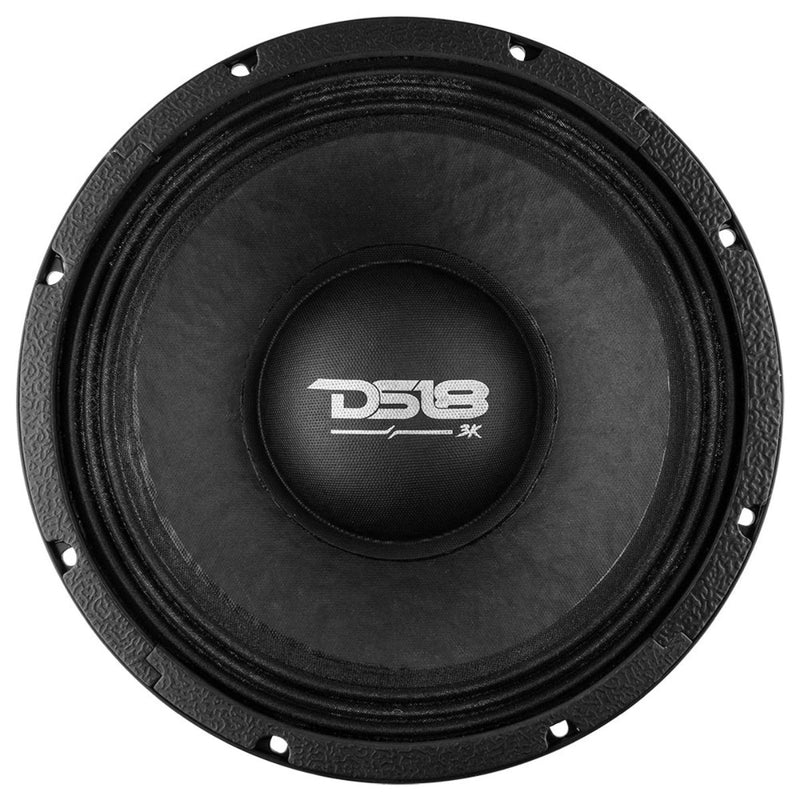

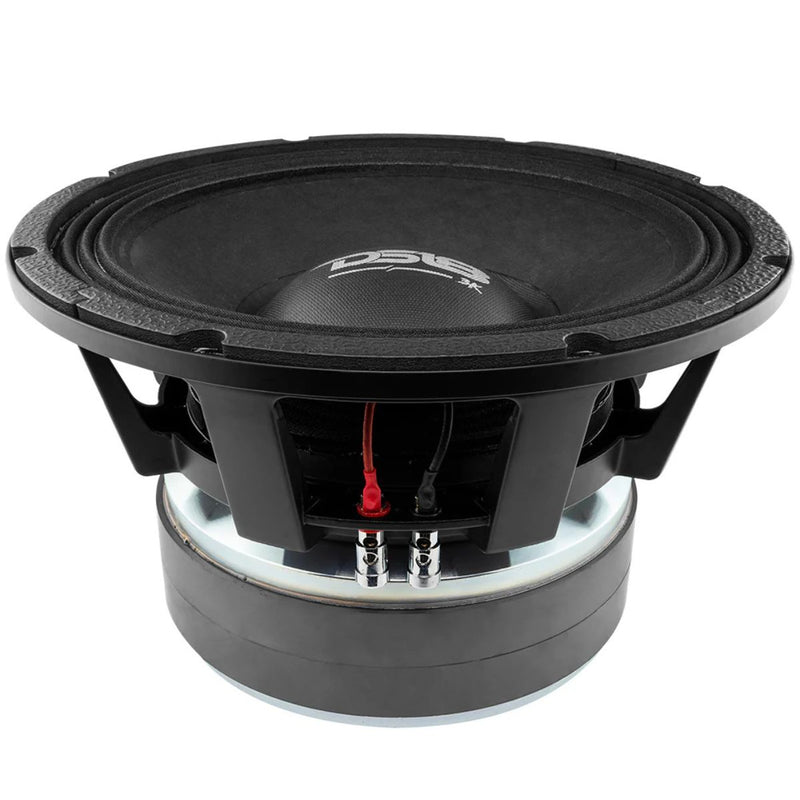

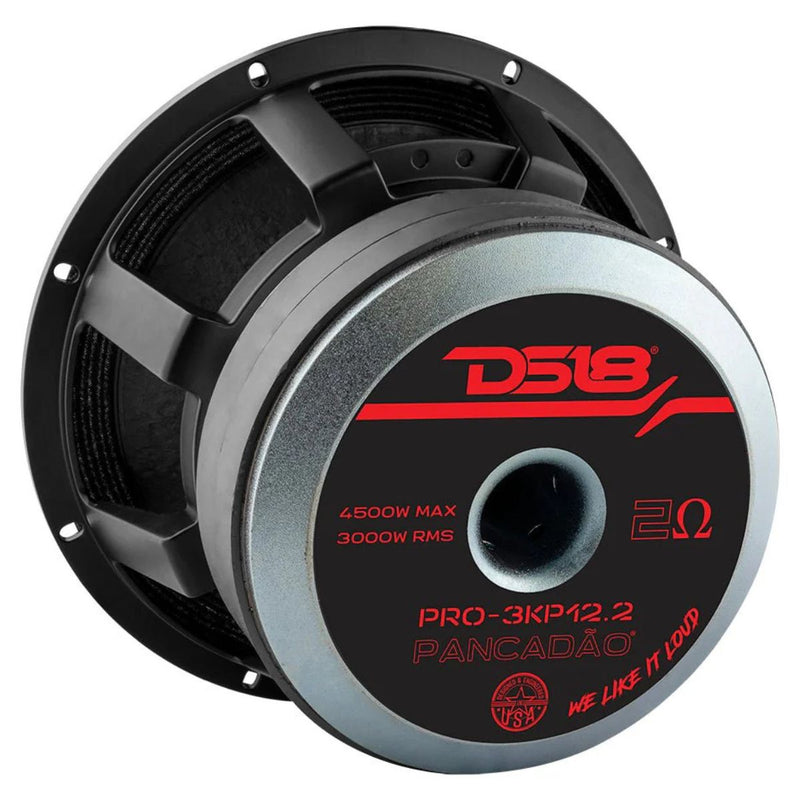

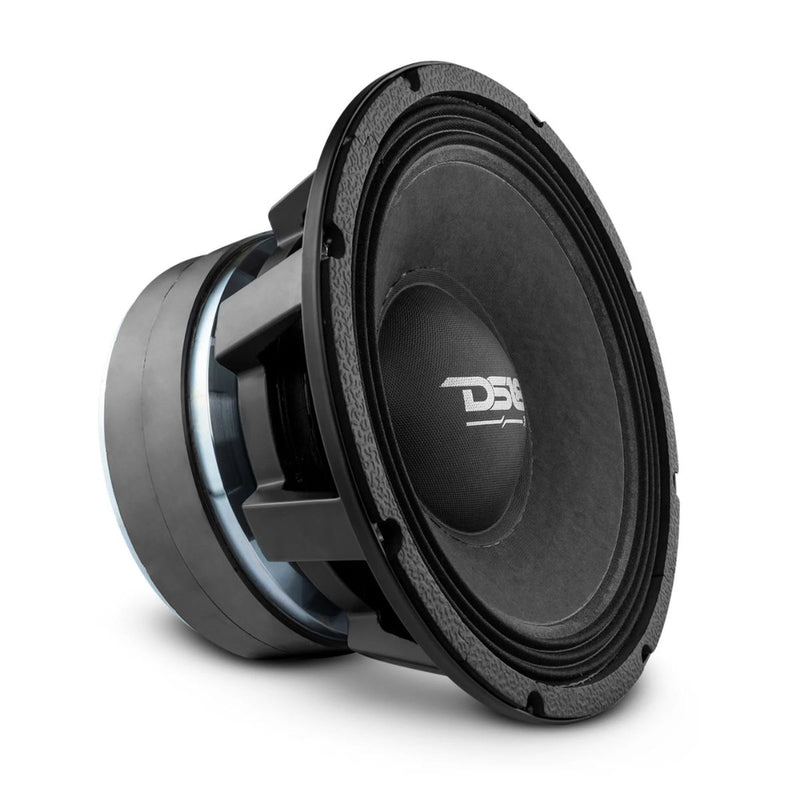

DS18 PRO-3KP12.2 12" Pro Loudspeaker 2 Ohm 4500W Car Audio Speaker

• Unmatched Power Handling: Capable of 4500W max and 3000W RMS, ensuring powerful, high-quality sound for any car audio system.
• Wide Frequency Response: Plays frequencies from 60Hz to 9KHz, providing exceptional clarity and depth across a wide range.
• High Sensitivity: With a sensitivity of 94.3dB, this speaker efficiently converts power to sound, making it perfect for high-volume applications.
• Robust Construction: Features a 12" frame with a 250 oz ferrite magnet and a non-pressed paper cone for superior durability and performance.
• Precision Engineering: Designed by expert Brazilian engineers for optimal audio performance and reliability.

Experience the pinnacle of car audio performance with the DS18 PRO-3KP12.2 12" Pro Loudspeaker 2 Ohm 4500W Car Audio Speaker, designed by our expert Brazilian engineers. This exclusive DS18 loudspeaker delivers unmatched power and clarity, making it the ideal choice for serious audio enthusiasts.

This listing includes:

(1) DS18 PRO-3KP12.2 12" Pro Loudspeaker 2 Ohm 4500W Car Audio Speaker

Specifications:

• SKU: PRO-3KP12.2


• Nominal Diameter: 12" / 304mm


• Nominal Impedance: 2 Ohms


• RMS Power Handling: 3000W


• Max Power Handling: 4500W


• Sensitivity (1w/1m): 94.3dB


• Frequency Response: 60Hz-9KHz


• Recommended High-Pass Crossover: 70Hz


• Sold as: Single unit


• Grill Included: No

Motor:

• Voice Coil Diameter: 4" / 101.6mm


• Voice Coil Former Material: Fiberglass


• Winding Material: CCAW (Copper-Clad Aluminum Wire)


• Cone Material: Non-Pressed Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Black


• Magnet Material: Ferrite


• Magnet Weight: 250 oz


• Displacement Volume: 3.98L / 0.14ft

Thiele & Small Parameters:

• Equivalent Volume (Vas): 28.7L / 1.01ft


• Excursion (Xmax): 7mm


• Free Air Resonance (Fs): 62Hz


• Mechanical Factor (Qms): 9.829


• Electrical Factor (Qes): 0.269


• Total Factor (Qts): 0.262


• Mechanical Mass (Mms): 141.3g


• Mechanical Compliance (Cms): 0.07 mm/N


• BL Factor (BL): 17.82


• Voice Coil Inductance (Le): 0.731 mH


• Cone Area (Sd): 510.71 cm


• DC Resistance (Re): 1.9 ohms


• Efficiency Bandwidth Product (EBP): 223

Recommended Enclosures:

• Ported Internal Volume: 50L / 1.78ft


• Port Size (Square, W x H x Long): 4.72" x 12.8" x 9" / 120 x 325 x 230mm


• Port Tuning Frequency (Fb): 76Hz


• Ported Box Output Response (F3): 65Hz

Measurements:

• Overall Diameter: 12.36" / 314mm


• Overall Depth: 7.75" / 197mm


• Front Mount Baffle Cutout: 11.18" / 284mm


• Mounting Depth: 7.2" / 183mm


• Motor Diameter: 8.66" / 220mm

Important: For optimal performance, do not install this speaker in a sealed box. A ported enclosure is recommended.
