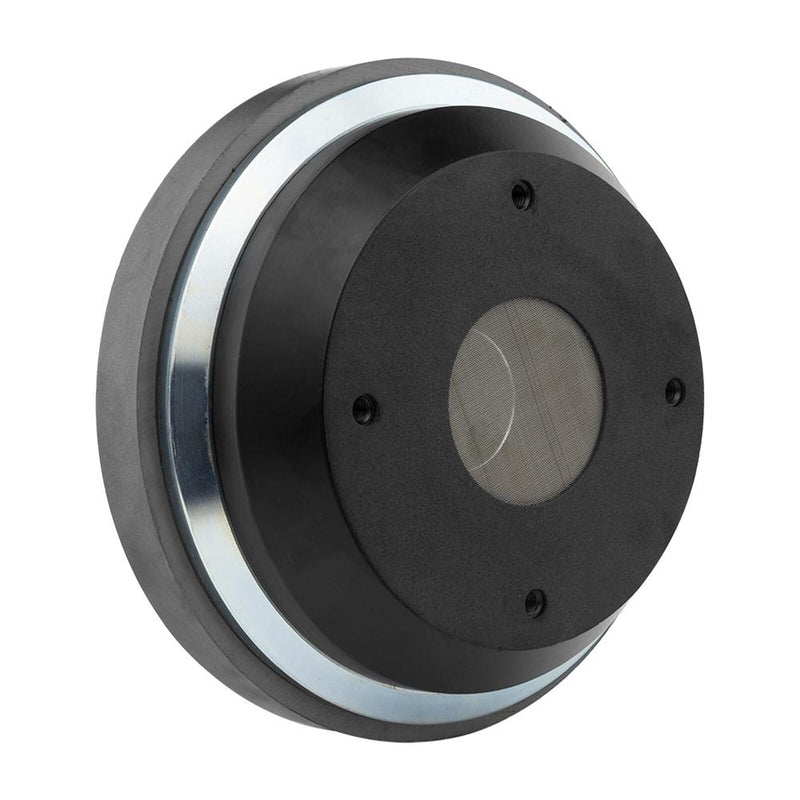

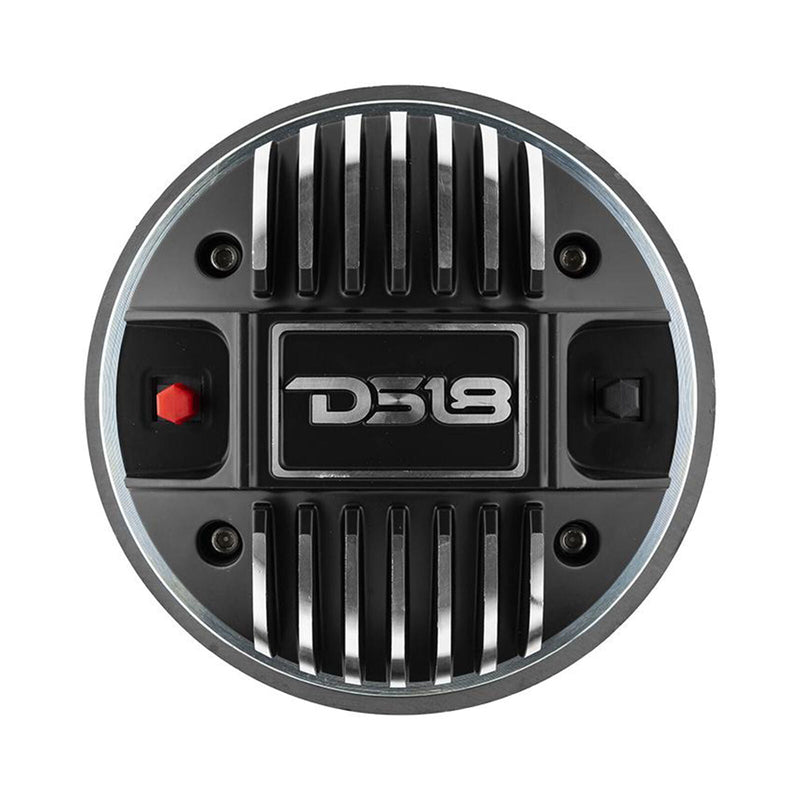

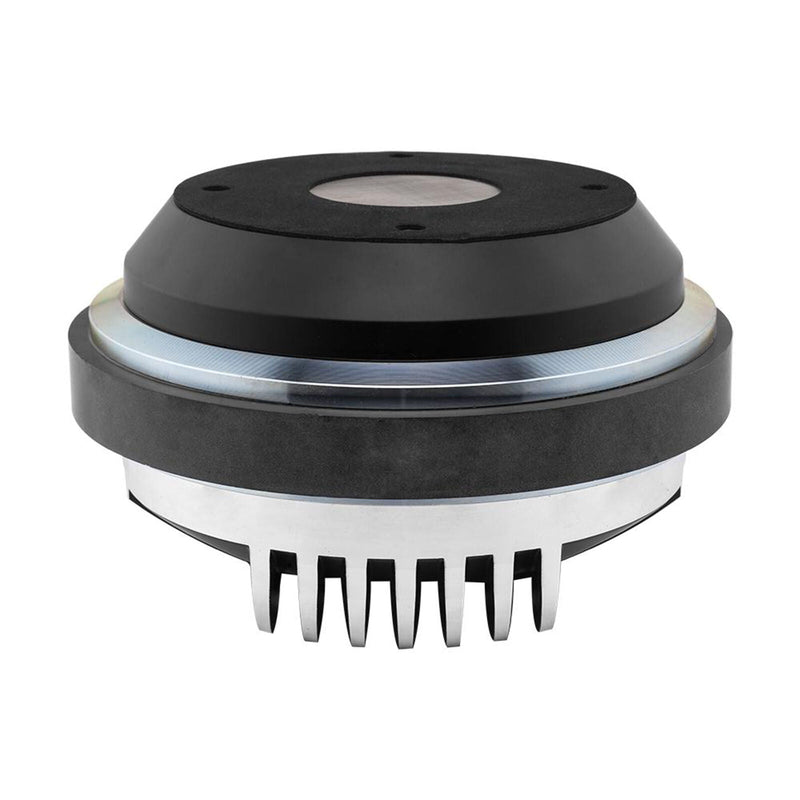

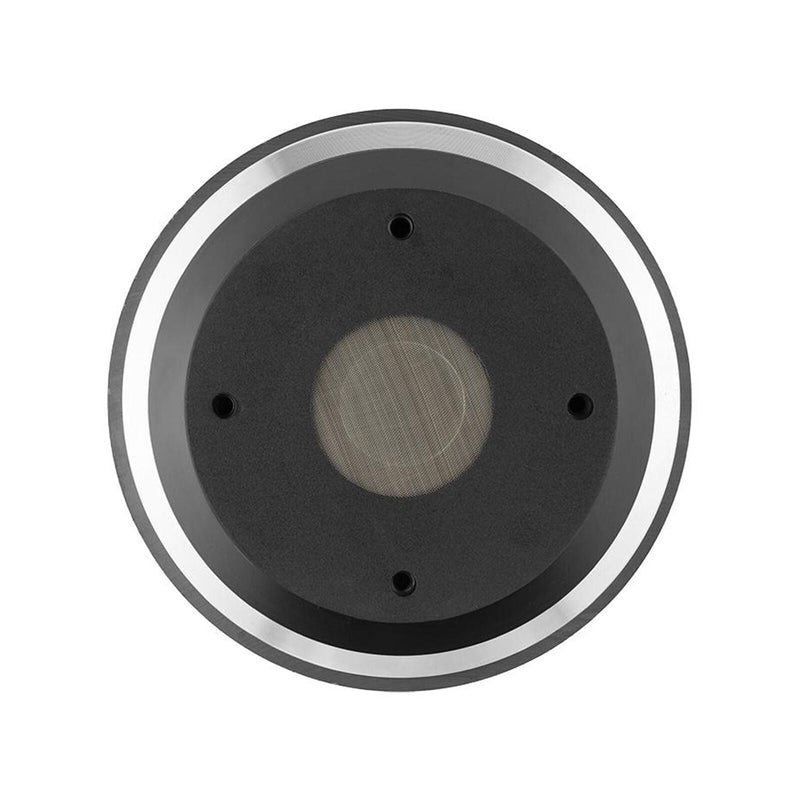

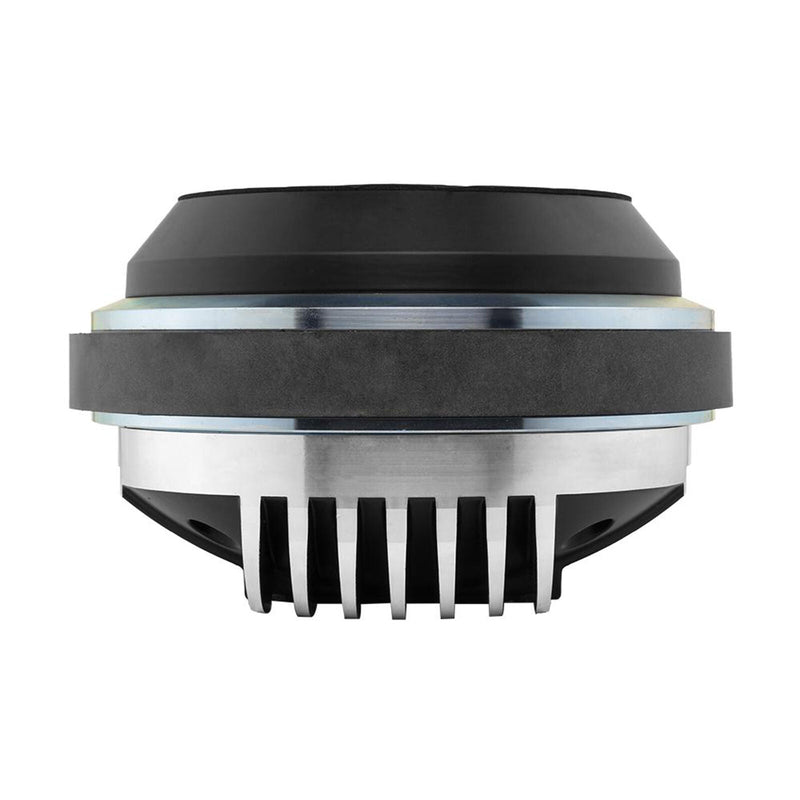

DS18 PRO 2" 1000 W 8-ohm Bolt On Throat Compression Driver with 3" Titanium VC

• Ferrite motor structure that provides great motor force and loudness.
• High strength phenolic voice coil taking 250 AES watts and 1000 peak watts.
• Intense high frequency volume without sacrificing sound quality.
• Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.

DS18 PRO 2" 1000 Watt 8-ohm Bolt On Throat Compression Driver with 3" Titanium VC

This Listing Includes:

• (1) DS18 Compression Driver PRO-D2X

DS18 Compression Drivers are known for their extreme loudness while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This DS18 PRO Compression Driver will be an amazing addition to any system that needs super loud highs with no compromises! This driver comes with a large 2 inch voice coil that takes 250 watts AES and 1000 watts peak power for extreme decibel production backed with a high efficiency motor.

FEATURES:

• Ferrite motor structure that provides great motor force and loudness.


• High strength phenolic voice coil taking 250 AES watts and 1000 peak watts.


• Intense high frequency volume without sacrificing sound quality.


• Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.

GENERAL SPECIFICATIONS:

• Throat Diameter: 2" / 50.8mm


• Installation Type: Bolt-on


• Nominal Impedance: 8 OHMS


• AES Power Handling: 250W


• Program Power Handling: 500W


• Peak Power Handling: 1000W


• Sensitivity (1w/1m): 110 dB

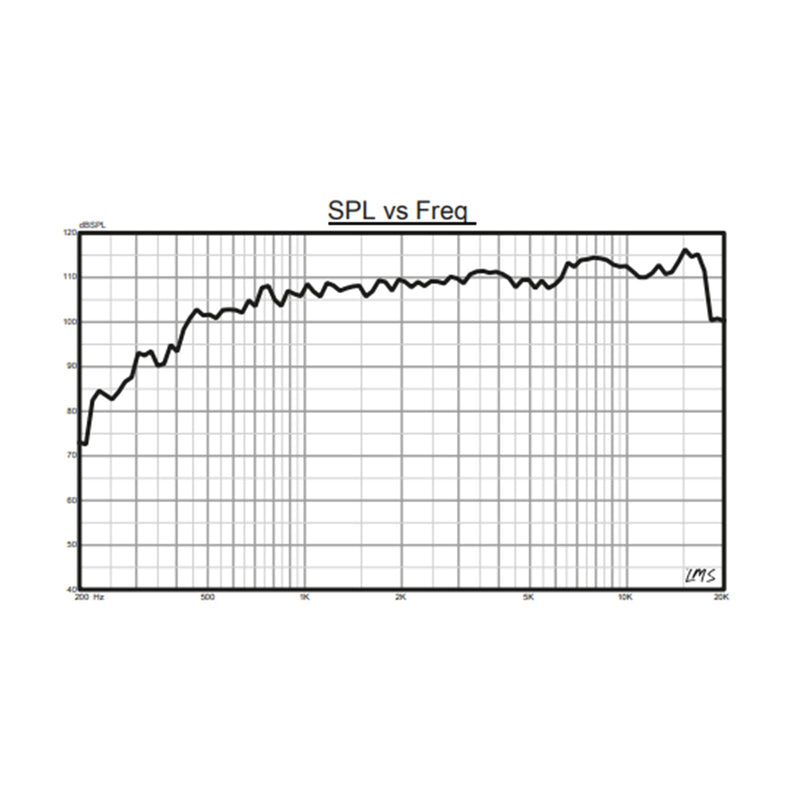

• Frequency Response: 600Hz-18KHz


• Recommended Hi Pass Crossover: 900 Hz


• MOTOR SPECIFICATIONS:


• Voice Coil Diameter: 3" / 76.2mm


• Voice Coil Former Material: Kapton


• Winding Material: Aluminum


• Diaphragm Material: Titanium


• Magnet Material: Ferrite


• Magnet Weight:75 Oz


• Body Material: Aluminum


• Color: Black Machined

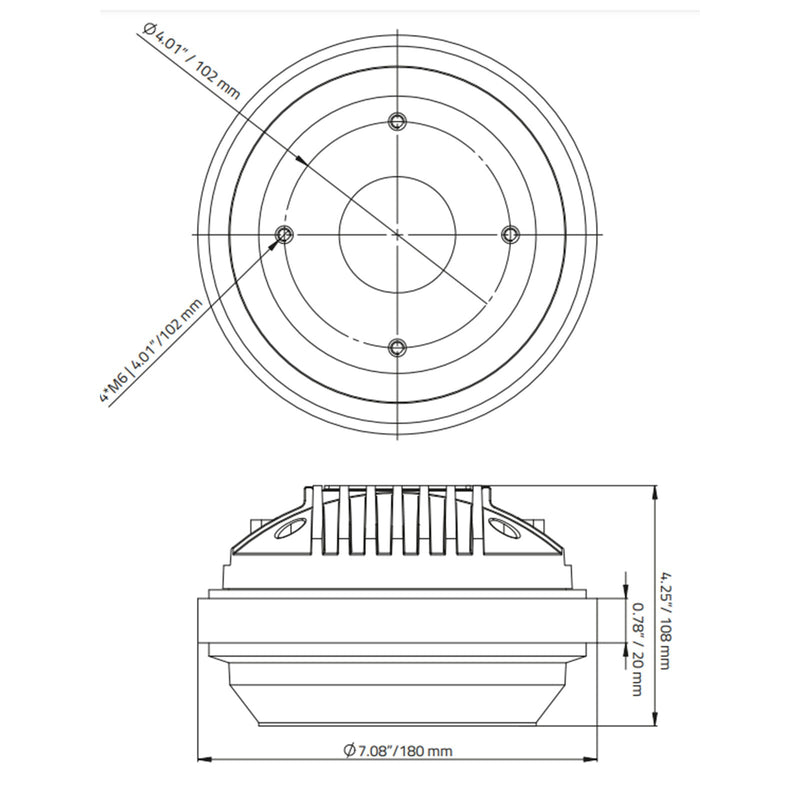

DIMENSIONS:

• Overall Diameter: 7.08"/180 mm


• Overall Depth: 4.25"/ 108 mm


• Bolt Pattern Type: 4*M6 ' 4.01"/102 mm
