- 1000 WATTS RMS POWER: The DS18 PRO-XLNEO12MB handles 1000 watts RMS and 2000 watts max power, delivering serious mid-bass output for high-performance car audio systems.
- POWERFUL 12" MID-BASS RESPONSE: With a 45Hz-7KHz frequency response and 98.2dB sensitivity, this 12" loudspeaker is built to add punch, detail, and authority to your pro audio setup.
- NEODYMIUM MOTOR DESIGN: The neodymium magnet structure provides efficient performance and powerful output while using a lighter motor design than traditional ferrite speakers.
- HEAVY-DUTY 4" VOICE COIL: Built with a 4" glass fiber voice coil former and CCAW winding, this speaker is made to handle high power and demanding audio builds.
- BUILT FOR PRO AUDIO: Features an aluminum basket, 18.5 oz neodymium magnet, and high-output design for custom door builds, demo vehicles, and show-quality systems.

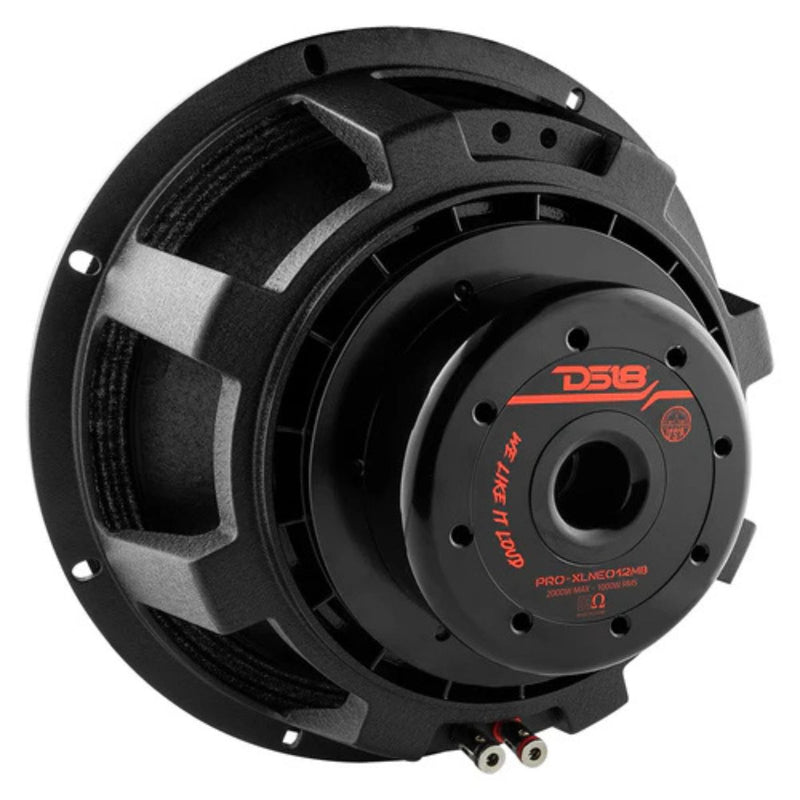

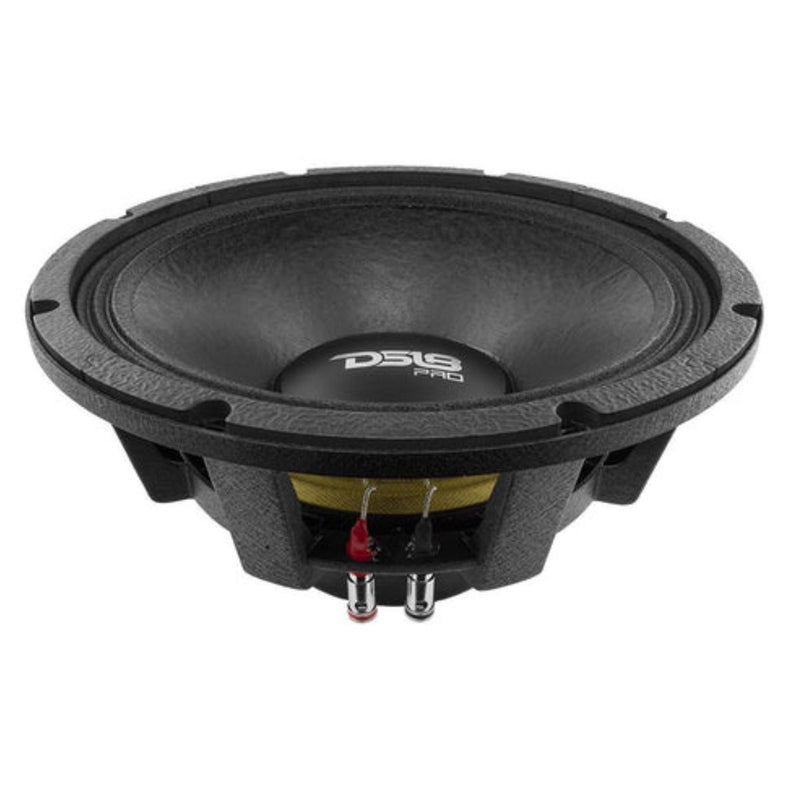

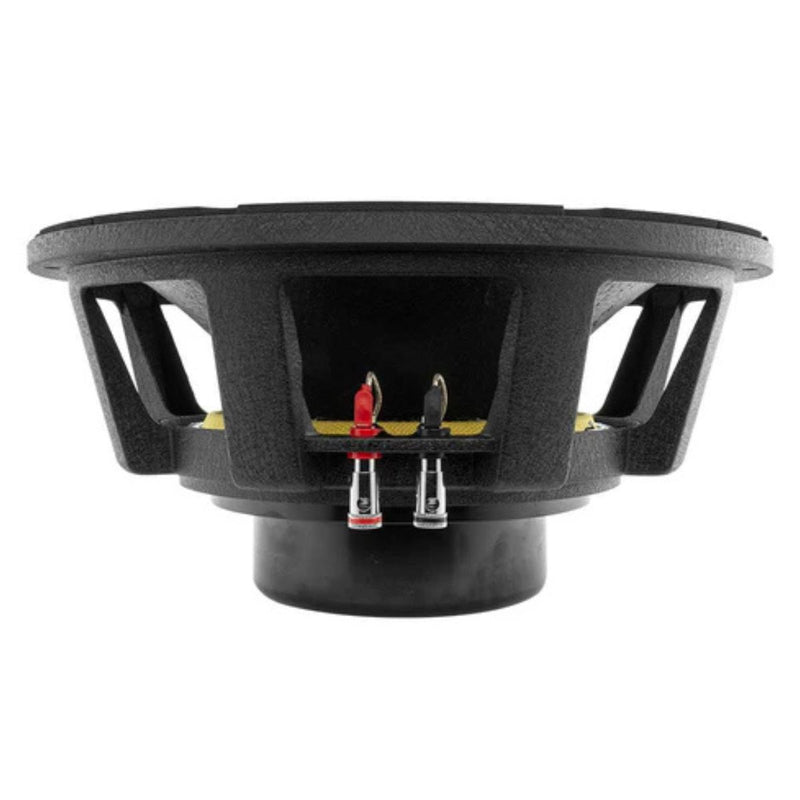

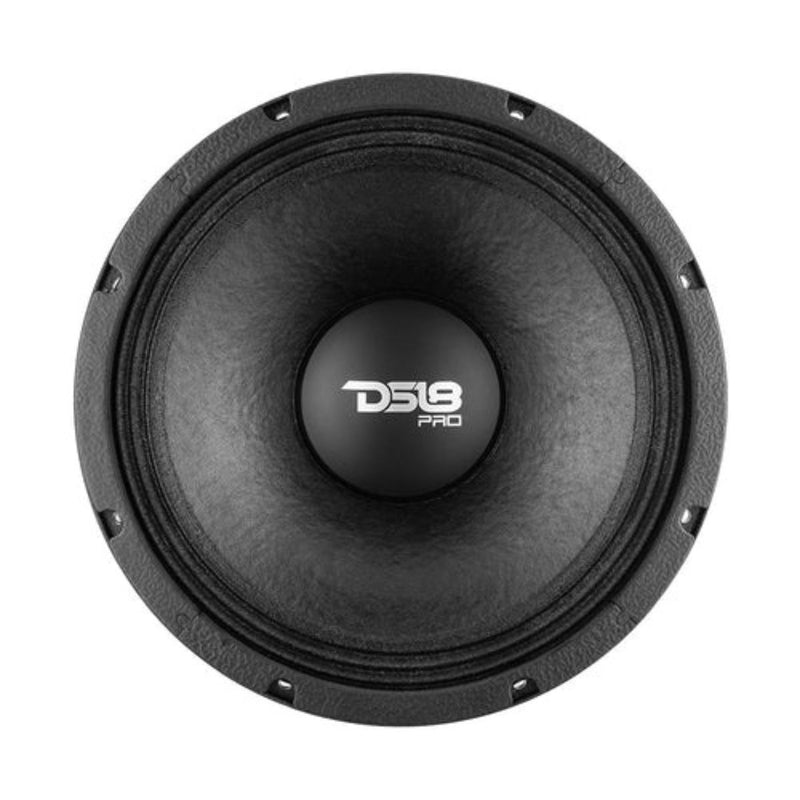

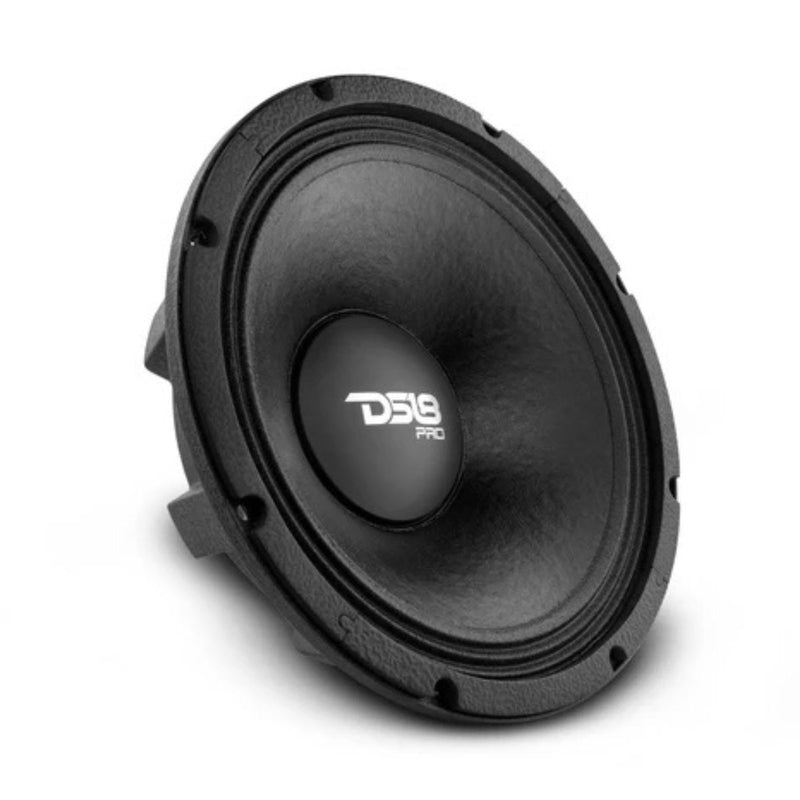

DS18 PRO 12" Neodymium Mid-Bass Loudspeaker 1000 Watts RMS 8-Ohm PRO-XLNEO12MB
This Listing Includes
- (1) DS18 12" Loudspeaker PRO-XLNEO12MB
The DS18 PRO-XLNEO12MB is built for serious pro audio systems that need powerful mid-bass output, high power handling, and clean response. This 12" mid-bass loudspeaker features an 8-ohm impedance, 1000 watts RMS power handling, and 2000 watts max power, giving custom car audio builds the punch and authority needed to fill in the powerful mid-bass range.
Built with a neodymium motor structure, the PRO-XLNEO12MB delivers strong performance with excellent efficiency and a lighter motor design compared to traditional ferrite speakers. With a 98.2dB sensitivity rating and a 45Hz-7KHz frequency response, this speaker is designed to deliver loud, detailed mid-bass performance with precision and control.
The PRO-XLNEO12MB features a large 4" glass fiber voice coil former, CCAW winding, aluminum basket, and 18.5 oz neodymium magnet. This combination gives the speaker the durability, power, and high-output performance needed for demanding pro audio builds, custom door setups, and show-quality systems.
Features
- 10" PRO Series mid-bass loudspeaker
- 1000 watts RMS power handling
- 2000 watts max power handling
- 8-ohm impedance
- 96.5dB sensitivity for strong output
- 50Hz-7KHz frequency response
- Recommended 100Hz high-pass crossover
- Neodymium motor structure for efficient performance
- Large 4" voice coil
- Glass fiber voice coil former
- CCAW voice coil winding
- Paper cone and paper dust cap
- Cloth surround
- Aluminum basket with sandblasted black finish
- Designed for pro audio systems, custom door builds, and high-output car audio
- Sold individually
Specifications:
- Brand: DS18
- Model: PRO-XLNEO12MB
- Series: PRO Series
- Speaker Size: 12"
- Speaker Type: Mid-Bass Loudspeaker
- Nominal Diameter: 12" / 304.8mm
- Nominal Impedance: 8 Ohm
- RMS Power Handling: 1000 Watts
- MAX Power Handling: 2000 Watts
- Sensitivity: 98.2dB
- Frequency Response: 45Hz-7KHz
- Recommended High-Pass Crossover: 80Hz
- Sold As: Single
Motor Specifications:
- Voice Coil Diameter: 4" / 99.8mm
- Voice Coil Former Material: Glass Fiber
- Winding Material: CCAW
- Basket Material: Aluminum
- Magnet Material: Neodymium
- Magnet Weight: 18.5 oz
Thiele & Small Parameters
- Vas: 22.76L / 0.8ft3
- Xmax: 13.8mm
- Fs: 72Hz
- Qms: 1.61
- Qes: 0.359
- Qts: 0.294
- Re:5.2 Ohm
Dimensions:
- Overall Diameter: 12.32" / 313mm
- Overall Depth: 5.92" / 150.5mm
- Front Mount Baffle Cutout: 11.2" / 284.5mm
- Mounting Depth: 5.45" / 138.5mm
