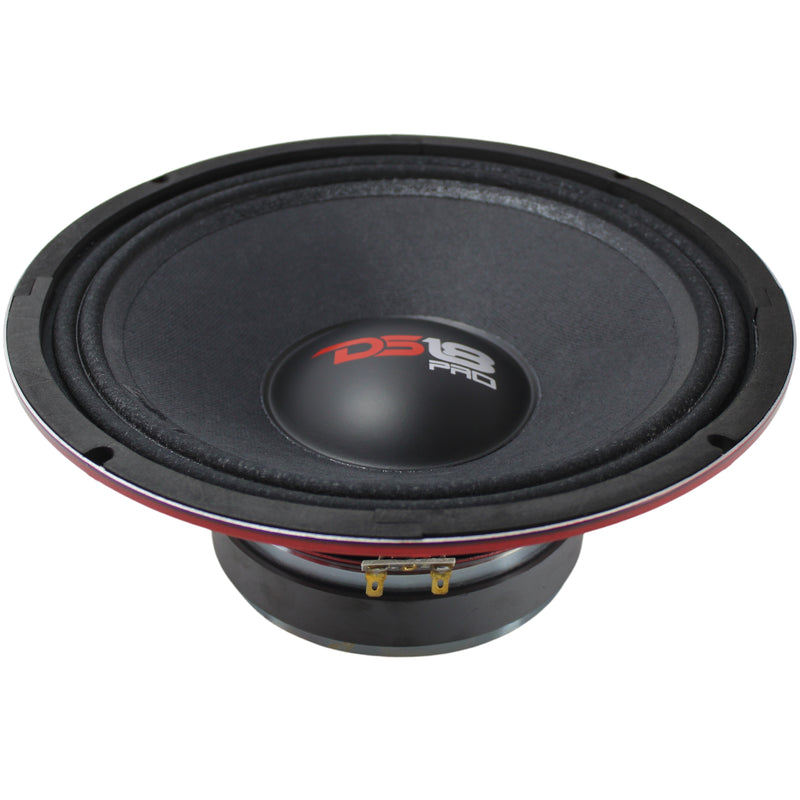

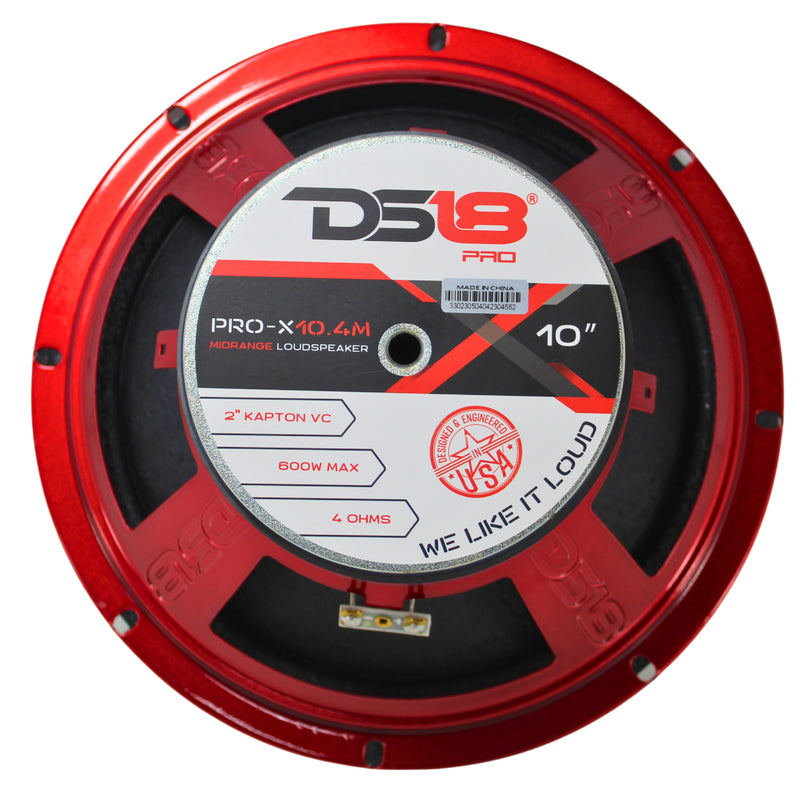

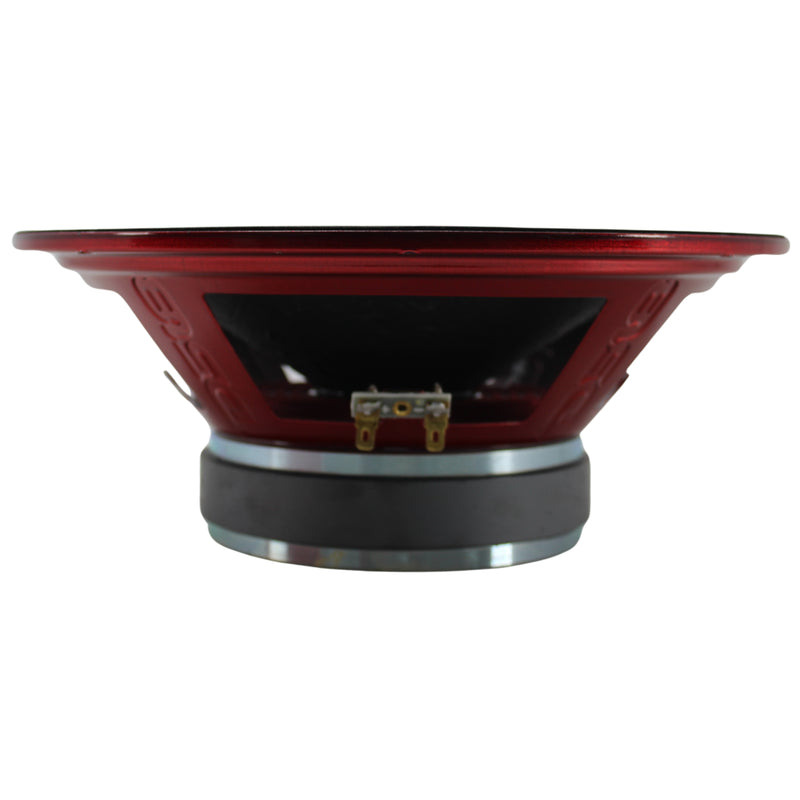

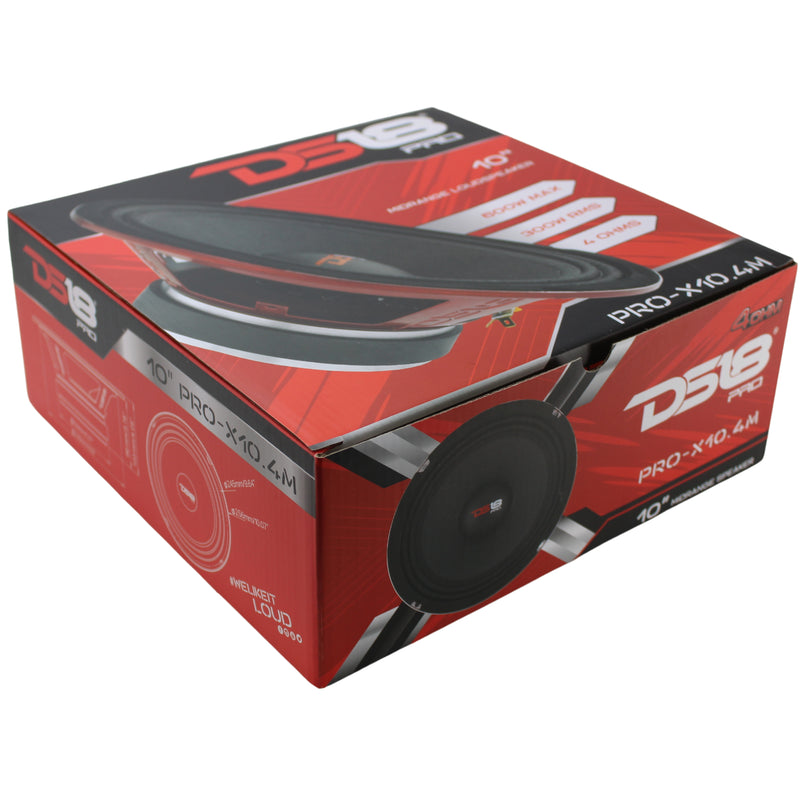

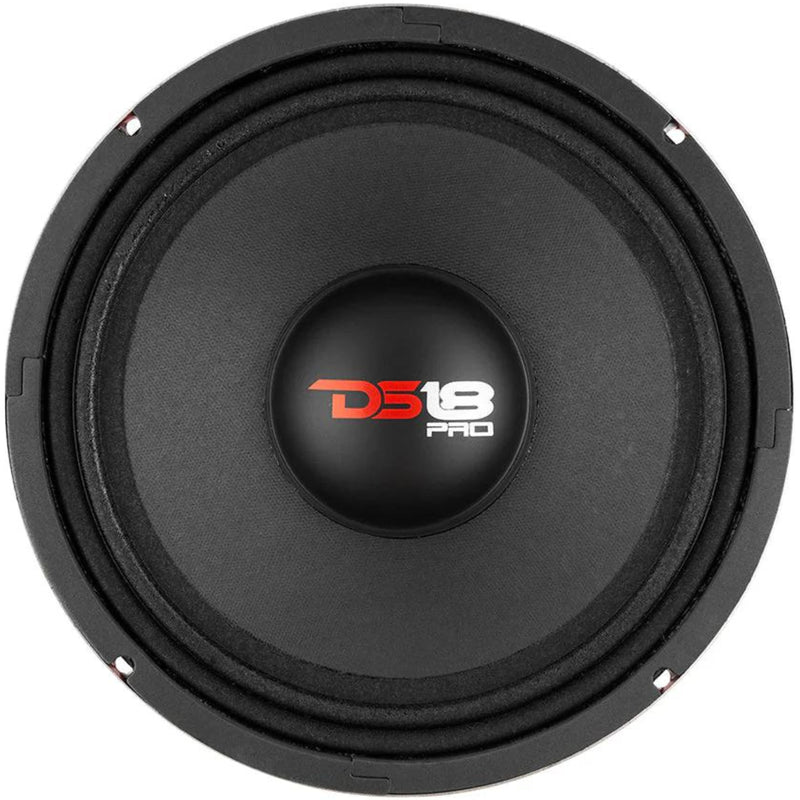

DS18 Car Audio 10" Midrange Loudspeaker 600 Watts 4 Ohm PRO-X10.4M

DS18 SKU: DS-PRO-X10.4M

$74.95

Shipping calculated at checkout

Available Now!

DS18 Car Audio 10" Midrange Loudspeaker 600 Watts 4 Ohm PRO-X10.4M

 During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert / "voceteo" audiophiles. Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you!

This listing includes:
(1) DS18 10" Midrange Speaker PRO-X10.4M
(1) Owner's Manual
(1) Installation Guide
(1) DS18 Decal

SPECIFICATIONS:
Nominal Diameter: 10"
Nominal Impedance: 4 Ohm
MAX Power Handling: 600 Watts
RMS Power Handling: 300 Watts
Sensitivity (1w/1m): 100.2 dB
Frequency Response: 76 Hz ~ 6.8 KHz

MOTOR:
Voice Coil Diameter: 2" (50.8mm)
Winding Material: CCAW
Cone Material: Non-pressed Paper
Surround Material: Cloth Edge
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 40 Oz

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 84.93dm³ (0.51ft³)
Free Air Resonance: Fs - 76.3 Hz
Mechanical Factor: Qms - 15.28
Electrical Factor: Qes - 0.886
Total Factor: Qts - 0.841
Dc Resistance: Re - 3.2 Ohm

Dimensions:
Overall Diameter: 10.08" (256mm)
Baffle Cutout Diameter: 9.05" (230mm)
Mounting Depth: 4.06" (103mm)
Weight: 8.27 Lbs
