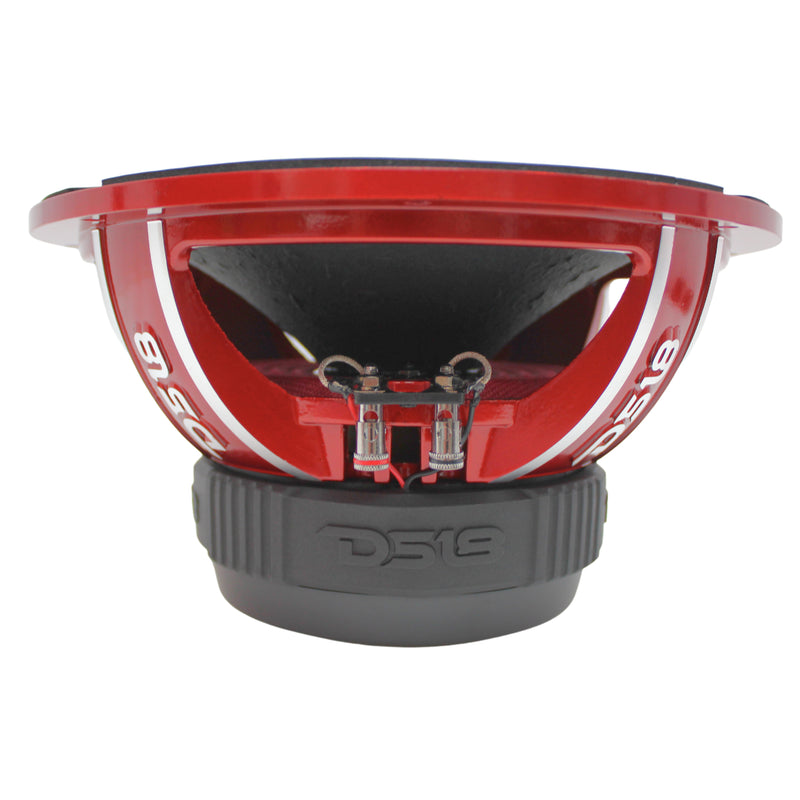

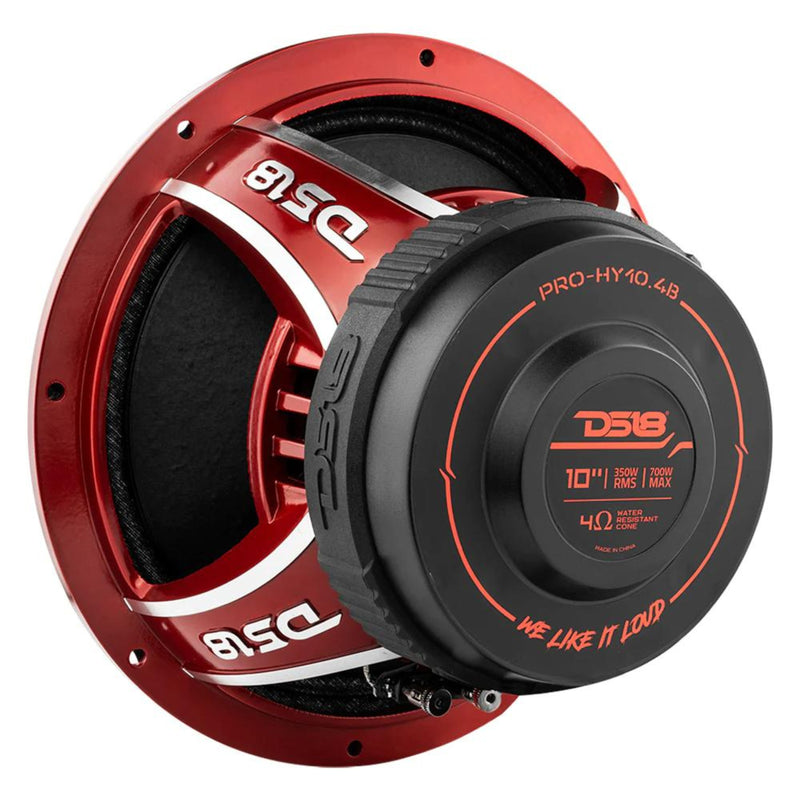

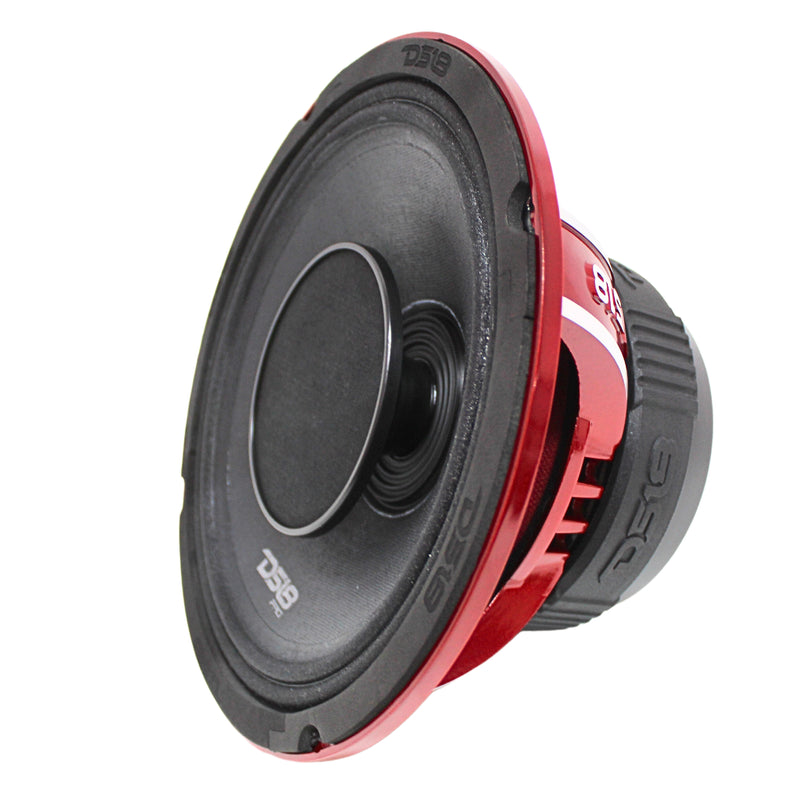

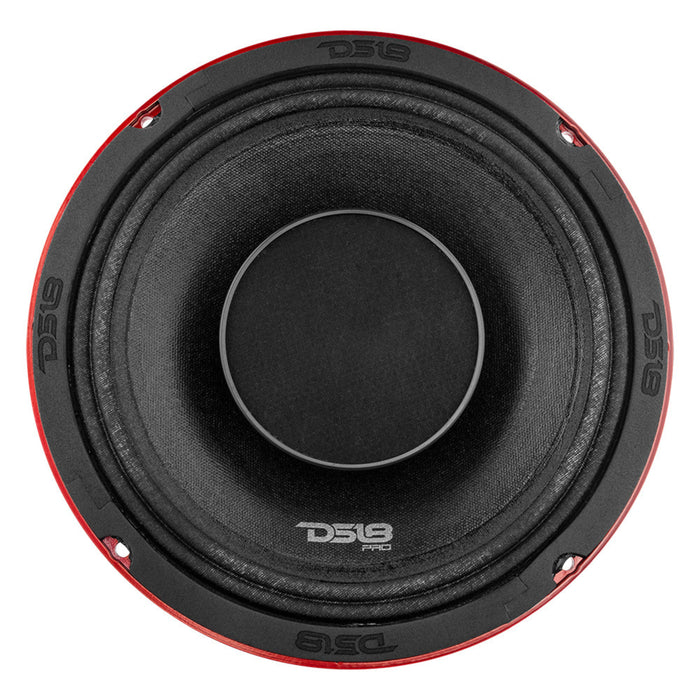

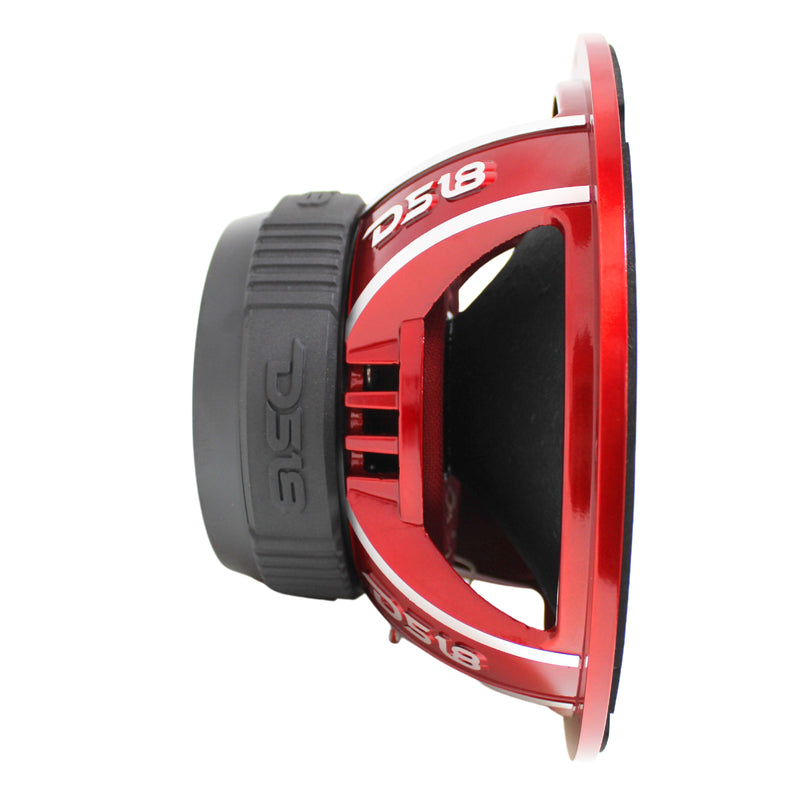

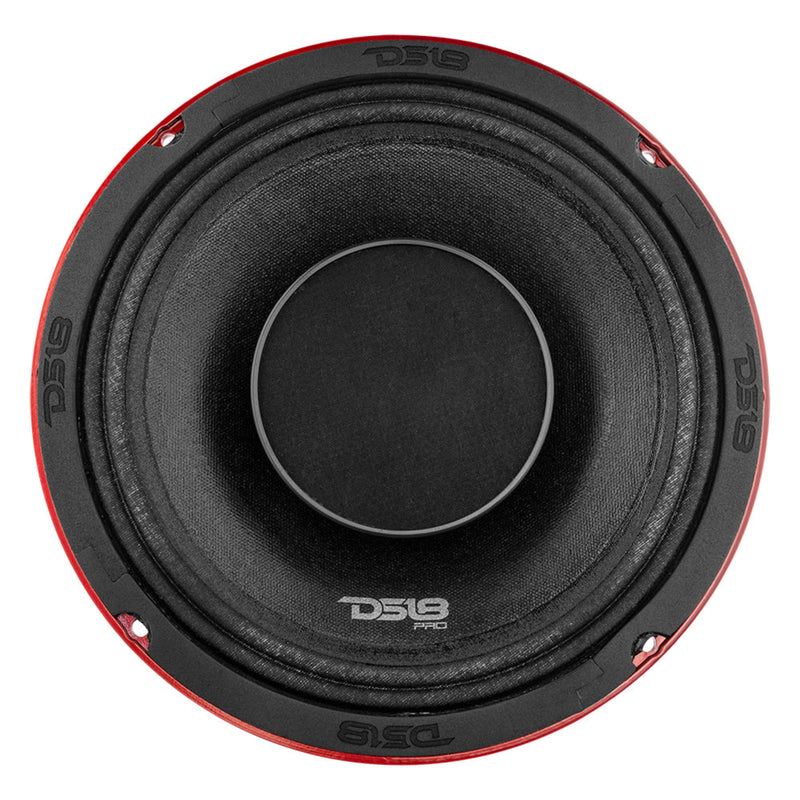

DS18 PRO 10" 350 Watt 4 Ohm Hybrid Mid-Range Loudspeaker w/ Built-in Driver

• Hybrid 2-Way Design: Combines a 10" midrange speaker with a built-in compression driver for powerful mids and crisp high-frequency detail.
• High Power Handling: Handles 350W RMS and 700W max power, making it ideal for loud custom car audio and pro-style builds.
• Loud Efficient Output: 100dB sensitivity helps deliver strong volume with less power demand from your amplifier.
• Wide Frequency Response: Plays from 40Hz to 20kHz with a recommended 70Hz high-pass crossover for clean performance.
• Built Tough: Features a water-resistant paper cone, cloth surround, aluminum basket, ferrite woofer magnet, titanium driver diaphragm, and included protective grille.

DS18 PRO 10" 350 Watt 4 Ohm Hybrid Mid-Range Loudspeaker w/ Built-in Driver PRO-HY10.4B

This Listing Includes:

• (1) DS18 10" Loudspeaker PRO-HY10.4B

The DS18 PRO-HY10.4B is built for serious sound systems that need loud midrange output with crisp high-frequency detail in one powerful speaker. This 10" hybrid loudspeaker combines a high-output midrange woofer with a built-in compression driver, giving your system strong vocals, aggressive musical detail, and wide frequency performance from a single 2-way speaker design.

With 350W RMS power handling, 700W max power, 4-ohm impedance, and an impressive 100dB sensitivity rating, the PRO-HY10.4B is made to get loud while staying efficient. Its water-resistant paper cone, cloth surround, aluminum basket, ferrite woofer magnet, and titanium driver diaphragm make it a strong choice for custom car audio builds, loud door setups, pro audio systems, and high-output installations.

The built-in 1.5" titanium compression driver extends the speaker’s response up to 20kHz, helping deliver clear highs without needing a separate tweeter in many setups. A protective grille is included for a clean finished look and added speaker protection.

Features

• 10" hybrid mid-range loudspeaker with built-in driver


• 2-way speaker design for mids and highs


• 350W RMS / 700W max power handling


• 4-ohm nominal impedance


• High 100dB sensitivity for loud, efficient output


• Wide 40Hz–20kHz frequency response


• Recommended high-pass crossover of 70Hz


• Built-in 1.5" titanium compression driver


• Water-resistant paper cone rated IPx5


• Durable cloth surround


• Strong aluminum basket with matte black finish


• Ferrite woofer magnet with neodymium driver magnet


• Includes protective grille


• Great for custom door builds, loudspeaker setups, and high-output car audio systems

Specifications

• Model: PRO-HY10.4B


• Nominal Diameter: 10" / 254mm


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 350W


• Max Power Handling: 700W


• Sensitivity: 100dB


• Frequency Response: 40Hz–20kHz


• Recommended High-Pass Crossover: 70Hz


• Number of Ways: 2-Way


• Sold As: Single Speaker


• Grille Included: Yes


• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Glass Fiber


• Winding Material: CCAW


• Cone Material: Water-Resistant Paper, IPx5


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Finish: Matte Black


• Magnet Material: Ferrite


• Magnet Weight: 49 oz


• Displacement Volume: 2.86L / 0.1 cu. ft.


• Voice Coil Diameter: 1.5" / 38.6mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Horn Diameter: 4.25" / 108mm

Thiele & Small Parameters

• Vas: 21.8L / 0.76 cu. ft.


• Xmax: 10mm


• Fs: 95Hz


• Qms: 12.59


• Qes: 0.995


• Qts: 0.922


• Mms: 26.78g


• Cms: 0.125 mm/N


• BL: 6.851


• Le: 0.313mH


• Sd: 352.99 cm


• Re: 3.4 Ohms


• Mmd: 25g

Dimensions

• Overall Diameter: 10.3" / 261.5mm


• Overall Depth: 5.7" / 144.4mm


• Front Mount Baffle Cutout: 9" / 231mm


• Mounting Depth: 5.31" / 135mm


• Motor Diameter: 5.7" / 145mm
