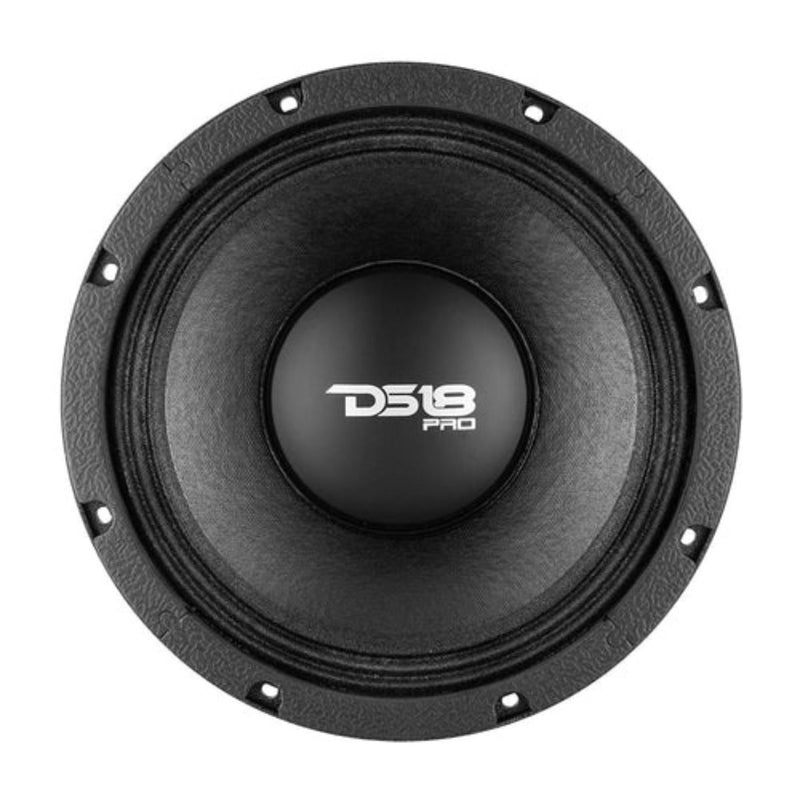

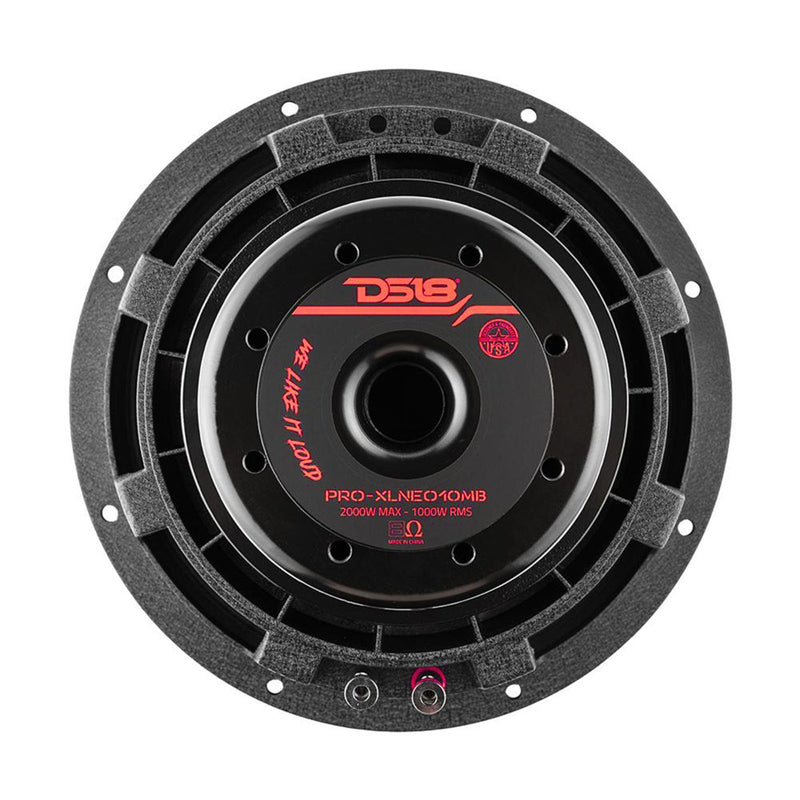

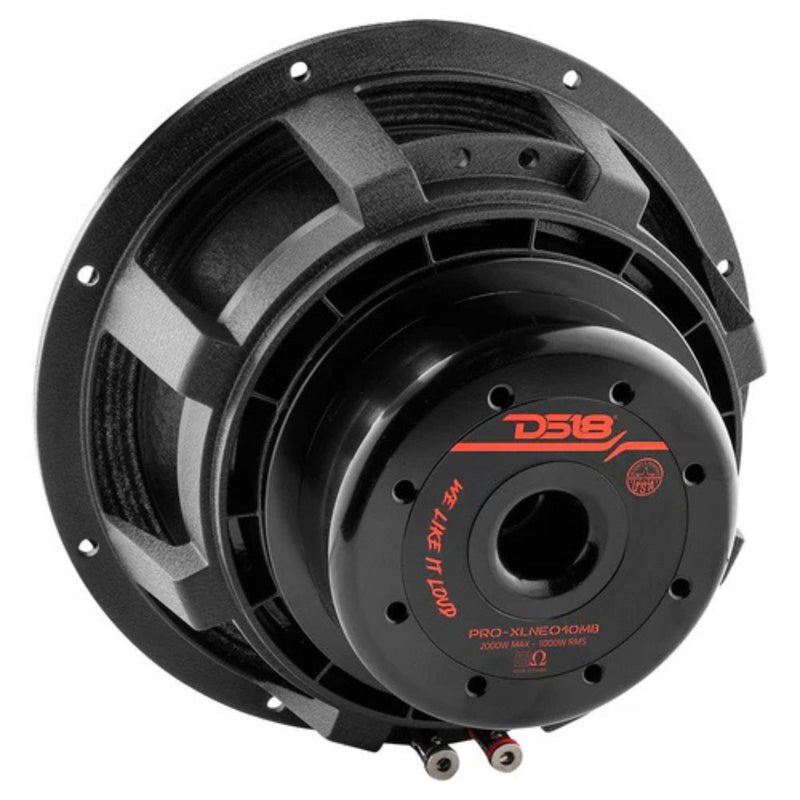

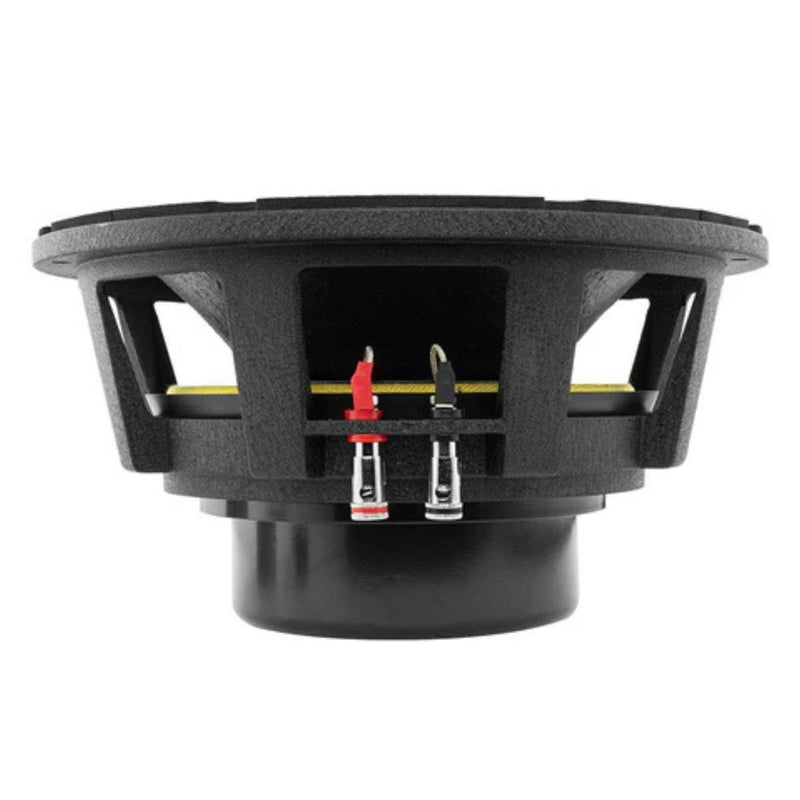

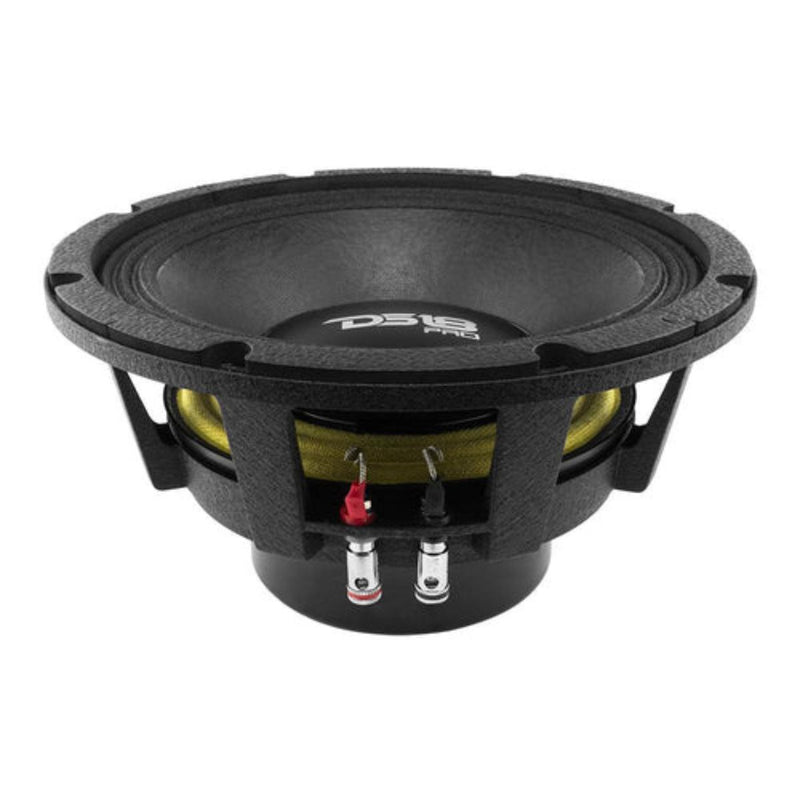

This is the latest and greatest mid bass from the engineers at DS18! Unleash amazing and crazy mid bass with this new DS18 specialty mid bass Neodymium speaker, the PRO-XLNEO10MB. This mid bass speaker packs a huge punch and is backed with the awesome force of the Neodymium motor structure, which is much more efficient and has better power transition than traditional ferrite motors used in most speakers. These Neo speakers handle 1000 watts RMS and 2000 watts peak while also retaining an amazing 96.5db sensitivity which is rare and really drives these XL NEO speakers to the core. These are guaranteed to bring out all the mid bass you are missing from your pro audio system with great authority and precision.
This listing Includes:
(1) DS18 10" Mid Bass Speaker
FEATURES:
-Midbass Neodymium motor structure will deliver more precise precision while also painting great efficiency and power handling
-Highly durable 8 ohm, 4" VC handling 2000 watts Peak and 1000 watts RMS power ensuring high volume
-High quality cone, dustcap, speaker terminals, and basket will ensure long life along with an amazing show quality looks.
GENERAL SPECIFICATIONS:
Nominal Diameter: 10" / 254mm
Nominal Impedance: 8 OHMS
RMS Power Handling:1000W
MAX Power Handling: 2000W
Sensitivity (1w/1m): 96.5 dB
Frequency Response: 50Hz - 7KHz
Recommended HI Pass Crossover: 100Hz
MOTOR SPECIFICATIONS:
Voice Coil Diameter: 4" / 99.8mm
VC Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: Paper
Dustcap Material:Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color:Sandblasted Black
Magnet Material:Neodymium
Magnet Weight:18.5 Oz
Displacement Volume: 1.83L / 0.064ft3
THIELE & SMALL PARAMETERS:
Equivalent Volume: 20.53L / 0.72ft3
Excursion (one way):13.8 mm
Free Air Resonance: 64Hz
Mechanical Factor: 3.03
Electrical Factor:0.255
Total Factor: 0.235
Mechanical Mass: 78.573g
Mechanical Compliance: 0.125mm/N
BL Factor:20.072
Voice Coil Inductance: 32.64mH
Cone Area: 339.795CM
DC Resistance: 5.2 Ohm
Mechanical Mass w/o Air: 65.971g
DIMENSIONS:
Overall Diameter: 10.43"/265mm
Overall Depth: 5.45" / 138.5mm
Front Mount Baffle Cutout: 9.29"/236mm
Mounting Depth: 4.98"/126.5mm
Motor Diameter: 5.86"/149mm
