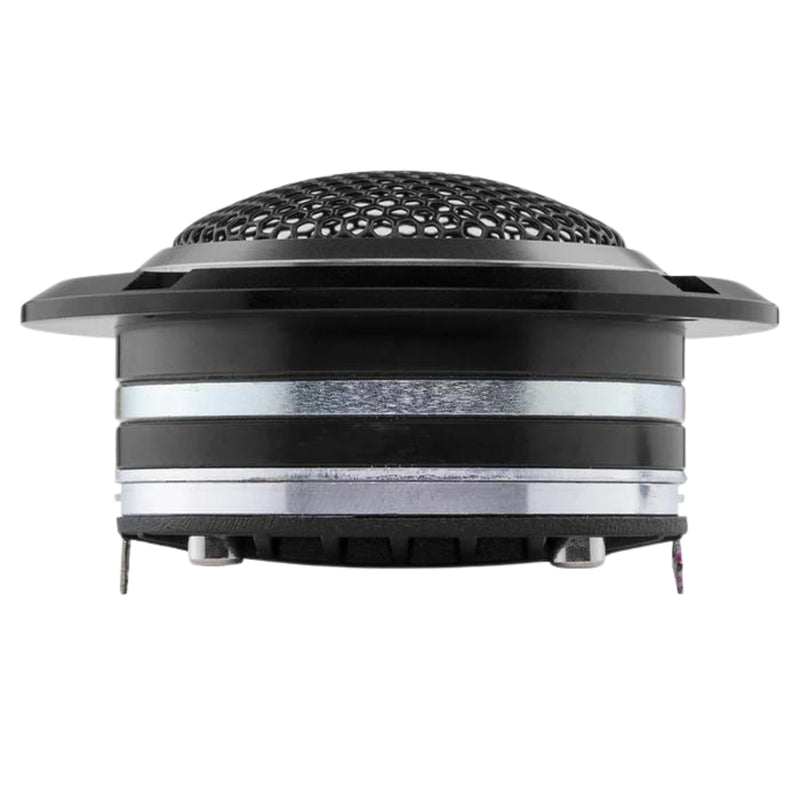

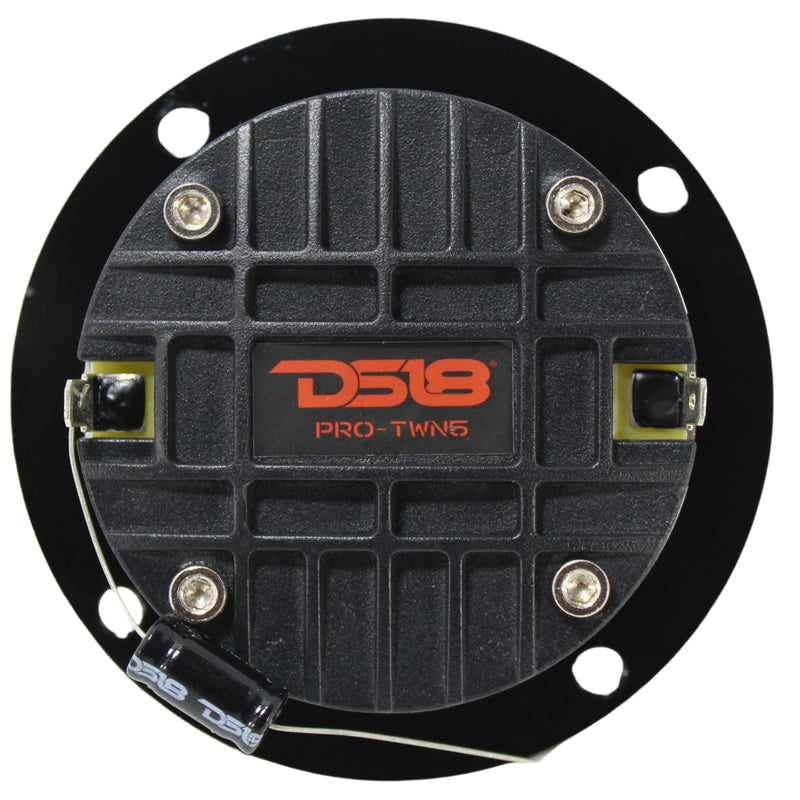

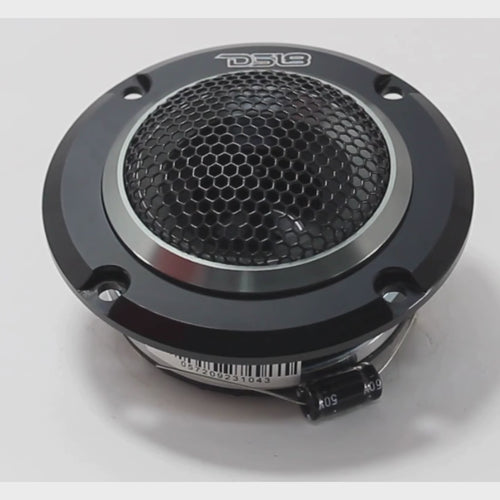

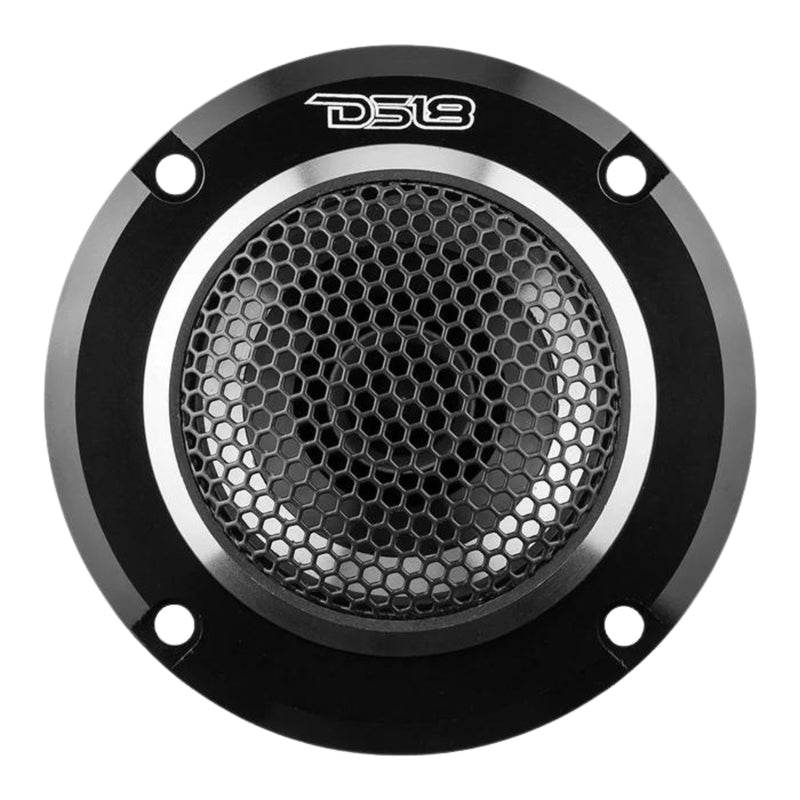

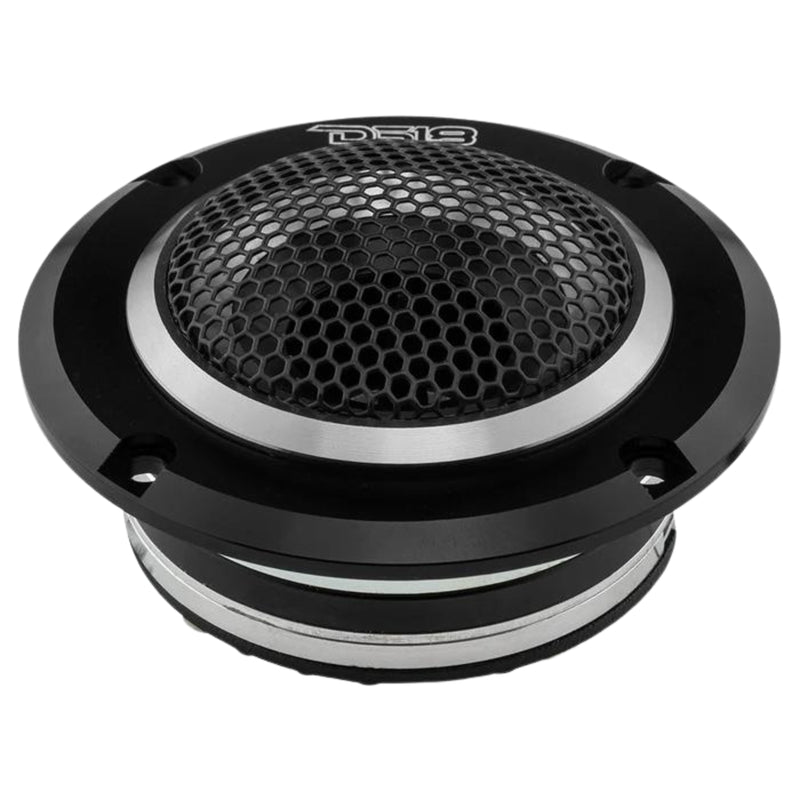

DS18 PRO 1.5" 4 Ohm 400 Watt High Compression Neodymium Driver/Tweeter PRO-TWN5

DS18 SKU: DS-PRO-TWN5

$72.95

Shipping calculated at checkout

Available Now!

DS18 PRO 1.5" 4 Ohm 400 Watt High Compression Neodymium Driver/Tweeter PRO-TWN5

DS18's new PRO-TWN5 has all the looks of a driver but has been compactly sized to fit into super tweeter dimensions. This new super tweeter's 1-inch voice coil can handle 200w RMS and 400W peak. comes with a neodymium magnet which increases the tweeters efficiency and lowers the weight dramatically. Each tweeter comes with an included bass blocker for extra protection against frequencies that would otherwise damage the tweeter so you can feel safe your equipment can play loud and long. These tweeters have a very high sensitivity of 107DB so the do not require full power to get extremely loud. This opens you up to multiple amp choices for your tweeters and gives you the versatility everyone looks for in powering and using your new tweeters.

This Listing Includes:
(1) DS18 1.5“ Driver/Tweeter PRO-TWN5

SPECIFICATIONS:
Nominal Diameter: 3.64”
Nominal Impedance: 4 Ohms
Peak Power Handling: 400 Watts
Program Power Handling: 200 Watts
AES Power Handling: 100 Watts
Sensitivity (1W/1W): 107dB
Frequency Response: 1.5KHz-20KHz
Recommended Hi Pass Crossover: 2KHz

MOTOR:
Voice Coil Diameter: 1.5" (37.8mm)
Voice Coil Former Material: KSV
Winding Material: CCAR
Diaphragm Material: PEN
Magnet Material: Neodymium
Magnet Size: 2.75" x 0.2"
Body Material: CNC Aluminum
Bullet Material: Aluminum

DIMENSIONS:
Overall Diameter: 3.66" (93mm)
Overall Depth: 2.05" (52.2mm)
Front Mount Baffle Cutout: 2.75" (70mm)
Mounting Depth: 1.27" (32.3mm)

Speaker Wire Gauge: 16-18GA
